Infiniti EX35. Manual - part 1483

VTL-50

< ON-VEHICLE REPAIR >

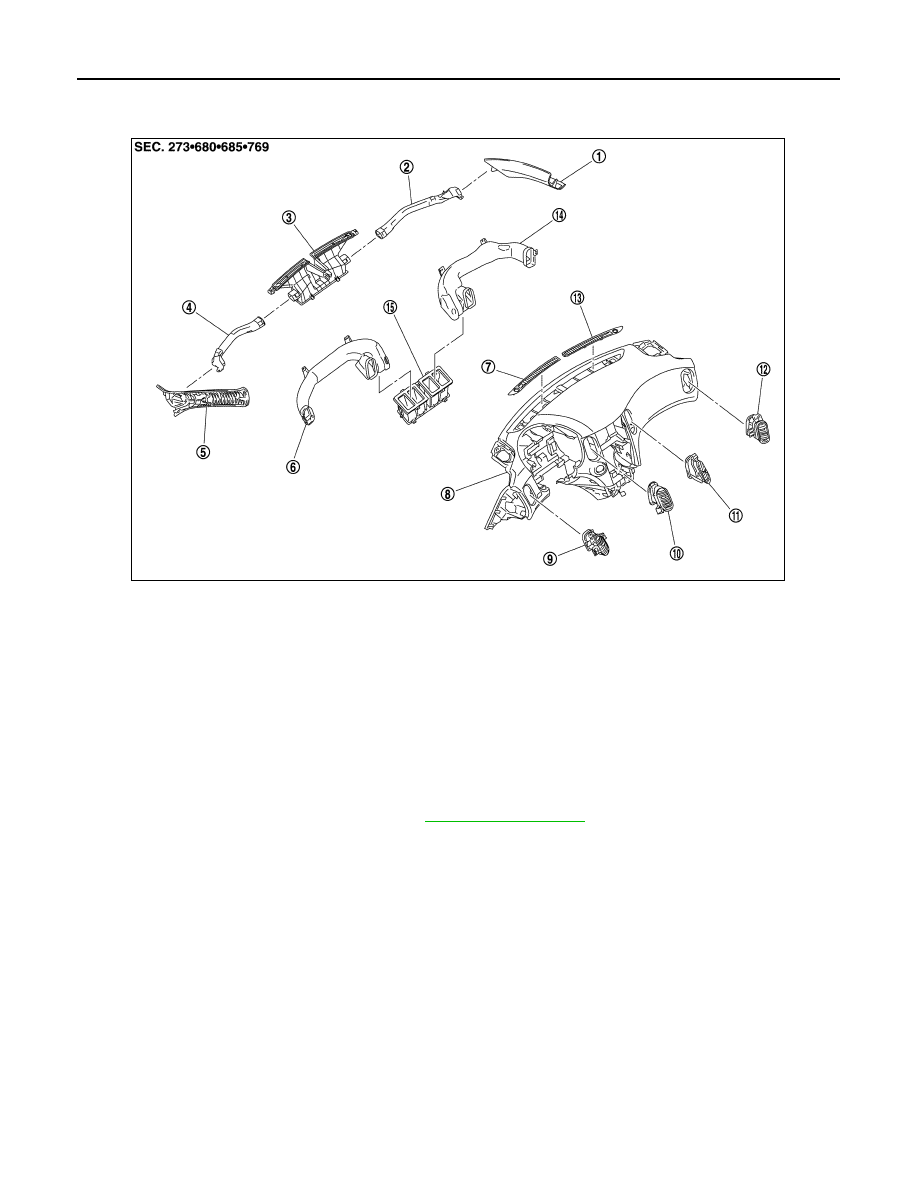

DUCT AND GRILLE

VENTILATOR DUCT : Exploded View

INFOID:0000000003567082

VENTILATOR DUCT : Removal and Installation

INFOID:0000000003567091

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

.

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster nozzle (left)

5.

Side defroster duct (front pillar gar-
nish) (left)

6.

Ventilator duct (left)

7.

Front defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille (left)

11. Center ventilator grille (right)

12. Side ventilator grille (right)

13. Front defroster grille (right)

14. Ventilator duct (right)

15. Adaptor duct

JPIIA0667ZZ

DUCT AND GRILLE

VTL-51

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

2.

Remove mounting screws (A), and then remove ventilator duct (left) (1) and ventilator duct (right) (2).

INSTALLATION

Installation is basically the reverse order of removal.

ADAPTOR DUCT

ADAPTOR DUCT : Exploded View

INFOID:0000000003567083

JPIIA0670ZZ

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster nozzle (left)

5.

Side defroster duct (front pillar gar-
nish) (left)

6.

Ventilator duct (left)

7.

Front defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille (left)

11. Center ventilator grille (right)

12. Side ventilator grille (right)

13. Front defroster grille (right)

14. Ventilator duct (right)

15. Adaptor duct

JPIIA0667ZZ

VTL-52

< ON-VEHICLE REPAIR >

DUCT AND GRILLE

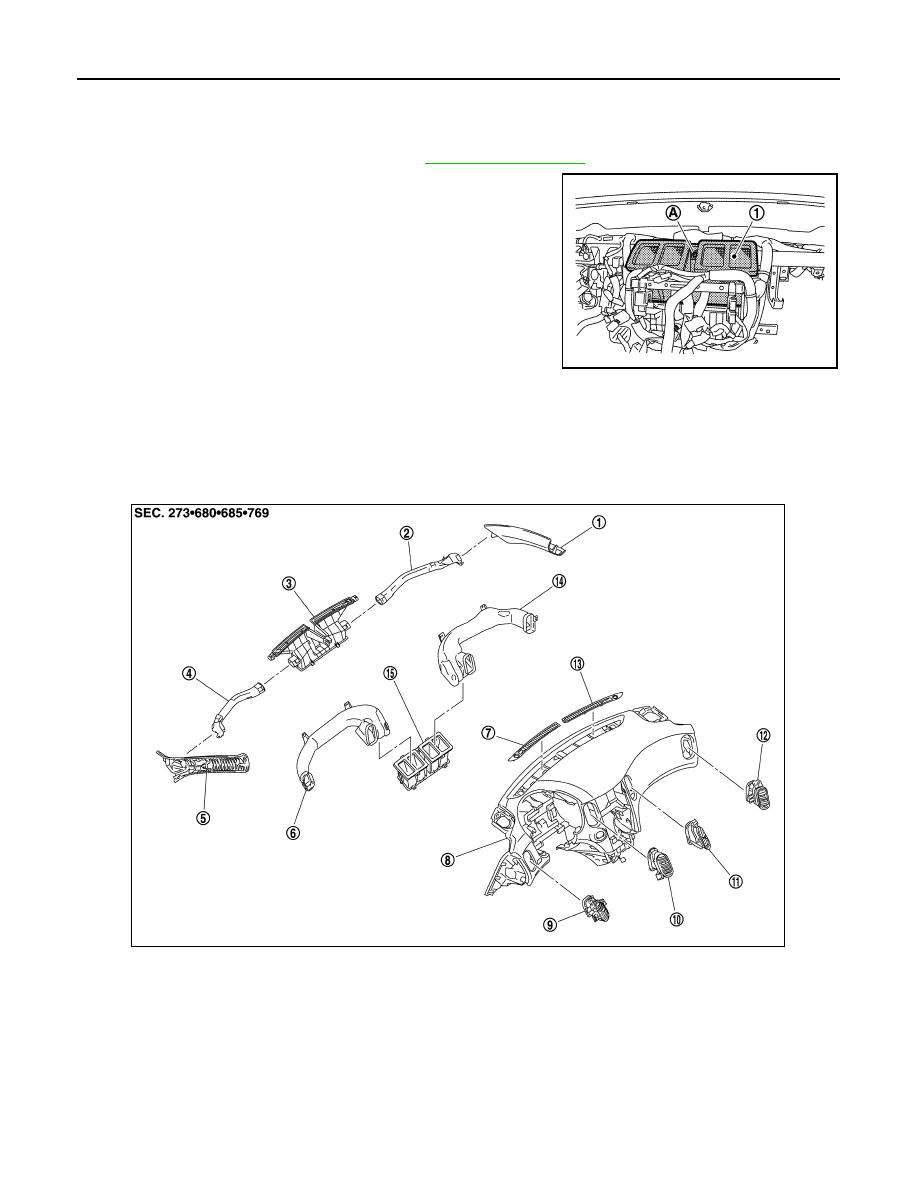

ADAPTOR DUCT : Removal and Installation

INFOID:0000000003567092

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

.

2.

Remove mounting screw (A), and then adaptor duct (1).

INSTALLATION

Installation is basically the reverse order of removal.

DEFROSTER NOZZLE

DEFROSTER NOZZLE : Exploded View

INFOID:0000000003567084

JPIIA0671ZZ

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster nozzle (left)

5.

Side defroster duct (front pillar gar-
nish) (left)

6.

Ventilator duct (left)

7.

Front defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille (left)

11. Center ventilator grille (right)

12. Side ventilator grille (right)

13. Front defroster grille (right)

14. Ventilator duct (right)

15. Adaptor duct

JPIIA0667ZZ

DUCT AND GRILLE

VTL-53

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

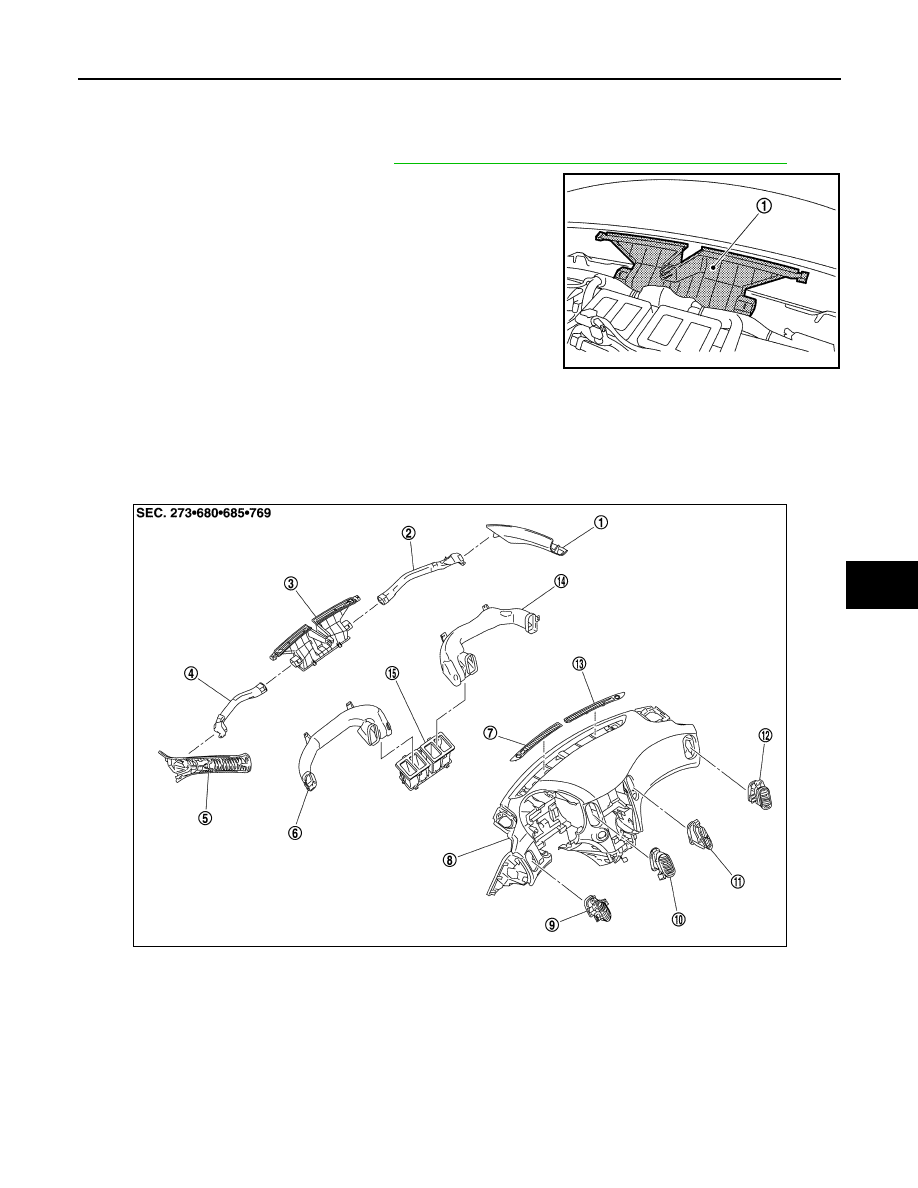

DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000003567093

REMOVAL

1.

Remove side defroster nozzles. Refer to

VTL-53, "SIDE DEFROSTER NOZZLE : Exploded View"

.

2.

Remove defroster nozzle (A).

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER NOZZLE

SIDE DEFROSTER NOZZLE : Exploded View

INFOID:0000000003545430

JPIIA0673ZZ

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster nozzle (left)

5.

Side defroster duct (front pillar gar-
nish) (left)

6.

Ventilator duct (left)

7.

Front defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille (left)

11. Center ventilator grille (right)

12. Side ventilator grille (right)

13. Front defroster grille (right)

14. Ventilator duct (right)

15. Adaptor duct

JPIIA0667ZZ
