VTL-54

< ON-VEHICLE REPAIR >

DUCT AND GRILLE

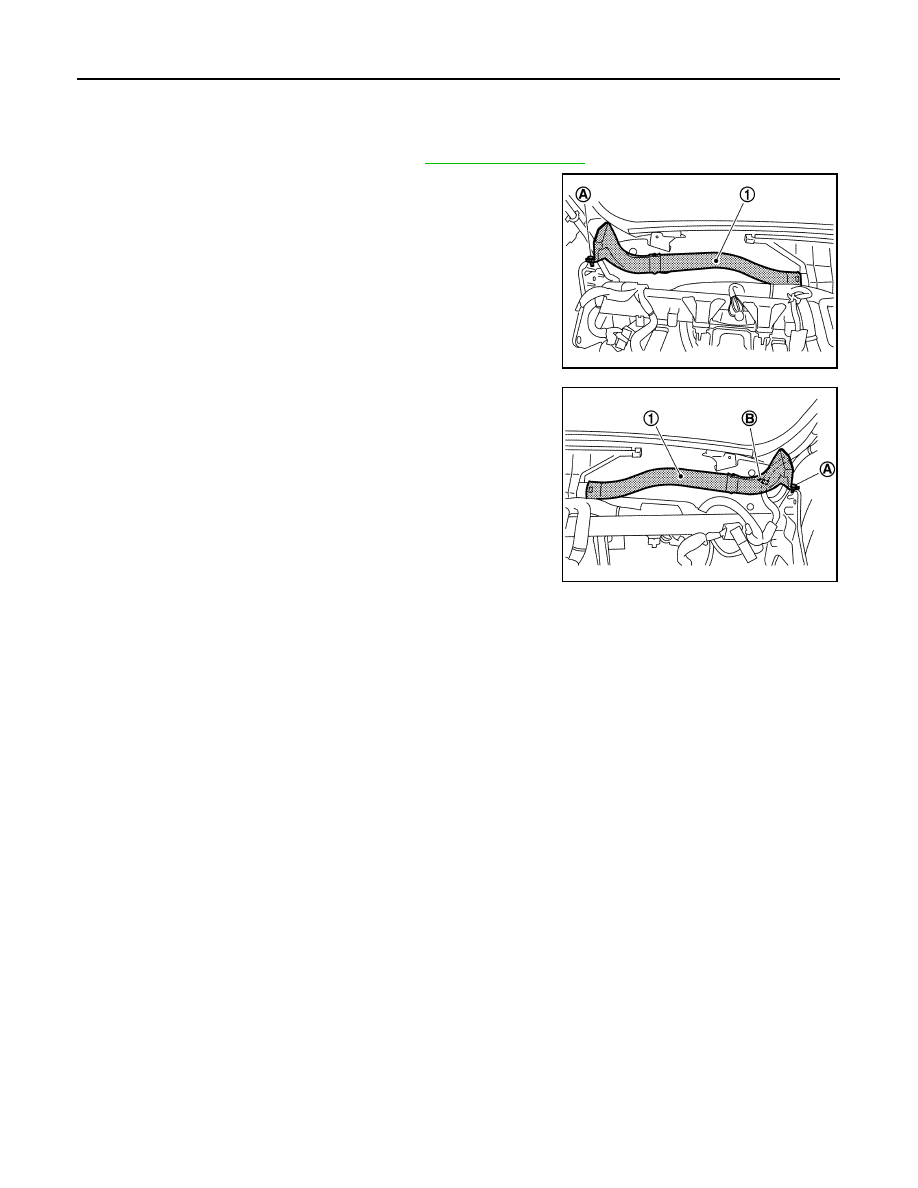

SIDE DEFROSTER NOZZLE : Removal and Installation

INFOID:0000000003545431

REMOVAL

1.

Remove instrument panel assembly. Refer to

IP-11, "Exploded View"

.

2.

Remove clip (A), and then remove side defroster nozzle (left)
(1).

3.

Remove mounting clip (A).

4.

Remove harness clip (B), and then remove side defroster nozzle
(right) (1).

INSTALLATION

Installation is basically the reverse order of removal.

SIDE DEFROSTER DUCT

JPIIA0674ZZ

JPIIA0675ZZ

DUCT AND GRILLE

VTL-55

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

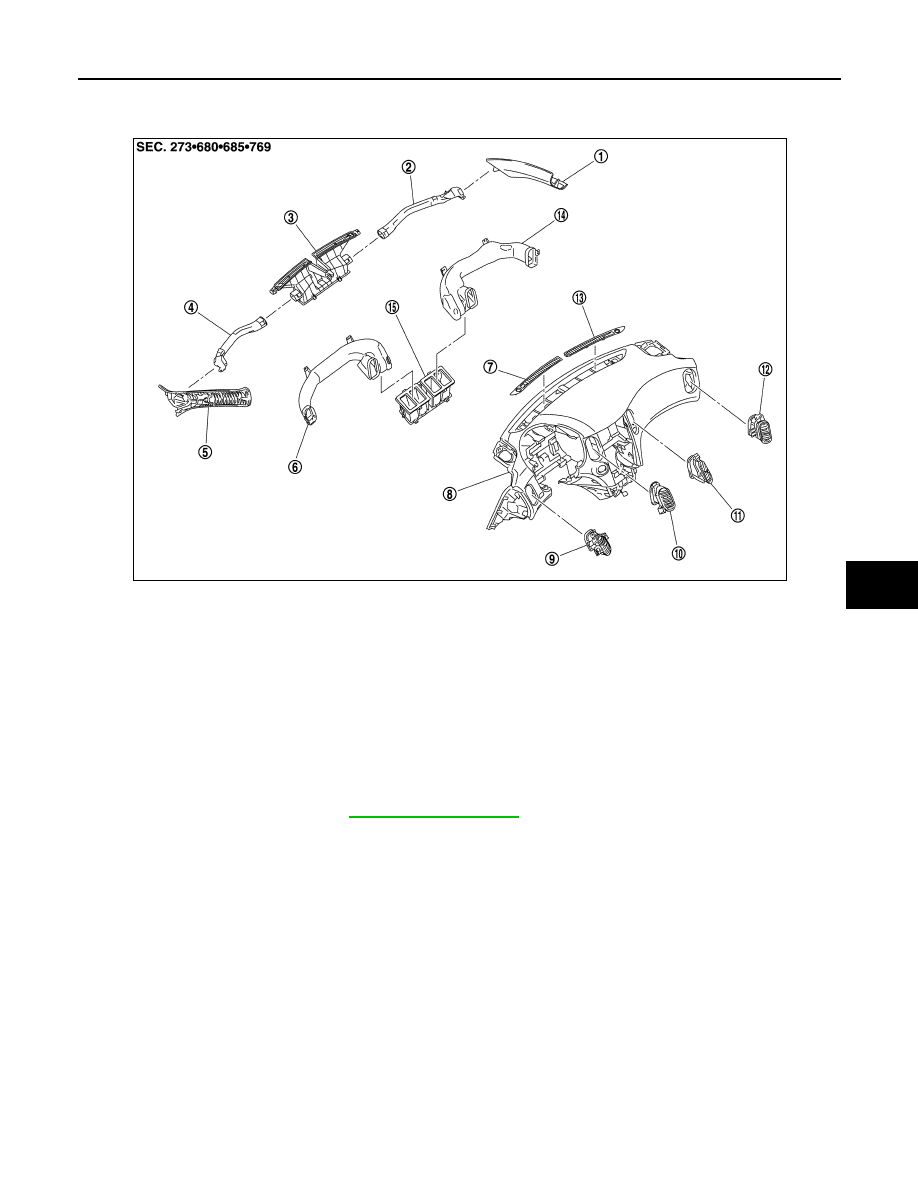

SIDE DEFROSTER DUCT : Exploded View

INFOID:0000000003545432

SIDE DEFROSTER DUCT : Removal and Installation

INFOID:0000000003545433

REMOVAL

Remove front pillar garnishes Refer to

INT-20, "Exploded View"

.

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR GRILLE

1.

Side defroster duct (front pillar gar-
nish) (right)

2.

Side defroster nozzle (right)

3.

Defroster nozzle

4.

Side defroster nozzle (left)

5.

Side defroster duct (front pillar gar-
nish) (left)

6.

Ventilator duct (left)

7.

Front defroster grille (left)

8.

Instrument panel assembly

9.

Side ventilator grille (left)

10. Center ventilator grille (left)

11. Center ventilator grille (right)

12. Side ventilator grille (right)

13. Front defroster grille (right)

14. Ventilator duct (right)

15. Adaptor duct

JPIIA0667ZZ

VTL-56

< ON-VEHICLE REPAIR >

DUCT AND GRILLE

REAR VENTILATOR GRILLE : Exploded View

INFOID:0000000003545434

REAR VENTILATOR GRILLE : Removal and Installation

INFOID:0000000003545435

REMOVAL

1.

Remove console rear finisher. Refer to

IP-22, "Exploded View"

.

2.

Remove rear ventilator grille (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR DUCT 1

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Foot grille (left)

4.

Rear floor duct 1 (without rear venti-
lation)

5.

Floor carpet

6.

Rear floor duct 2 (left)

7.

Rear floor duct 2 (right)

8.

Rear ventilator duct 2

9.

Rear ventilator grille

10. Rear ventilator duct 1

11. Rear floor duct 1 (with rear ventila-

tion)

12. Foot grille (right)

A.

With rear ventilation

JPIIA0676ZZ

:

Pawl

JPIIA0677ZZ

DUCT AND GRILLE

VTL-57

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

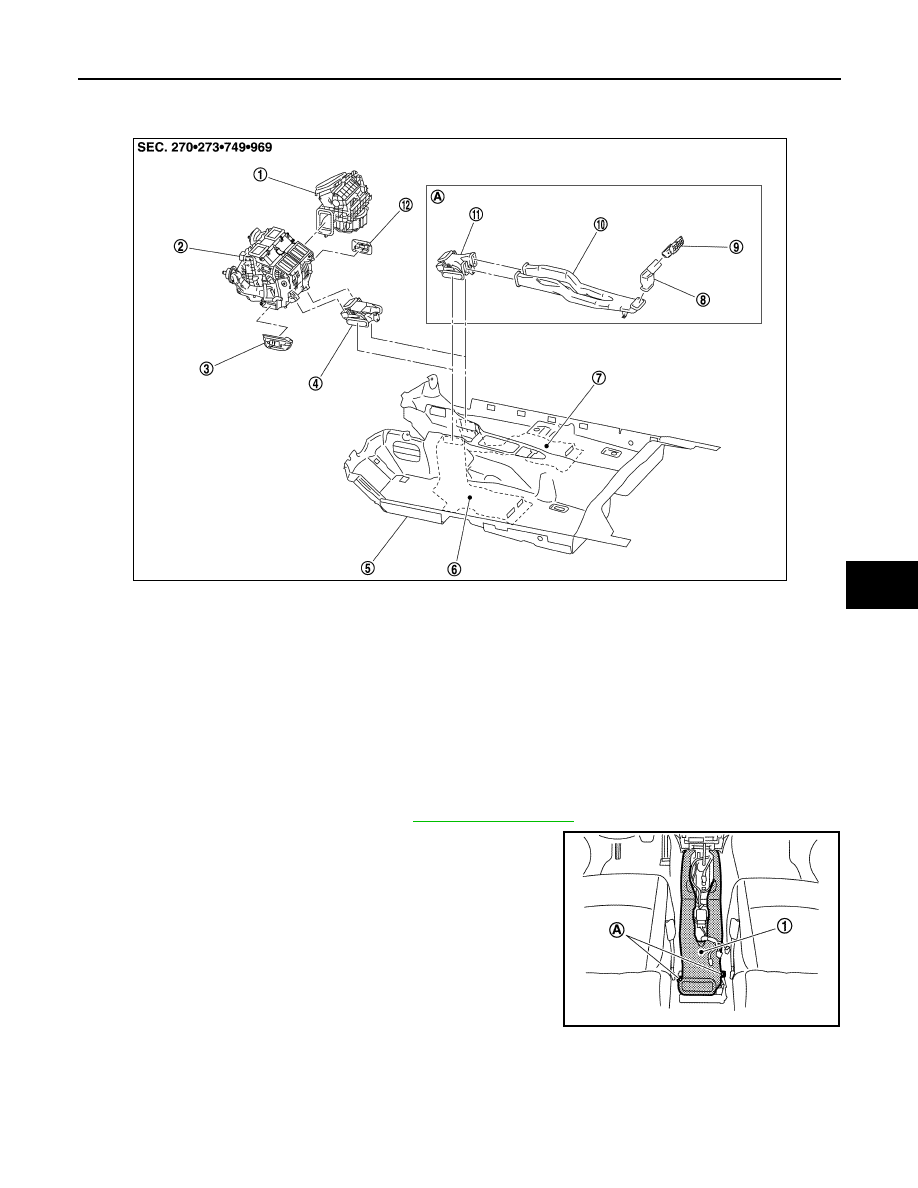

REAR VENTILATOR DUCT 1 : Exploded View

INFOID:0000000003567127

REAR VENTILATOR DUCT 1 : Removal and Installation

INFOID:0000000003545437

REMOVAL

1.

Remove center console assembly. Refer to

IP-22, "Exploded View"

.

2.

Remove mounting screws (A), and then remove rear ventilator
duct 1 (1).

INSTALLATION

Installation is basically the reverse order of removal.

REAR VENTILATOR DUCT 2

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Foot grille (left)

4.

Rear floor duct 1 (without rear venti-
lation)

5.

Floor carpet

6.

Rear floor duct 2 (left)

7.

Rear floor duct 2 (right)

8.

Rear ventilator duct 2

9.

Rear ventilator grille

10. Rear ventilator duct 1

11. Rear floor duct 1 (with rear ventila-

tion)

12. Foot grille (right)

A.

With rear ventilation

JPIIA0676ZZ

JPIIA0678ZZ
