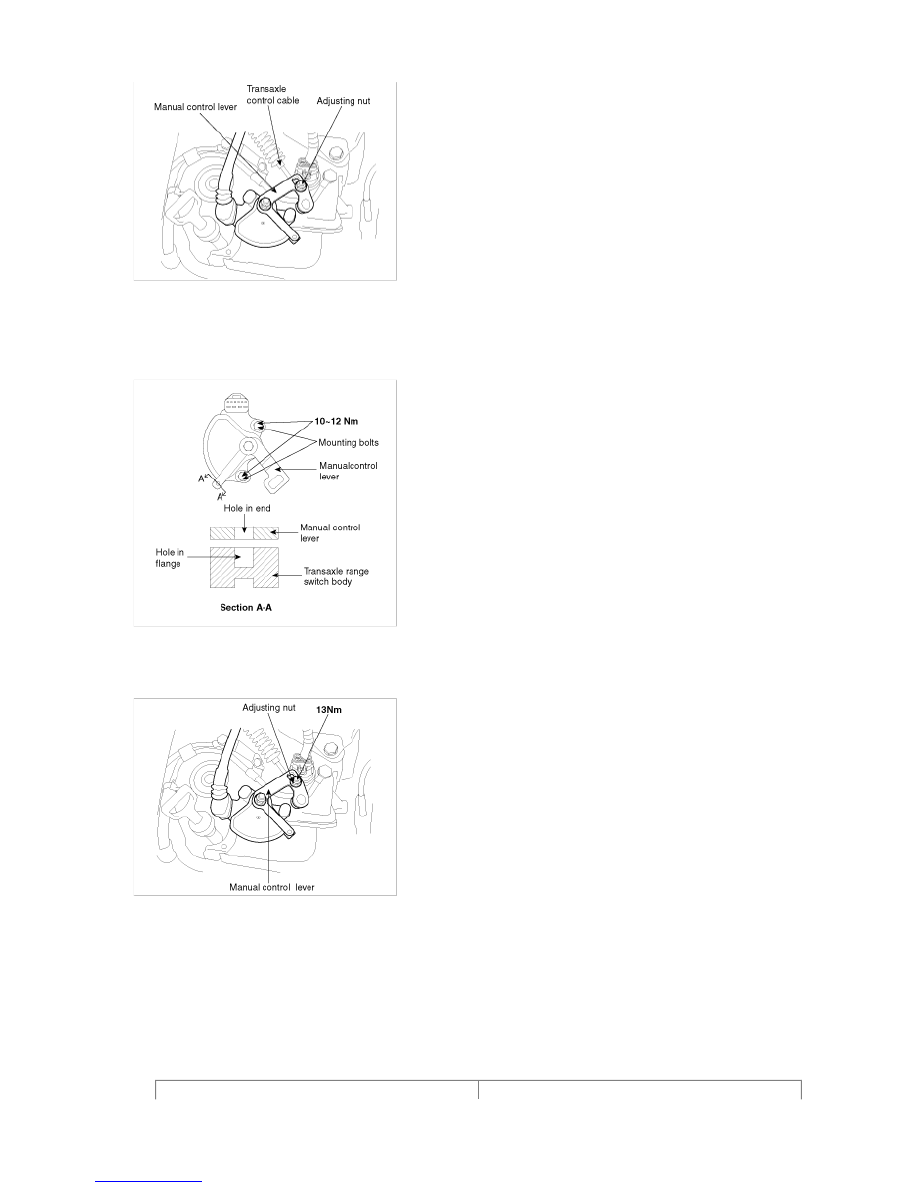

4. Loosen the transaxle range switch body mounting bolts and then turn the transaxle range switch body so the hole in the

end of the manual control lever and the hole (cross section A-A in the figure) in the flange of the transaxle range switch
body flange are aligned.

5. Tighten the transaxle range switch body mounting bolts to the specified torque. Be careful at this time that the position

of the switch body does not change.



6. Gently pull the transaxle control cable in the direction of the arrow, then tighten the adjusting nut.

7. Check that the selector lever is in the "N" position.

8. Check that each range on the transaxle side operates and functions correctly for each position of the selector lever.



A/T CONTROL COMPONENT CHECK

1. THROTTLE POSITION SENSOR CHECK

The TPS is a variable resistor type that rotates with the throttle body shaft to sense the throttle valve angle. As the
throttle shaft rotates, the output voltage of the TPS changes. The ECM detects the throttle valve opening based on
voltage change. (Refer to FL-section).

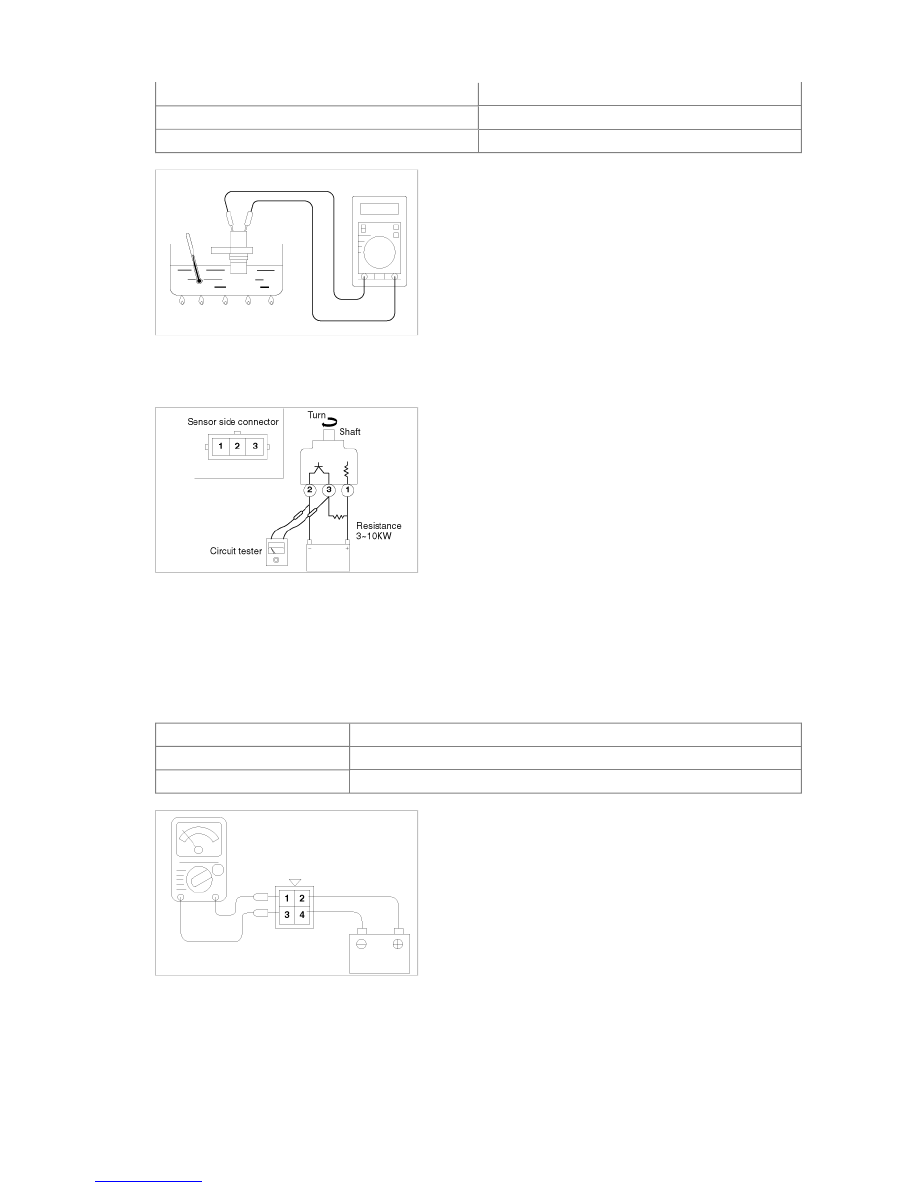

2. OIL TEMPERATURE SENSOR CHECK

(1) Remove the oil temperature sensor.

(2) Measure the resistance between terminals 1 and 2 of the oil temperature sensor connector.

STANDARD VALUE





Oil temperature (°C)

Resistance (K

16.7 ~ 20.5

100

0.57 ~ 0.69

3. VEHICLE SPEED SENSOR CHECK

(1) Remove the vehicle speed sensor and connect a 3~10 K

 resistance as shown in the illustration.

(2) Turn the shaft of the vehicle speed sensor and check that there is voltage between terminals 2-3 (1 turn=4 pulses).



4. A/T CONTROL RELAY CHECK

(1) Remove the A/T control relay.

(2) Use jumper wires to connect A/T control relay terminal 2 to the battery (+) terminal and terminal 4 to the battery (-)

terminal.

(3) Check the continuity between terminal 1 and terminal 3 of the A/T control relay when the jumper wires are

connected and disconnected from the battery.

(4) If there is a problem, replace the A/T control relay.





Jumper wire

Continuity between terminal No.1

Connected

Continuity

Disconnected

No continuity

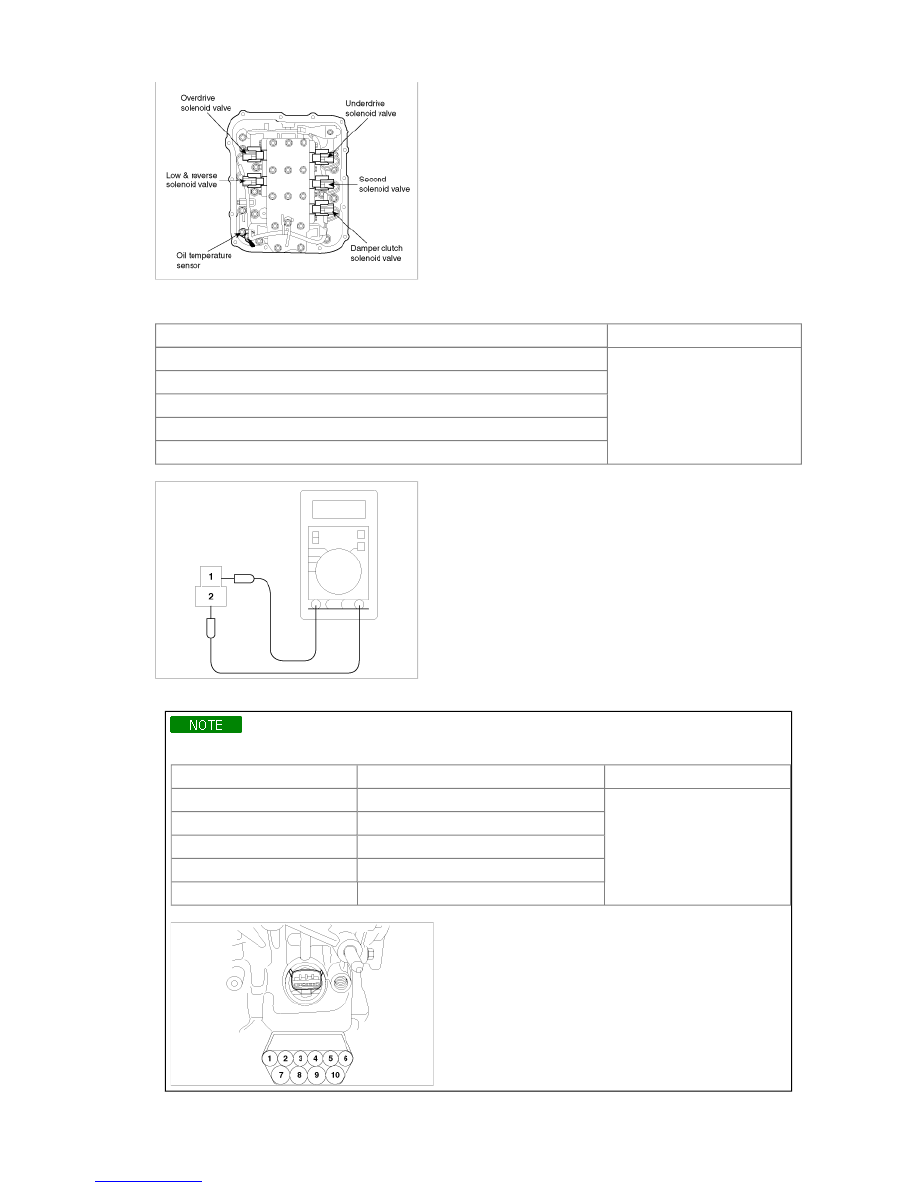

5. SOLENOID VALVE CHECK

(1) Remove the valve body cover.

(2) Disconnect the connectors of each solenoid valve.



(3) Measure the resistance between terminals 1 and 2 of each solenoid valve.

STANDARD VALUE





Name

Resistance

Damper clutch solenoid valve

2.7 ~ 3.4



(at 20°C)

Low and reverse solenoid valve

Second solenoid valve

Underdrive solenoid valve

Overdrive solenoid valve

(4) If the resistance is outside the standard value, replace the solenoid valve.

Resistance of the solenoid valve connector.





Terminal No.

Name

Resistance

7 & 10

Damper clutch solenoid valve

2.7 ~ 3.4



(at 20°C)

10 & 6

Low and reverse solenoid valve

9 & 4

Second solenoid valve

9 & 3

Underdrive solenoid valve

9 & 5

Overdrive solenoid valve









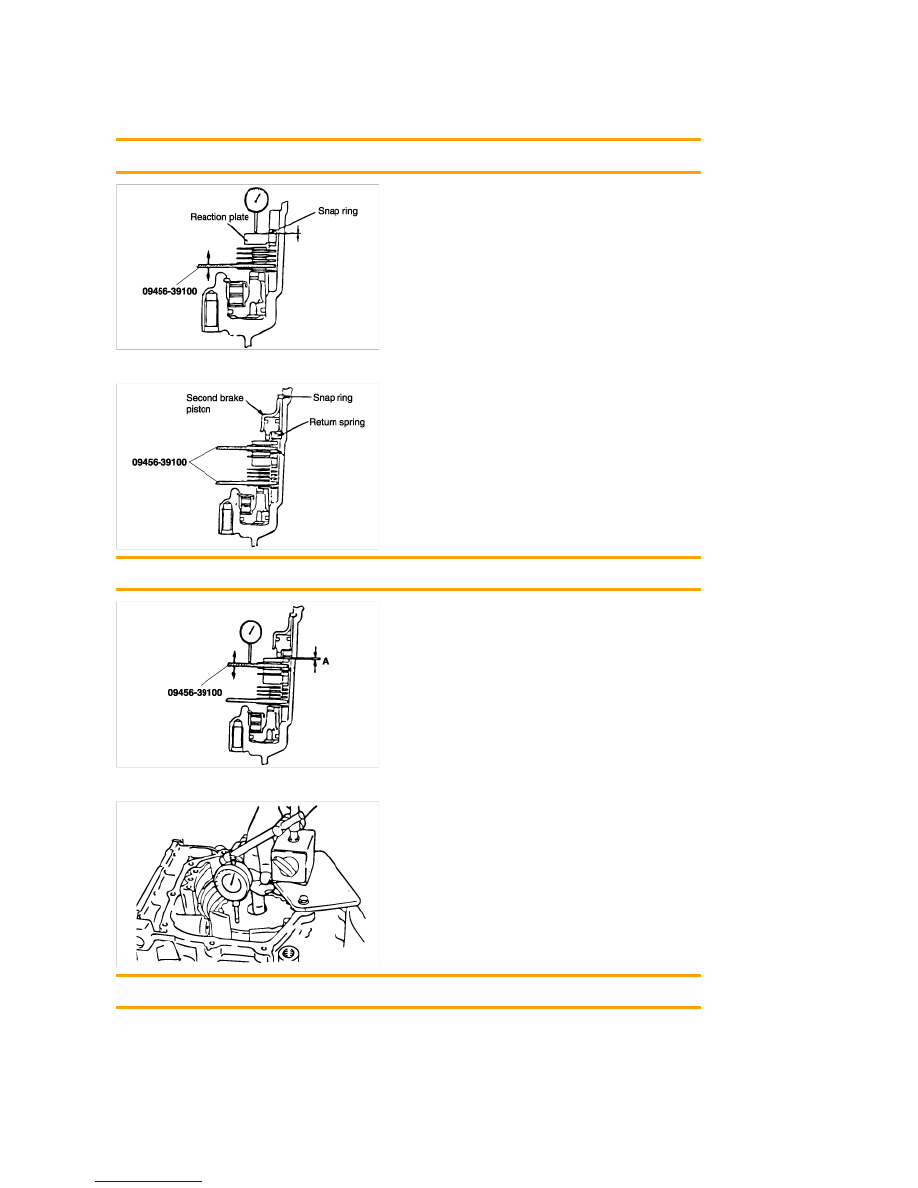

SERVICE ADJUSTMENT PROCEDURES

BRAKE REACTION PLATE END PLAY ADJUSTMENT

Standard value : 0 ~ 0.16mm

SECOND BRAKE END PLAY ADJUSTMENT

Standard value : 0.79 ~ 1.25mm

LOW-REVERSE BRAKE END PLAY ADJUSTMENT

Standard value : 1.35 ~ 1.81mm
