Honda Ridgeline. Manual - part 31





09

01

02

SJC8A00A18316617531KDAT00

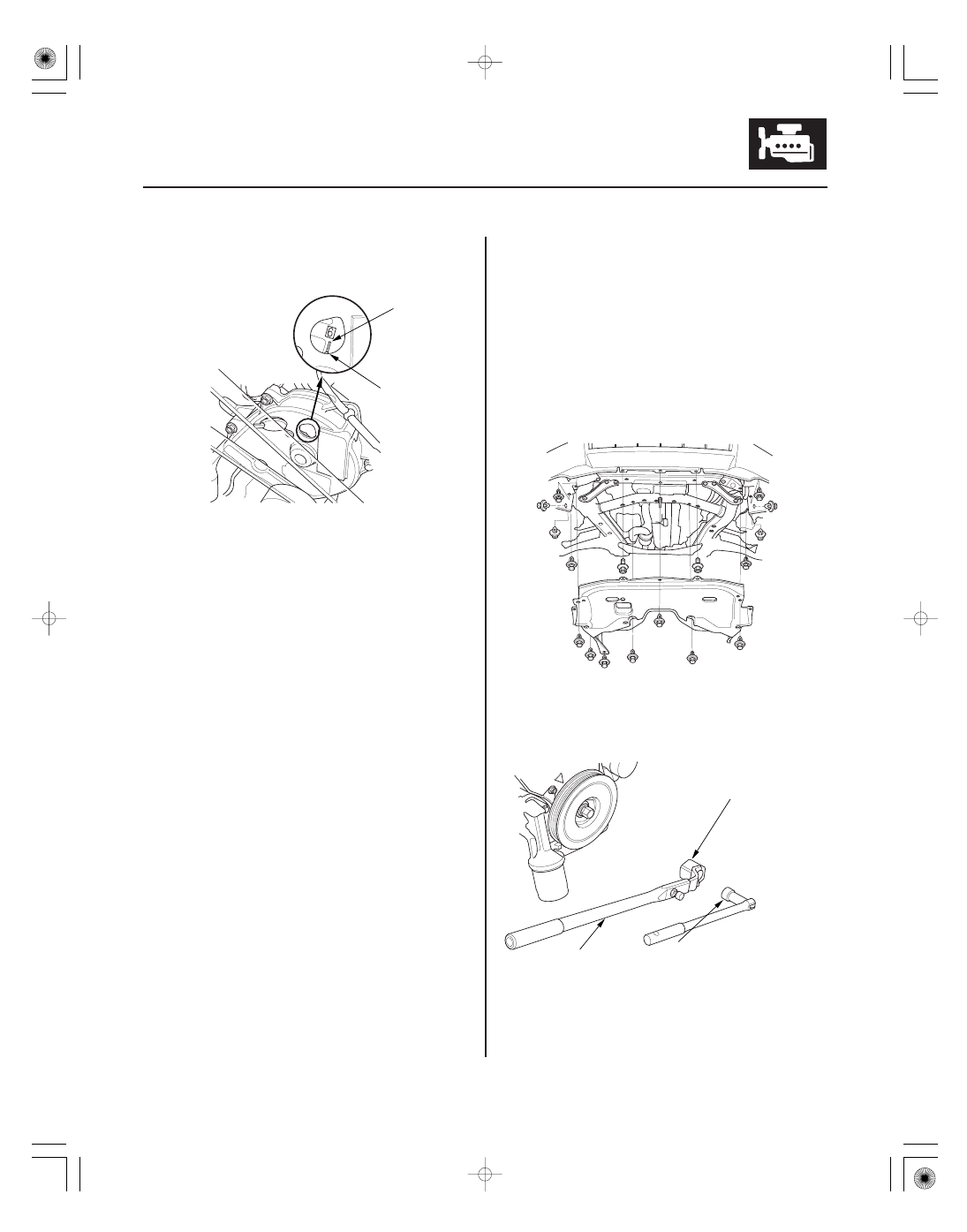

Special Tools Required

Removal

6-11

6-11

Crankshaft Pulley Removal and
Installation

A

B

A
07JAB-001020A

C
07JAA-001020A
(or commercially available)

B
07MAB-PY3010A

16. Rotate the crankshaft clockwise. Align the pointer

(A) on the front upper cover with the No. 6 piston
TDC mark (B) on the front camshaft pulley.

17. Check and, if necessary, adjust the valve clearance

on No. 6 cylinder.

18. Install the cylinder head covers (see page 6-26).

19. Install the intake manifold (see page 9-5).

• Holder handle 07JAB-001020A
• Holder attachment, 50 mm, offset 07MAB-PY3010A
• Socket, 19 mm 07JAA-001020A , or a commercially

available 19 mm socket

1. Remove the right front wheel.

2. Remove the splash shield.

3. Remove the drive belt (see page 4-31).

4. Hold the pulley with the holder handle (A) and

holder attachment (B).

5. Remove the bolt with a heavy duty 19 mm socket

(C) and breaker bar, then remove the crankshaft
pulley.

(cont’d)

*01

04

05

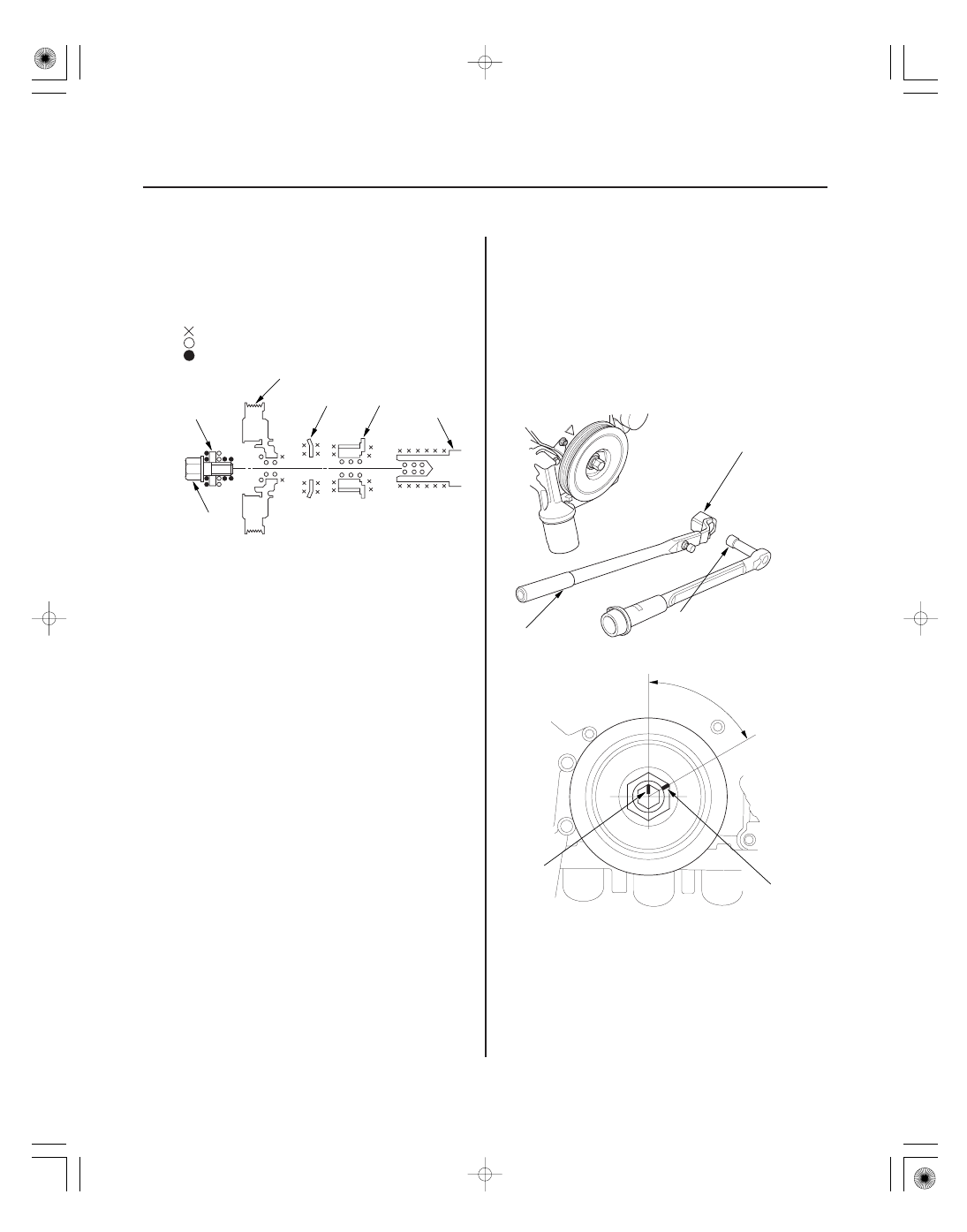

Installation

6-12

Cylinder Head

Crankshaft Pulley Removal and Installation (cont’d)

A

B

C

D

A

A

: Lubricate with new engine oil

: Clean

: Remove any oil

A
07JAB-001020A

C
07JAA-001020A
(or commercially available)

B
07MAB-PY3010A

E

D

60 °

1. Remove any oil and clean the pulleys (A),

crankshaft (B), bolt (C), and washer (D). Lubricate
with new engine oil as shown.

2. Install the crankshaft pulley, and tighten the bolt.

Do not use an impact wrench.

–1 Hold the pulley with the holder handle (A) and

holder attachment (B), then torque the bolt to
64 N·m (6.5 kgf·m, 47 lbf·ft) with a torque
wrench and heavy duty 19 mm socket (C).

–2 Mark the bolt head (D) and crankshaft pulley (E)

as shown, then tighten the bolt an additional
60 ° (The mark on the bolt head line up with the
mark on the crankshaft pulley).

3. Install the drive belt (see page 4-31).

4. Install the splash shield.

5. Install the right front wheel.

01

02

SJC8A00A14673200000MAAT01

01

02

SJC8A00A14673200000KAAT02

6-13

6-13

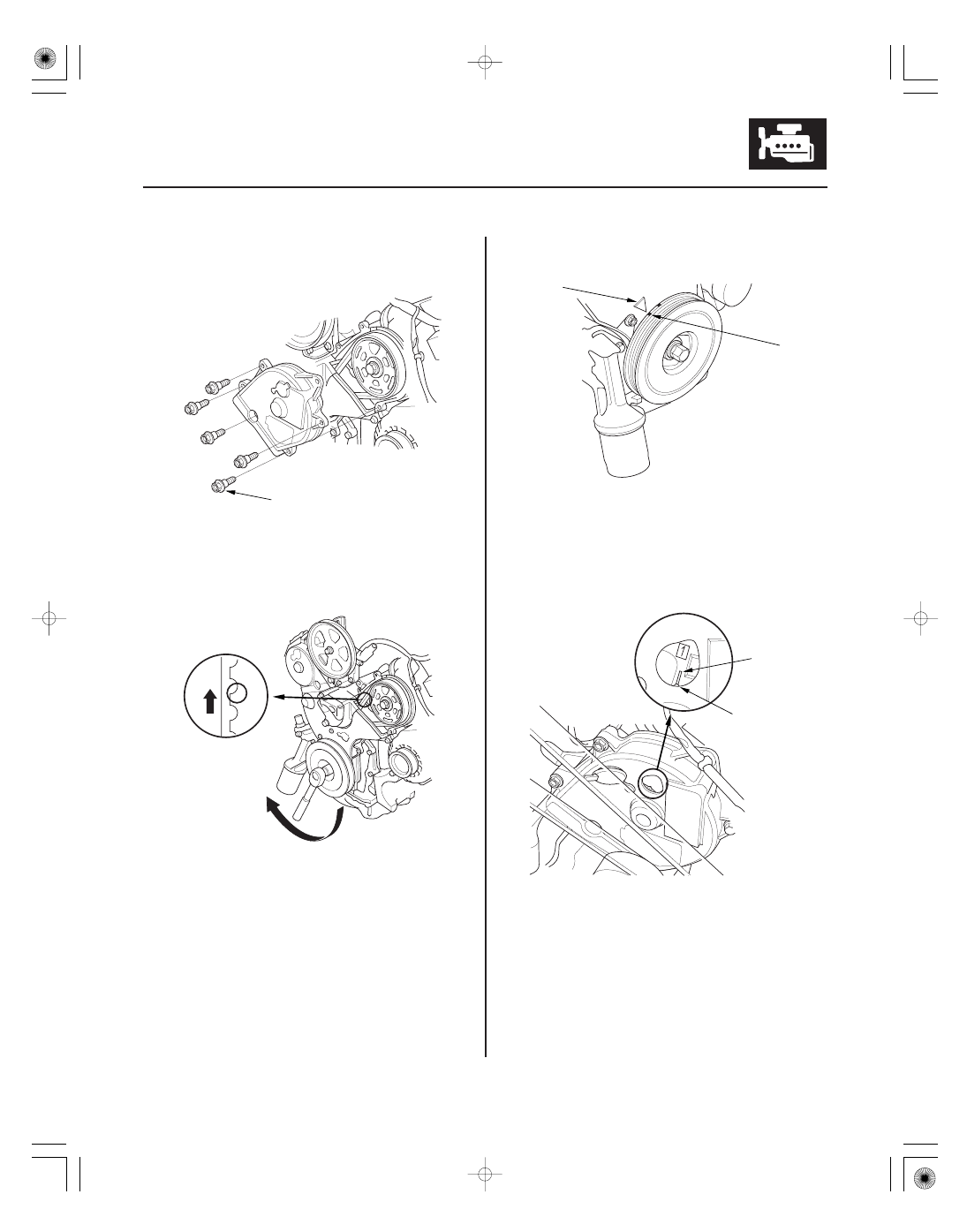

Timing Belt Inspection

Timing Belt Removal

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

B

A

A

B

1. Remove the drive belt (see page 4-31).

2. Remove the front upper cover.

3. Inspect the timing belt for cracks and oil or coolant

contamination. Replace the belt if it is cracked, or is
contaminated with oil or coolant. Wipe off any oil
or solvent that gets on the belt.

1. Turn the crankshaft so its white mark (A) lines up

with the pointer (B).

2. Check that the No. 1 piston top dead center (TDC)

mark (A) on the front camshaft pulley and the
pointer (B) on the front upper cover are aligned.

NOTE: If the marks are not aligned, rotate the
crankshaft 360 degrees, then recheck the camshaft
pulley mark.

(cont’d)

03

04

05

06

6-14

Cylinder Head

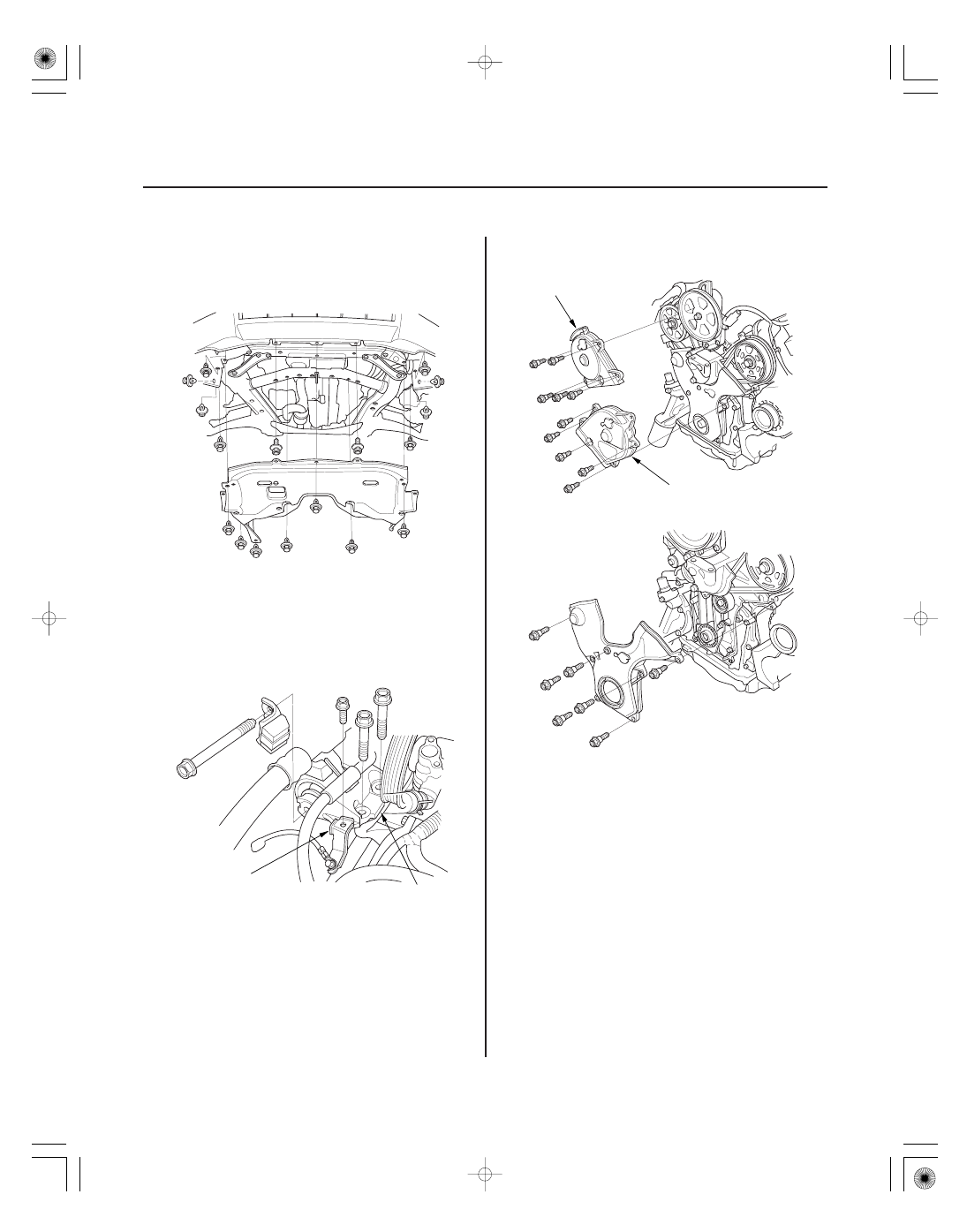

Timing Belt Removal (cont’d)

A

B

A

B

3. Raise the vehicle on the lift, then remove the right

front wheel.

4. Remove the splash shield.

5. Remove the drive belt (see page 4-31).

6. Support the engine with a jack and wood block

under the oil pan.

7. Remove the ground cable bracket (A), then remove

the upper half of the side engine mount bracket (B).

8. Remove the crankshaft pulley (see page 6-11).

9. Remove the front upper cover (A) and rear upper

cover (B).

10. Remove the lower cover.
