Honda Ridgeline. Manual - part 32





07

08

09

10

11

6-15

A

A

B

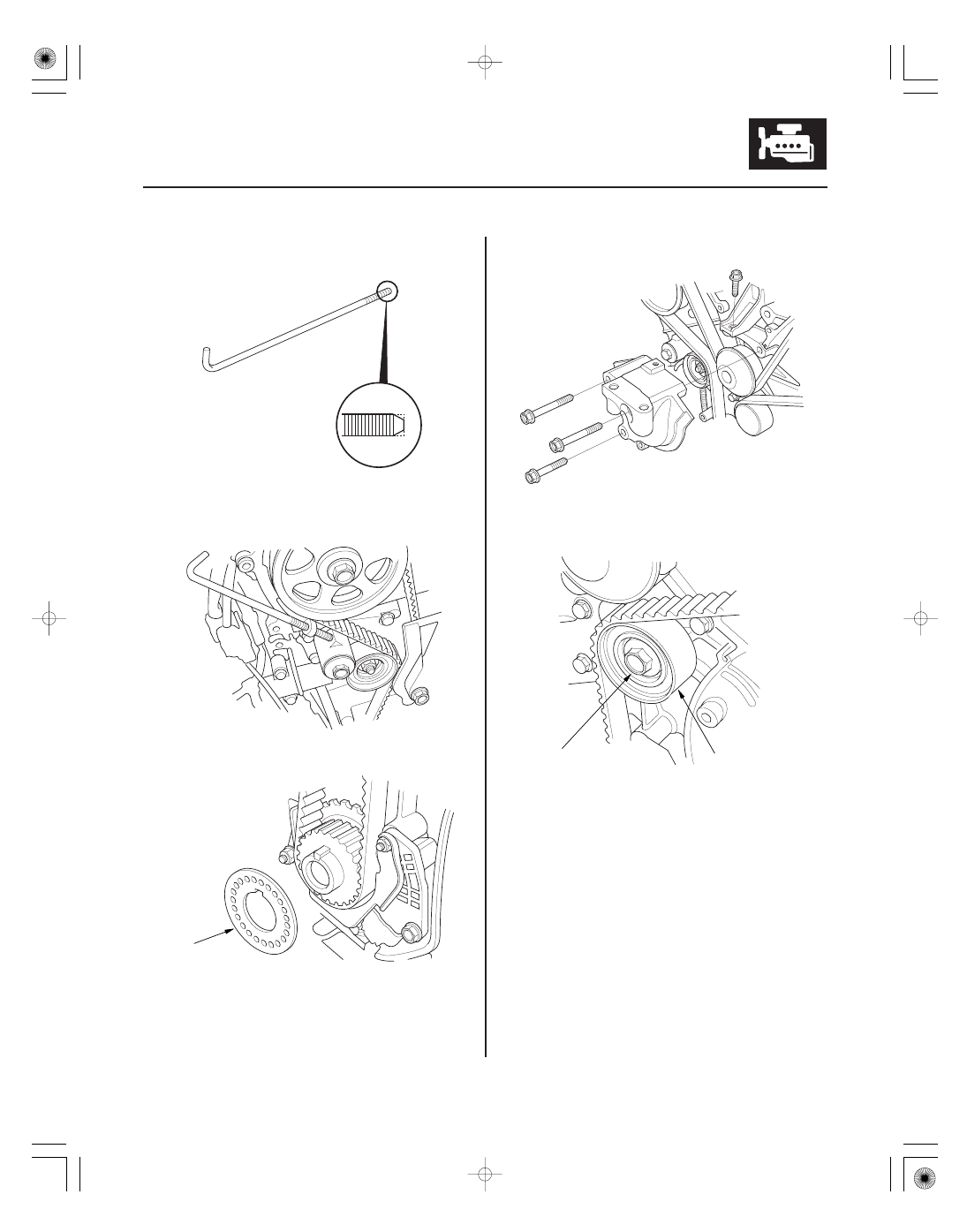

11. Remove one of the battery clamp bolts from the

battery tray, then grind the end of it as shown.

12. Thread the battery clamp bolt in as shown to hold

the timing belt adjuster in its current position.
Tighten it by hand; do not use a wrench.

13. Remove the timing belt guide plate (A).

14. Remove the lower side engine mount bracket.

15. Remove the idler pulley bolt (A) and idler pulley (B),

then remove the timing belt. Discard the idler
pulley bolt.

01

02

03

SJC8A00A14673200000KCAT00

Front:

Rear:

6-16

Cylinder Head

Timing Belt Installation

A

B

A

B

B

A

NOTE: The following is the installation procedure for a
used timing belt. If you are installing a new belt, refer to
the timing belt replacement procedure (see page 6-20).

1. Clean the timing belt pulleys, timing belt guide

plate, and the upper and lower covers.

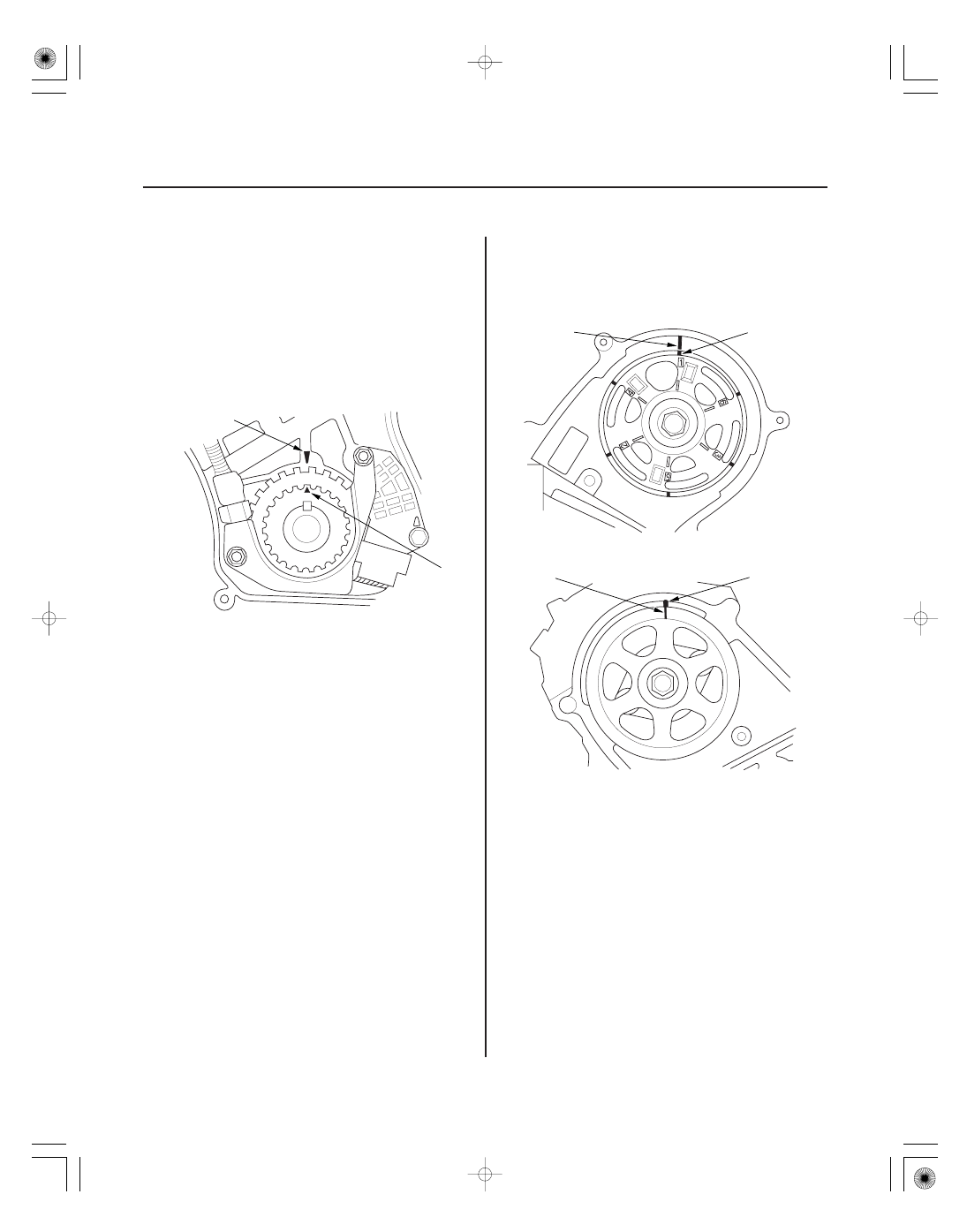

2. Set the timing belt drive pulley to top dead center

(TDC) by aligning the TDC mark (A) on the tooth of
the timing belt drive pulley with the pointer (B) on
the oil pump.

3. Set the camshaft pulleys to TDC by aligning the

TDC marks (A) on the camshaft pulleys with the
pointers (B) on the back covers.

04

01

06

02

6-17

E

F

A

D

C

B

10 x 1.25 mm
45 N·m
(4.5 kgf·m, 33 lbf·ft)

10 x 1.25 mm
45 N·m
(4.5 kgf·m, 33 lbf·ft)

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

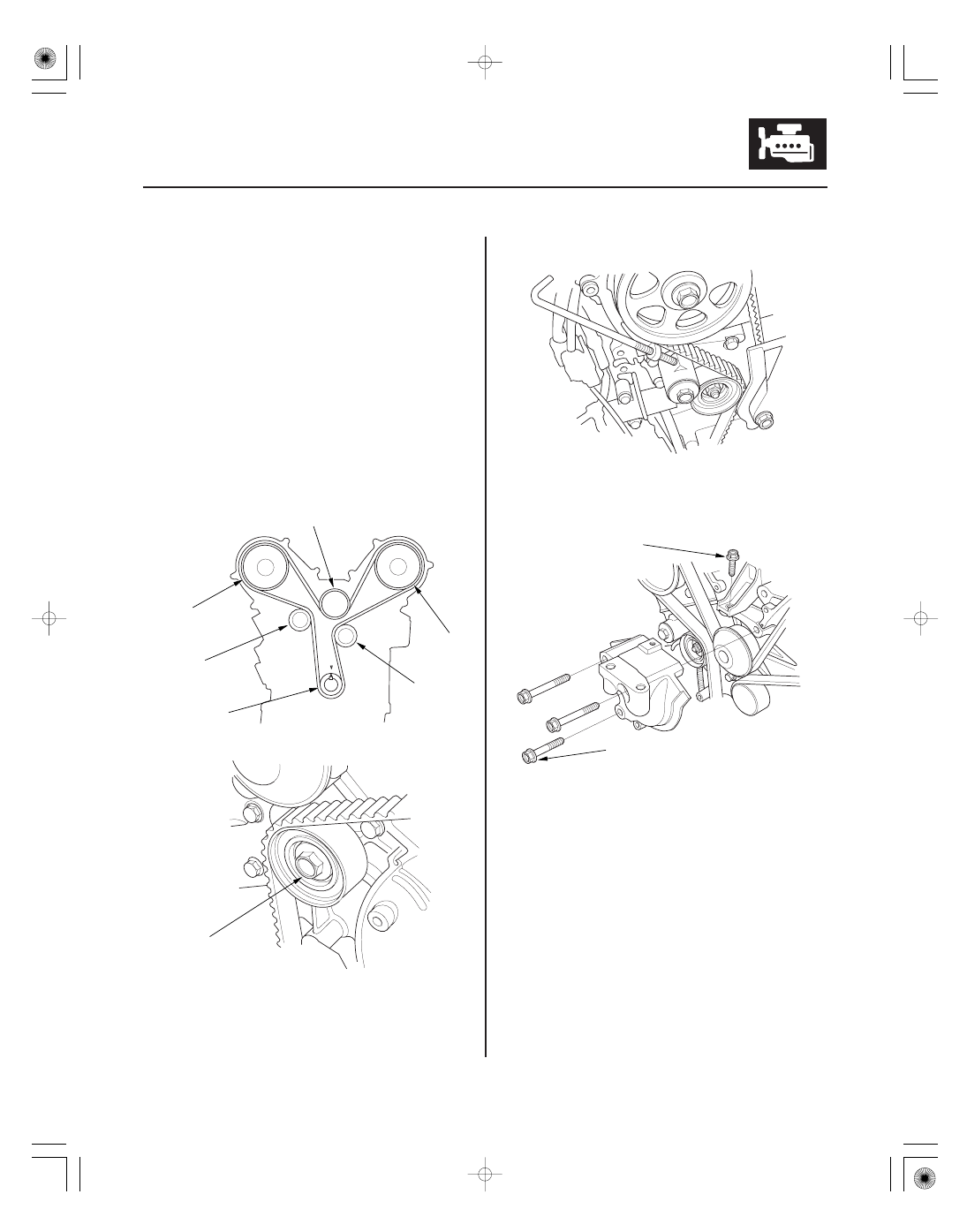

4. Loosely install the idler pulley with a new idler

pulley bolt so the pulley can move but does not
come off.

5. If the auto-tensioner has extended and the timing

belt cannot be installed, do the timing belt
replacement procedure (see page 6-20).

6. Install the timing belt in a counterclockwise

sequence starting with the drive pulley. Take care
not to damage the timing belt during installation.

–1 Drive pulley (A)
–2 Idler pulley (B)
–3 Front camshaft pulley (C)
–4 Water pump pulley (D)
–5 Rear camshaft pulley (E)
–6 Adjusting pulley (F)

7. Tighten the idler pulley bolt.

8. Remove the battery clamp bolt from the back cover.

9. Install the lower half of the side engine mount

bracket.

(cont’d)

08

09

10

11

6-18

Cylinder Head

Timing Belt Installation (cont’d)

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

A

B

6 x 1.0 mm
12 N·m
(1.2 kgf·m, 8.7 lbf·ft)

B

A

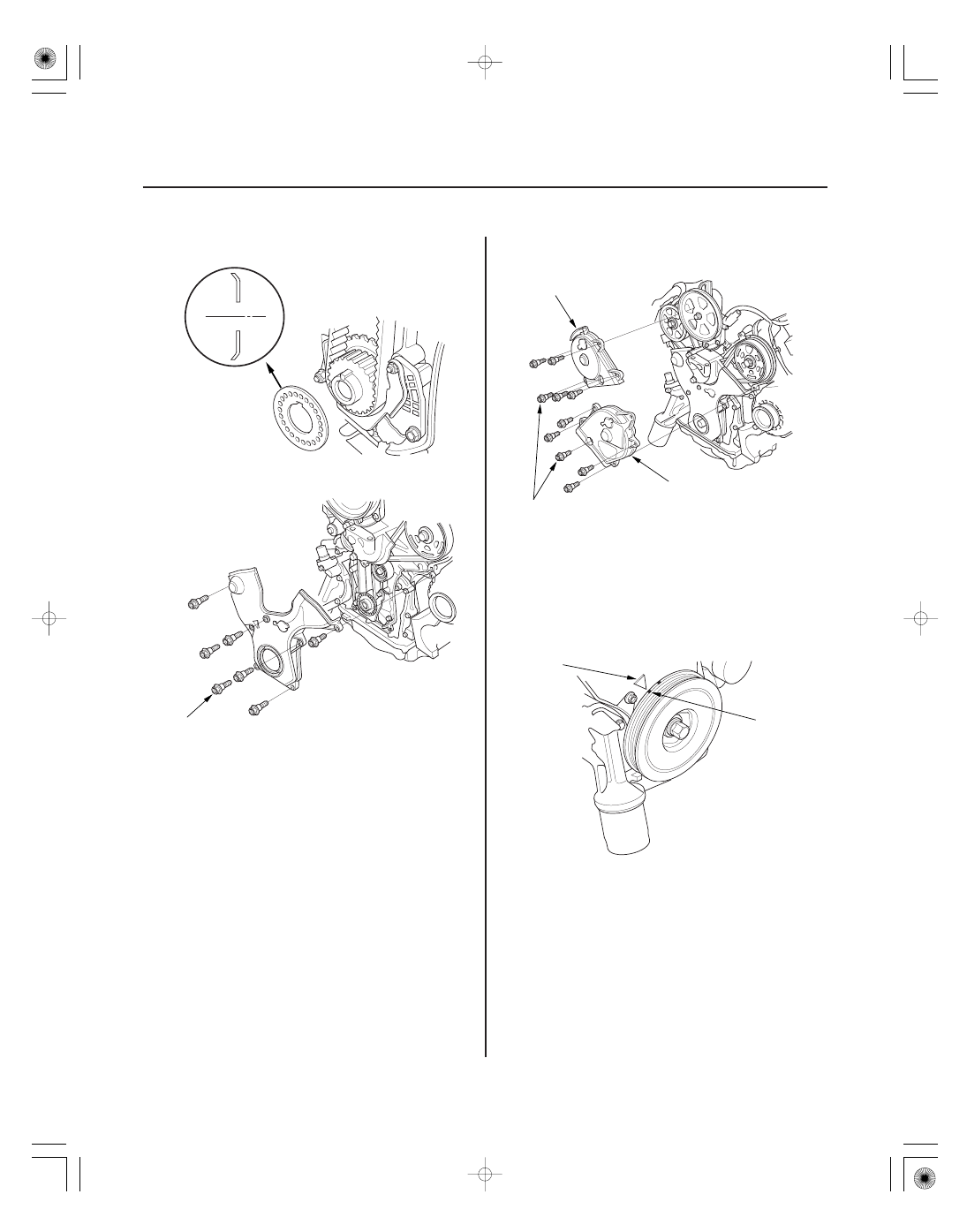

10. Install the timing belt guide plate as shown.

11. Install the lower cover.

12. Install the front upper cover (A) and rear upper

cover (B).

13. Install the crankshaft pulley (see page 6-12).

14. Rotate the crankshaft pulley six turns clockwise so

the timing belt positions itself on the pulleys.

15. Turn the crankshaft pulley so the white mark (A)

lines up with the pointer (B).
