Removal (’99-01 Models)

Removal (’02-04 Models)

23-370

SRS

Front Passenger’s Airbag Replacement

A

B

B

A

B

A

B

A

1. Disconnect the battery negative cable, and wait at

least 3 minutes before beginning work.

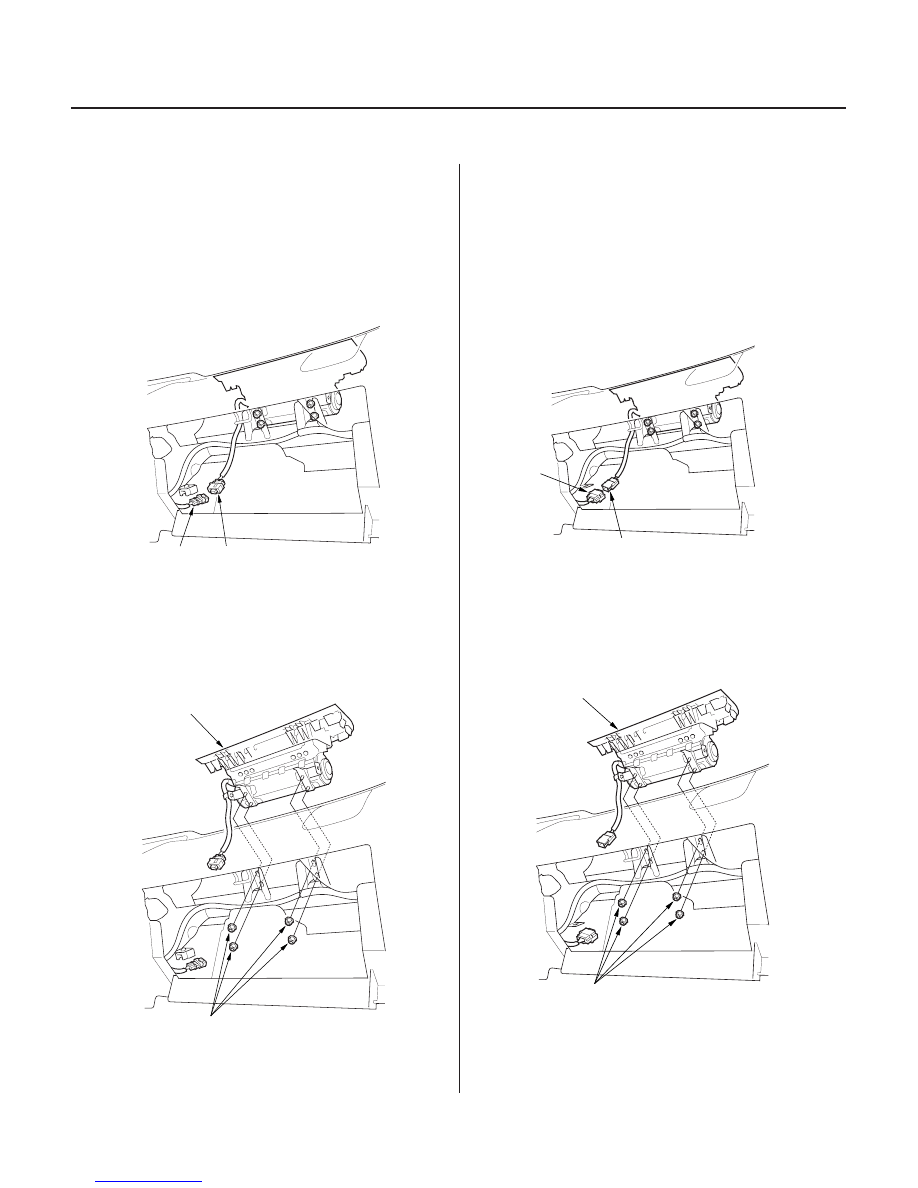

2. Remove the glove box (see page 20-71), then

disconnect the connector between the SRS main
harness 2P connector (A) and the front passenger’s
airbag 2P connector (B).

3. Remove the four mounting nuts (A) from the

bracket. Cover the lid and dashboard with a cloth,
and pry carefully with a screwdriver to lift the front
passenger’s airbag (B) out of the dashboard.

NOTE: The airbag lid has pawls on its side which
attach it to the dashboard.

1. Disconnect the battery negative cable, and wait at

least 3 minutes before beginning work.

2. Remove the glove box (see page 20-71).

3. Disconnect the connector between the front

passenger’s airbag 4P connector (A) and the
dashboard wire harness B 4P connector (B).

4. Remove the four mounting nuts (A) from the

bracket. Cover the lid and dashboard with a cloth,
and pry carefully with a screwdriver to lift the front
passenger’s airbag (B) out of the dashboard.

NOTE: The airbag lid has pawls on its side which
attach it to the dashboard.

03/07/29 10:42:45 61S0X050_230_0370

03

04

03

04

Installation (’99-01 Models)

Installation (’02-04 Models)

23-371

A

B
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

B

A

C

A

B
9.8 N·m (1.0 kgf·m, 7.2 lbf·ft)

B

A

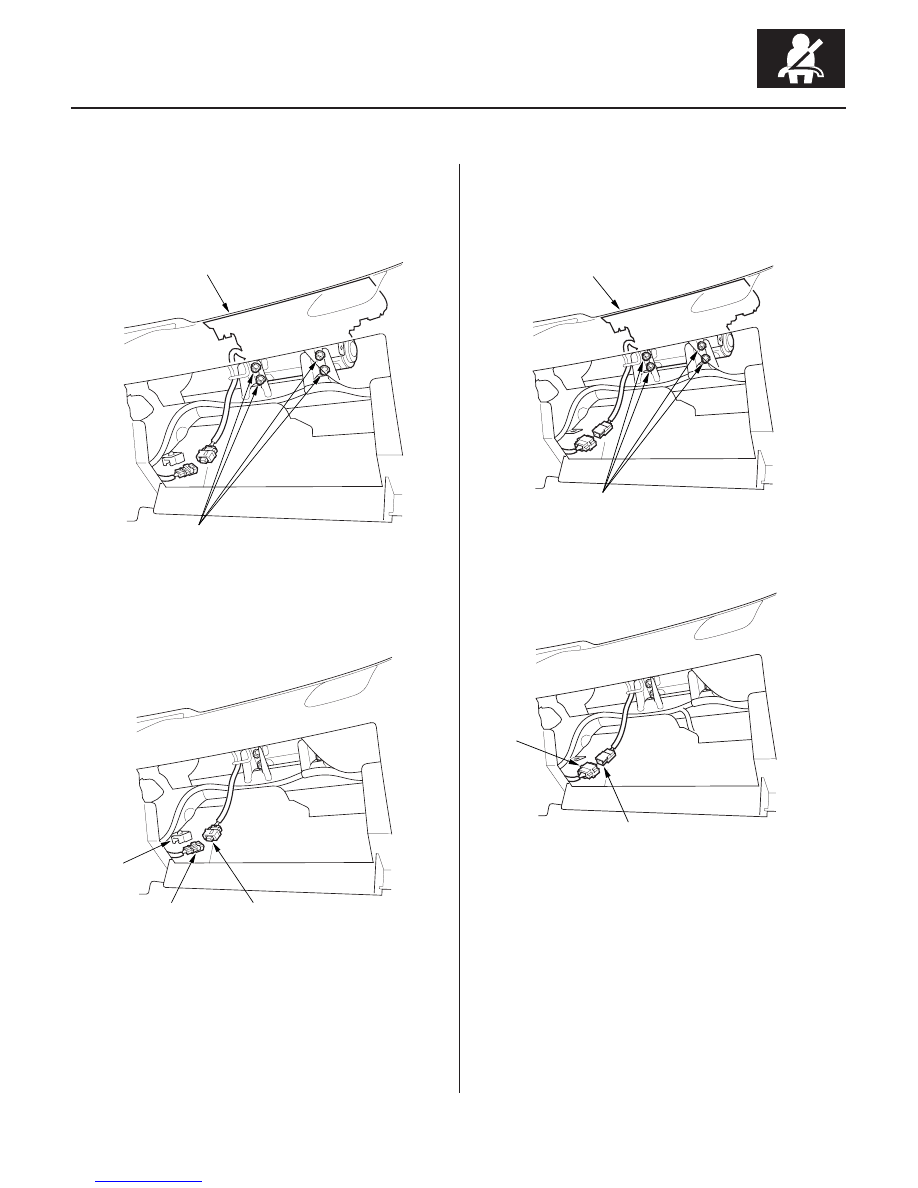

1. Place the new front passenger’s airbag (A) into the

dashboard. Tighten the front passenger’s airbag
mounting nuts (B).

2. Connect the front passenger’s airbag 2P connector

(A) to the SRS main harness 2P connector (B).
Attach the front passenger’s airbag connector to
the connector holder (C), then reinstall the glove
box.

3. Reconnect the battery negative cable.

4. After installing the airbag, confirm proper system

operation: Turn the ignition switch ON (II); the SRS
indicator should come on for about 6 seconds and
then go off.

1. Place the new front passenger’s airbag (A) into the

dashboard. Tighten the front passenger’s airbag
mounting nuts (B).

2. Connect the front passenger’s airbag 4P connector

(A) to the SRS main harness 4P connector (B), then
reinstall the glove box.

3. Reconnect the battery negative cable.

4. After installing the airbag, confirm proper system

operation: Turn the ignition switch ON (II); the SRS
indicator should come on for about 6 seconds and
then go off.

03/07/29 10:42:45 61S0X050_230_0371

01

02

03

S0X4ASHH46400055381KBAT00

’02-04 Models

Removal

Installation

23-372

SRS

Side Airbag Replacement

A

B

A

B
22 N·m
(2.2 kgf·m,
16 lbf·ft)

A

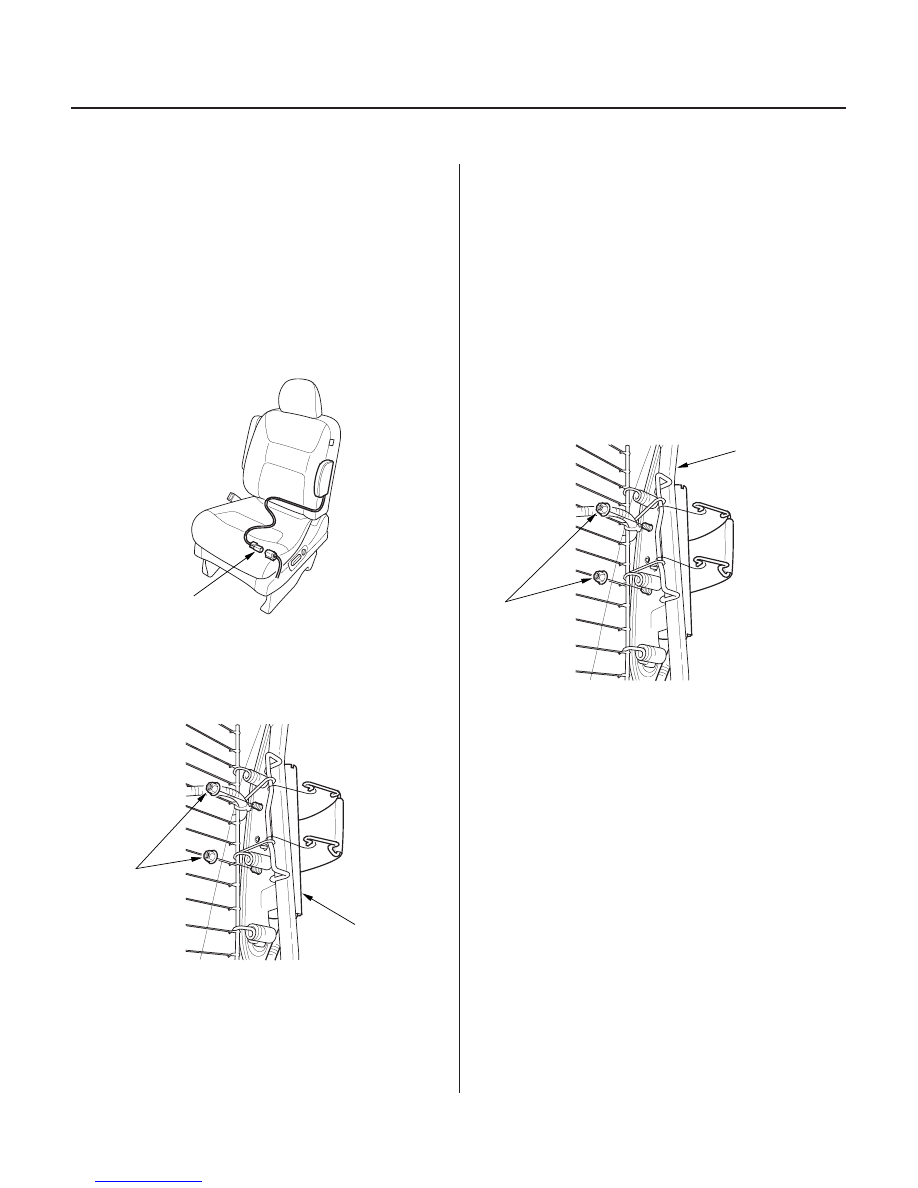

NOTE: Review the seat replacement procedure (see
page 20-81) before performing repair or service.

1. Disconnect the battery negative cable, and wait at

least 3 minutes before beginning work.

2. Disconnect the side airbag harness 2P

connector (A).

3. Remove the seat assembly (see page 20-81) and

seat-back cover (see page 20-102).

4. Remove the mounting nuts (A) and the side

airbag (B).

NOTE:

• If the side airbag lid is secured by a tape, remove the

tape.

• Do not open the lid of the side airbag cover.
• Use new mounting nuts tightened to the specified

torque.

• Make sure that the seat-back cover is installed

properly. Improper installation may prevent proper
deployment.

• Be sure to install the harness wires so they are not

pinched or interfering with other parts.

1. Place the new side airbag on the seat-back frame

(A). Tighten the side airbag mounting nuts (B).

2. Install the seat-back cover (see page 20-102).

3. Install the seat assembly (see page 20-81), then

connect the side airbag harness 2P connector.

4. Move the front seat and the seat-back through their

full ranges of movement, making sure the harness
wires are not pinched or interfering with other parts.

5. Reconnect the battery negative cable.

6. After installing the side airbag, confirm proper

system operation: Turn the ignition switch ON (II);
the SRS indicator should come on for about 6
seconds and then go off.

03/07/29 10:42:46 61S0X050_230_0372

01

02

S0X4A00H46400012802LBAT00

Special Tool Required

Driver’s Airbag

Front Passenger’s Airbag

Deploying Airbags in the vehicle

23-373

Airbag Disposal

B

C

A

B

A

Deployment tool 07HAZ-SG00500

Before scrapping any airbags, side airbags, or seat belt
tensioners, (including those in a whole vehicle to be
scrapped), the airbags, side airbags, or seat belt
tensioners, must be deployed. If the vehicle is still
within the warranty period, the Honda District Service
Manager must give approval and/or special instruction
before deploying the airbags, or side airbags, seat belt
tensioners. Only after the airbags, side airbags, or seat
belt tensioners have been deployed (as the result of
vehicle collision, for example), can they be scrapped.
If the airbags, side airbags, and seat belt tensioners
appear intact (not deployed), treat them with extreme
caution. Follow this procedure.

If an SRS equipped vehicle is to be entirely scrapped, its
airbags, side airbags, and seat belt tensioners, should
be deployed while still in the vehicle. The airbags, side
airbags and seat belt tensioners should not be
considered as salvageable parts and should never be
installed in another vehicle.

1. Turn the ignition switch OFF, then disconnect the

battery negative cable, and wait at least 3 minutes.

2. Confirm that each airbag, side airbag, or seat belt

tensioner is securely mounted.

3. Confirm that the special tool is functioning properly

by following the check procedure on the tool label.

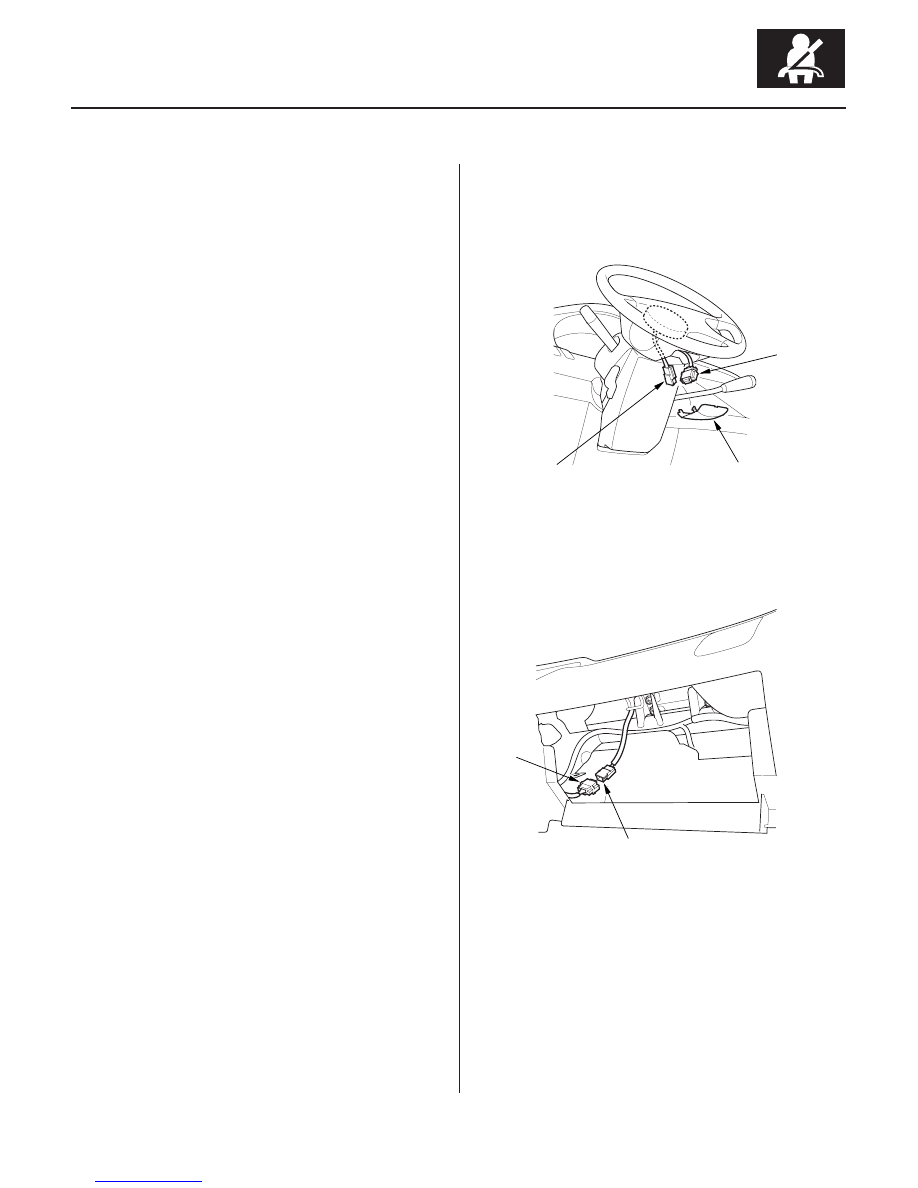

4. Remove the access panel (A), then disconnect the

4P connector between the driver’s airbag (B) and
the cable reel (C).

5. Remove the glove box (see page 20-71), then

disconnect the 4P connector between the front
passenger’s airbag (A) and dashboard wire harness
(B).

(cont’d)

03/07/29 10:42:47 61S0X050_230_0373
