Honda Odyssey 2004. Manual - part 608





*01

06

Deploying Components Out of the Vehicle

Disposal of Damaged Components

Deployment Tool Check

23-375

A

10. Connect a 12 volt battery to the tool.

• If the green light on the tool comes on, the igniter

circuit is defective and cannot deploy the
component. Go to Disposal of Damaged
Components.

• If the red light on the tool comes on, the

component is ready to be deployed.

11. Push the tool’s deployment switch. The airbags and

tensioners should deploy (deployment is both
highly audible and visible: a loud noise and rapid
inflation of the bag, followed by slow deflation).

• If the components deploy and the green light on

the tool comes on, continue with this procedure.

• If a component doesn’t deploy, yet the green

light comes ON, its igniter is defective. Go to
Disposal of Damaged Components.

• During deployment the airbag can become hot

enough to burn you. Wait 30 minutes after
deployment before touching the airbag.

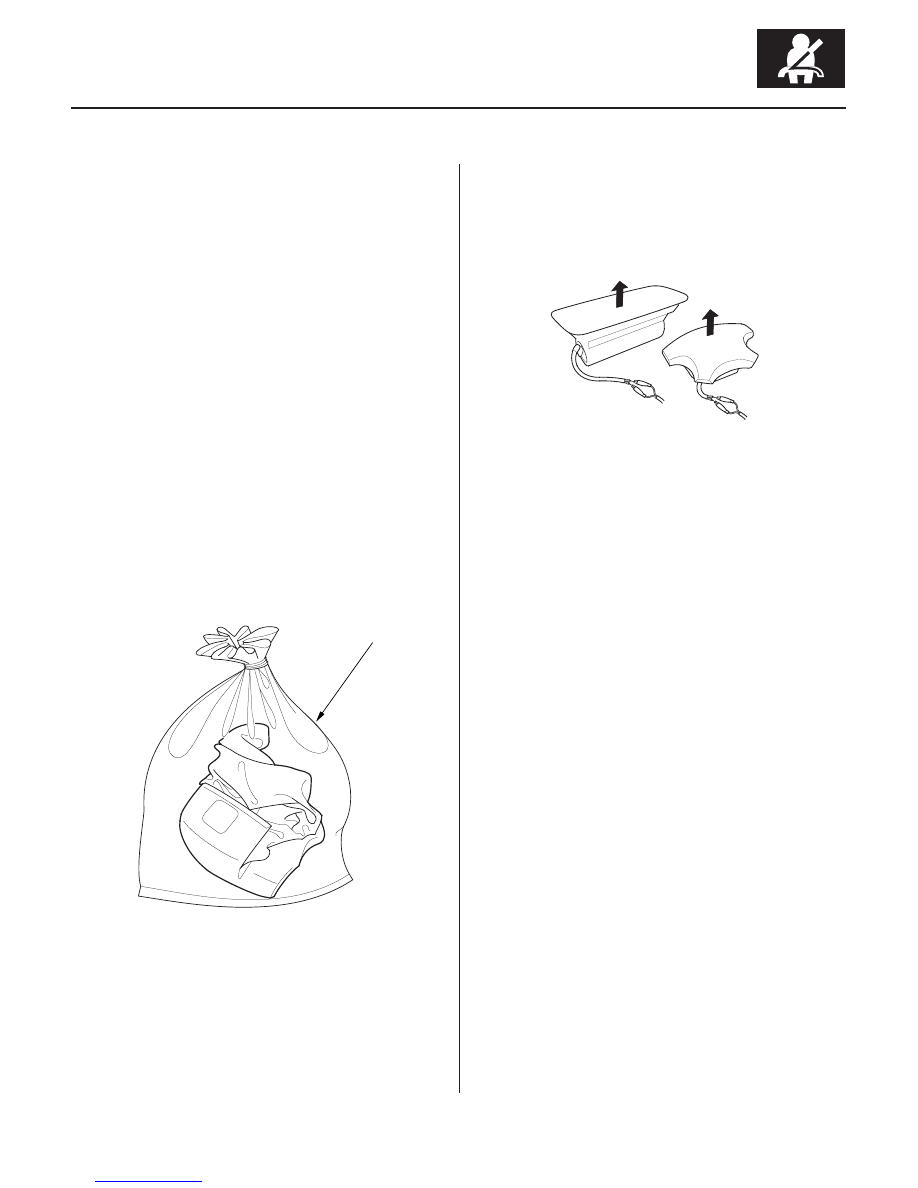

12. Dispose of the complete airbag. No part of it can be

reused. Place it in a sturdy plastic bag (A), and seal
it securely.

If an intact airbag or tensioner has been removed from
a scrapped vehicle, or has been found defective or
damaged during transit, storage, or service, it should be
deployed as follows:

1. Confirm that the special tool is functioning properly

by following the check procedure on this page or
on the tool label.

2. Position the airbag face up, outdoors, on flat

ground, at least 30 feet (10 meters) from any
obstacles or people.

3. Follow steps 9, 10, 11, and 12 of the in-vehicle

deployment procedure.

1. If installed in a vehicle, follow the removal

procedure for the driver’s airbag (see page 23-368),
front passenger’s airbag (see page 23-370), side
airbag (see page 23-372), and seat belt tensioner
(see page 23-4).

2. In all cases, make a short circuit by twisting

together the two inflator wires.
’02-04 Models:
NOTE: The driver’s and passenger’s airbag each
have four wires: twist each pair of like-colored
wires together

3. Package the component in exactly the same

packaging that the new replacement part came in.

4. Mark the outside of the box ’’DAMAGED AIRBAG

NOT DEPLOYED’’, ’’DAMAGED SIDE AIRBAG NOT
DEPLOYED’’ or ’’DAMAGED SEAT BELT
TENSIONER NOT DEPLOYED’’ so it does not get
confused with your parts stock.

5. Contact your Honda District Service Manager for

how and where to return it for disposal.

1. Connect the yellow clips to both switch protector

handles on the tool; connect the tool to a battery.

2. Push the operation switch: green means the tool is

OK; red means the tool is faulty.

3. Disconnect the battery and the yellow clips.

03/07/29 10:42:49 61S0X050_230_0375

03

04

S0X4A00H46400016251KBAT00

Removal (’99-01 Models)

23-376

SRS

Cable Reel Replacement

A

A

C

B

1. Make sure the front wheels are aligned straight

ahead.

2. Disconnect the battery negative cable, and wait at

least 3 minutes.

3. Remove the driver’s airbag (see page 23-368).

4. Remove the steering wheel (see page 17-22).

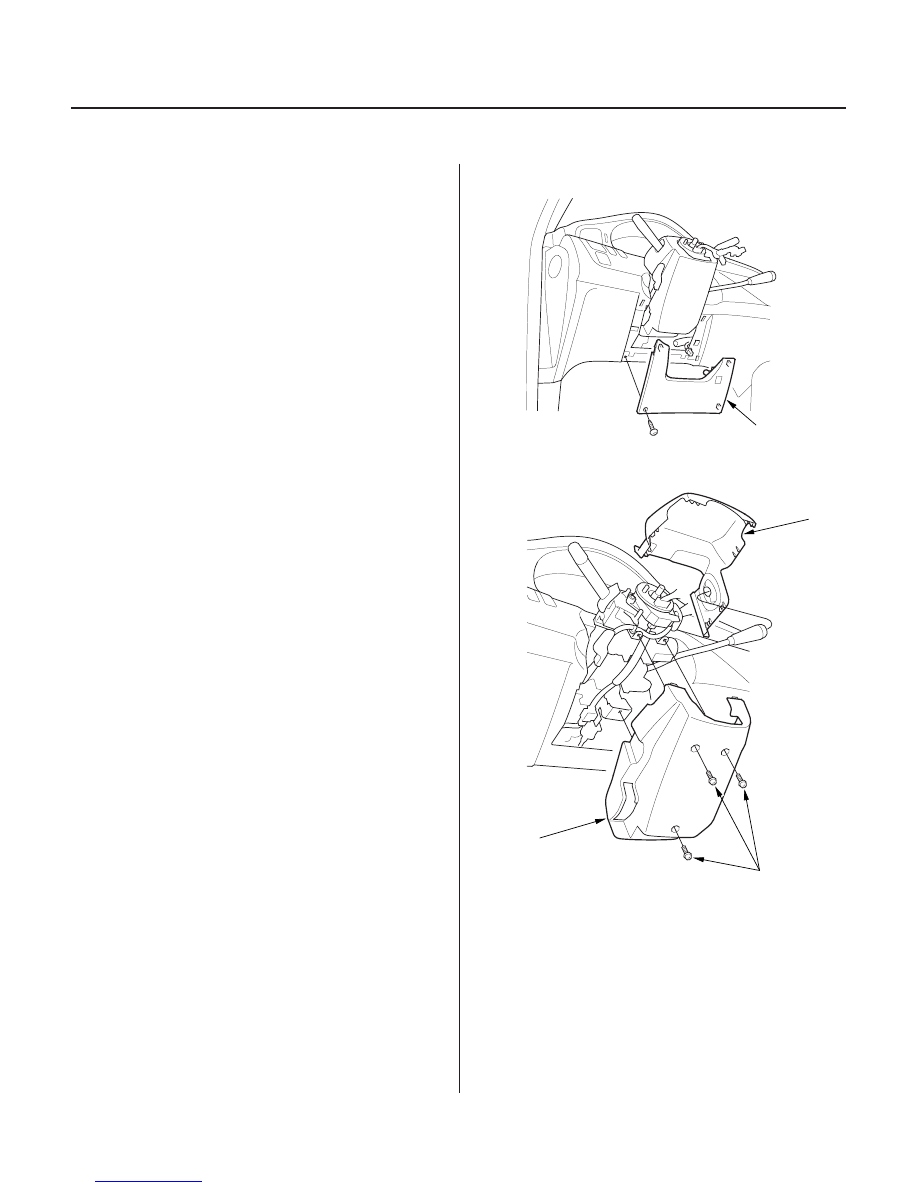

5. Remove the dashboard lower cover (A).

6. Remove the column cover screws (A), then remove

the column covers (B, C).

03/07/29 10:42:49 61S0X050_230_0376

05

06

01

Removal (’02-04 Models)

23-377

D

C

A

B

A

B

A

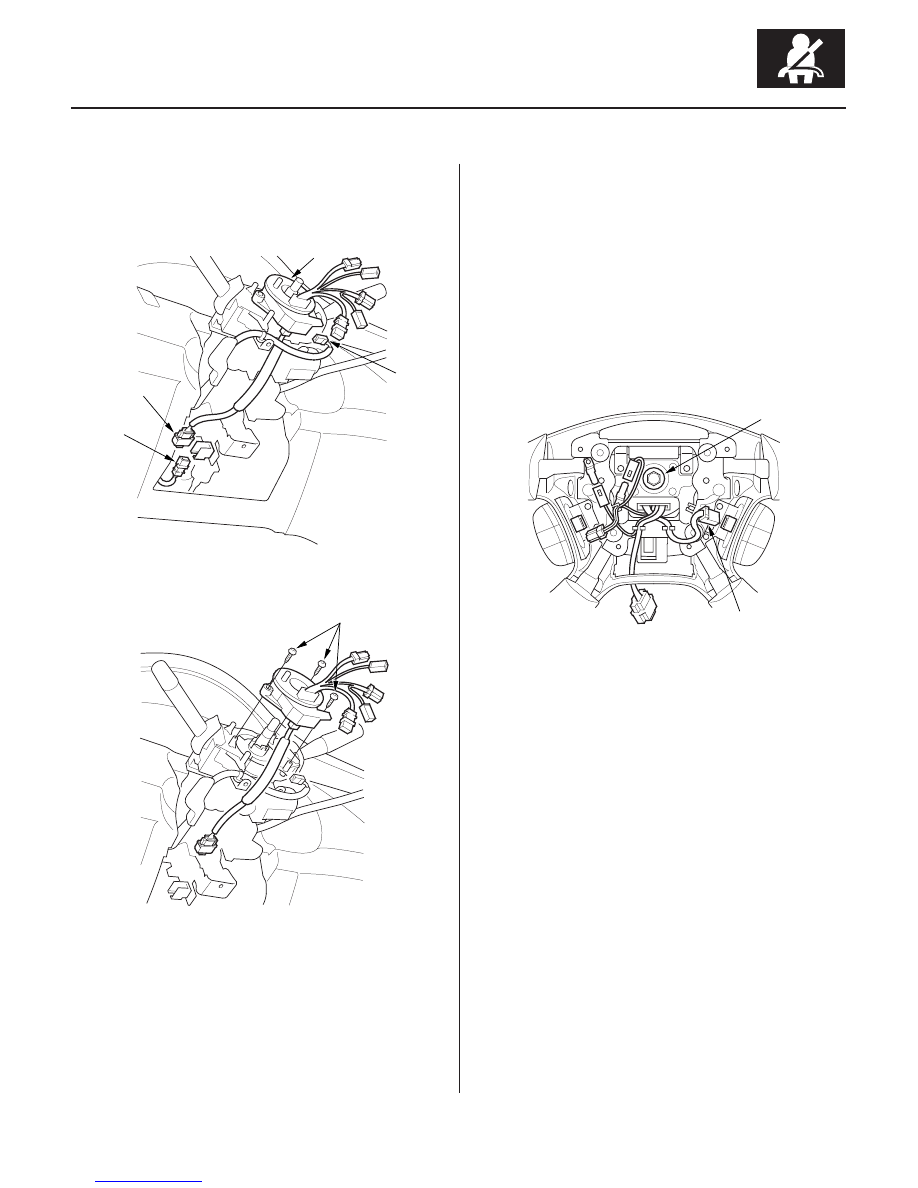

7. Disconnect the SRS main harness 2P connector (A)

from the cable reel 2P connector (B), then
disconnect the dashboard wire harness 4P
connector (C) from the cable reel (D).

8. Remove the screws (A) from the cable reel, then

remove the cable reel from the column.

1. Make sure the front wheels are aligned straight

ahead.

2. Disconnect the battery negative cable, and wait at

least 3 minutes.

3. Remove the driver’s airbag (see page 23-368).

4. Disconnect the connectors (A) from the cruise

control set/resume switch, radio remote switch,
and horn switch, then remove the steering wheel
bolt (B).

5. Remove the steering wheel with a steering wheel

puller (see step 3 on page 17-22). Do not tap on the
steering wheel or steering column shaft when
removing the steering wheel.

(cont’d)

03/07/29 10:42:50 61S0X050_230_0377

02

03

04

05

23-378

SRS

Cable Reel Replacement (cont’d)

A

B

C

A

A

B

B

A

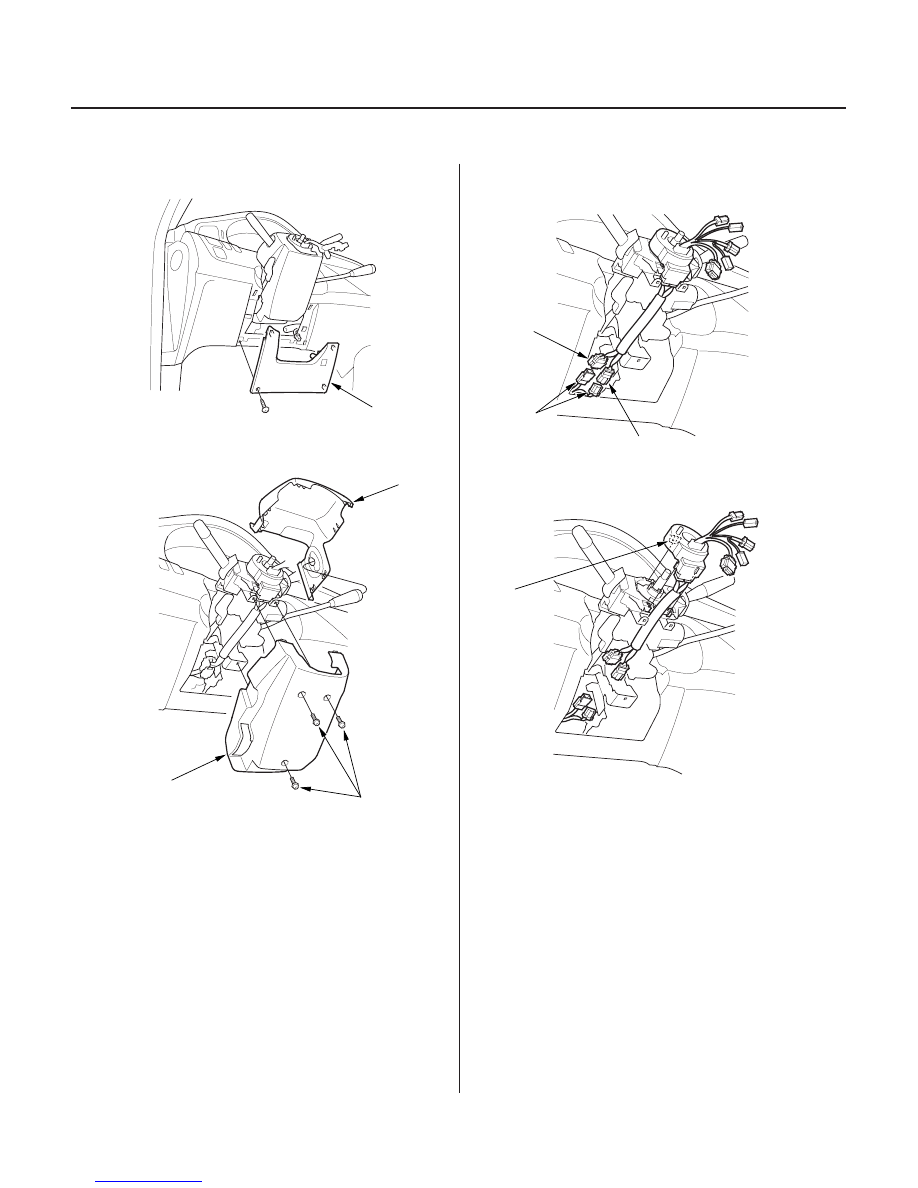

6. Remove the dashboard lower cover (A).

7. Remove the column cover screws (A), then remove

the column covers (B, C).

8. Disconnect the SRS main harness 4P connectors

(A) from the cable reel 4P connectors (B).

9. Release the tab (A), then remove the cable reel

from the column.

03/07/29 10:42:51 61S0X050_230_0378
