Starting System - Element

COMPONENT LOCATION INDEX

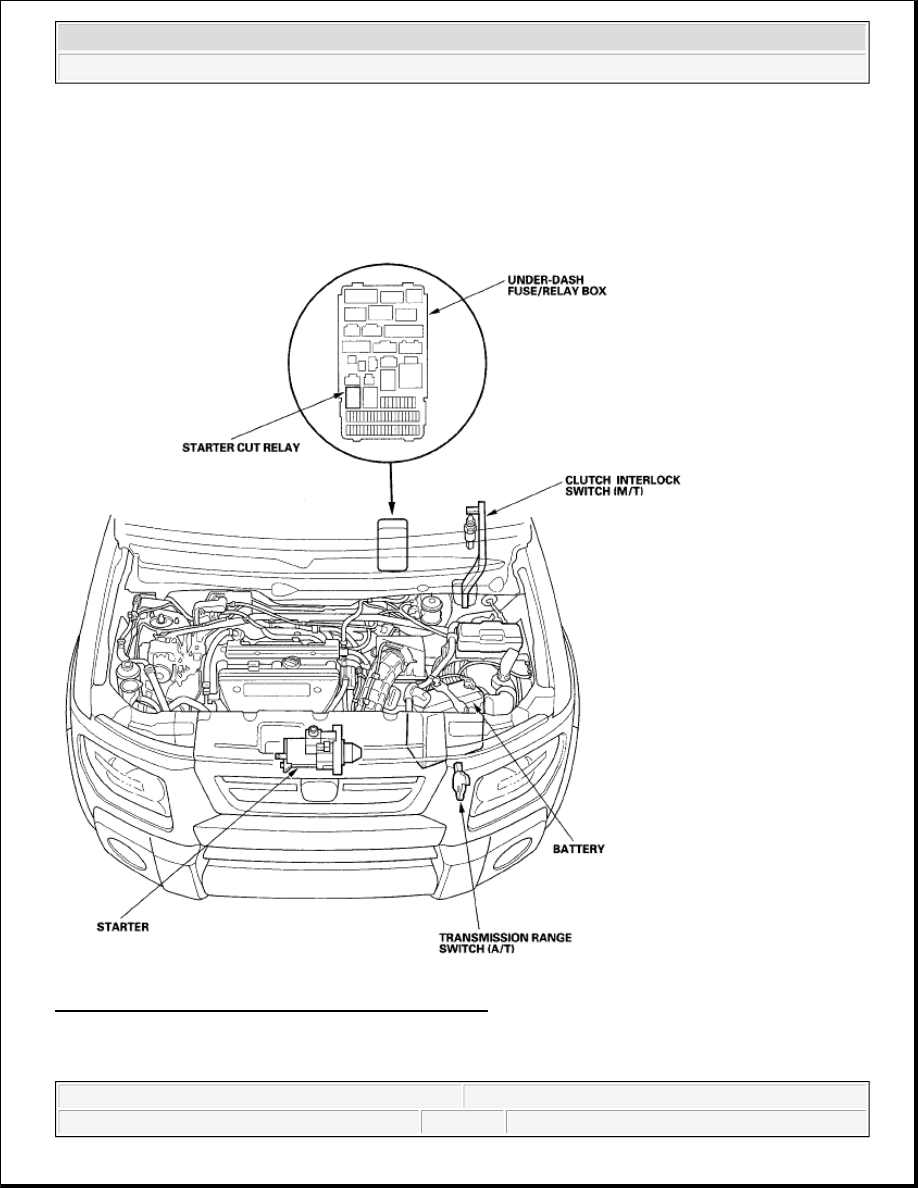

Fig. 1: Identifying Starting System Component Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX



2007 Honda Element EX

2007-08 ENGINE Starting System - Element





2007 Honda Element EX

2007-08 ENGINE Starting System - Element



SYMPTOM TROUBLESHOOTING CHART

Symptom

Diagnostic procedure

Also check for

Engine does not start
(does not crank)

1. Check for loose battery terminals or connections.

2. Test the battery for a low charge (see BATTERY

TEST ).

3. Check the starter (see STARTER SYSTEM

CIRCUIT TROUBLESHOOTING ).

4. Check the starter cut relay (see POWER RELAY

TEST ).

5. Check the transmission range switch (A/T) (see

TRANSMISSION RANGE SWITCH TEST ).

6. Check the clutch interlock switch (M/T) (see

CLUTCH INTERLOCK SWITCH TEST ).

7. Check the ignition switch or wire (see TEST ).

Poor ground at G101
(A/T) or G502 (M/T)

Engine cranks, but
does not start

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING INFORMATION ).

2. Check the fuel pressure (see FUEL PRESSURE

TEST ).

3. Check for a plugged or damaged fuel line (see FUEL

LINE INSPECTION ).

4. Check for a plugged fuel filter (see FUEL FILTER

REPLACEMENT ).

5. Check the throttle body (see THROTTLE BODY

TEST ).

6. Check for low engine compression (see ENGINE

COMPRESSION INSPECTION ).

7. Check for a damaged or broken cam chain.

Fuel level in tank

Engine is hard to
start

1. Check for PGM-FI DTCs (see GENERAL

TROUBLESHOOTING INFORMATION ).

2. Check the fuel pressure (see FUEL PRESSURE

TEST ).

3. Check for a plugged or damaged fuel line (see FUEL

LINE INSPECTION ).

4. Check for a plugged fuel filter (see FUEL FILTER

REPLACEMENT ).



Engine cranks
slowly

1. Check for loose battery terminals or connections.

2. Test the battery for a low charge (see BATTERY

TEST ).

3. Check the starter for binding (see STARTER

SYSTEM CIRCUIT TROUBLESHOOTING ).

4. Check for excessive drag in the engine.





2007 Honda Element EX

2007-08 ENGINE Starting System - Element



CIRCUIT DIAGRAM

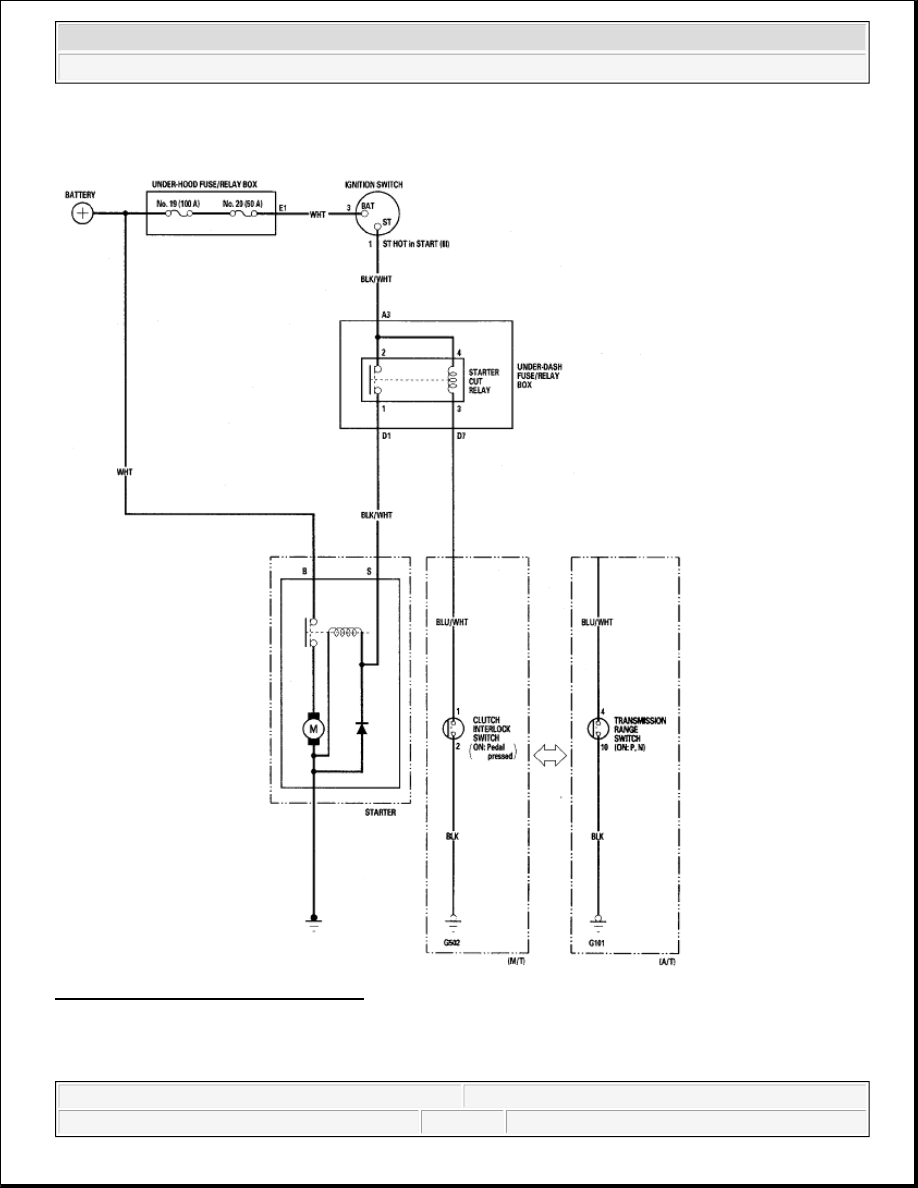

Fig. 2: Starting System Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

STARTER SYSTEM CIRCUIT TROUBLESHOOTING



2007 Honda Element EX

2007-08 ENGINE Starting System - Element



1. Hook up the following equipment:



Ammeter, 0-400 A



Voltmeter, 0-20 V (accurate within 0.1 V)

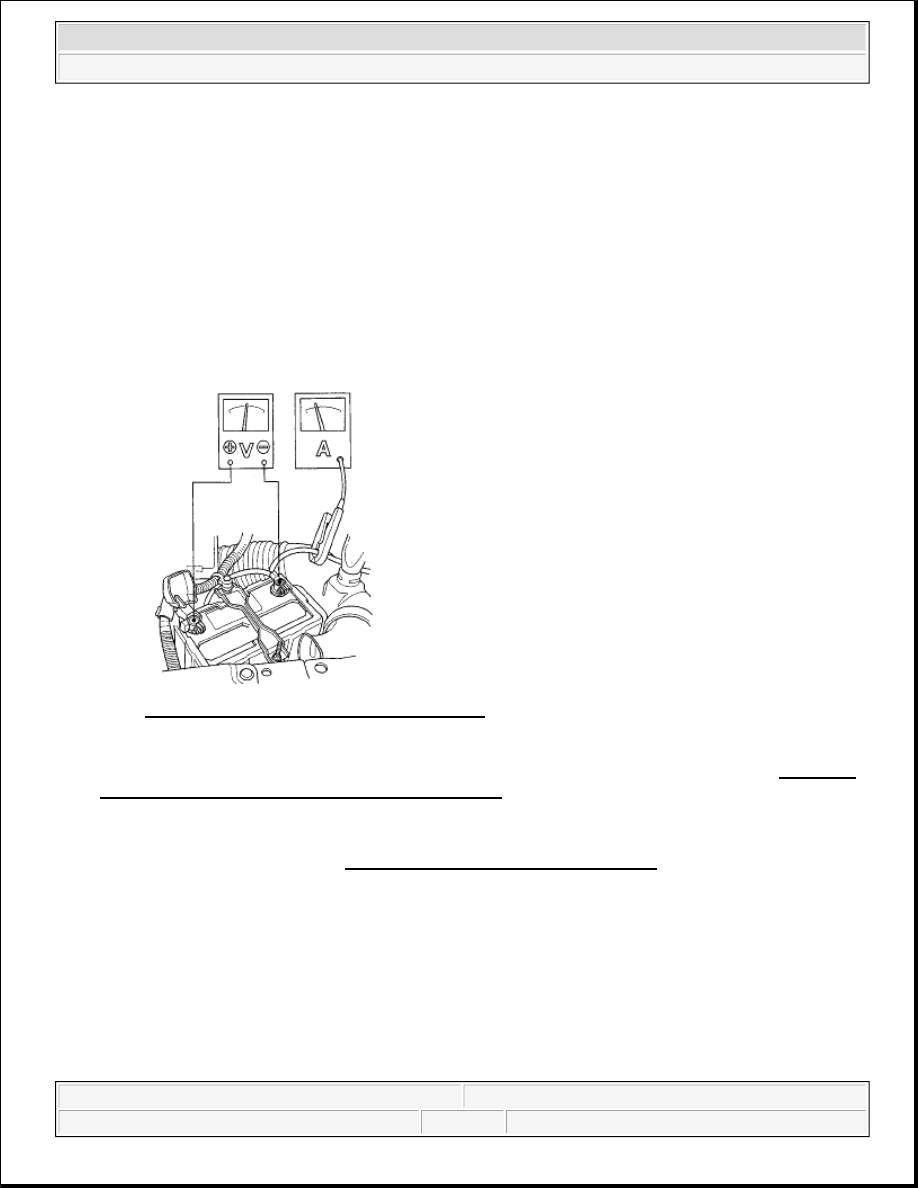

Fig. 3: Connecting Ammeter And Voltmeter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Connect the Honda Diagnostic System (HDS) to the data link connector (DLC) (see step 2 on HOW TO

USE THE HDS (HONDA DIAGNOSTIC SYSTEM) ).

3. Turn the ignition switch ON (II).

4. Make sure the HDS communicates with the vehicle and the ECM/PCM. If it doesn't communicate,

troubleshoot the DLC circuit (see DLC CIRCUIT TROUBLESHOOTING ).

5. Select PGM-FI, INSPECTION, then ALL INJECTORS OFF on the HDS.

6. Set the parking brake, then with the shift lever in the N or P position (A/T) or the clutch pedal pressed

(M/T), turn the ignition switch to START (III).

Does the starter crank the engine normally?

YES - The starting system is OK. Go to step 11.

NO - Go to step 7.

NOTE:



Air temperature must be between 59 and 100°F (15 and 38°C) during this
procedure.



After the inspection, you must reset the engine control module
(ECM)/powertrain control module (PCM). Otherwise, the ECM/PCM will
continue to stop the fuel injectors from operating.



The battery must be in good condition and fully charged.
