Honda Element. Manual - part 743

5th

0.566

Reverse

2.000

Transfer gear

Type

Single helical gear

Gear ratio

4.765

Differential final
gears

Type

Single helical gear

Gear ratio

4.500

STEERING

Type



Hydraulic power-assisted rack and
pinion

Overall ratio

LX, EX

16.2

SC

15.34

Turns, lock-to-lock

LX, EX

3.26

SC

2.98

Steering wheel
diameter



386 mm (15.2 in.)

SUSPENSION

Type

Front

Independent strut with stabilizer, coil
spring

Rear

Independent double wishbone with
stabilizer, coil spring

Shock absorber

Front

Telescopic, hydraulic, nitrogen gas-
filled

Rear

Telescopic, hydraulic, nitrogen gas-
filled

TIRES

Size of front and
rear tires

LX, EX

P215/70R1699S

SC

P225/55R18 97H

Size of spear tires



T145/90D16 106M

WHEEL
ALIGNMENT (LX,
EX)

Camber

Front

-0° 13'

Rear

-1° 00'

Caster

Front

1° 50'

Total toe-in

Front

0 mm (0 in.)

Rear

2 mm (0.08 in.)

WHEEL
ALIGNMENT (SC)

Camber

Front

-0° 24'

Rear

-1° 06'

Caster

Front

1° 50'

Total toe-in

Front

0 mm (0 in.)

Rear

2 mm (0.08 in.)

BRAKES

Type of service
brake

Front

Power-assisted self-adjusting
ventilated disc

Rear

Power-assisted self-adjusting solid
disc

Type of parking
brake



Mechanical actuating, rear wheels

Pad friction surface  Front

46.0 cm

2

 (7.13 sq in.) x 2



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



area

Rear

27.9 cm

2

 (4.32 sq in.) x 2

Parking brake shoe
friction surface area



49.0 cm

2

 (7.6 sq in.) x 2

AIR
CONDITIONING

Compressor

Type

Swash plate

Capacity

188 mL (11.47 cu in.)/rev.

Maximum speed

7,922 rpm

Lubricant capacity

160 mL (51/3 fl.oz)

Lubricant type

DENSO ND-OIL 8

Condenser

Type

Corrugated fin

Evaporator

Type

Corrugated fin

Blower

Type

Radial fan

Motor type

190 W/12 V

Speed control

Infinite variable

Maximum capacity

480 m

3

 (16.900 cu ft)/h

Temperature control

Air-mix type

Compressor clutch

Type

Dry, single plate, poly-V belt drive

Electrical power
consumption at 68°F
(20°C)

35 W max. at 12 V

Refrigerant

Type

HFC-134a (R-134a)

Capacity

500-550 g (17.6-19.4 oz)

ELECTRICAL
RATINGS

Battery



12 V-47 Ah/20 HR (12 V-38 Ah/5HR)

Fuses

Under-hood
fuse/relay box

100 A, 50 A, 40 A, 30 A, 20 A, 15 A,
10 A, 7.5 A

Under-dash fuse/relay
box

20 A, 15 A, 10 A, 7.5 A

Light bulbs

Headlight high/low
beam(LX, EX)

12 V-60/55 W (H4/HB2)

Headlight high beam
(SC)

12 V-60 W (HB3)

Headlight low beam
(SC)

12 V-55 W (H11)

Front turn
signal/parking lights

12V-21/5 W (LX, EX) 12V-28/8 W
(SC)

Front side marker
lights

12 V-3CP (LX, EX) 12 V-5 W (SC)

Rear turn signal lights 12 V-21 W (Amber)
Brake/rear side
marker
lights/taillights

12 V-21/5 W

High mount brake
light

12 V-21 W



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



BODY SPECIFICATIONS

LX, EX:

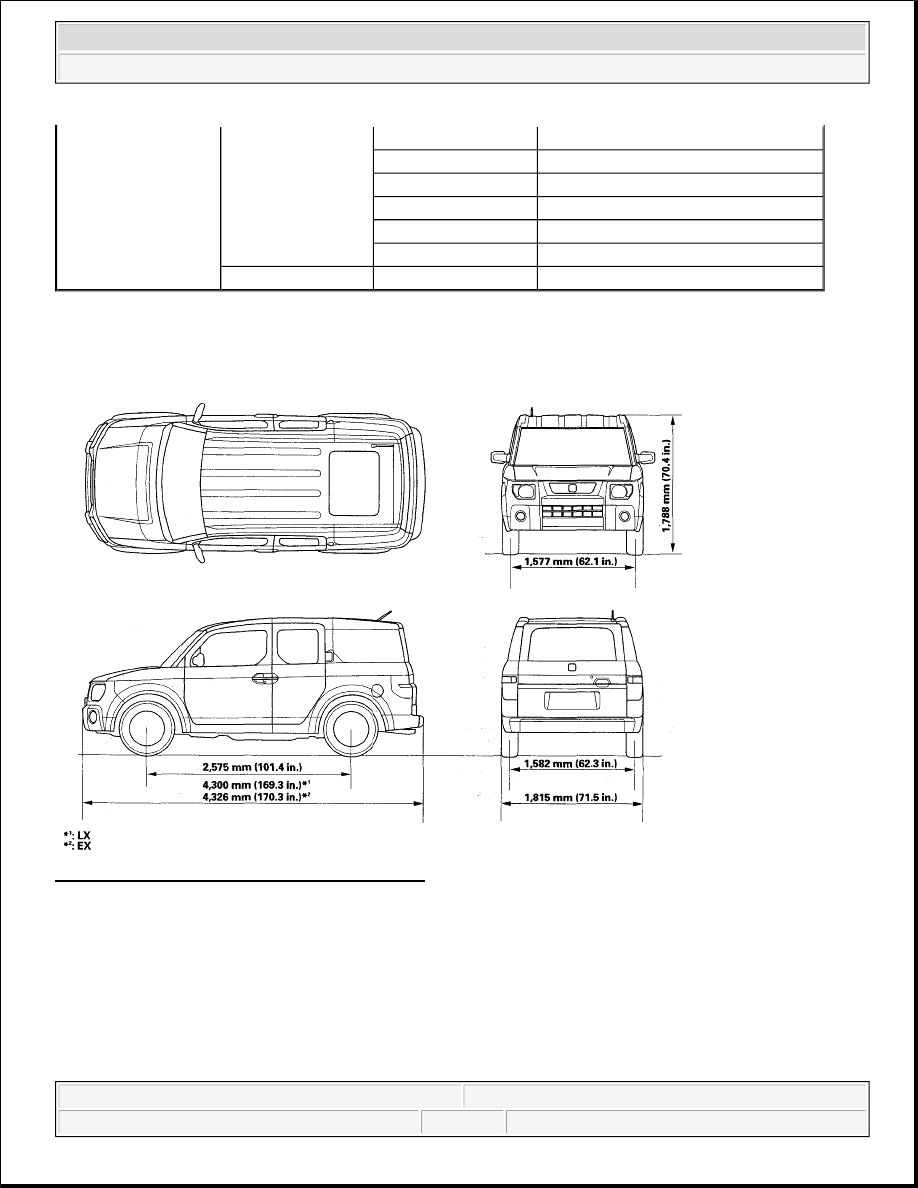

Fig. 1: Identifying Body Specifications (LX, EX)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

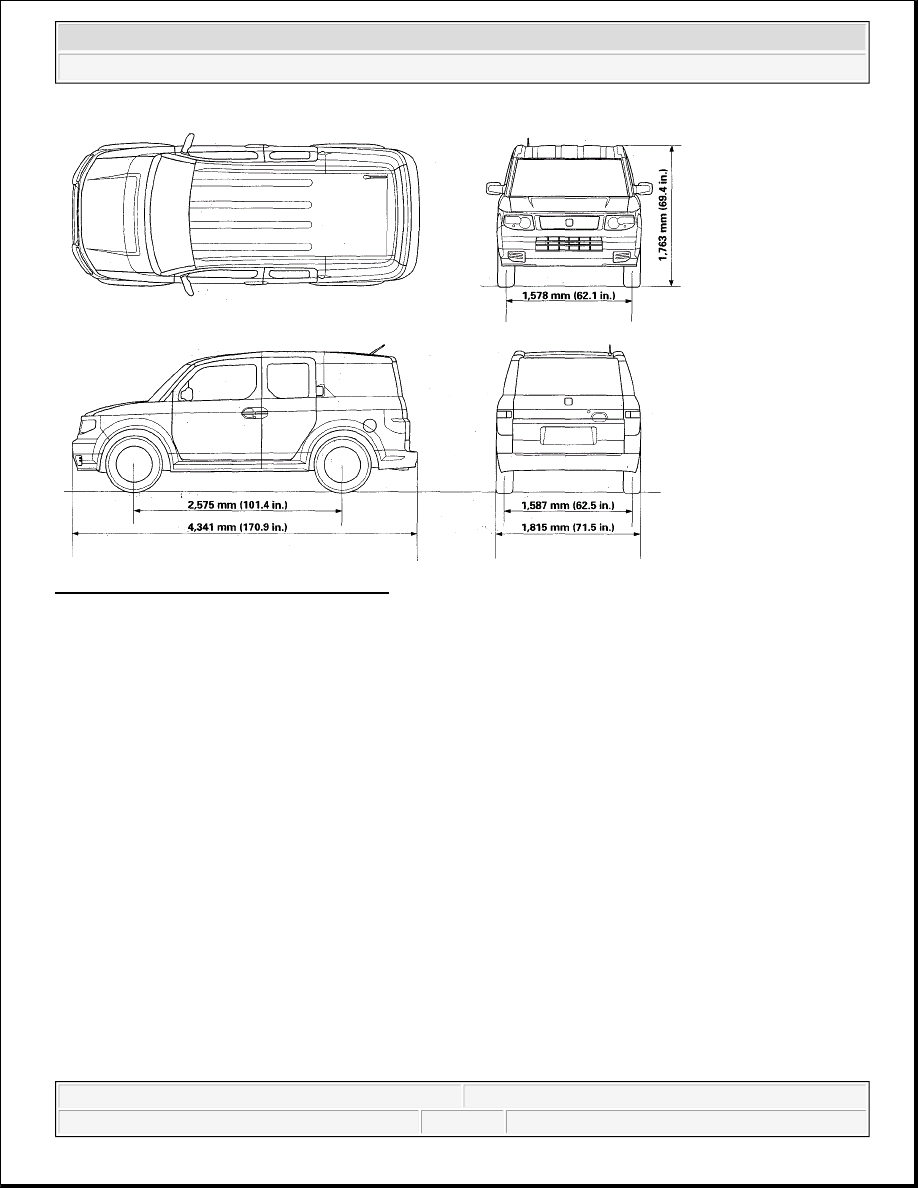

SC:

Back-up lights

12 V-18 W

License plate lights

12 V-5 W

Ceiling lights

12 V-10 W

Spotlights

12 V-8 W

Gauge lights

LED

Indicator lights

LED

Washer reservoir

Capacity

4.5 L (4.7 US qt)



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



Fig. 2: Identifying Body Specifications (SC)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
