COOLING SYSTEM

COOLING SYSTEM SPECIFICATION

Item

Measurement

Qualification

Standard or New

Service

Limit

Engine
oil

Capacity

Engine overhaul

5.3 L (5.6 US qt)

Oil change including
filter

4.2 L (4.4 US qt)

Oil change without
filter

4.0 L (4.2 US qt)

Oil
pump

Inner-to-outer rotor clearance



0.06-0.16 mm (0.002-
0.006 in.)

0.20 mm
(0.008 in.)

Pump housing-to-outer rotor
clearance



0.15-0.21 mm (0.006-
0.008 in.)

0.23 mm
(0.009 in.)

Pump housing-to-rotor axial
clearance



0.035-0.070 mm
(0.0014-0.0028 in.)

0.12 mm
(0.005 in.)

Balancer shafts, journal diameter

No. 1 journal, front
shaft

19.938-19.950 mm
(0.7850-0.7854 in.)

19.92 mm
(0.784 in.)

No. 1 journal, rear
shaft

23.938-23.950 mm
(0.9424-0.9429 in.)

23.92 mm
(0.942 in.)

No. 2 journal, front
and rear shafts

32.949-32.961 mm
(1.2972-1.2977 in.)

32.93 mm
(1.296 in.)

Balancer shafts, journal taper



0.005 mm (0.0002 in.)
max.

--

Balancer shafts, end play

Front

0.063-0.108 mm
(0.0025-0.0043 in.)

0.14 mm
(0.0055 in.)

Rear

0.063-0.108 mm
(0.0025-0.0043 in.)

0.14 mm
(0.0055 in.)

Balancer shafts, shaft-to-bearing
clearance

No. 1 journal, front
shaft

0.050-0.082 mm
(0.0020-0.0032 in.)

0.10 mm
(0.004 in.)

No. 1 journal, rear
shaft

0.050-0.082 mm
(0.0020-0.0032 in.)

0.10 mm
(0.004 in.)

No. 2 journal, front
and rear shafts

0.060-0.120 mm
(0.0024-0.0047 in.)

0.15 mm
(0.006 in.)

Balancer shaft bearings, I.D.

No. 1 journal, front
shaft

20.000-20.020 mm
(0.7874-0.7882 in.)

20.03 mm
(0.789 in.)

No. 1 journal, rear
shaft

24.000-24.020 mm
(0.9449-0.9457 in.)

24.03 mm
(0.946 in.)

No. 2 journal, front
and rear shafts

33.021-33.069 mm
(1.3000-1.3019 in.)

33.09 mm
(1.303 in.)

Relief valve, oil pressure with oil
temperature at 176°F (80°C)

At idle

70 kPa (0.7 kgf/cm

2

 , 10 psi) min.

At 3,000 rpm

300 kPa (3.1 kgf/cm

2

 , 44 psi) min.



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



FUEL AND EMISSIONS

FUEL AND EMISSIONS SPECIFICATION

CLUTCH

CLUTCH SPECIFICATION

Item

Measurement

Qualification

Standard or New

Radiator

Coolant capacities (including engine,
heater, hoses, and reservoir)
Use Honda Long Life Antifreeze/Coolant
Type 2

M/T: engine
overhaul

7.3 L (1.93 US gal)

M/T: coolant
change

5.2 L (1.37 US gal)

A/T: engine
overhaul

7.2 L (1.90 US gal)

A/T: coolant
change

5.1 L (1.35 US gal)

Coolant
reservoir

Coolant capacity



0.6 L (0.16 US gal)

Radiator cap

Opening pressure



93-123 kPa (0.95-1.25
kgf/cm

2

 , 14-18 psi)

Thermostat

Opening temperature

Begins to open

169-176°F (76-80°C)

Fully open

194°F (90°C)

Valve lift at fully open



8.0 mm (0.31 in.) min.

Item

Measurement

Qualification Standard or New

Fuel
pressure
regulator

Pressure with fuel pressure gauge connected



320-370 kPa (3.3-
3.8 kgf/cm

2

 , 47-

54 psi)

Fuel tank

Capacity



60 L (15.9 US gal)

Engine idle

Idle speed without load

M/T (in neutral) 700 ± 50 rpm
A/T (in N or P
position)

700 ± 50 rpm

Idle speed with high electrical load (A/C switch ON,
temperature set to max cool, blower fan on High, rear
window defogger ON, and headlights on high beam)

M/T (in neutral) 720 ± 50 rpm
A/T (in N or P
position)

720 ± 50 rpm

Item

Measurement

Qualification Standard or New

Service

Limit

Clutch
pedal

Height from floor



200 mm (7.87 in.)

--

Stroke



125-135 mm (4.92-
5.31 in.)

--

Play



6-17 mm (0.24-
0.67 in.)

--

112 mm (4.41 in.)



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



MANUAL TRANSMISSION AND M/T DIFFERENTIAL

MANUAL TRANSMISSION AND M/T DIFFERENTIAL SPECIFICATION

Disengagement height from floor



min.

--

Flywheel

Runout on clutch mating surface



0.05 mm (0.002 in.)
max.

0.15 mm
(0.006 in.)

Clutch disc

Rivet head depth



1.65-2.25 mm
(0.065-0.089 in.)

0.7 mm
(0.03 in.)

Thickness



8.6-9.2 mm (0.34-
0.36 in.)

6.0 mm
(0.24 in.)

Pressure
plate

Warpage



0.03 mm (0.001 in.)
max.

0.15 mm
(0.006 in.)

Height of diaphragm spring fingers
measured with special tool and feeler gauge



0.6 mm (0.02 in.)
max.

0.8 mm
(0.03 in.)

Item

Measurement

Qualification Standard or New

Service

Limit

Manual
transmission fluid

Capacity Use Honda MTF

Fluid change

1.90 L (2.0 US qt)

2WD: overhaul 2.15 L (2.3 US qt)
4WD: overhaul 2.25 L (2.4 US qt)

Mainshaft

End play



0.11-0.17 mm
(0.004-0.007 in.)

Adjust

Diameter of bushing contact area



20.80-20.85 mm
(0.8189-0.8209
in.)

20.75 mm
(0.817 in.)

Diameter of distance collar contact
area



31.984-32.000 mm
(1.2594-1.2598
in.)

31.93 mm
(1.257 in.)

Diameter of ball bearing contact area
(clutch housing side)



27.977-27.990 mm
(1.1015-1.1020
in.)

27.94 mm
(1.100 in.)

Diameter of needle bearing contact
area



38.984-39.000 mm
(1.5348-1.5354
in.)

38.93 mm
(1.533 in.)

Diameter of ball bearing contact area
(transmission housing side)



27.987-28.000 mm
(1.1019-1.1024
in.)

27.94 mm
(1.100 in.)

Runout



0.02 mm (0.001
in.) max.

0.05 mm
(0.002 in.)

Mainshaft 3rd, 4th,
and 5th gear

I.D.



44.009-44.025 mm
(1.7326-1.7333
in.)

44.08 mm
(1.735 in.)

End play



0.06-0.16 mm
(0.002-0.006 in.)

0.25 mm
(0.010 in.)



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element



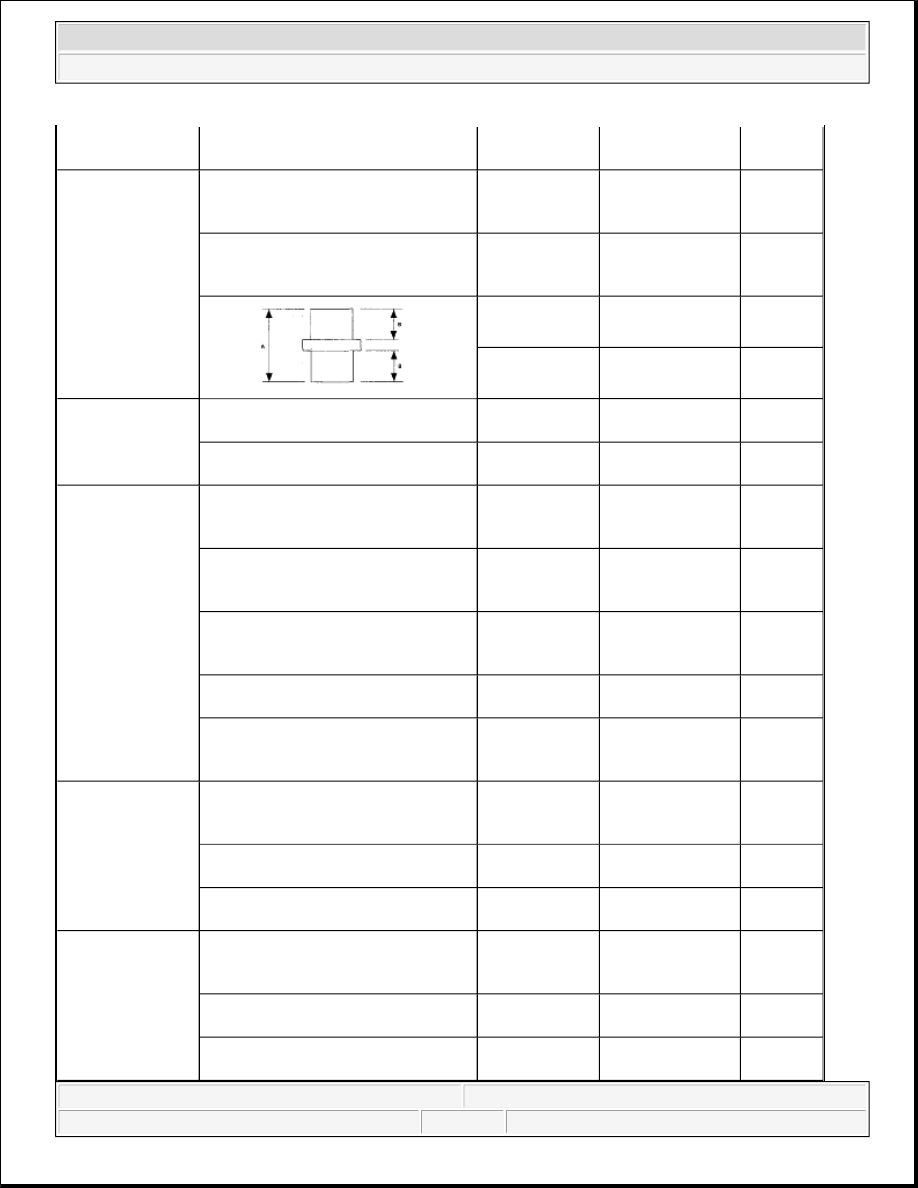

Thickness



23.92-23.97 mm
(0.941-0.944 in.)

23.80 mm
(0.937 in.)

Mainshaft 4th and
5th gear distance
collar

I.D.



32.00-32.01 mm
(1.2598-1.2602
in.)

32.02 mm
(1.261 in.)

O.D.



38.989-39.000 mm
(1.5350-1.5354
in.)

38.94 mm
(1.533 in.)

Length

A

51.95-52.05 mm
(2.045-2.049 in.)

--

B

24.03-24.08 mm
(0.946-0.948 in.)

--

MBS distance
collar

I.D.



28.00-28.01 mm
(1.102-1.103 in.)

28.02 mm
(1.103 in.)

Length



23.95-24.05 mm
(0.943-0.947 in.)

--

Countershaft

Diameter of needle bearing contact
area (clutch housing side)



35.000-35.015 mm
(1.3780-1.3785
in.)

34.95 mm
(1.376 in.)

Diameter of distance collar contact
area



39.937-39.950 mm
(1.5723-1.5728
in.)

39.88 mm
(1.570 in.)

Diameter of ball bearing contact area
(transmission housing side)



30.020-30.033 mm
(1.1819-1.1824
in.)

29.97 mm
(1.180 in.)

Runout



0.02 mm (0.001
in.) max.

0.05 mm
(0.002 in.)

35 mm shim-to-bearing inner race
clearance



0.04-0.10 mm
(0.0016-0.0039
in.)

Adjust

Countershaft 1st
gear

I.D.



52.010-52.029 mm
(2.0476-2.0484
in.)

52.08 mm
(2.050 in.)

End play



0.06-0.16 mm
(0.002-0.006 in.)

0.25 mm
(0.010 in.)

Thickness



22.92-22.97 mm
(0.902-0.904 in.)

22.87 mm
(0.900 in.)

Countershaft 2nd
gear

I.D.



52.010-52.029 mm
(2.0476-2.0484
in.)

52.08 mm
(2.050 in.)

End play



0.06-0.16 mm
(0.002-0.006 in.)

0.25 mm
(0.010 in.)

Thickness



27.92-27.97 mm
(1.099-1.101 in.)

27.87 mm
(1.097 in.)



2007 Honda Element EX

2007-08 GENERAL INFORMATION Specifications - Element
