Honda Element. Manual - part 713

Fig. 21: Identifying Tail Pipe
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Separate the No. 2 propeller shaft from the rear differential assembly (see step 7 on PROPELLER

SHAFT REMOVAL ).

4. Remove the rear differential damper (A) (M/T model), place a transmission jack under the rear

differential assembly, then remove right and left rear differential mounting brackets B.

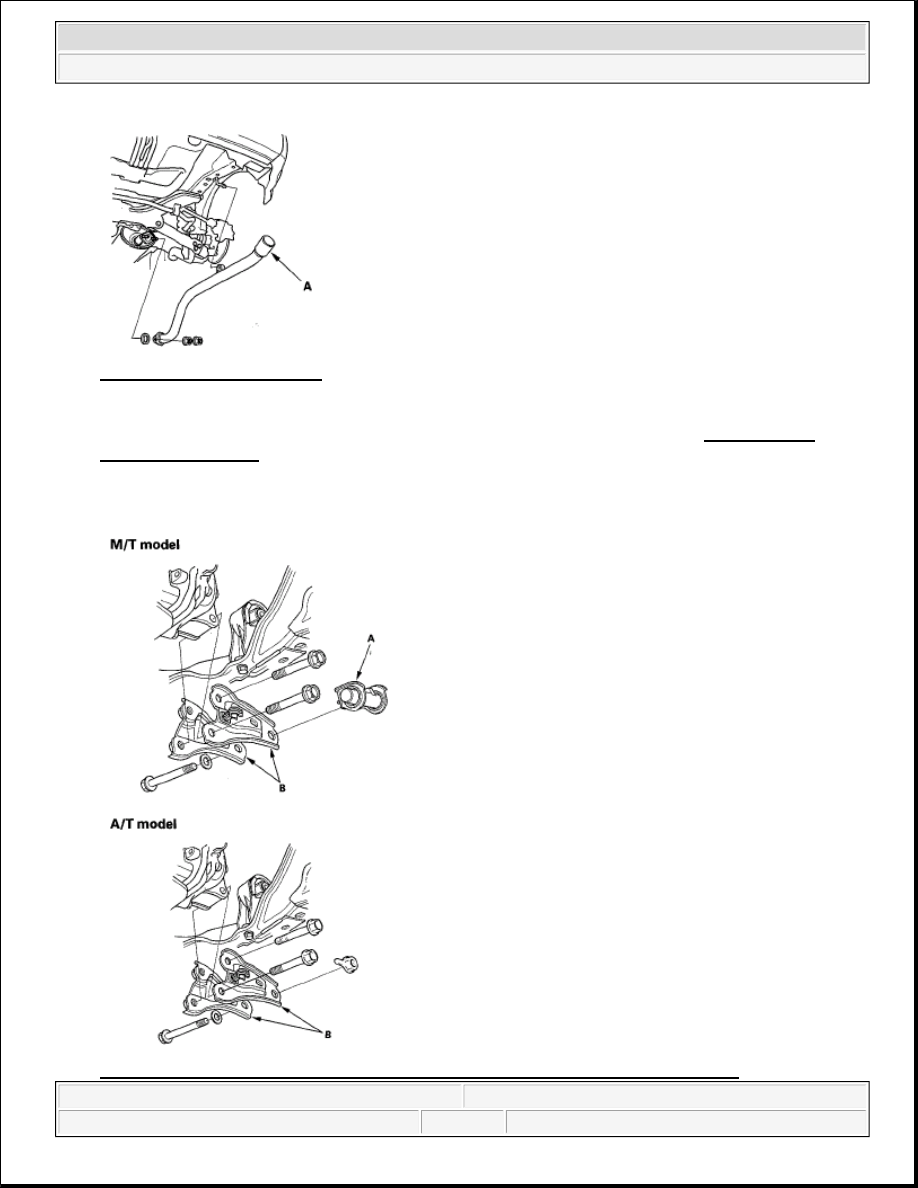

Fig. 22: Identifying Rear Differential Damper (M/T Model) And Mounting Bracket



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Remove the mounting bolts and the plates.

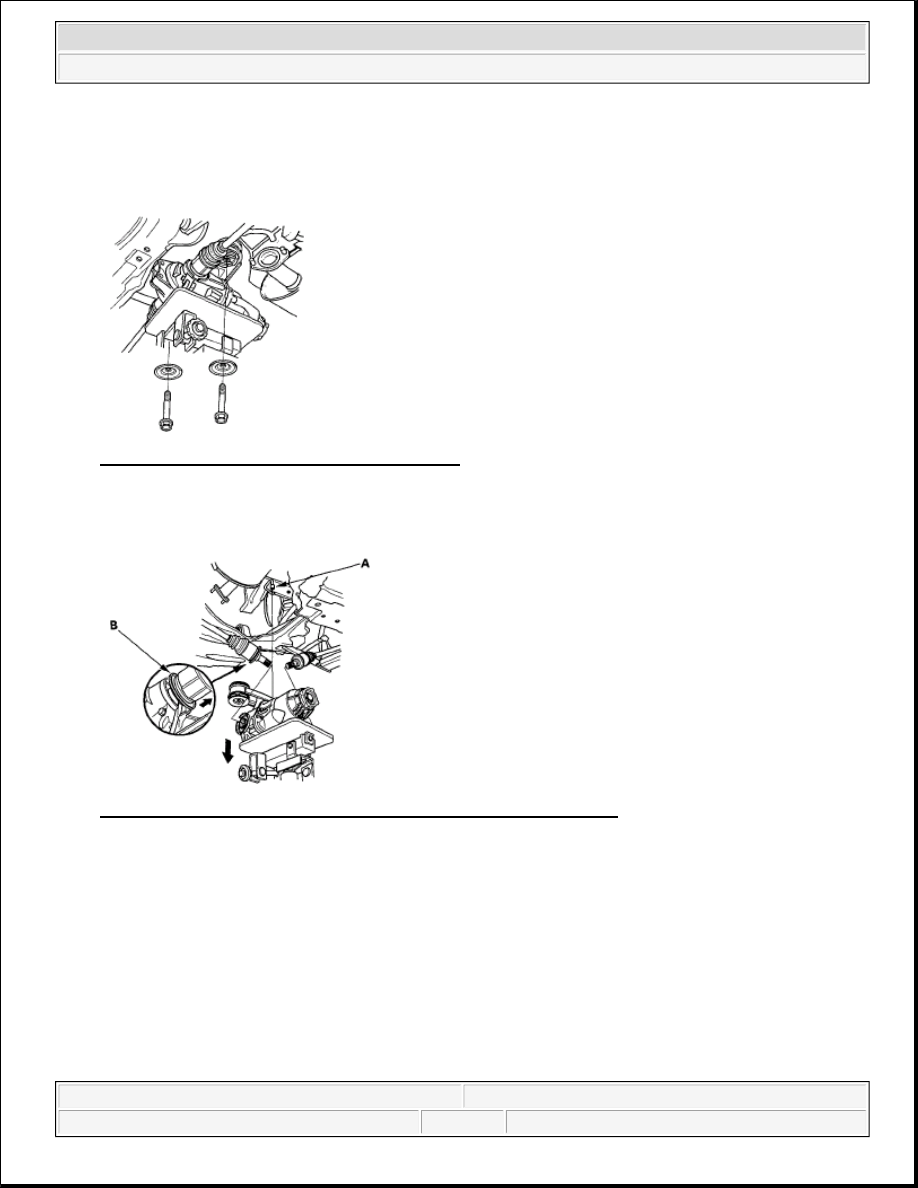

Fig. 23: Identifying Mounting Bolts And Plates
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Disconnect the breather tube A from the rear differential assembly.

Fig. 24: Identifying Breather Tube And Rear Differential Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Lower the rear differential assembly while pulling both driveshaft inboard joints out of the rear

differential assembly.

8. Remove the rear differential mount assembly A from the rear differential assembly (B).

NOTE:

Be careful not to damage the driveshaft ring (B) when prying out the
driveshaft inboard joints.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



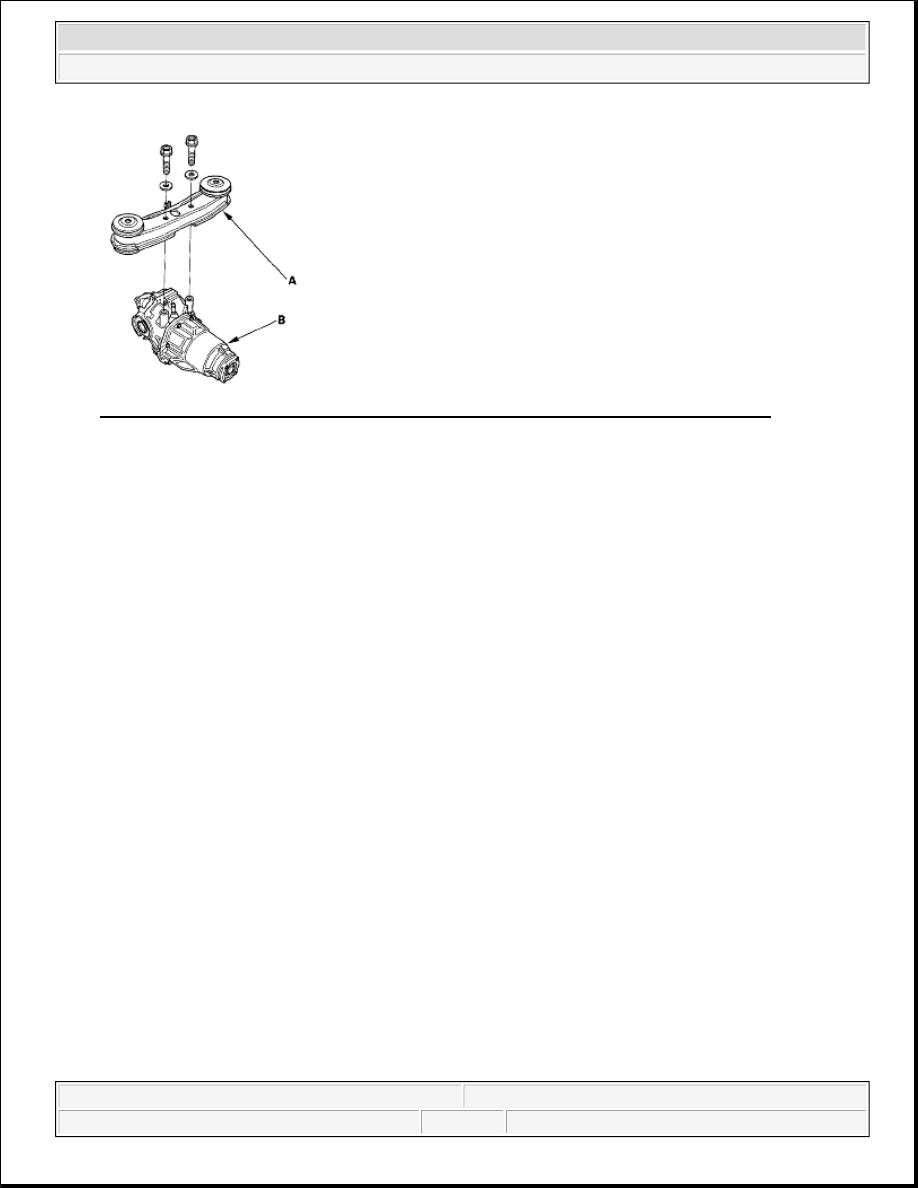

Fig. 25: Identifying Rear Differential Mount Assembly And Rear Differential Assembly
Courtesy of AMERICAN HONDA MOTOR CO., INC.

OIL SEAL REPLACEMENT

Special Tools Required



Oil seal driver 07GAD-PH70201



Oil seal driver 07JAD-PL90100



Attachment, 78 x80 mm 07NAD-PX40100



Driver 07749-0010000

1. Remove the oil seals (A) from the rear differential carrier assembly.

NOTE:

Be careful not to damage the differential carrier while prying out the seals.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



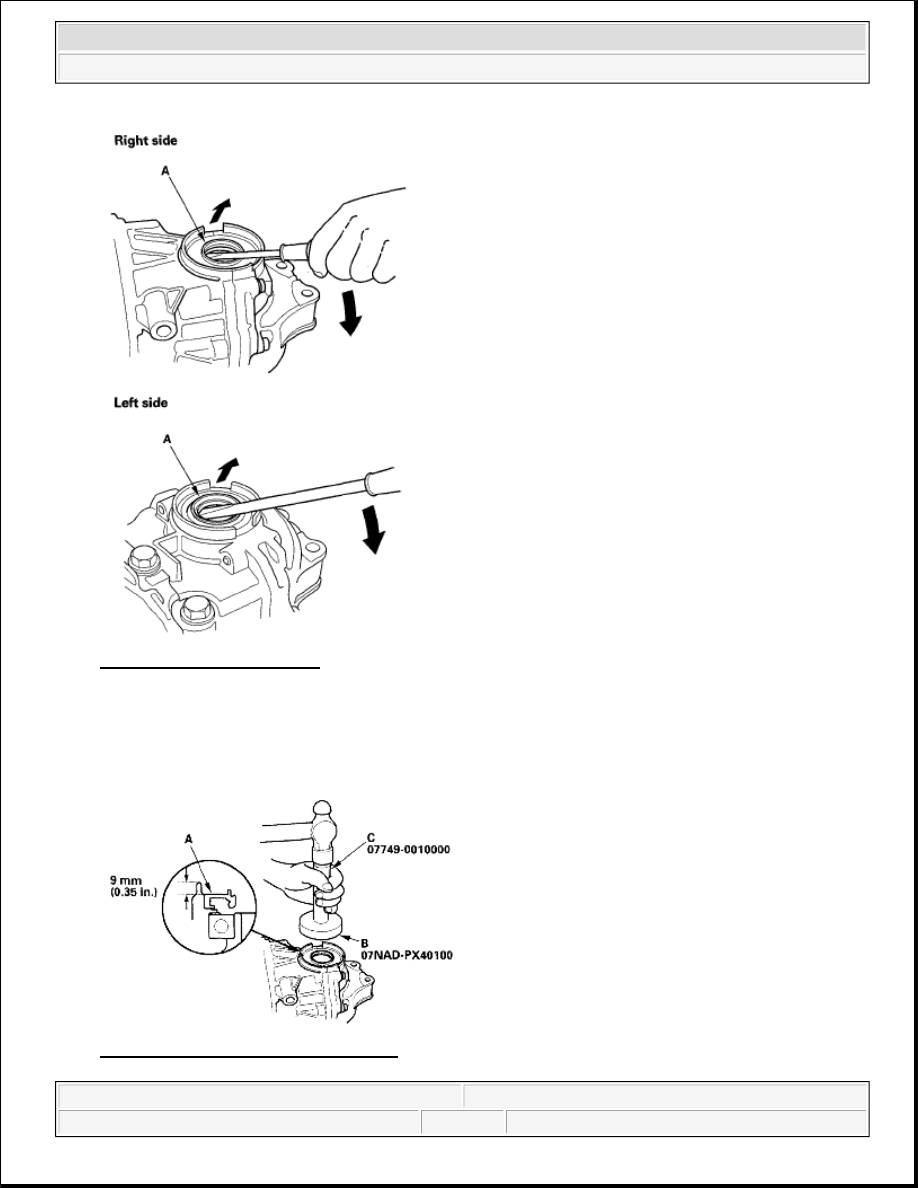

Fig. 26: Identifying Oil Seals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Install the right side oil seal (A) squarely using the 78 x 80 mm attachment (B) and driver (C). Installation

depth of the oil seal is 9 mm (0.35 in.) below the machined edge of the rear differential carrier assembly.
Be careful not to damage the lip of the oil seal.

Fig. 27: Identifying Right Side Oil Seal
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element
