Honda Element. Manual - part 712



If the rotation of the wheel gradually feels heavy while rotating, there is a problem in the 2WD
system. Check the differential fluid. If the fluid is normal, replace the torque control differential
(TCD) case kit.

Fig. 16: Holding Tire And Turn Tire Counterclockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Decelerating in reverse gear (4WD mode)

1. Block the front wheels (A), raise the left rear wheel, and support it with a safety stand (B) as shown.

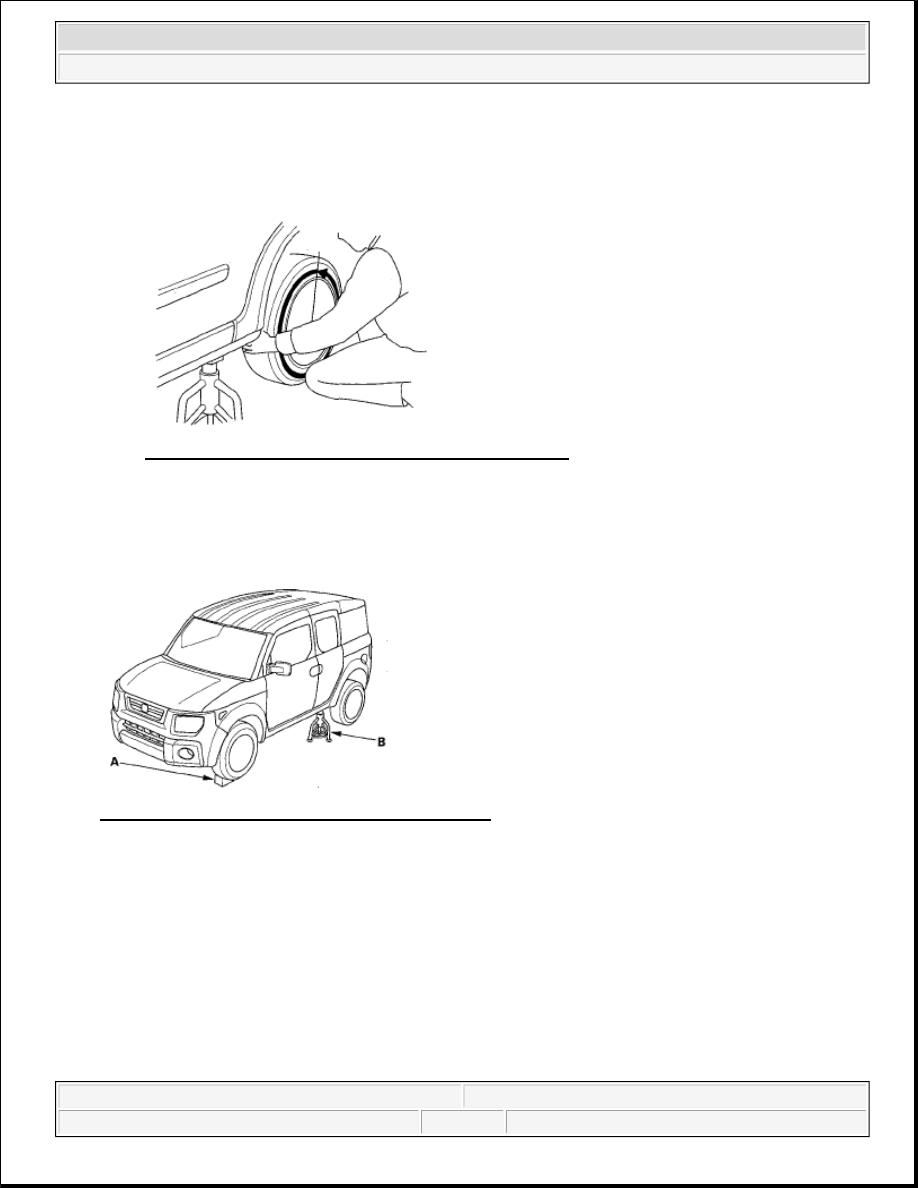

Fig. 17: Identifying Rear Wheels And Safety Stand
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2. Hold the tire, and turn it clockwise continuously for more than one rotation.



If the rotation of the wheel gradually feels heavy while rotating, the 4WD system when
decelerating in reverse is normal.



If the rotation of the wheel does not gradually feel heavy while rotating, there is a problem in the
4WD system. Check the differential fluid. If the fluid is normal, replace the torque control
differential (TCD) case kit.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



Fig. 18: Holding Tire And Turning Counterclockwise
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYMPTOM TROUBLESHOOTING INDEX

TROUBLESHOOTING CHART

Symptom

Diagnostic Procedure

Also check for

Will not go into
4WD mode



Fluid level too low. Add
recommended fluid.



Incorrect fluid type. Drain
and fill the differential with
the recommended fluid.

Most problems in the unit are to be diagnosed by
identifying noises from the gears or bearings. Be
careful during diagnosis not to confuse
differential noises with those from other
drivetrain components.

Will not return to
2WD mode

Incorrect fluid type. Drain and fill
the differential with the
recommended fluid.

Gear or bearing
noises



Fluid level too low. Add
recommended fluid.



Incorrect or worn out fluid.
Drain and fill the differential
with the recommended fluid.



Damaged or chipped gears.
Replace the differential
carrier assembly.

Rear differential
overheats



Fluid level too low. Add
recommended fluid.



Incorrect fluid type. Drain
and fill the differential with
the recommended fluid.



Fluid level too high. Lower
to proper level.



Clogged breather line. Clean
or replace.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



REAR DIFFERENTIAL FLUID INSPECTION AND REPLACEMENT

1. Raise the vehicle on the lift.

2. Remove the filler plug (A) and washer (B), then check the condition of the fluid, and make sure the fluid

is at the proper level (C).

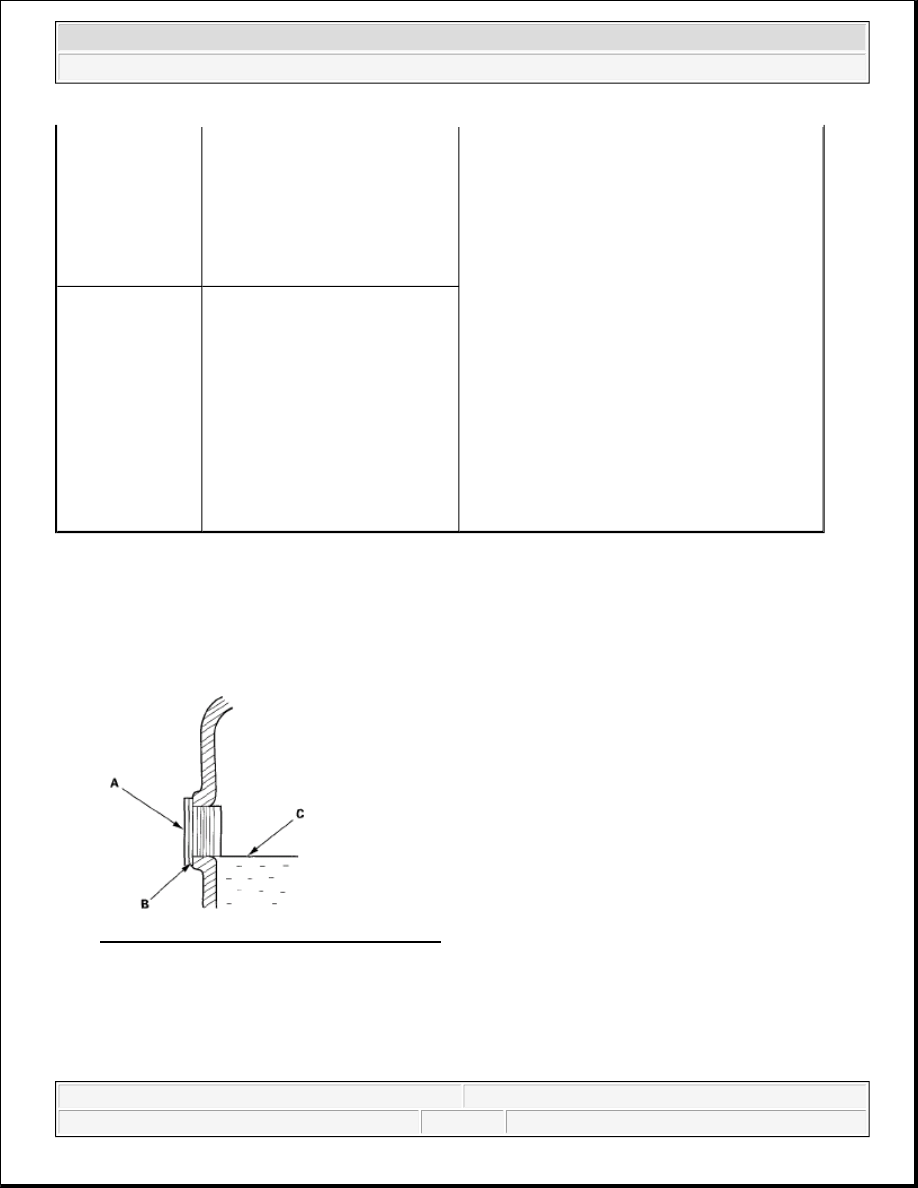

Fig. 19: Identifying Fluid Is At Proper Level
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. The fluid level must be up to the fill hole. If it is below the hole, add the recommended fluid until it runs

out, then reinstall the filler plug with a new washer.

4. If the fluid is dirty, remove the drain plug (A), and drain the fluid.

Rear differential
leaks fluid



Worn or damaged oil seal.
Replace.



Damaged sealing washer.
Replace.



Loose mounting bolts or
inadequate sealing. Recheck
torque or apply sealant.

Rear differential
screeches, whines,
moans, or squeaks



Fluid level too low. Add
recommended fluid.



Incorrect or worn out fluid.
Drain and fill the differential
with the recommended fluid.



Incorrect tire rolling
circumference. Adjust tire
pressure or replace tires.



Damaged pump. Replace
torque control differential
(TCD) case kit.



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



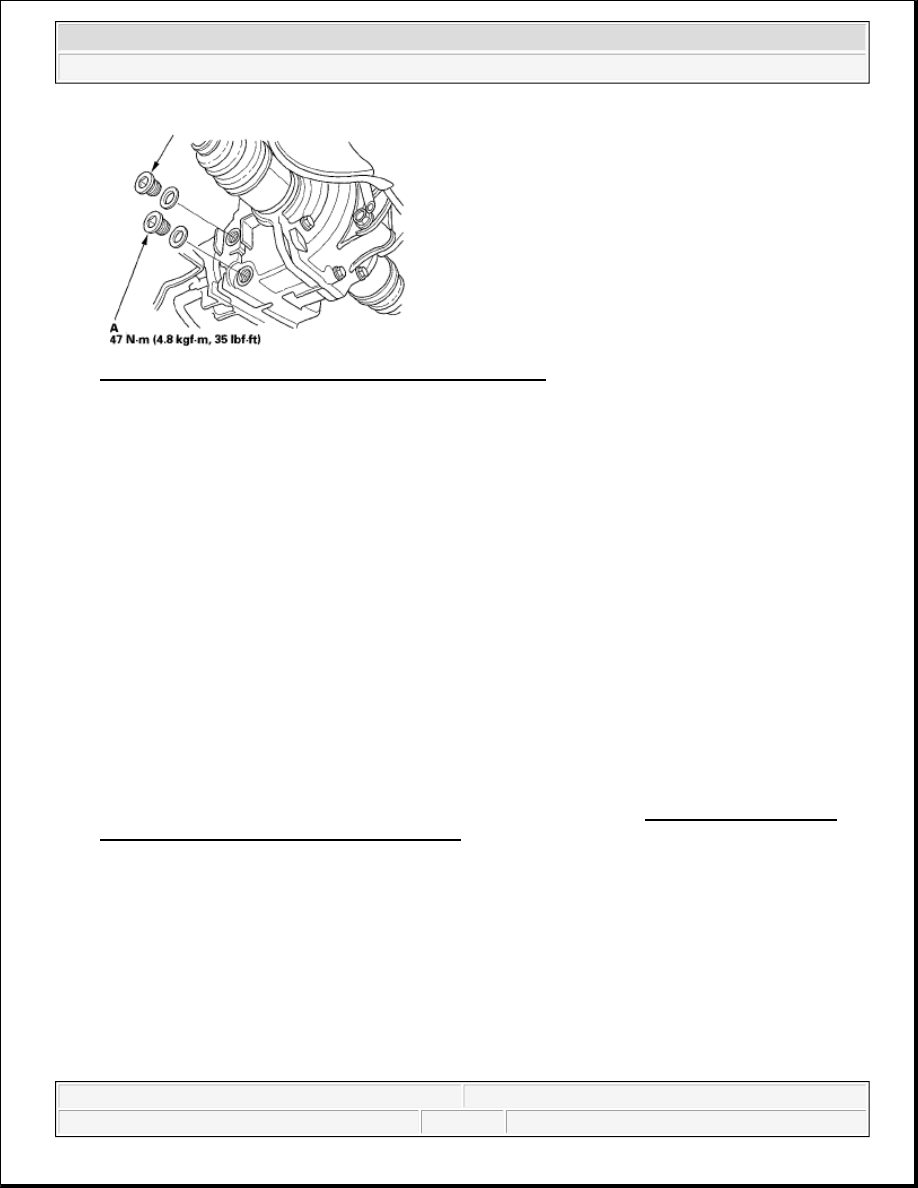

Fig. 20: Identifying Drain Plug With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Clean the drain plug, then reinstall it with a new washer, and refill the differential with the recommended

fluid to the proper level.

Fluid Capacity:

1.0 L (1.1 US qt) at fluid change

1.2 L (1.3 US qt) at overhaul

Recommended fluid: Honda Dual Pump Fluid II (P/N 08200-9007)

6. Reinstall the filler plug (B) with a new washer.

REAR DIFFERENTIAL REMOVAL

1. Drain the differential fluid. Reinstall the drain plug with a new washer (see REAR DIFFERENTIAL

FLUID INSPECTION AND REPLACEMENT ).

2. Remove the tail pipe (A).

NOTE:

If you disassemble the differential, check the fluid level again after the
4WD system check is finished. Add fluid if necessary.
