11. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when

reinstalling it to the actuator.

12. Reinstall the mirror assembly to the door.

13. Operate the power mirror to ensure smooth operation.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Power Mirrors - Element



2007-08 DRIVELINE/AXLES

Rear Differential - Element

SPECIAL TOOLS

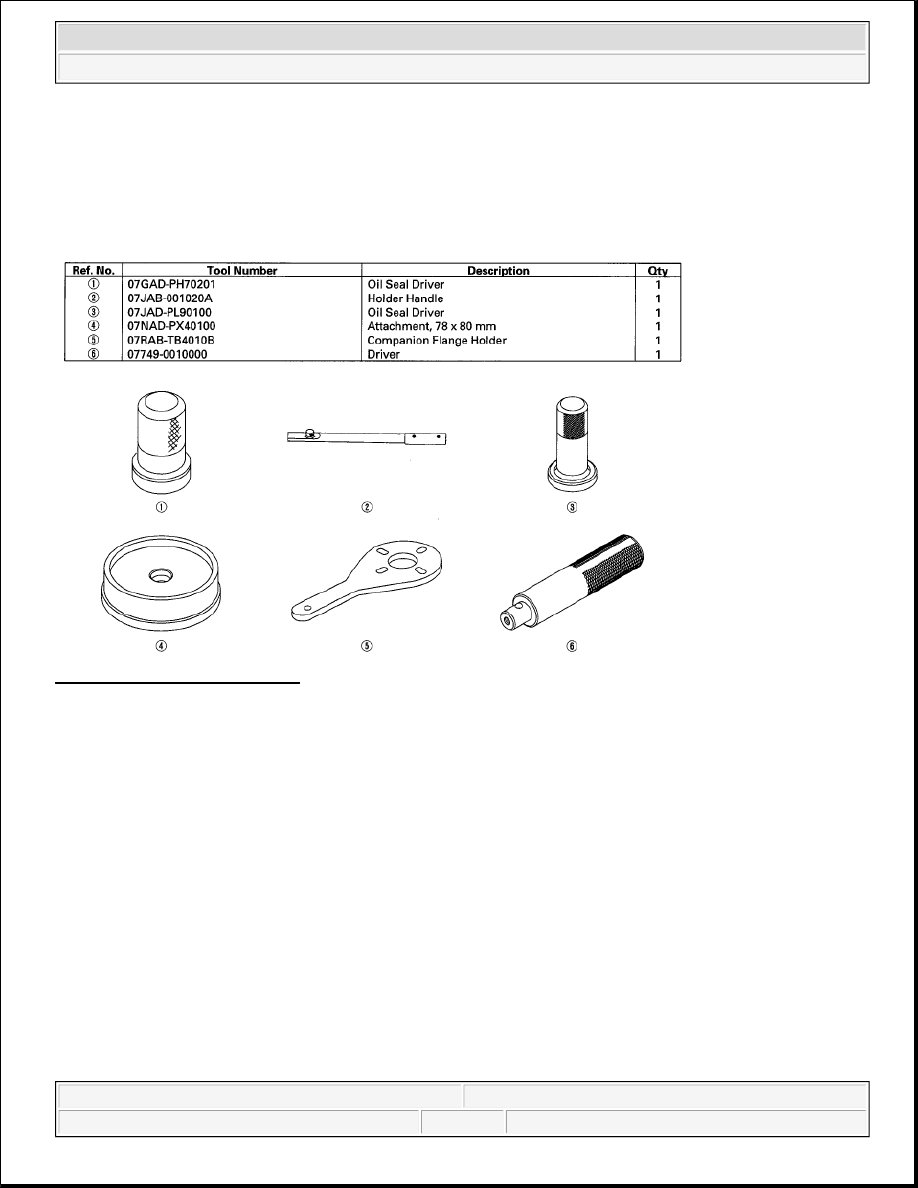

Fig. 1: Identifying Special Tools
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMPONENT LOCATION INDEX



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element





2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element

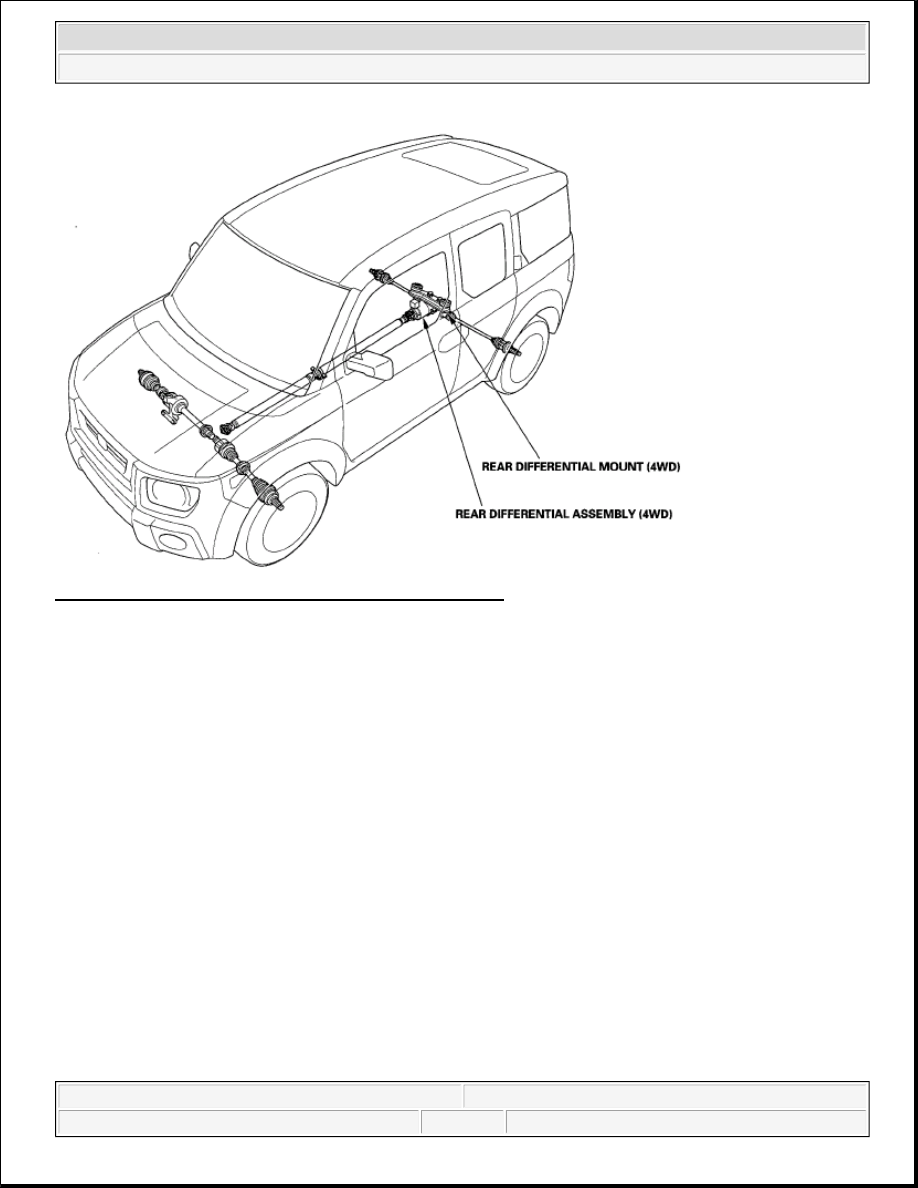

Fig. 2: Identifying Rear Differential Components Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SYSTEM DESCRIPTION

REAL-TIME 4WD-DUAL PUMP SYSTEM

Outline

The Real-time 4WD-Dual Pump System model has a hydraulic clutch and a differential mechanism in the rear
differential assembly. Under normal conditions, the vehicle is driven by the front wheels. However, depending
on the driving force of the front wheels and the road conditions, the system instantly transmits appropriate
driving force to the rear wheels without requiring the driver to switch between 2WD (front wheel drive) and
4WD (four wheel drive). The switching mechanism between 2WD and 4WD is integrated into the rear
differential assembly to make the system light and compact.

In addition, the dual pump system switches off the rear-wheel-drive force when braking in a forward direction.
This allows the braking system to work properly on models equipped with an vehicle stability assist (VSA).

Construction

The rear differential assembly consists of the torque control differential case assembly and the rear differential
carrier assembly. The torque control differential case assembly consists of the differential clutch assembly, the
companion flange, and the oil pump body assembly. The rear differential carrier assembly consists of the



2007 Honda Element EX

2007-08 DRIVELINE/AXLES Rear Differential - Element



differential mechanism.

The differential clutch assembly consists of the clutch guide, the clutch hub, the clutch plate, the clutch disc, the
return spring, and the pilot clutch.

The oil pump body assembly consists of the front oil pump, the rear oil pump, the hydraulic control mechanism,
and the clutch piston. The clutch piston has a disc spring that constantly provides the differential clutch
assembly with a preset torque to prevent abnormal sound.

The clutch guide in the differential clutch assembly is connected to the propeller shaft via the companion flange,
and it receives the driving force from the transfer assembly. The clutch guide rotates the clutch plate and the
front oil pump in the oil pump body assembly.

The clutch hub in the differential clutch assembly has clutch discs that are splined with the hypoid drive pinion
gear. The hypoid drive gear drives the rear oil pump.

The front and rear oil pumps are trochoidal pumps. The rear oil pump capacity is 2.5 percent larger than the
front oil pump to handle the rotation difference between the front and rear wheels caused by worn front tires
and tight corner braking. The oil pumps are designed so the fluid intake works as a fluid discharge when the oil
pumps rotate in reverse. Honda Dual Pump Fluid is used instead of differential fluid.

Operation

When there is a difference in rotation speed between the front wheels (clutch guide) and rear wheels (hypoid
drive pinion gear), hydraulic pressure from the front and rear oil pumps engages the differential clutch, and
drive force from the transfer assembly is applied to the rear wheels.

The hydraulic pressure control mechanism in the oil pump body assembly selects 4WD mode when the vehicle
is started abruptly, or when accelerating in forward or reverse (causing rotation difference between the front and
rear wheels), or when braking in reverse (when decelerating). It switches to 2WD mode when the vehicle is
driven at a constant speed in forward or reverse (when there is no rotation difference between the front and rear
wheels), or when braking in forward (when decelerating).

To protect the system, the differential clutch assembly is lubricated by hydraulic pressure generated by the oil
pumps in both 4WD and 2WD modes. Also, the thermal switch relieves the hydraulic pressure on the clutch
piston and cancels 4WD mode if the temperature of the differential fluid rises above normal.

REAR DIFFERENTIAL ASSEMBLY
