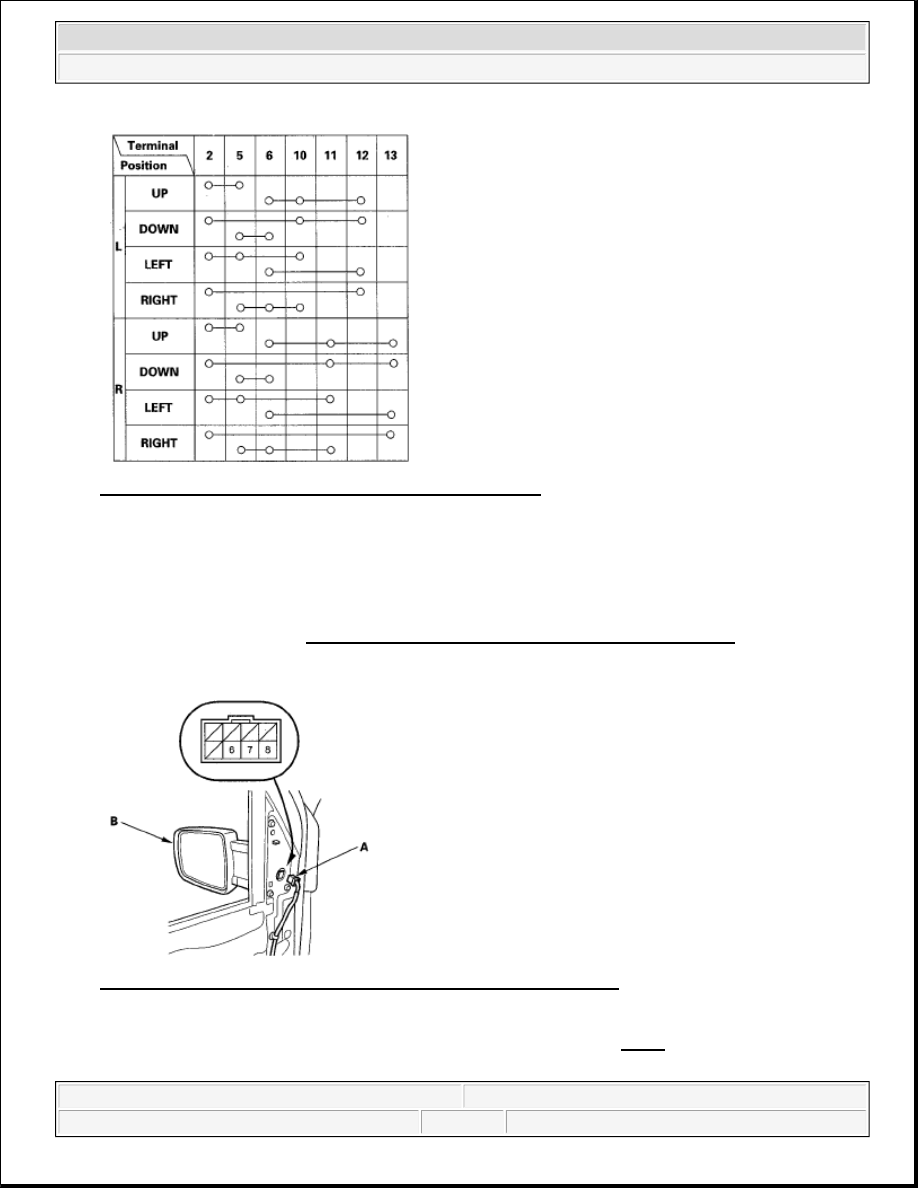

Fig. 5: Power Mirror Switch Terminals Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the continuity is not as specified, remove the screws and replace the switch.

POWER MIRROR ACTUATOR TEST

1. Remove the door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

2. Disconnect the 8P connector (A) from the power mirror actuator (B).

Fig. 6: Identifying Power Mirror Actuator 8P Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Check actuator operation by connecting power and ground according to Fig. 7



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Power Mirrors - Element



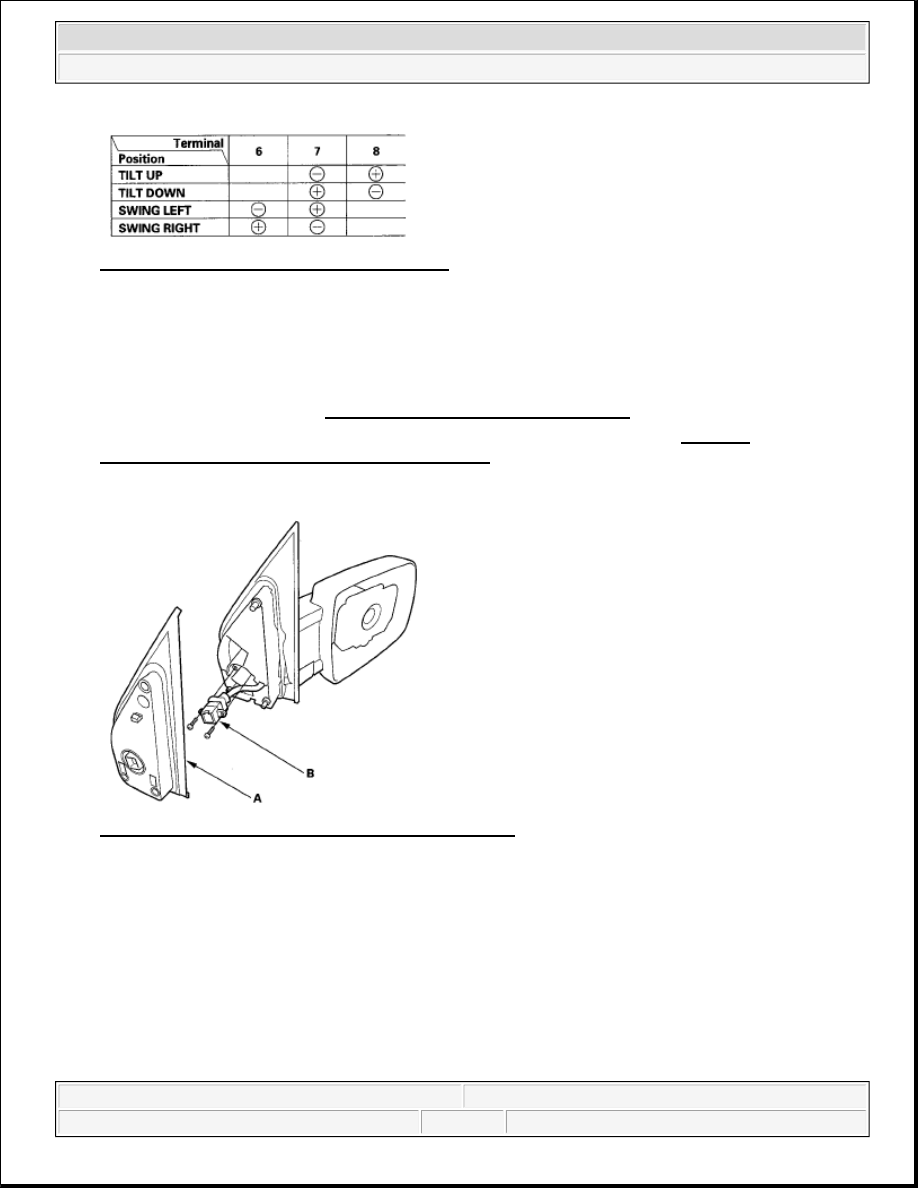

Fig. 7: Connecting Power And Ground Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. If the mirror fails to work properly, replace the mirror actuator.

POWER MIRROR ACTUATOR REPLACEMENT

1. Remove the mirror holder (see MIRROR HOLDER REPLACEMENT ).

2. Disconnect the 6P connector from the mirror, and remove the power mirror (see POWER

MIRROR/MANUAL MIRROR REPLACEMENT ).

3. Remove the cover (A), then remove the two screws from the mirror connector (B).

Fig. 8: Identifying Power Mirror Actuator And Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Record the terminal locations and wire colors.

5. Cut the wire harness with the wire cutter.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Power Mirrors - Element

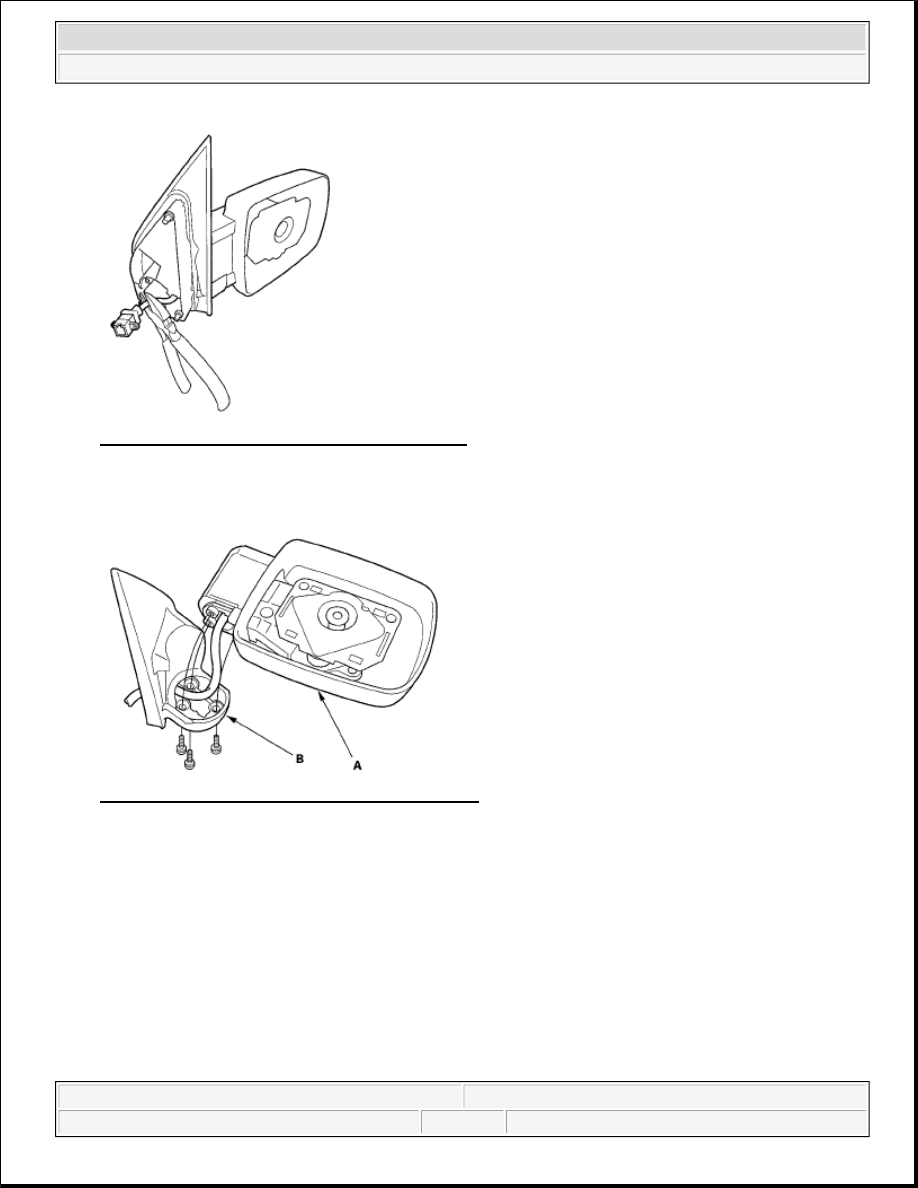

Fig. 9: Cutting Wire Harness With Wire Cutter
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the three screws, and separate the mirror housing (A) from the bracket (B).

Fig. 10: Identifying Mirror Housing And Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

7. Remove the cover (A), then remove the three screws and the actuator (B).



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Power Mirrors - Element

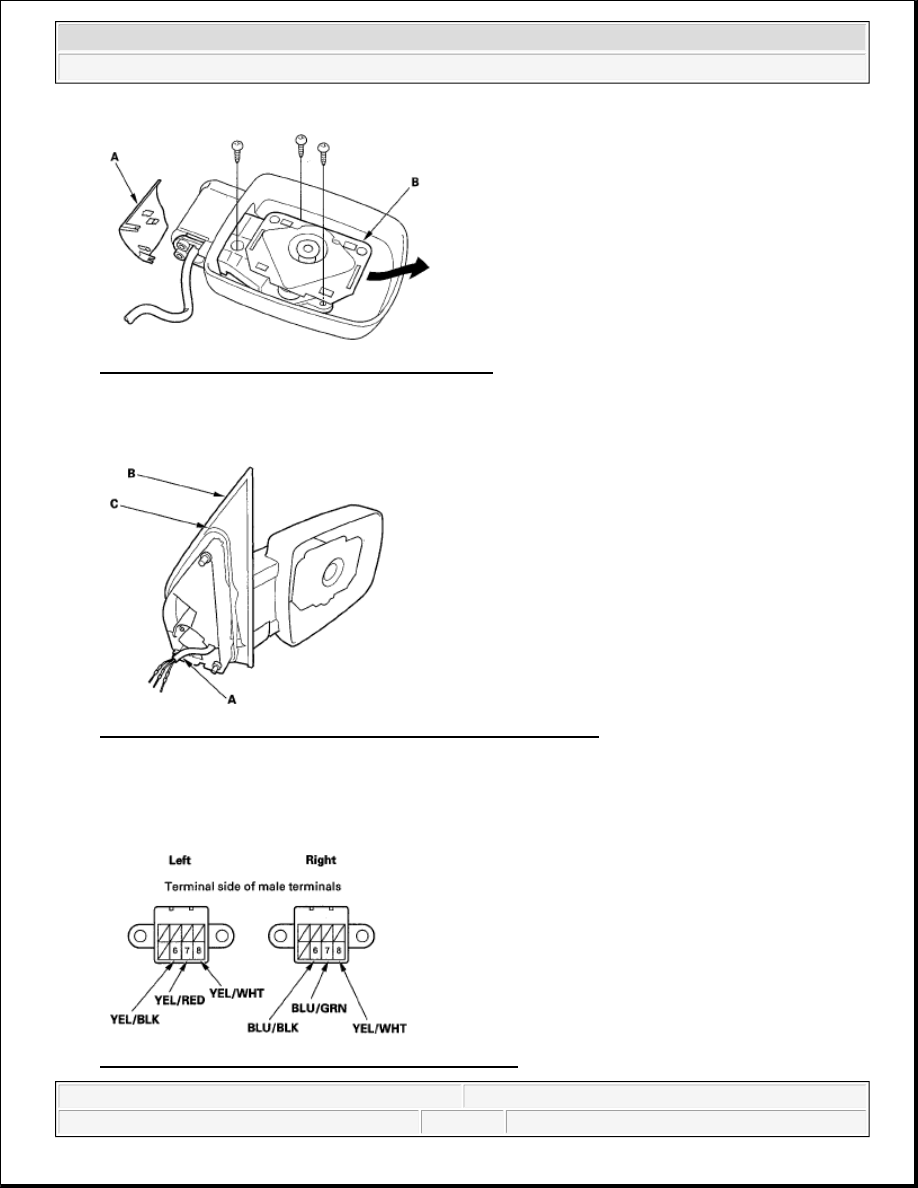

Fig. 11: Identifying Power Mirror Actuator Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Route the wire harness (A) of the new actuator through the hole in the bracket (B) and gasket (C).

Fig. 12: Identifying Actuator Wire Harness, Bracket And Gasket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Install the actuator, bracket, and cover in the reverse order of removal.

10. Insert the new actuator terminals into the connector in the original arrangement as shown.

Fig. 13: Identifying Power Mirror Actuator Terminals



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Power Mirrors - Element
