2. Clear the DTC with the HDS.

3. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on, then let it idle.

4. Test-drive under these conditions:



Engine coolant temperature (ECT SENSOR 1) above 158°F (70°C)



A/T in D position (M/T in 3rd gear)



Vehicle speed between 25-55 mph (40 - 88 km/h) for 5 minutes



Drive at a steady speed between 55-75 mph (88-120 km/h) for 10 seconds, then decelerate (with the
throttle fully closed) for 4 seconds

5. Monitor the OBD STATUS for DTC P2A00 in the DTCs MENU with the HDS.

Does the screen indicate FAILED?

YES -Go to step 6.

NO -If the screen indicates PASSED, intermittent failure, the system is OK at this time. Check for poor
connections or loose terminals at the A/F sensor (Sensor 1) and the ECM/PCM. If the screen indicates
EXECUTING, keep driving until a result comes on. If the screen indicates OUT OF CONDITION, go to
step 3 and recheck.

6. Turn the ignition switch OFF.

7. Replace the A/F sensor (Sensor 1) (see A/F SENSOR REPLACEMENT ).

8. Turn the ignition switch ON (II).

9. Reset the ECM/PCM with the HDS.

10. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

11. Start the engine. Hold the engine speed at 3,000 rpm without load (in Park or neutral) until the radiator

fan comes on, then let it idle.

12. Test-drive under these conditions:



Engine coolant temperature (ECT SENSOR 1) above 158°F (70°C)



A/T in D position (M/T in 3rd gear)



Vehicle speed between 25-55 mph (40- 88 km/h) for 5 minutes



Drive at a steady speed between 55-75 mph (88-120 km/h) for 10 seconds, then decelerate (with the
throttle fully closed) for 4 seconds

13. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2A00 indicated?

YES -Check for poor connections or loose terminals at the A/F sensor (Sensor 1) and the ECM/PCM,
then go to step 1.

NO -Go to step 14.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



14. Monitor the OBD STATUS for DTC P2A00 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 13, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If the screen indicates EXECUTING, keep driving until
a result comes on. If the screen indicates OUT OF CONDITION, go to step 11.

DTC U0028: F-CAN MALFUNCTION (BUS-OFF)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC U0028 indicated?

YES -Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ),
or substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then recheck. If the
symptom/indication goes away with a known-good ECM/PCM, replace the original ECM/PCM (see
ECM/PCM REPLACEMENT ).

NO -Intermittent failure, the system is OK at this time. If any other Temporary DTCs or DTCs are
indicated, go to the INDICATED DTCS TROUBLESHOOTING.

DTC U0122: F-CAN MALFUNCTION (ECM/PCM-VSA MODULATOR-CONTROL UNIT)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC U0122 indicated?

YES -Go to step 4.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
the VSA modulator-control unit and the ECM/PCM.

4. Check for a DTC in the DTCs MENU with the HDS.

Is VSA DTC 86 indicated?

YES -Go to step 5.

NO -Go to step 13.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the VSA modulator-control unit 47P connector (see VSA MODULATOR-CONTROL

UNIT REMOVAL AND INSTALLATION ).

8. Disconnect ECM/PCM connector E (31P).

9. Connect VSA modulator-control unit 47P connector terminal No. 11 to body ground with a jumper wire.

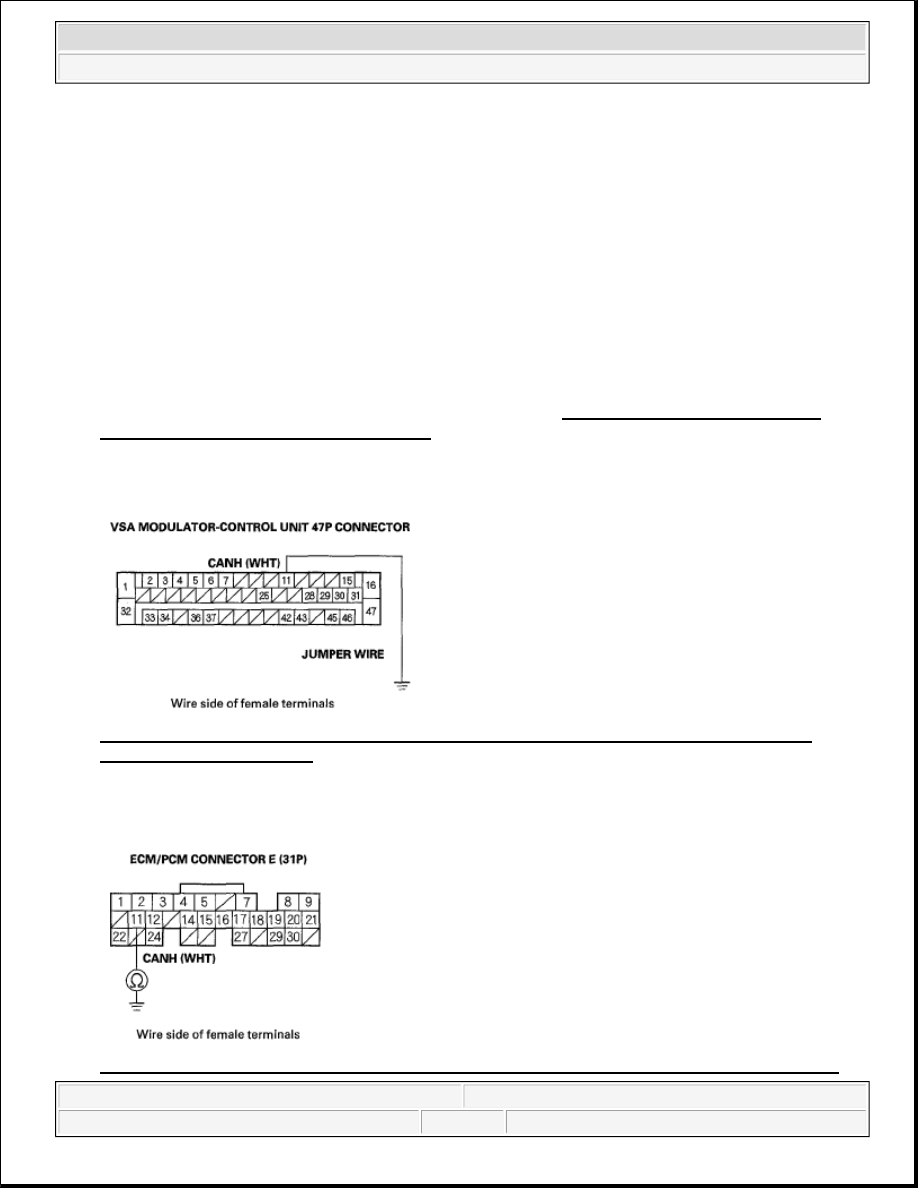

Fig. 113: Connecting VSA Modulator-Control Unit 47P Connector Terminal No. 11 To Body
Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Check for continuity between ECM/PCM connector terminal E11 and body ground.

Fig. 114: Checking Continuity Between ECM/PCM Connector Terminal E11 And Body Ground



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 11.

NO -Repair open in the wire between the ECM/PCM (E11) and the VSA modulator-control unit (No. 11),
then go to step 20.

11. Connect VSA modulator-control unit 47P connector terminal No. 15 to body ground with a jumper wire.

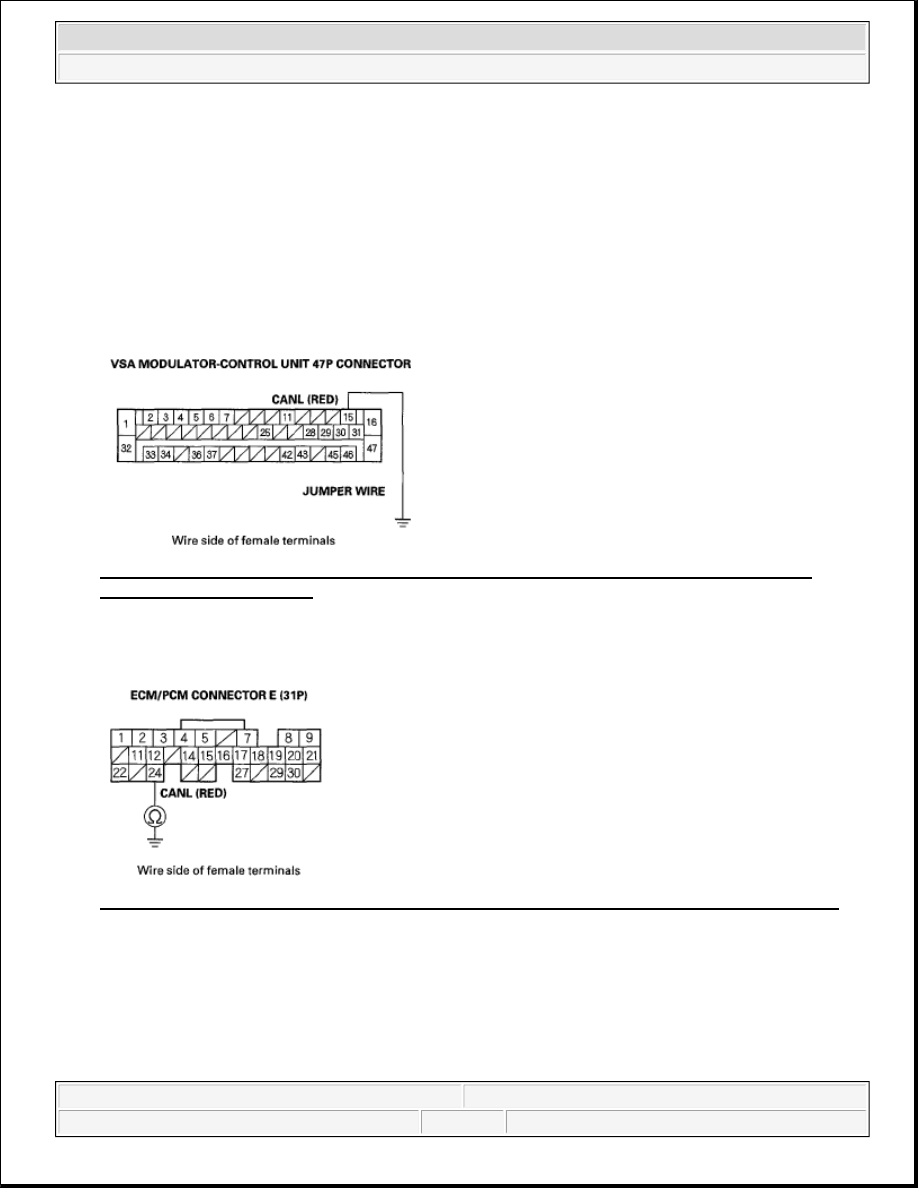

Fig. 115: Connecting VSA Modulator-Control Unit 47P Connector Terminal No. 15 To Body
Ground With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Check for continuity between ECM/PCM connector terminal E24 and body ground.

Fig. 116: Checking Continuity Between ECM/PCM Connector Terminal E24 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Substitute a known-good VSA modulator-control unit, then go to step 20 and recheck. If DTC
U0122 is not indicated, replace the original VSA modulator-control unit, then go to step 20.

NO -Repair open in the wire between the ECM/PCM (E24) and the VSA modulator-control unit (No. 15),
