then go to step 20.

13. Turn the ignition switch OFF.

14. Check for poor connections or loose terminals at the VSA modulator-control unit 47P connector.

Are the connections and terminals OK?

YES -Go to step 15.

NO -Repair the connections or terminals, then go to step 20.

15. Disconnect the VSA modulator-control unit 47P connector.

16. Turn the ignition switch ON (II).

17. Measure voltage between VSA modulator-control unit 47P connector terminal No. 4 and body ground.

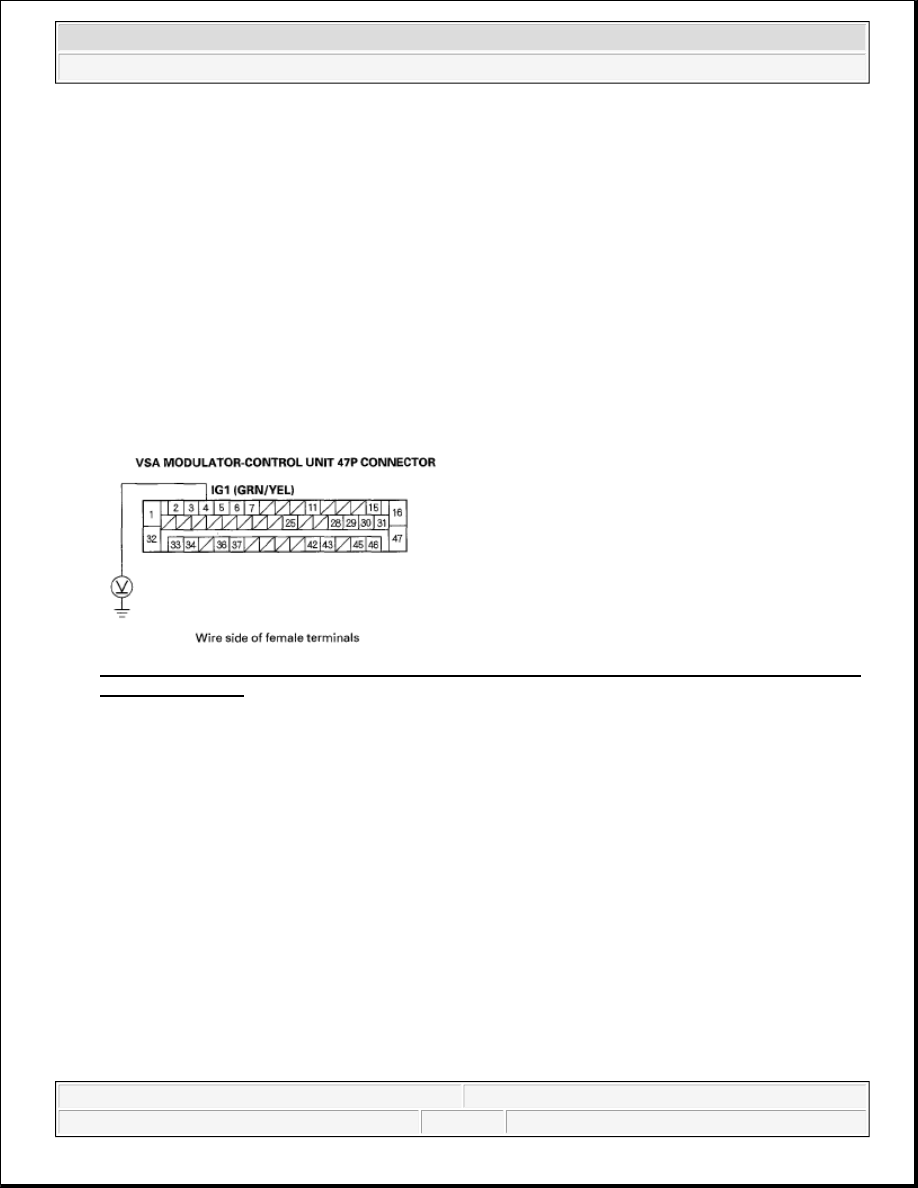

Fig. 117: Measuring Voltage Between VSA Modulator-Control Unit 47P Connector Terminal No. 4
And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there battery voltage?

YES -Go to step 18.

NO -Check the No. 4 ACG (10 A) fuse in the under-dash fuse/relay box. If the fuse is OK, repair open in
the wire between the No. 4 ACG (10 A) fuse and the VSA modulator-control unit, then go to step 20.

18. Turn the ignition switch OFF.

19. Check for continuity between VSA modulator-control unit 47P connector terminal No. 16 and body

ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



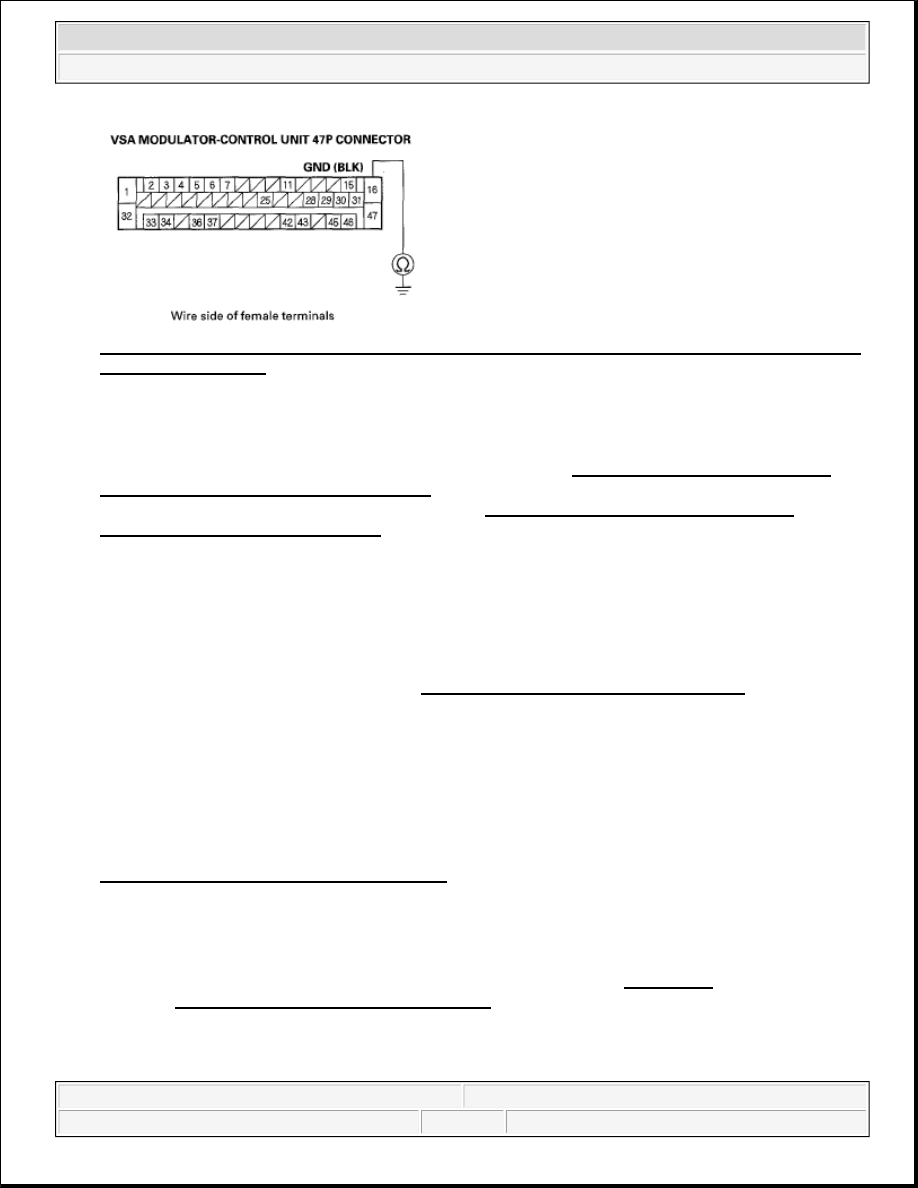

Fig. 118: Checking Continuity Between VSA Modulator-Control Unit 47P Connector Terminal No.
16 And Body Ground

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Substitute a known-good VSA modulator-control unit (see VSA MODULATOR-CONTROL
UNIT REMOVAL AND INSTALLATION
 ), then go to step 20 and recheck. If no DTCs are indicated,
replace the original VSA modulator-control unit (see VSA MODULATOR-CONTROL UNIT
REMOVAL AND INSTALLATION
 ), then go to step 20.

NO -Repair open in the wire between the VSA modulator-control unit and G202, then go to step 20.

20. Reconnect all connectors.

21. Turn the ignition switch ON (II).

22. Reset the ECM/PCM with the HDS.

23. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

24. Check for Temporary DTCs or DTCs with the HDS.

Is DTC U0122 indicated?

YES -Check for poor connections or loose terminals at the ECM/PCM and the VSA modulator-control
unit, then go to step 1.

NO -Troubleshooting is complete. If any other Temporary DTCs or DTCs are indicated, go to the
INDICATED DTCS TROUBLESHOOTING

DTC U0155: F-CAN MALFUNCTION (ECM/PCM-GAUGE CONTROL MODULE)

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC U0155 indicated?

YES -Go to step 4.

NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
the gauge control module and the ECM/PCM.

4. Check for body electrical DTCs in the DTCs MENU with the HDS.

Is DTC B1168, B1169, and/or B1178 indicated?

YES -Go to step 5.

NO -Do the gauge control module input test (see GAUGE CONTROL MODULE INPUT TEST ).

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Remove the gauge control module (see REWRITING THE ODO DATA AND TRANSFERRING

MAINTENANCE MINDER ON A NEW GAUGE CONTROL MODULE ).

8. Disconnect the gauge control module 36P connector.

9. Disconnect ECM/PCM connector E (31P).

10. Connect gauge control module 36P connector terminal No. 29 to body ground with a jumper wire.

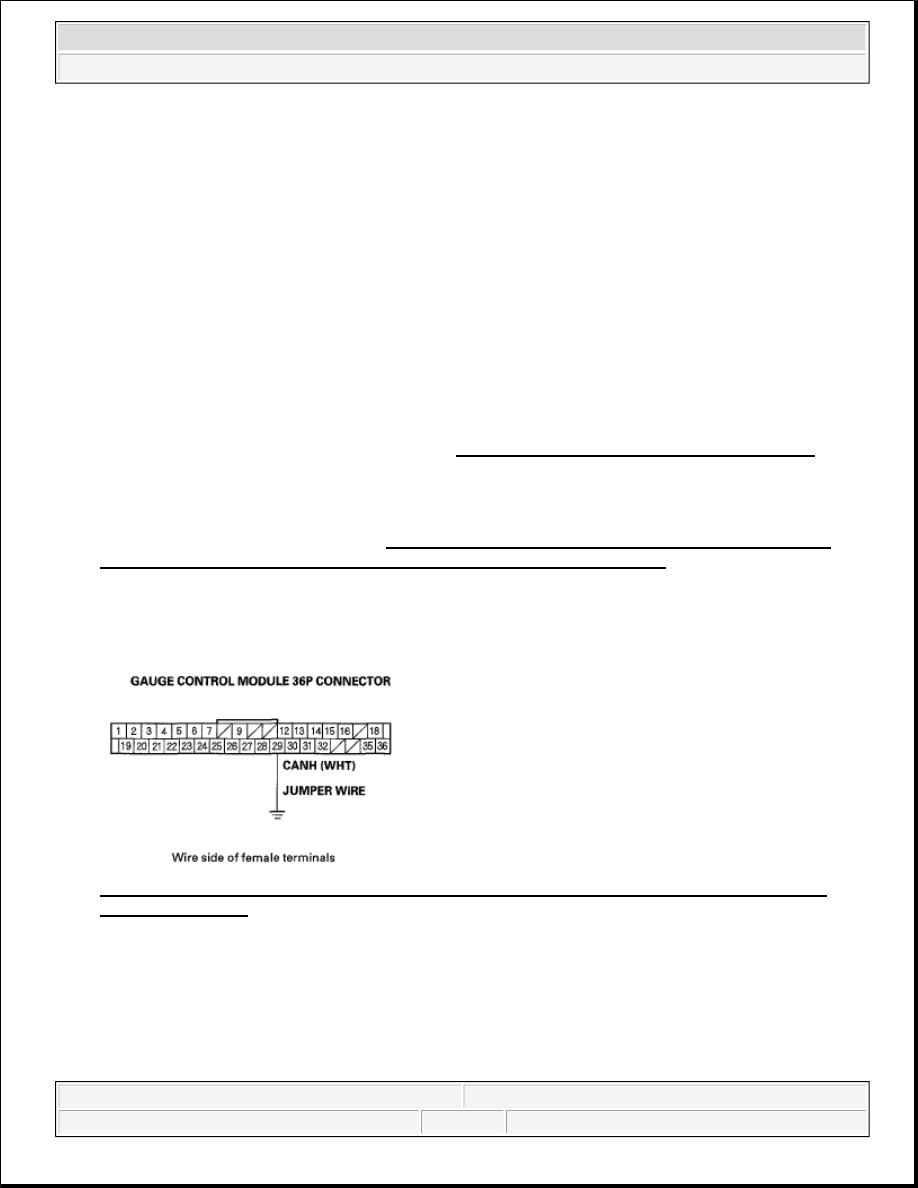

Fig. 119: Connecting Gauge Control Module 36P Connector Terminal No. 29 To Body Ground
With Jumper Wire

Courtesy of AMERICAN HONDA MOTOR CO., INC.

11. Check for continuity between ECM/PCM connector terminal E11 and body ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



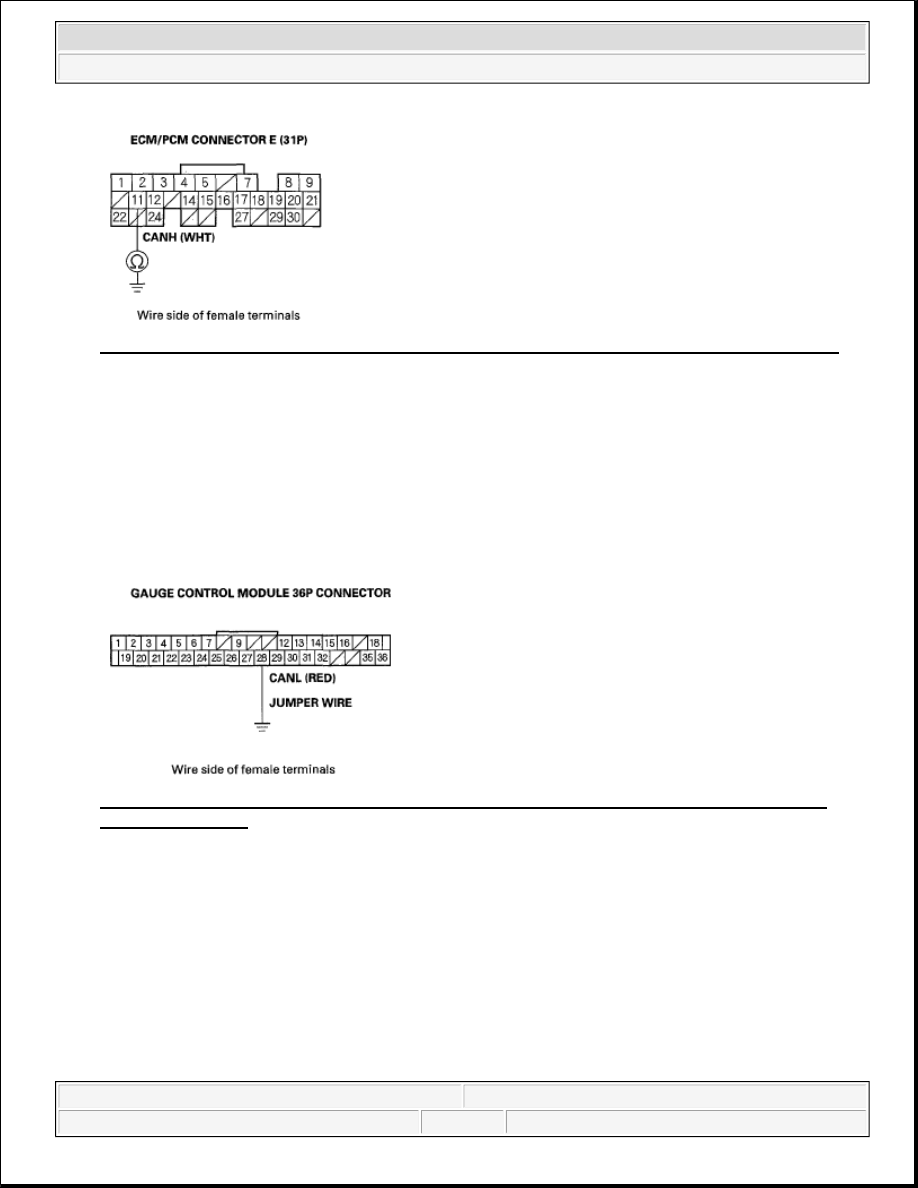

Fig. 120: Checking Continuity Between ECM/PCM Connector Terminal E11 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 12.

NO -Repair open in the wire between the ECM/PCM (Ell) and the gauge control module, then go to step
14.

12. Connect gauge control module 36P connector terminal No. 28 to body ground with a jumper wire.

Fig. 121: Connecting Gauge Control Module 36P Connector Terminal No. 28 To Body Ground
With Jumper Wire

Courtesy of AMERICAN HONDA MOTOR CO., INC.

13. Check for continuity between ECM/PCM connector terminal E24 and body ground.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element
