1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine.

4. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2252 indicated?

YES -Go to step 5.

NO -Intermittent failure, the system is OK at this time. Check for poor connections or loose terminals at
the A/F sensor (Sensor 1) and the ECM/PCM.

5. Turn the ignition switch OFF.

6. Jump the SCS line with the HDS.

7. Disconnect the A/F sensor (Sensor 1) 4P connector.

8. Disconnect ECM/PCM connector A (31P).

9. Check for continuity between ECM/PCM connector terminal A28 and body ground.

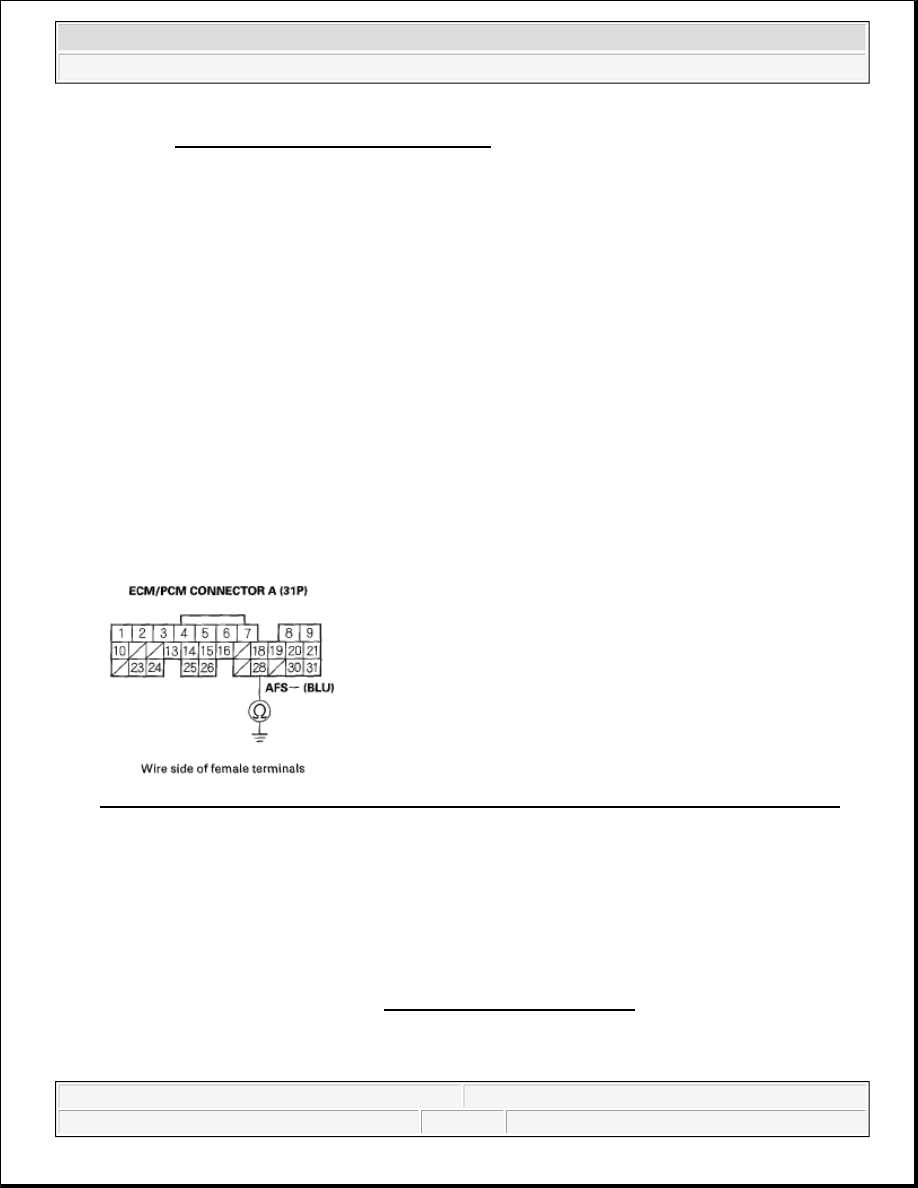

Fig. 112: Checking Continuity Between ECM/PCM Connector Terminal A28 And Body Ground
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair short in the wire between the ECM/PCM (A28) and the A/F sensor (Sensor 1), then go to
step 11.

NO -Go to step 10.

10. Replace the A/F sensor (Sensor 1) (see A/F SENSOR REPLACEMENT ).

11. Reconnect all connectors.

12. Turn the ignition switch ON (II).

TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



13. Reset the ECM/PCM with the HDS.

14. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

15. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2252 indicated?

YES -Check for poor connections or loose terminals at the A/F sensor (Sensor 1) and the ECM/PCM,
then go to step 1. If the connector and terminal fits are OK, go to step 17.

NO -Go to step 16.

16. Monitor the OBD STATUS for DTC P2252 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 15, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the A/F sensor
(Sensor 1) and the ECM/PCM, then go to step 1. If the screen indicates NOT COMPLETED, keep idling
until a result comes on.

17. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

18. Start the engine, and let it idle.

19. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2252 indicated?

YES -If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then go to step 18. If the ECM/PCM was substituted, go to step 1.

NO -Go to step 20.

20. Monitor the OBD STATUS for DTC P2252 in the DTCs MENU with the HDS.

Does the screen indicate PASSED?

YES -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs were indicated in step 19, go to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, go to step 1. If the ECM/PCM was updated, substitute a known-
good ECM/PCM (see SUBSTITUTING THE ECM/PCM ), then go to step 18. If the ECM/PCM was
substituted, go to step 1. If the screen indicates NOT COMPLETED, keep idling until a result comes on.



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



DTC P2270: SECONDARY HO2S (SENSOR 2) CIRCUIT SIGNAL STUCK LEAN; DTC P2271:
SECONDARY HO2S (SENSOR 2) CIRCUIT SIGNAL STUCK RICH

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Start the engine, and let it idle without load (in Park or neutral) until the radiator fan comes on.

4. Test-drive under these conditions:



Engine coolant temperature (ECT SENSOR 1) above 158°F (70°C)



Vehicle speed at 35 mph (56 km/h) or more for at least 25 seconds

5. Monitor the OBD STATUS for DTC P2270 or P2271 in the DTCs MENU with the HDS.

Does the screen indicate FAILED?

YES -Go to step 6.

NO -If the screen indicates PASSED, intermittent failure, the system is OK at this time. Check for poor
connections or loose terminals at the secondary HO2S (Sensor 2) and the ECM/PCM. If the screen
indicates EXECUTING, keep driving until a result comes on. If the screen indicates OUT OF
CONDITION, go to step 3 and recheck.

6. Turn the ignition switch OFF.

7. Replace the secondary HO2S (Sensor 2) (see A/F SENSOR REPLACEMENT ).

8. Turn the ignition switch ON (II).

9. Reset the ECM/PCM with the HDS.

10. Do the ECM/PCM idle learn procedure (see ECM/PCM IDLE LEARN PROCEDURE ).

11. Start the engine, and let it idle without load (in Park or neutral) until the radiator fan comes on.

12. Test-drive under these conditions:



Engine coolant temperature (ECT SENSOR 1) above 158°F (70°C)



Vehicle speed at 35 mph (56 km/h) or more for at least 25 seconds

13. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2270 or P2271 indicated?

YES -Check for poor connections or loose terminals at the secondary HO2S (Sensor 2) and the
ECM/PCM, then go to step 1.

NO -Go to step 14.

14. Monitor the OBD STATUS for DTC P2270 or P2271 in the DTCs MENU with the HDS.

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).



2007 Honda Element EX

2007-2008 ENGINE PERFORMANCE PGM-FI System - Element



Does the screen indicate PASSED?

YES -Troubleshooting is complete. If any other Temporary DTCs or DTCs were indicated in step 13, go
to the INDICATED DTCS TROUBLESHOOTING.

NO -If the screen indicates FAILED, check for poor connections or loose terminals at the secondary
HO2S (Sensor 2) and the ECM/PCM, then go to step 1. If the screen indicates EXECUTING, keep
driving until a result comes on. If the screen indicates OUT OF CONDITION, go to step 11.

DTC P2610: ECM/PCM IGNITION OFF INTERNAL TIMER MALFUNCTION

1. Turn the ignition switch ON (II).

2. Clear the DTC with the HDS.

3. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2610 indicated?

YES -Go to step 4.

NO -Intermittent failure, the system is OK at this time.

4. Update the ECM/PCM if it does not have the latest software (see UPDATING THE ECM/PCM ), or

substitute a known-good ECM/PCM (see SUBSTITUTING THE ECM/PCM ).

5. Check for Temporary DTCs or DTCs with the HDS.

Is DTC P2610 indicated?

YES -If the ECM/PCM was updated, substitute a known-good ECM/PCM (see SUBSTITUTING THE
ECM/PCM ), then recheck. If the ECM/PCM was substituted, go to step 1.

NO -If the ECM/PCM was updated, troubleshooting is complete. If the ECM/PCM was substituted,
replace the original ECM/PCM (see ECM/PCM REPLACEMENT ). If any other Temporary DTCs or
DTCs are indicated, go to the INDICATED DTCS TROUBLESHOOTING.

DTC P2A00: A/F SENSOR (SENSOR 1) CIRCUIT RANGE/PERFORMANCE PROBLEM

1. Turn the ignition switch ON (II).

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).

NOTE:

Before you troubleshoot, record all freeze data and any on-board snapshot, and
review the general troubleshooting information (see GENERAL
TROUBLESHOOTING INFORMATION ).
