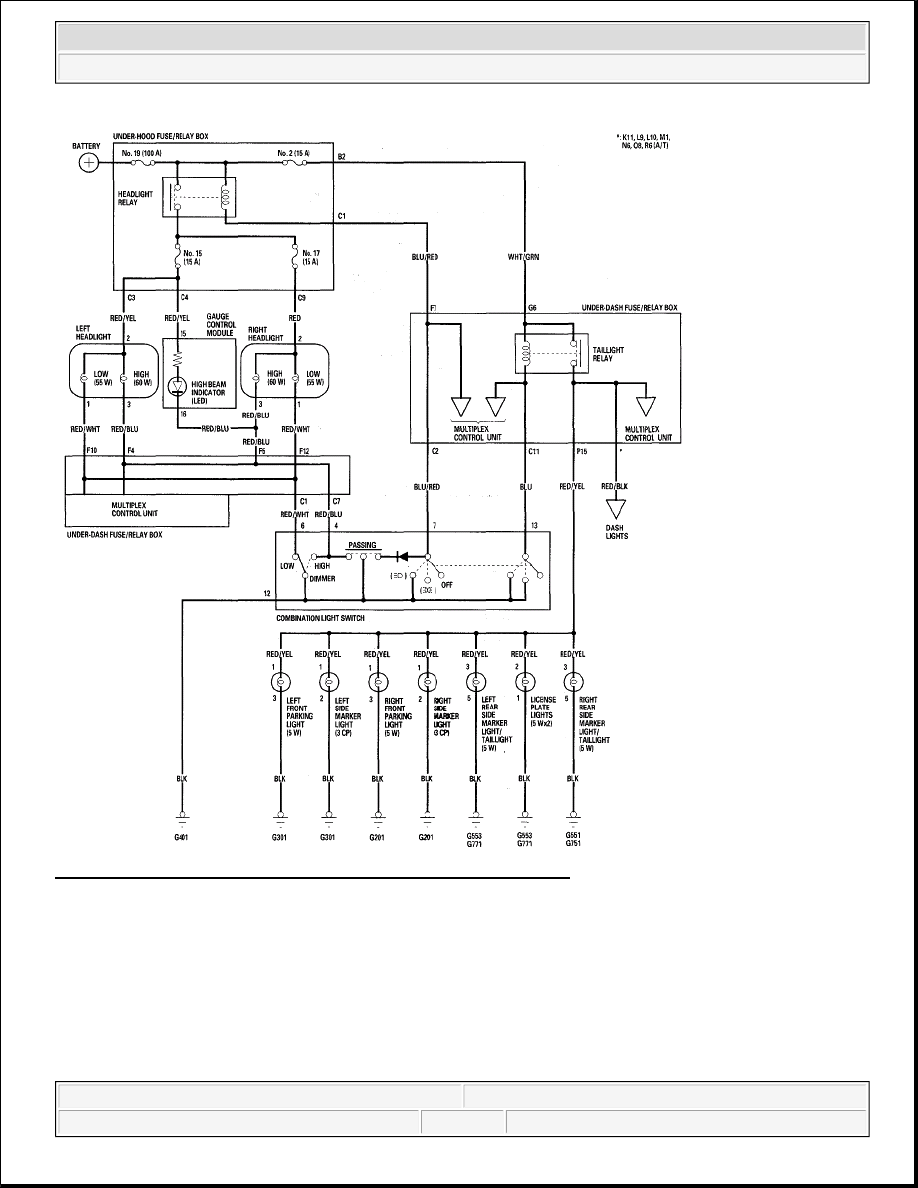

Fig. 10: Exterior Lights - Circuit Diagram (USA Except SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM - BRAKE LIGHTS



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

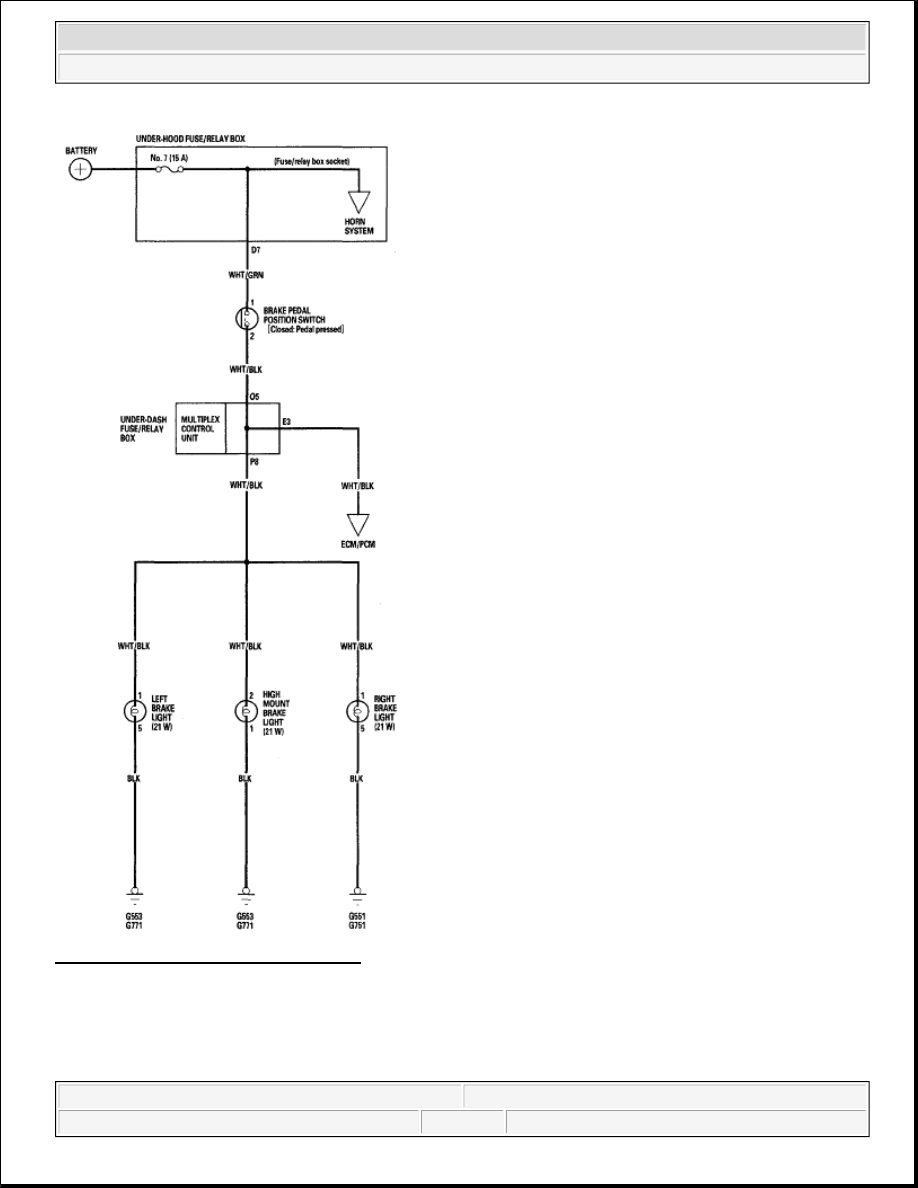

Fig. 11: Brake Lights - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM - BACK-UP LIGHTS



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

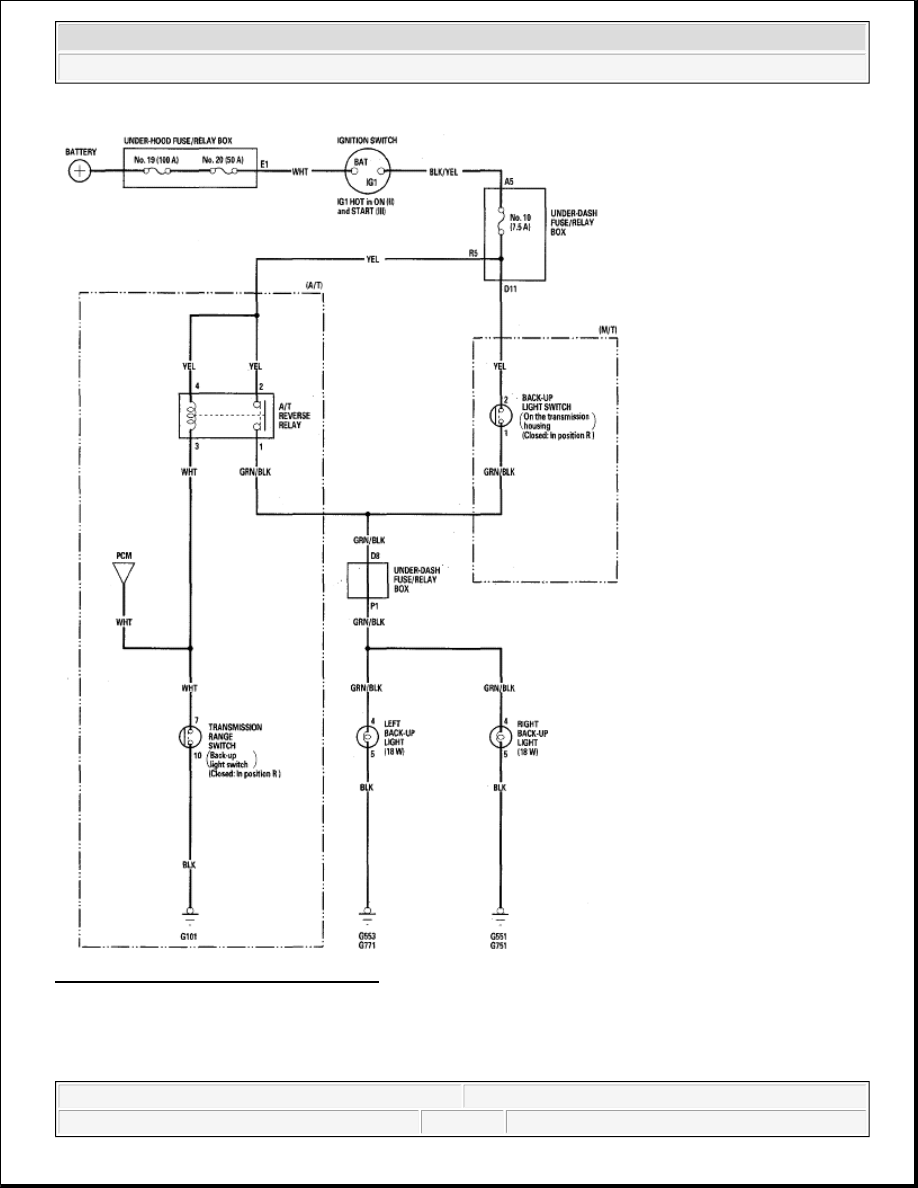

Fig. 12: Back-up Lights - Circuit Diagram
Courtesy of AMERICAN HONDA MOTOR CO., INC.

COMBINATION LIGHT SWITCH TEST/REPLACEMENT



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



1. Remove the dashboard lower cover (see DRIVER'S DASHBOARD LOWER COVER

REMOVAL/INSTALLATION ).

2. Remove the steering column covers (see STEERING COLUMN REMOVAL AND

INSTALLATION ).

3. Disconnect the 16P connector (A) from the combination light switch (B).

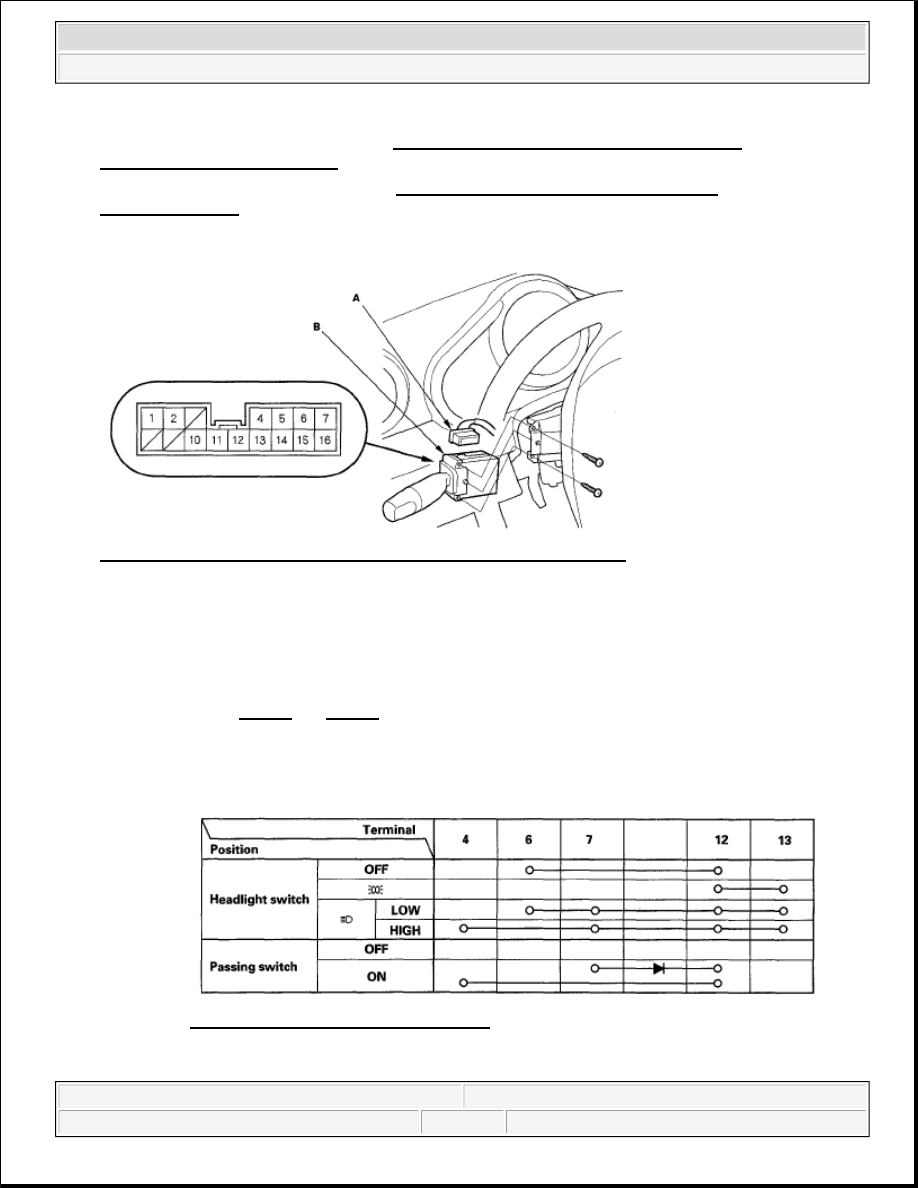

Fig. 13: Identifying Combination Light Switch Connector Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the two screws, then slide out the combination light switch.

5. Inspect the connector terminals to be sure they are all making good contact.



If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.



If the terminals look OK, check for continuity between the terminals in each switch position
according to Fig. 14 and Fig. 15.



If the continuity is not as specified, replace the switch.

Light switch

Fig. 14: Light Switch Continuity Chart
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element
