Honda Element. Manual - part 499

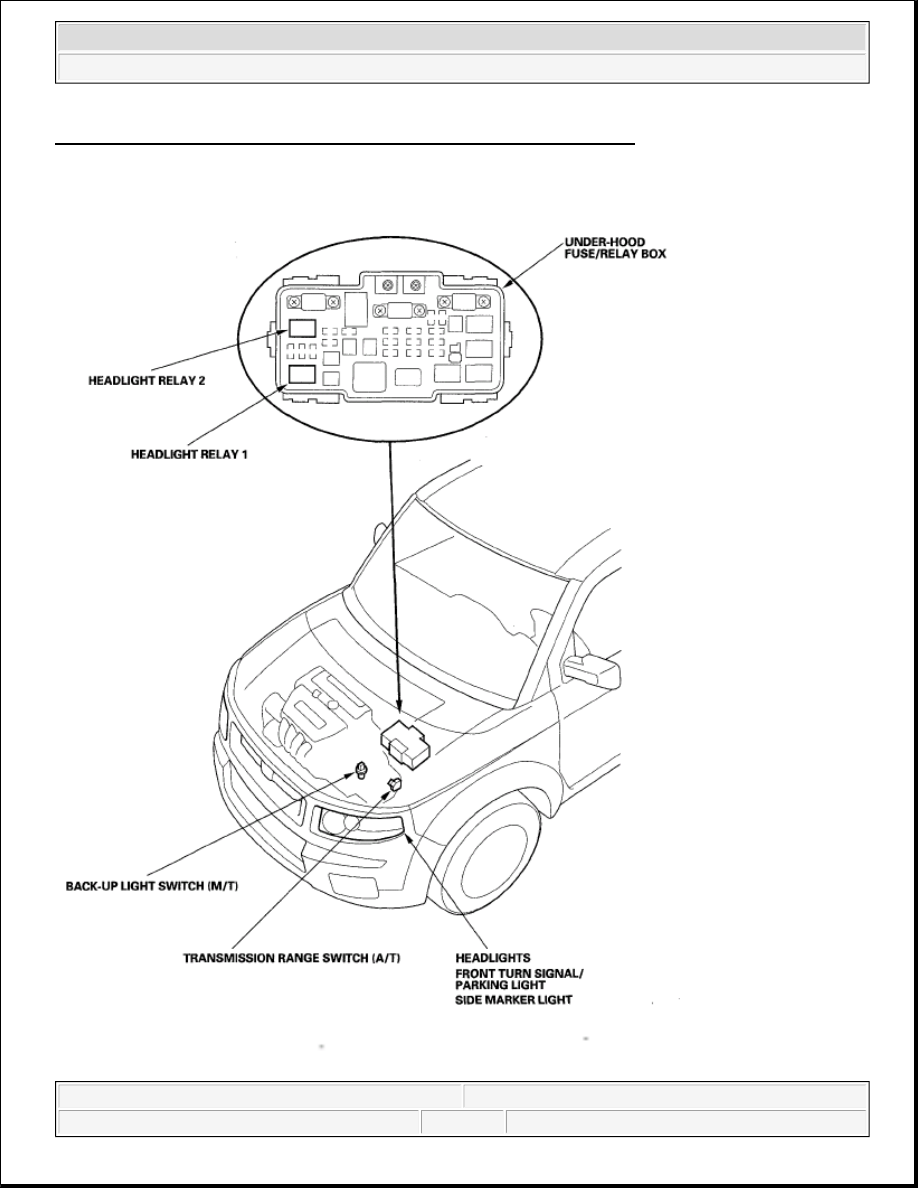

Fig. 1: Identifying Exterior Lights Component Location (Except SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SC model



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



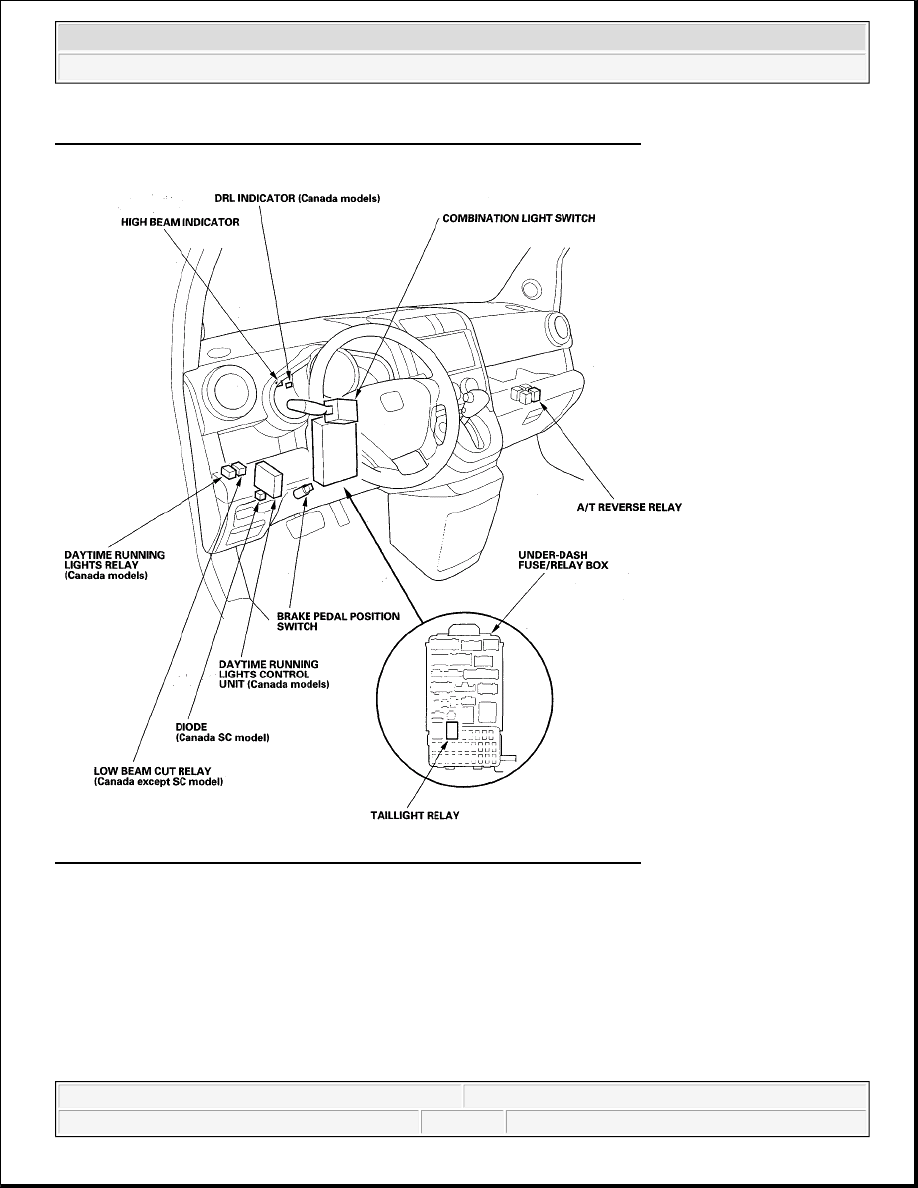

Fig. 2: Identifying Exterior Lights Component Location (SC Model) (1 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

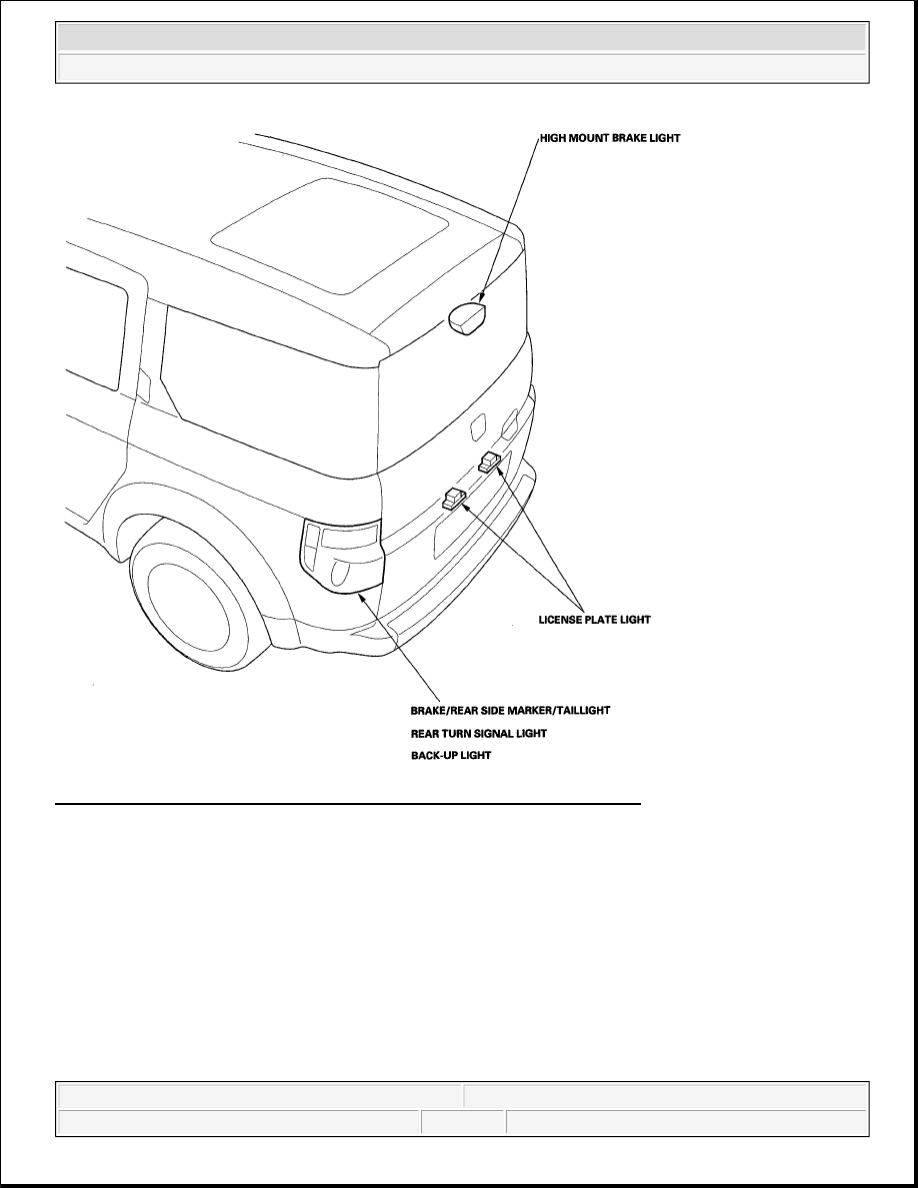

Fig. 3: Identifying Exterior Lights Component Location (SC Model) (2 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element



Fig. 4: Identifying Exterior Lights Component Location (SC Model) (3 Of 3)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

CIRCUIT DIAGRAM

Canada SC model



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

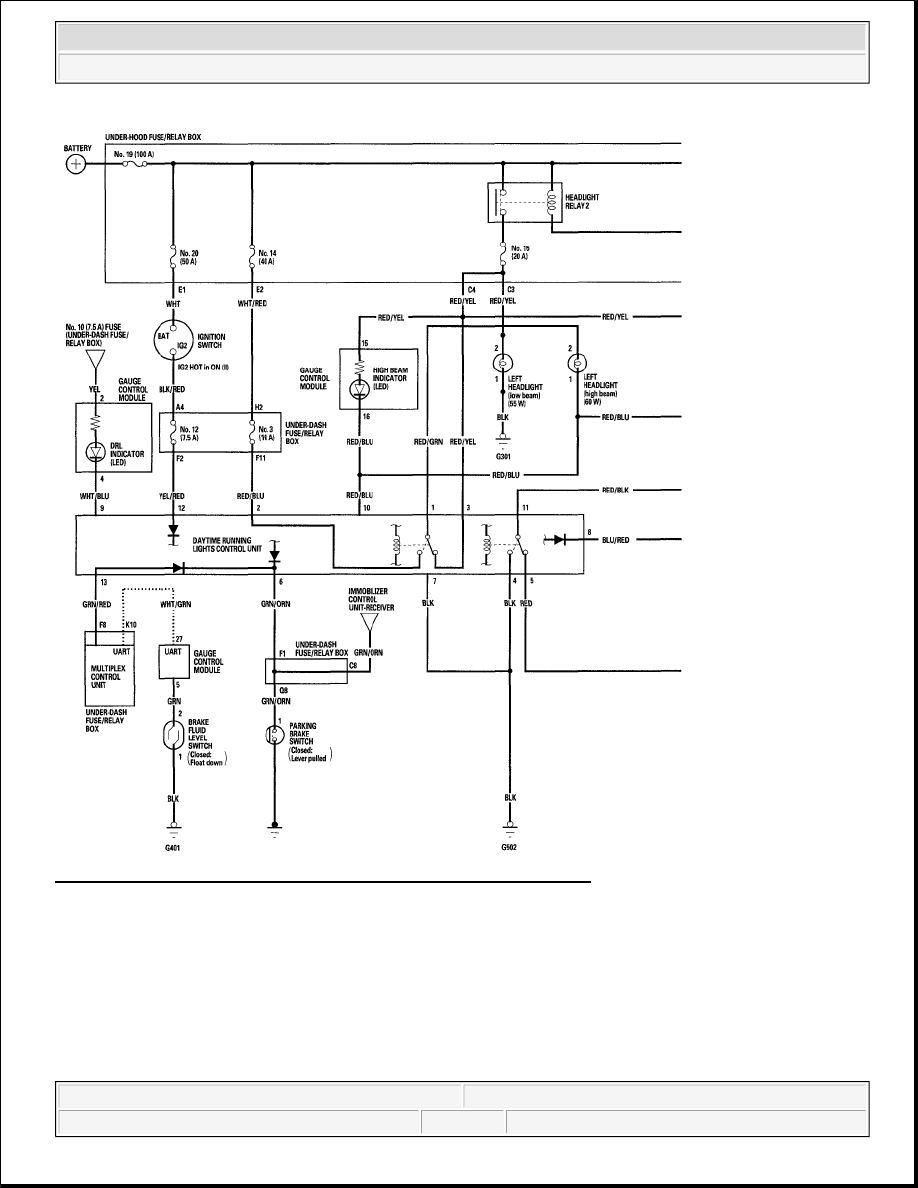

Fig. 5: Exterior Lights - Circuit Diagram (Canada SC Model) (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element
