Honda Element. Manual - part 500

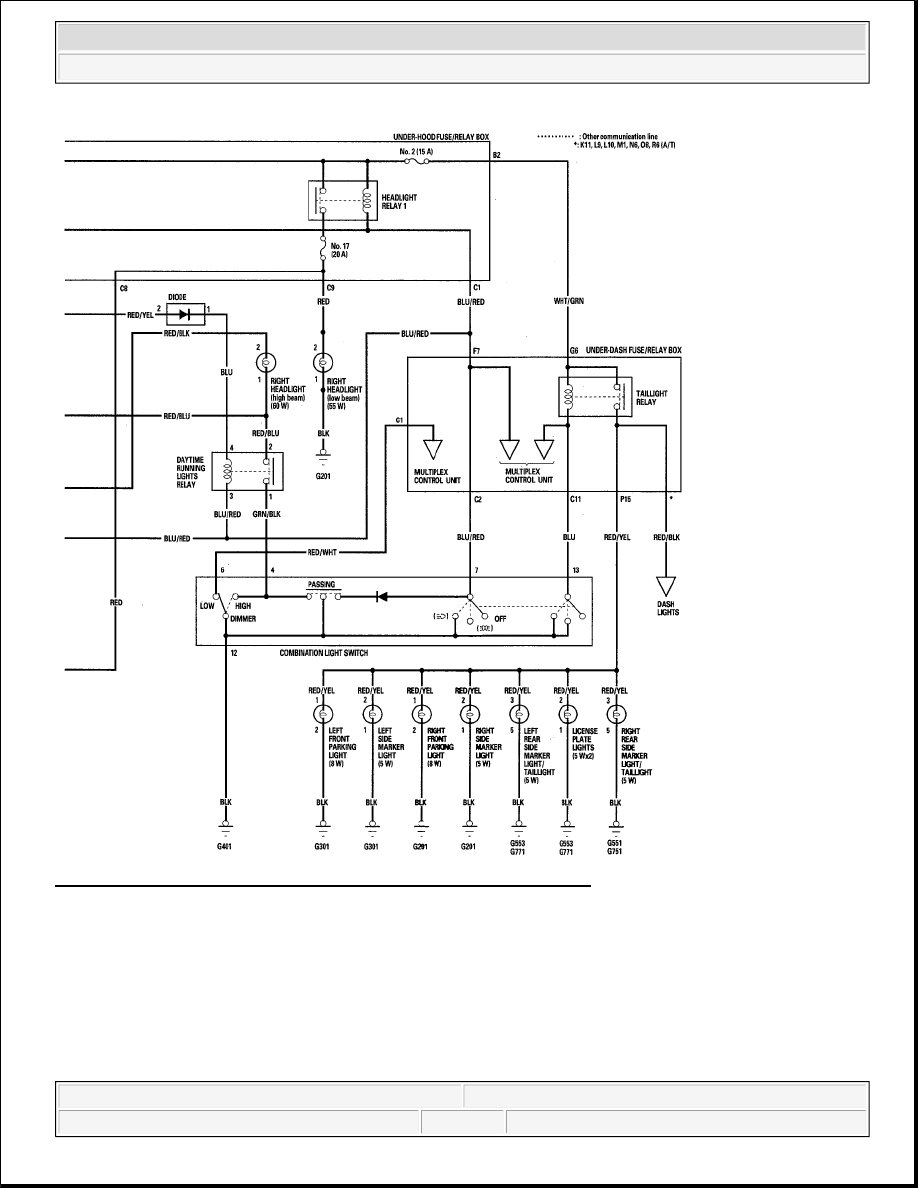

Fig. 6: Exterior Lights - Circuit Diagram (Canada SC Model) (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Canada except SC model

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

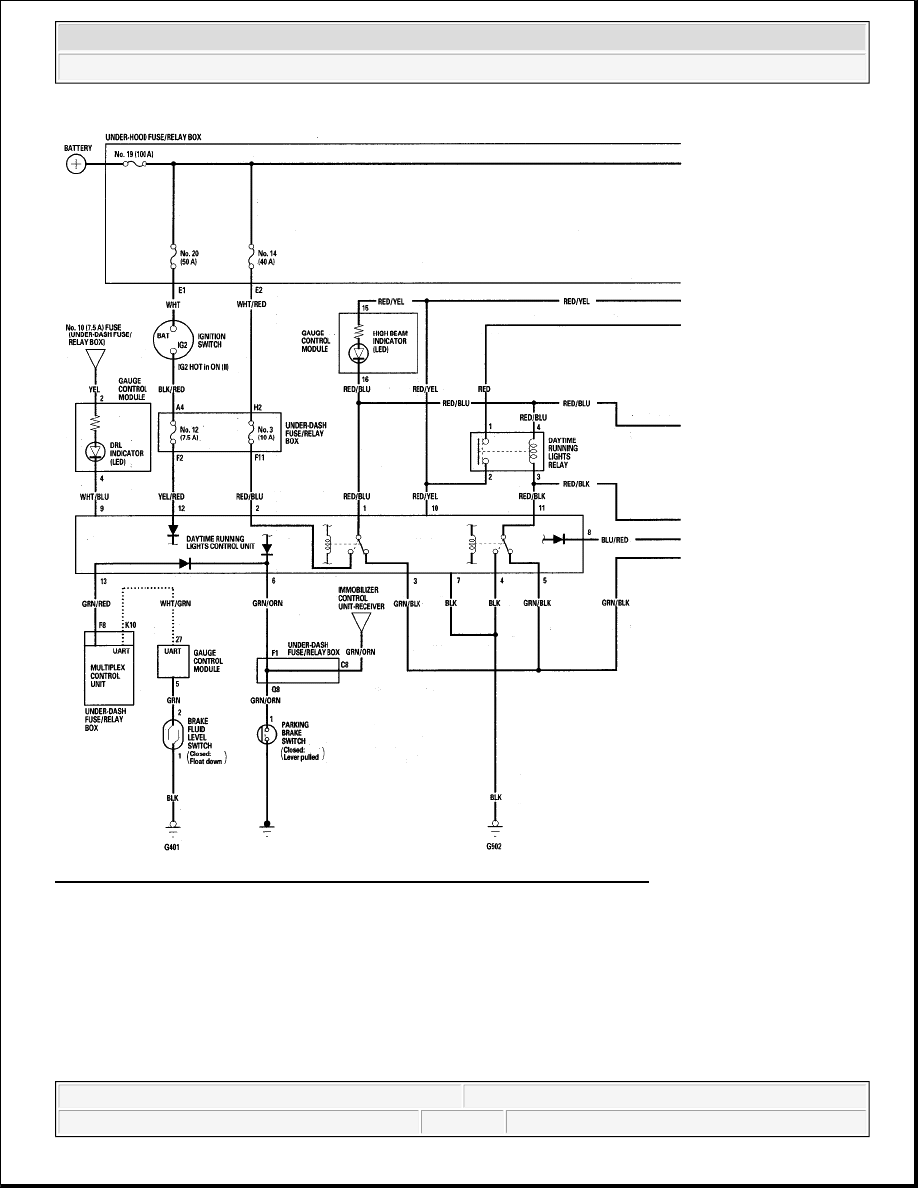

Fig. 7: Exterior Lights - Circuit Diagram (Canada Except SC Model) (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

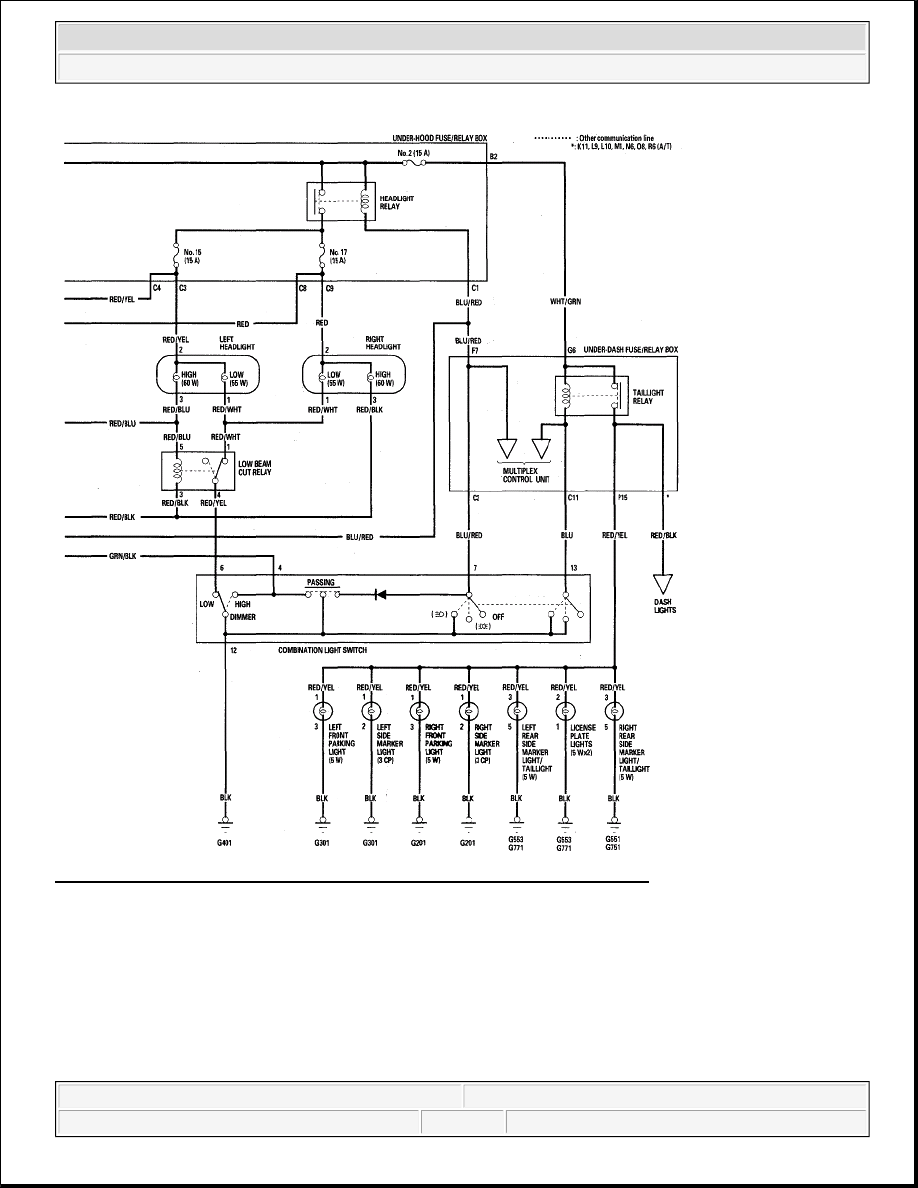

Fig. 8: Exterior Lights - Circuit Diagram (Canada Except SC Model) (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

USA SC model

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element

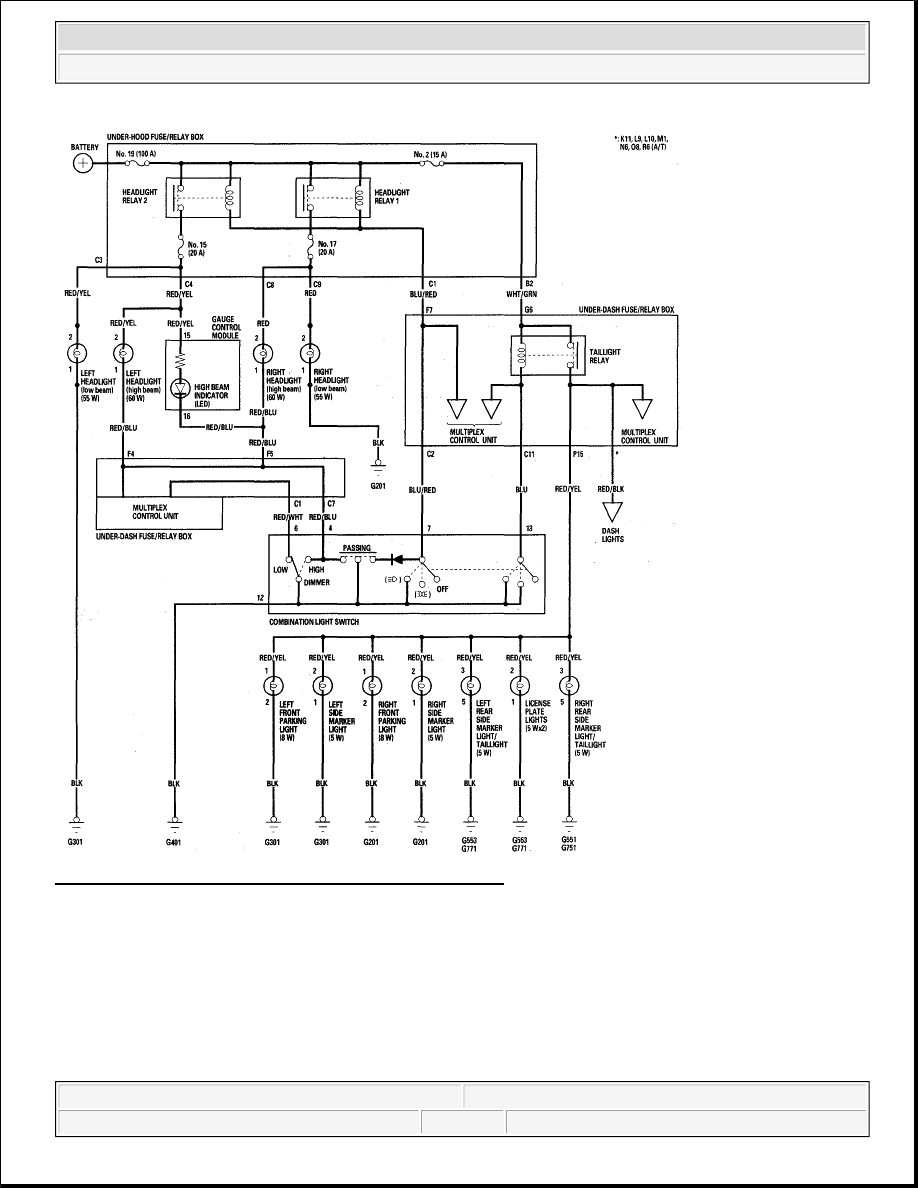

Fig. 9: Exterior Lights - Circuit Diagram (USA SC Model)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

USA except SC model

2007 Honda Element EX

2007-08 ACCESSORIES AND EQUIPMENT Exterior Lights - Element
