Fig. 282: Identifying Shift Cable And Shift Cable Holder
Courtesy of AMERICAN HONDA MOTOR CO., INC.

8. Rotate the socket holder (A) on the shift cable (B) a quarter turn; the tab (C) on the socket holder will be

in the opening (D) of the shift cable bracket (E). Then slide the holder to remove the shift cable from the
shift cable bracket. Do not remove the shift cable by twisting the shift cable guide (F) and damper (G).

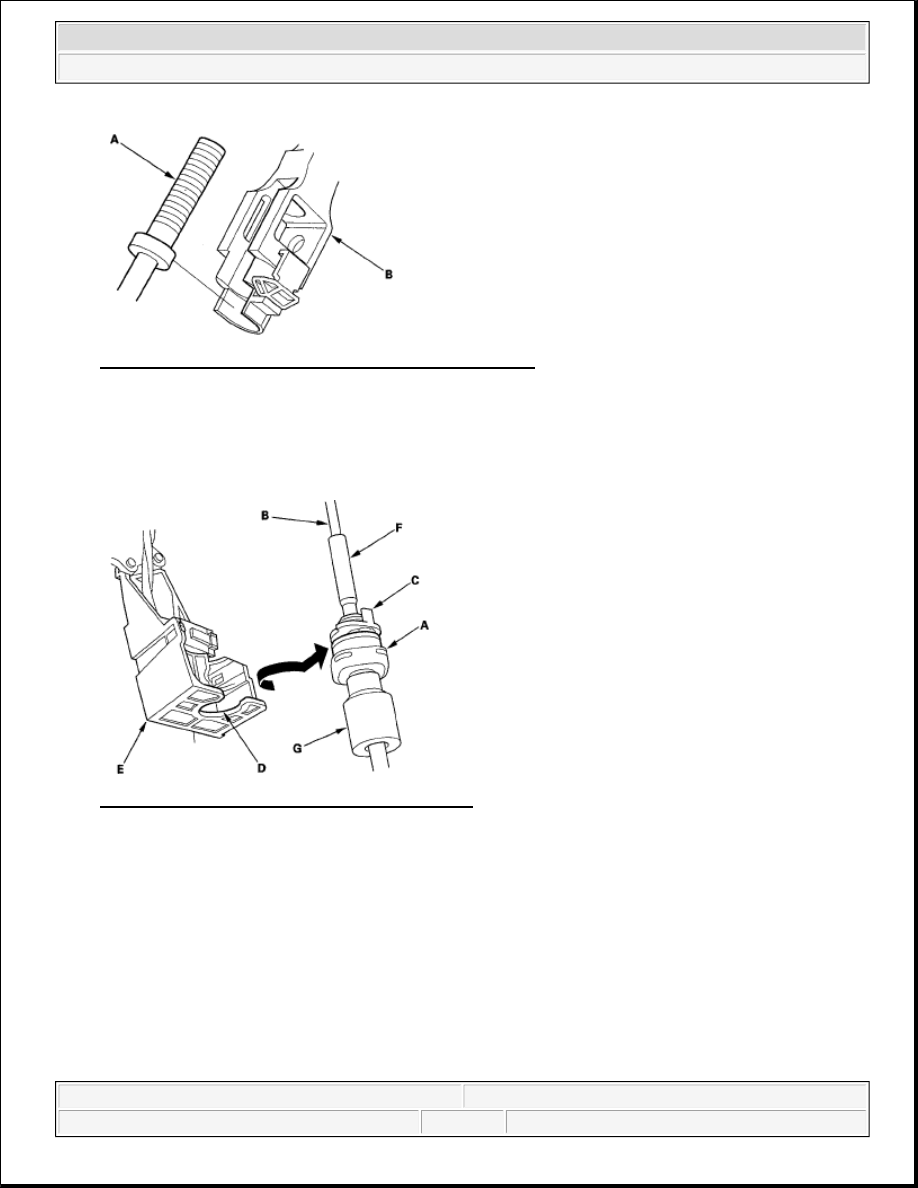

Fig. 283: Rotating Socket Holder On Shift Cable
Courtesy of AMERICAN HONDA MOTOR CO., INC.

9. Remove the shift lever mounting bolts:



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



Fig. 284: Identifying Shift Lever Mounting Bolts
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Disconnect the park pin switch connector.

11. Remove the shift lever mounting bolt (A), and remove the shift cable bracket (B).

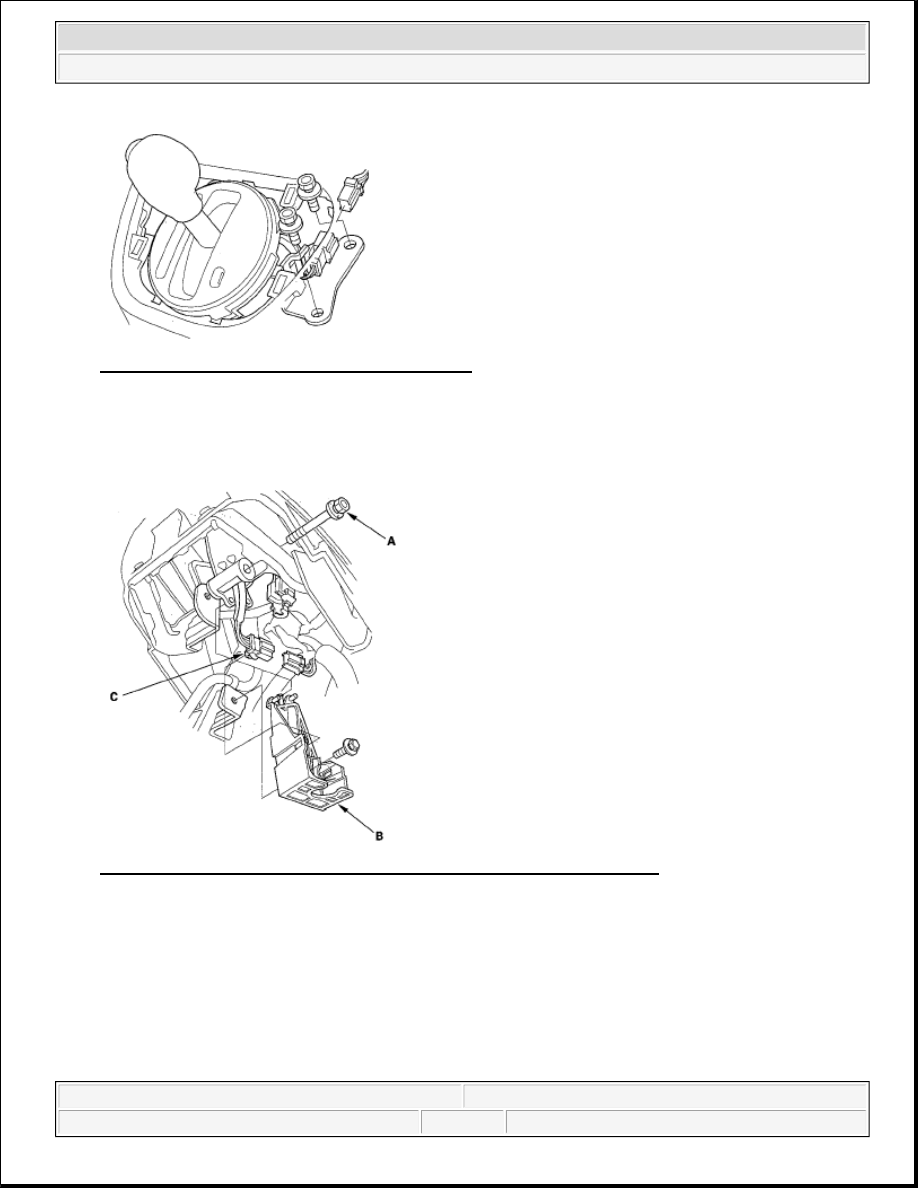

Fig. 285: Identifying Shift Lever Mounting Bolt And Shift Cable Bracket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Remove the D3 switch/shift lock solenoid connector (C), then disconnect the connector.

13. Cover around the opening of the console with tape to prevent damage to the console.

14. Remove the shift lever assembly.

SHIFT LEVER INSTALLATION

1. Cover around the opening of the console with tape to prevent damaging the console.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



2. Position the shift lever in the console.

3. Install the shift lever mounting bolt (A) loosely.

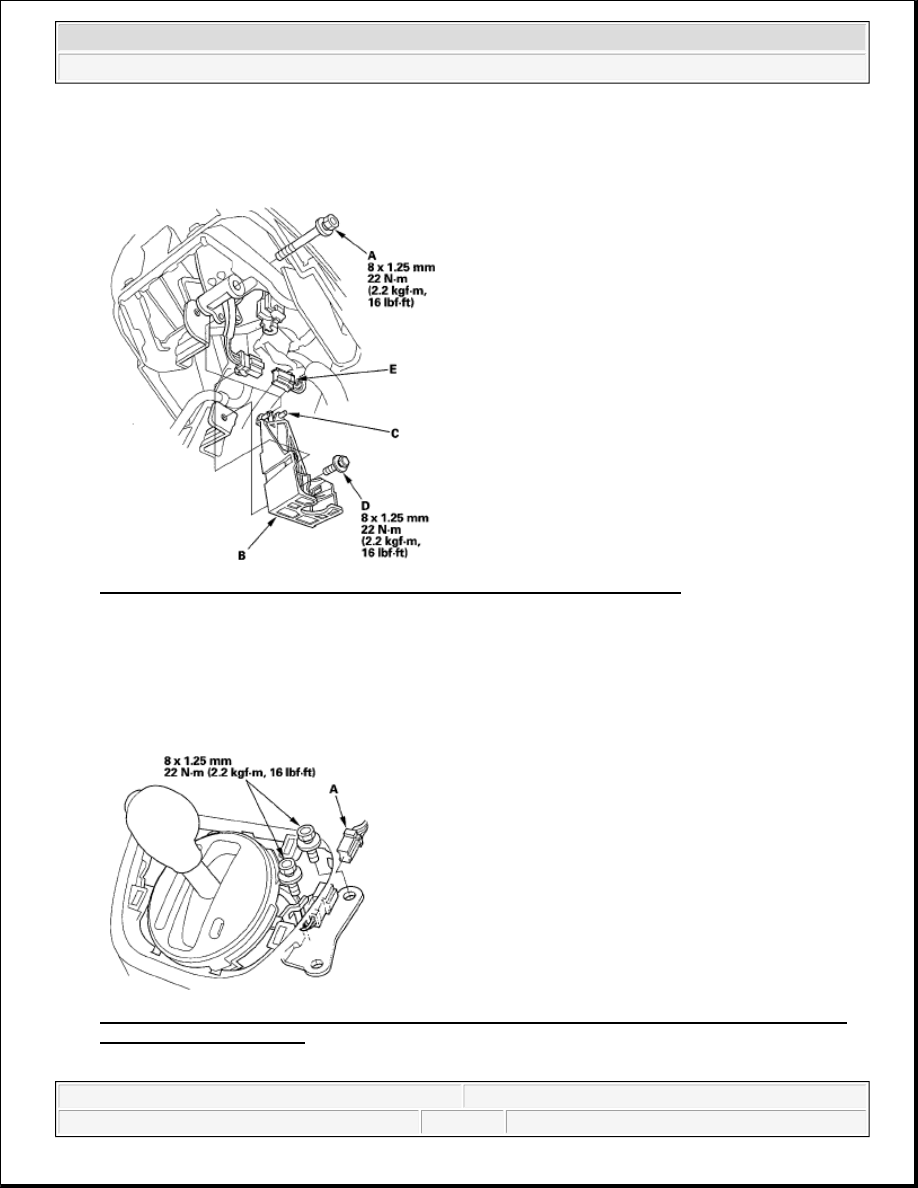

Fig. 286: Identifying Shift Lever Mounting Bolt With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Install the shift cable bracket (B) with aligning the projections (C) to the holes of the shift lever bracket,

and install the mounting bolt (D).

5. Connect the D3 switch/shift lock solenoid connector (E), and install it on the shift cable bracket.

6. Secure the shift lever assembly with the mounting bolts.

Fig. 287: Identifying Shift Lever Assembly And Mounting Bolts With Park Pin Switch Connector
With Torque Specification
Courtesy of AMERICAN HONDA MOTOR CO., INC.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



7. Connect the park pin switch connector (A).

8. Tighten the shift lever mounting bolt that was loosely installed in step 3.

9. Turn the ignition switch ON (II), and check that the R position indicator comes on.

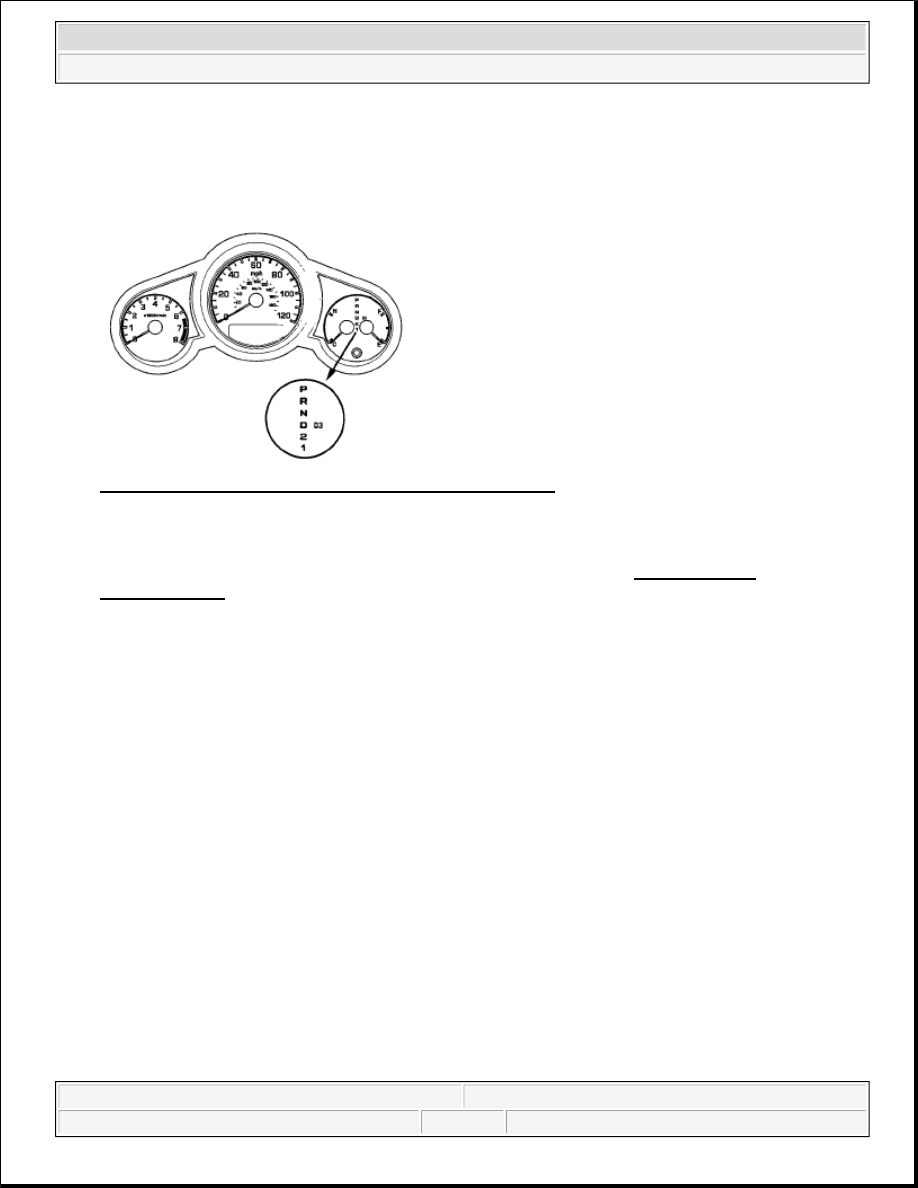

Fig. 288: Identifying D Indicator In Gauge Control Module
Courtesy of AMERICAN HONDA MOTOR CO., INC.

10. Turn the ignition switch OFF.

11. Install the shift cable to the shift lever, refer to shift cable adjustment (see SHIFT CABLE

ADJUSTMENT ).

SHIFT LEVER DISASSEMBLY/REASSEMBLY
