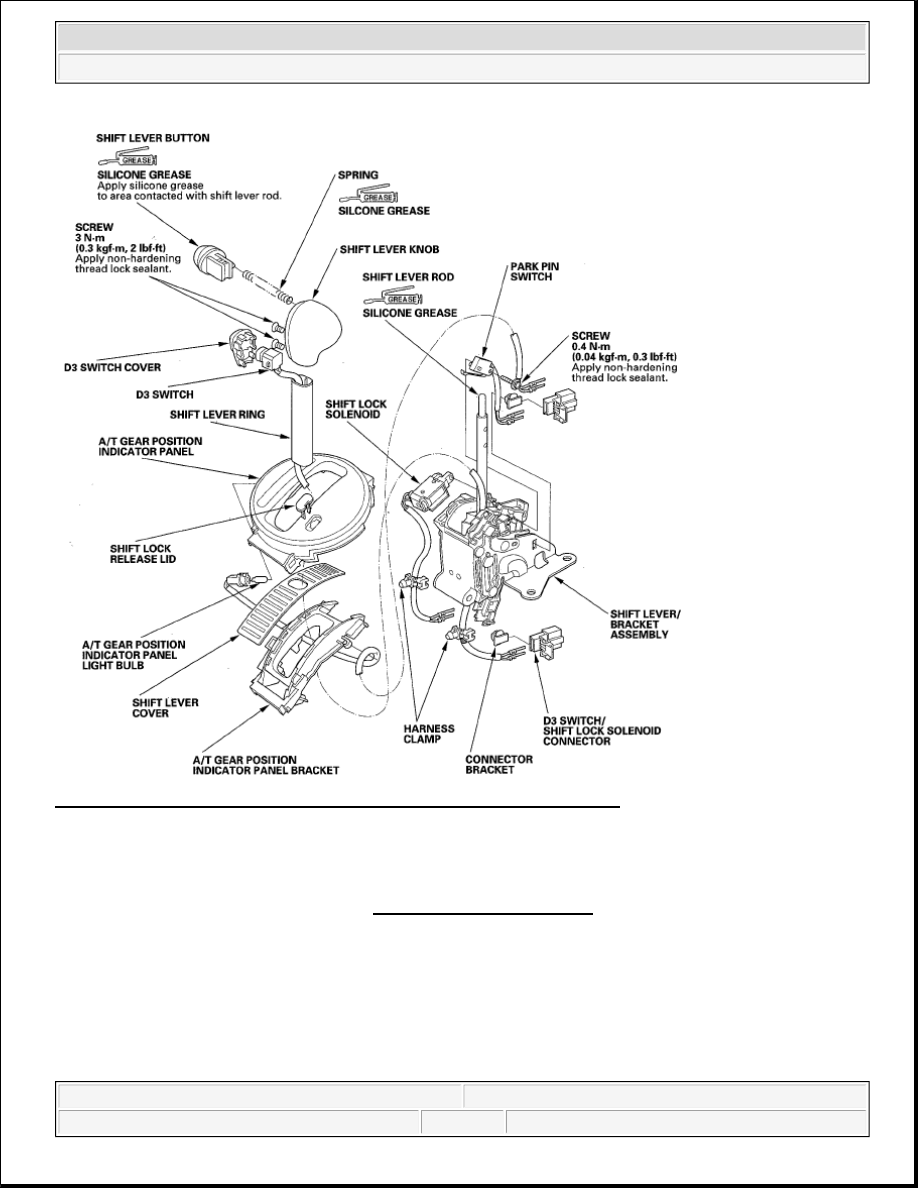

Fig. 289: Identifying Shift Lever Components With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.

SHIFT LEVER BRACKET ASSEMBLY REPLACEMENT

1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL ).

2. Pry out the D3 switch cover (A), and remove it.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



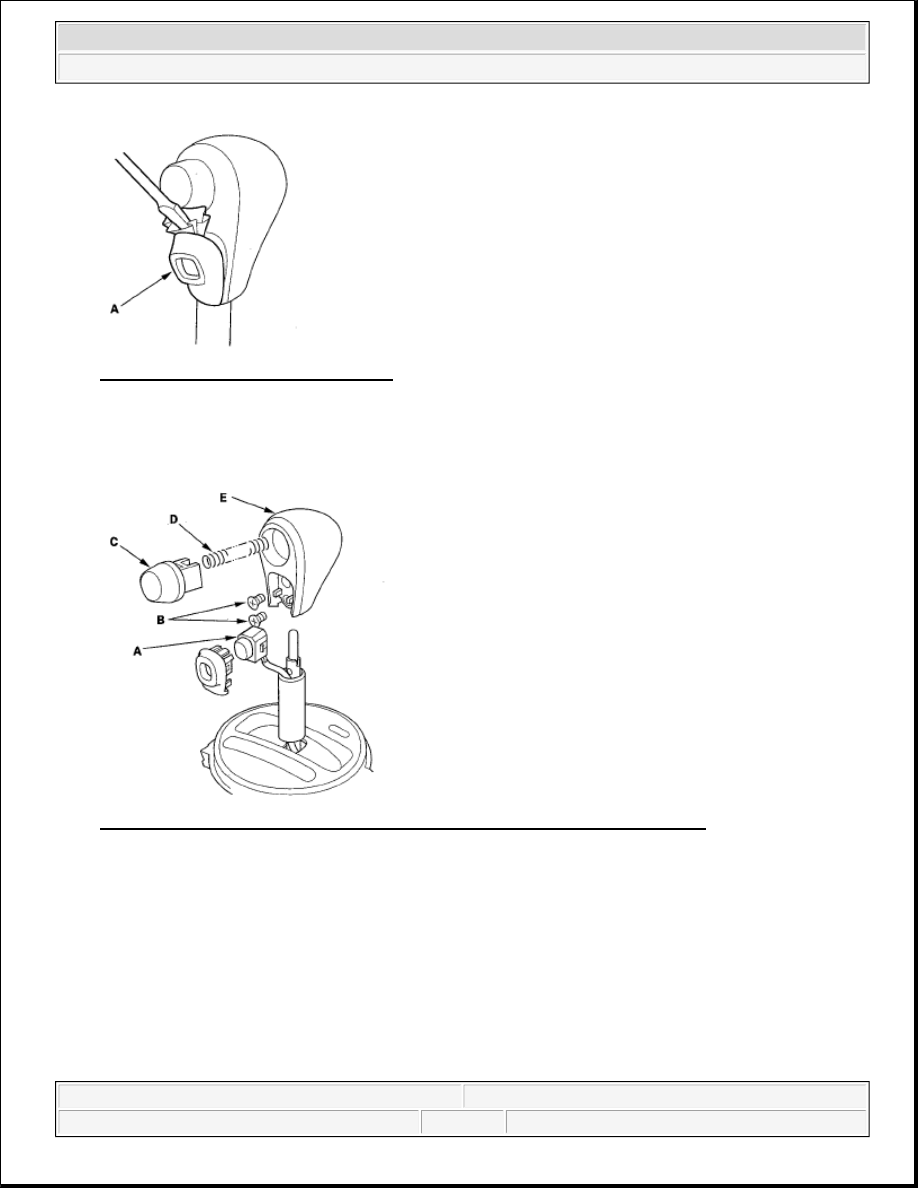

Fig. 290: Prying Out D3 Switch Cover
Courtesy of AMERICAN HONDA MOTOR CO., INC.

3. Remove the D3 switch (A) by expanding its locks, and remove the screws (B), shift lever button (C),

spring (D), and shift lever knob (E).

Fig. 291: Identifying Screws, Shift Lever Button, Spring And Shift Lever Knob
Courtesy of AMERICAN HONDA MOTOR CO., INC.

4. Remove the A/T gear position indicator panel light socket (A), then separate the A/T gear position

indicator panel (B) from the shift lever bracket (C).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

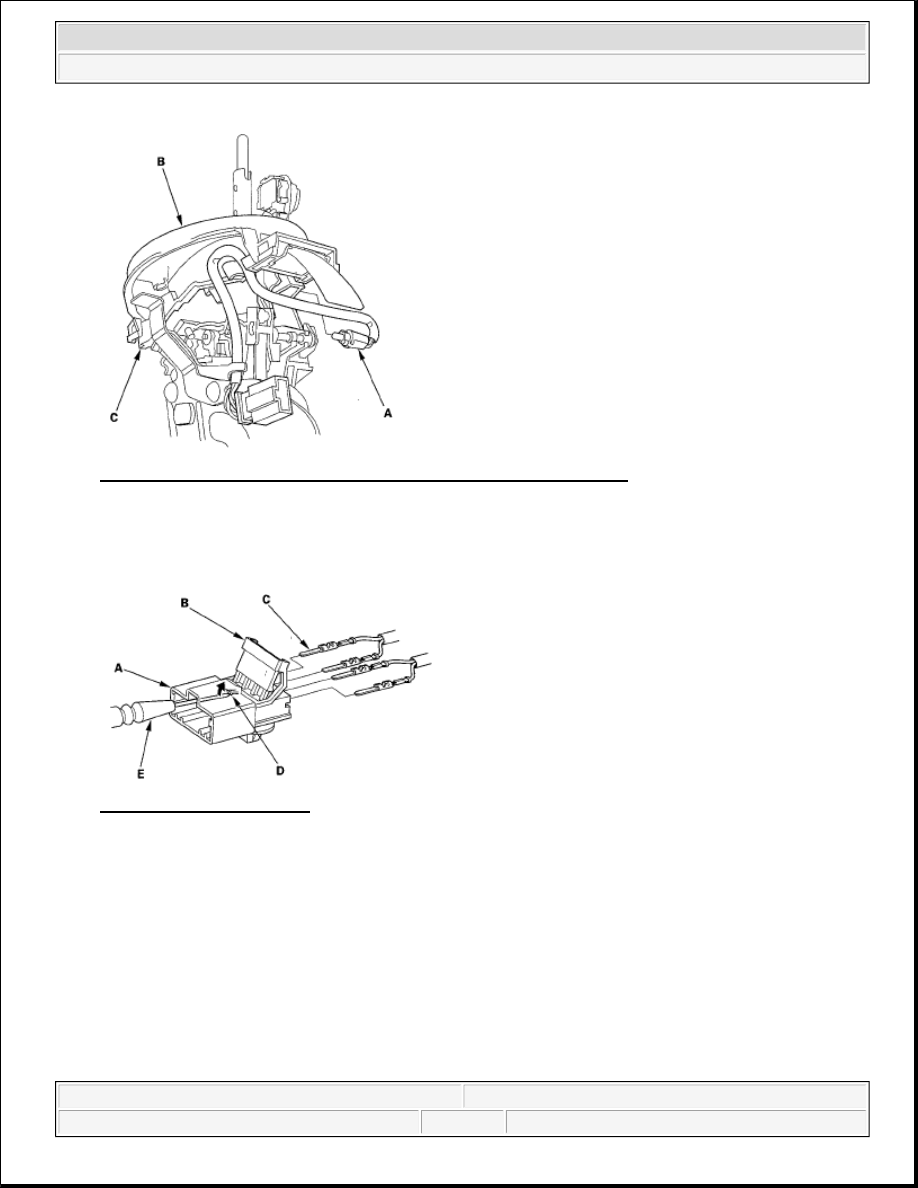

Fig. 292: Identifying A/T Gear Position Indicator Panel Light Socket
Courtesy of AMERICAN HONDA MOTOR CO., INC.

5. Pry the lock tabs on the back of the D3 switch/shift lock solenoid connector (A), and remove the back

cover (B).

Fig. 293: Prying Lock Tabs
Courtesy of AMERICAN HONDA MOTOR CO., INC.

6. Remove the terminal (C) from the connector by pushing the lock tab (D) up in the connector using a thin

blade screwdriver (E). Remove all four terminals.

7. Remove the D3 switch harness clamp from the shift lever bracket and from the harness, and pull the D3

switch harness out to remove the shift lever assembly.

8. Remove the shift lock solenoid harness clamp from the shift lever bracket, and remove the shift lock

solenoid.

9. Remove the park pin switch from the shift lever bracket.

10. Replace the shift lever/bracket assembly.

11. Install the shift lock solenoid (A) on the shift lever/bracket assembly (B) with aligning the shift lock

solenoid plunger (C) with the tip of the shift lock stop (D).



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element

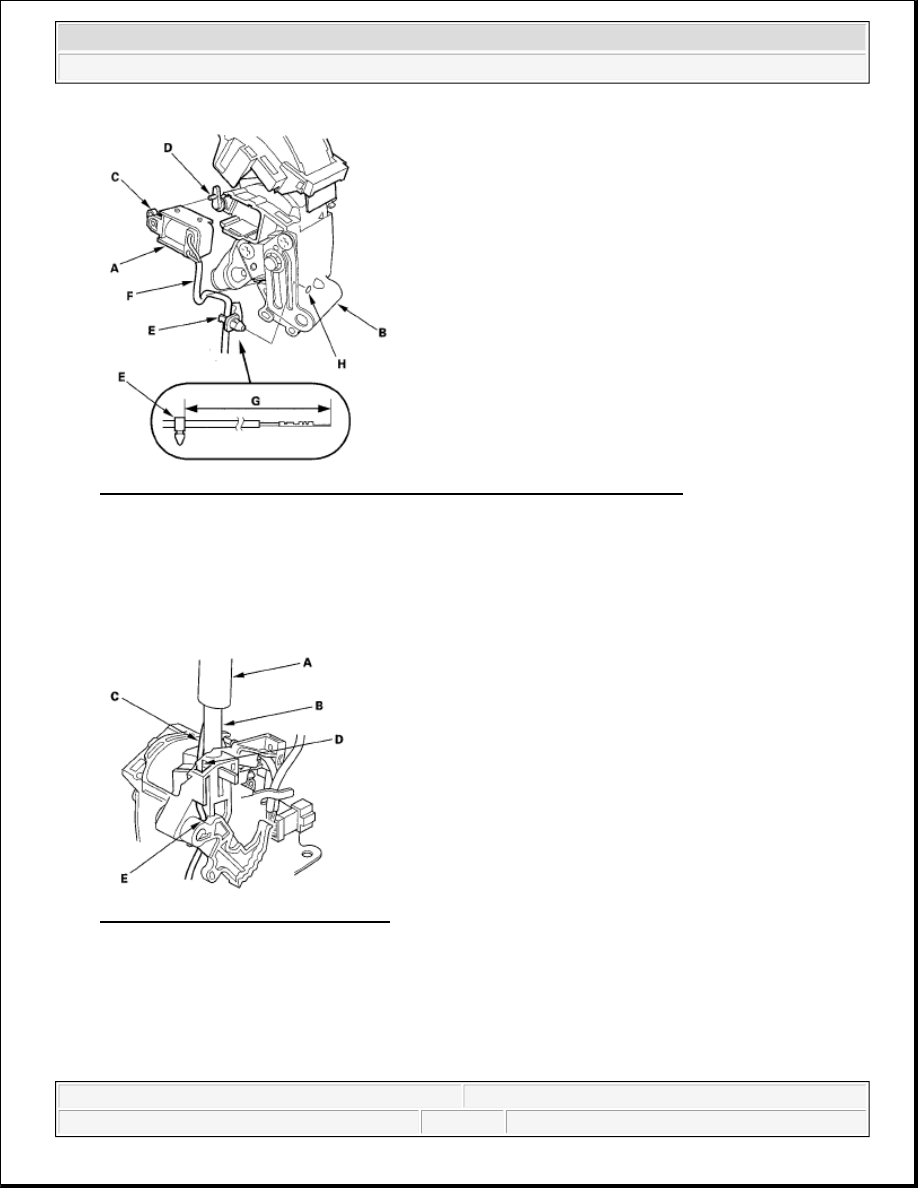

Fig. 294: Aligning Shift Lock Solenoid Plunger With Tip Of Shift Lock Stop
Courtesy of AMERICAN HONDA MOTOR CO., INC.

12. Install the harness clamp (E) on the shift lock solenoid harness (F) at 128-138 mm (5.0-5.4 in.) (G) from

the harness terminal end.

13. Install the clamp in the hole (H) of the shift lever bracket.

14. Install the shift lever ring (A) to the shift lever (B).

Fig. 295: Identifying Shift Lever Ring
Courtesy of AMERICAN HONDA MOTOR CO., INC.

15. Insert the D3 switch harness (C) into the shift lever ring, and route the harness through the groove (D) of

the shift lever into the hole (E). Do not pinch the harness.

16. Wind the D3 switch harness (A) one turn around the clamp (B) on the bottom of the shift lever.



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element
