About 5.0 V
With ignition
switch OFF: About
0 V

A21

YEL/RED

VCC1 (SENSOR
VOLTAGE)

Provides sensor
reference voltage

With ignition
switch ON (II):
About 5.0 V
With ignition
switch OFF: About
0 V

A23

GRN/BLK

SG2 (SENSOR
GROUND)

Sensor around

Less than 1.0 V at
all times

A24

GRN/WHT

SG1 (SENSOR
GROUND)

Sensor around

Less than 1.0 Vat
all times

A25

RED/YEL

APSB
(ACCELERATOR
PEDAL POSITION
(APP) SENSOR B)

Detects APP sensor
B signal

With ignition
switch ON (II) and
accelerator pedal
fully pressed:
About 2.3 V
With ignition
switch ON (II) and
accelerator pedal
released: About 0.2
V

A26

RED/BLU

APSA
(ACCELERATOR
PEDAL POSITION
(APP) SENSOR A)

Detects APP sensor
A signal

With ignition
switch ON (II) and
accelerator pedal
fully pressed:
About 4.5 V
With ignition
switch ON (II) and
accelerator pedal
released: About 0.5
V

A30

GRN/RED

MAP (MANIFOLD
ABSOLUTE
PRESSURE
SENSOR)

Detects MAP sensor
signal

With ignition
switch ON (II):
About 3.0 V
At idle: About 1.0
V (depending on
engine speed)



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



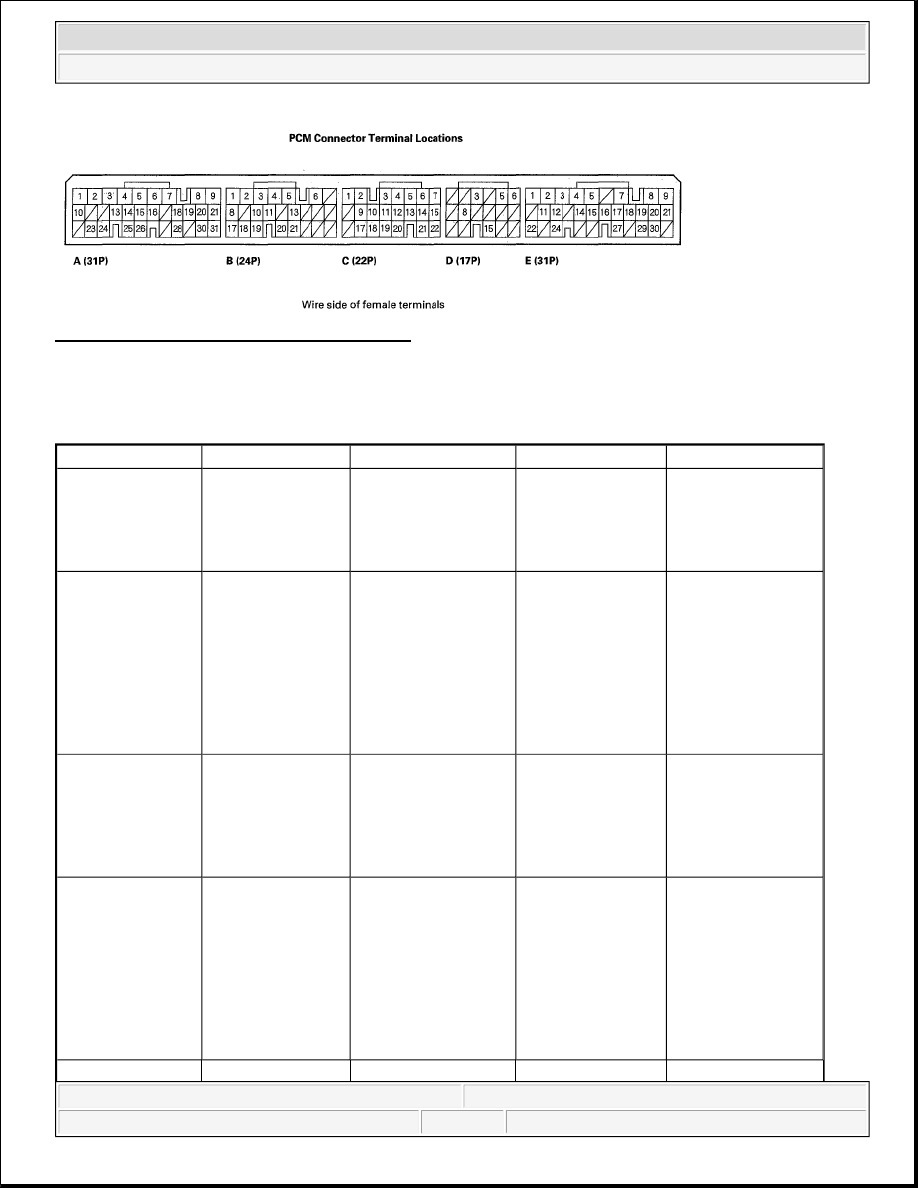

Fig. 32: Identifying PCM Connector Terminal
Courtesy of AMERICAN HONDA MOTOR CO., INC.

PCM CONNECTOR C (22P)

PCM CONNECTOR TERMINAL REFERENCE

Terminal number

Wire color

Terminal name

Description

Signal

C1

BLK/BLU

LS A (A/T CLUTCH
PRESSURE
CONTROL
SOLENOID VALVE
A)

Drives A/T clutch
pressure control
solenoid valve A

With ignition switch
ON (II): Current
controlled

C2

GRN

SHC (SHIFT
SOLENOID VALVE
C)

Drives shift
solenoid valve C

With engine running
in N, D (in 1st, 3rd,
and 5th gears), and 1
positions: Battery
voltage
With engine running
in P, R, D (in 2nd
and 4th gears), and 2
positions: About 0 V

C3

YEL

SHE (SHIFT
SOLENOID VALVE
E)

Drives shift
solenoid valve E

With engine running
in P and R positions:
Battery voltage
With engine running
in N, D, 2, and 1
positions: About 0 V

C4

GRN/WHT

SH B (SHIFT
SOLENOID VALVE
B)

Drives shift
solenoid valve B

With engine running
in P, R, N, D (in 1st
and 2nd gears), 2,
and 1 positions:
Battery voltage
With engine running
in. D (in 3rd, 4th and
5th gears) positions:
About 0 V

C5

GRN/RED

SH D (SHIFT

Drives shift

With engine running



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



SOLENOID VALVE
D)

solenoid valve D

in D (in 2nd and 5th
gears), and 2
positions: Battery
voltage
With engine running
in P, R, N, D (in 1st,
3rd, and 4th gears),
and 1 positions:
About 0 V

C6

BLU/BLK

SH A (SHIFT
SOLENOID VALVE
A)

Drives shift
solenoid valve A

With engine running
in R, D (in 1st, 4th,
and 5th gears), and 1
positions: Battery
voltage
With engine running
in P, N, D (in 2nd
and 3rd gears), and 2
positions: About 0 V

C7

BLU/YEL

LS C (A/T CLUTCH
PRESSURE
CONTROL
SOLENOID VALVE
C)

Drives A/T clutch
pressure control
solenoid valve C

With ignition switch
ON (II): Current
controlled

C9

BRN

ATP 1
(TRANSMISSION
RANGE SWITCH 1)

Detects
transmission range
switch 1 position
signal

In 1 position: About
0 V
In any position other
than 1 position:
Battery voltage

C10

BLU/WHT

OP3SW (3RD
CLUTCH
TRANSMISSION
FLUID PRESSURE
SWITCH)

Detects 3rd clutch
transmission fluid
pressure switch
signal

With ignition switch
ON (II):



Without 3rd
clutch
pressure:
About 5.0 V



With 3rd
clutch
pressure:
About 0 V

C11

BLU

ATP 2
(TRANSMISSION
RANGE SWITCH 2)

Detects
transmission range
switch 2 position
signal

In 2 position: About
0 V
In any position other
than 2 position:
Battery voltage

C12

RED/WHT

ATP RVS
(TRANSMISSION

Detects
transmission range

In R position: About
0 V



2007 Honda Element EX

2007-2008 TRANSMISSION Automatic Transmission - Element



RANGE SWITCH
RVS)

switch RVS signal

In any position other
than R position:
Battery voltage

C13

BLU/RED

OP2SW (2ND
CLUTCH
TRANSMISSION
FLUID PRESSURE
SWITCH)

Detects 2nd clutch
transmission fluid
pressure switch
signal

With ignition switch
ON (II):



Without 2nd
clutch
pressure:
About 5.0 V



With 2nd
clutch
pressure:
About 0 V

C14

RED/YEL

ATFT (ATF
TEMPERATURE
SENSOR)

Detects ATF
temperature sensor
signal

With ignition switch
ON (II): About 0.2-
4.8 V (about 1.8 V at
operating
temperature)
(depending on ATF
temperature)

C15

BRN/WHT

LS B (A/T CLUTCH
PRESSURE
CONTROL
SOLENOID VALVE
B)

Drives A/T clutch
pressure control
solenoid valve B

With ignition switch
ON (II): Current
controlled

C17

YEL/GRN

ATP D
(TRANSMISSION.
RANGE SWITCH D)

Detects
transmission range
switch D signal

In D position: About
0 V
In any position other
than D position:
Battery voltage

C18

YEL/RED

ATP FWD
(TRANSMISSION
RANGE SWITCH
FWD)

Detects
transmission range
switch FWD signal

In D, 2, and 1
position: About 0 V
In any position other
than D, 2, and 1:
Battery voltage

C19

WHT/RED

NM (INPUT SHAFT
(MAINSHAFT)
SPEED SENSOR)

Detects input shaft
(mainshaft) speed
sensor signal

With ignition switch
ON (II): About 0 V
or about 5.0 V
With engine idling
in N position: About
1.5-3.5 V (pulses)

C20

RED/BLK

ATP N
(TRANSMISSION
RANGE SWITCH N)

Detects
transmission range
switch N signal

In N position: About
0 V
In any position other
than N position:
