Honda Accord Electrical Troubleshooting Manual - part 142

203-32

Connector to Harness Index

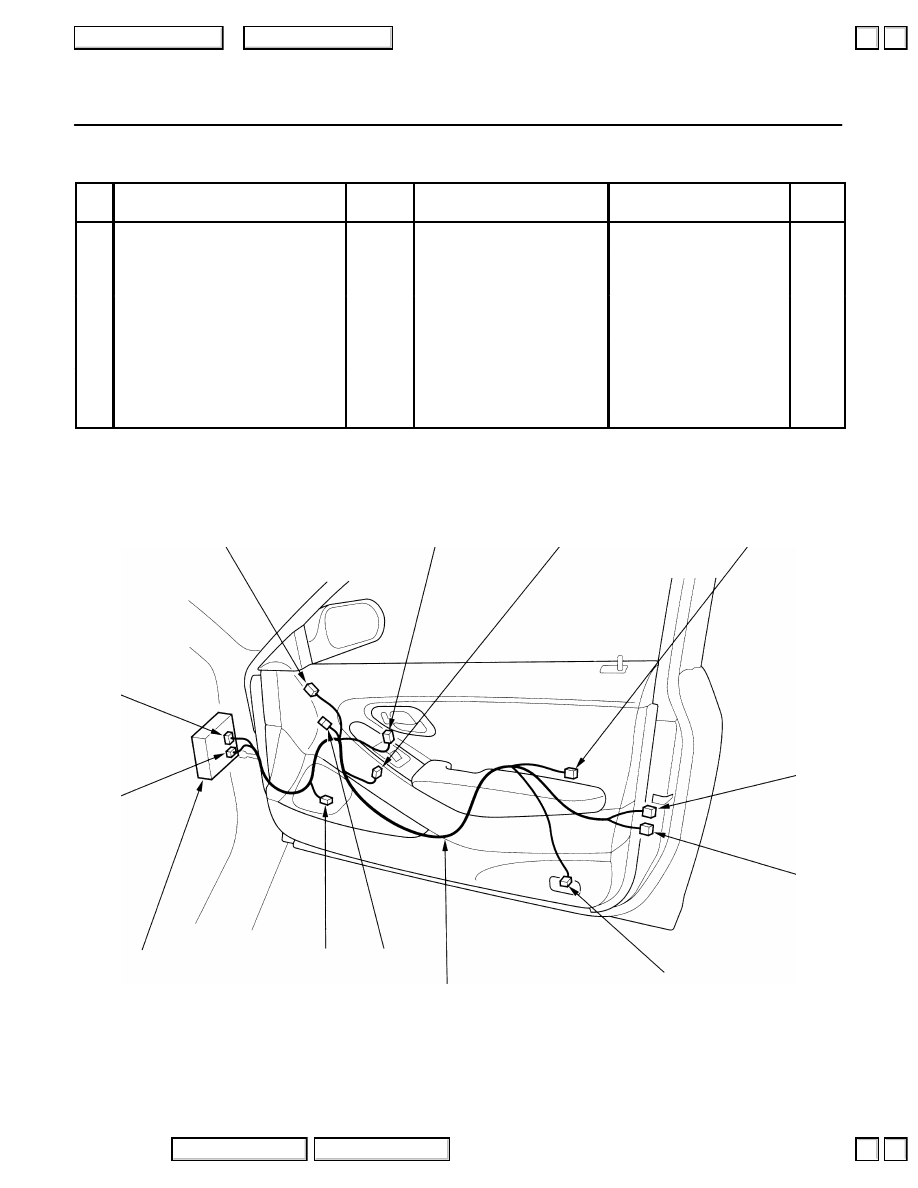

Front Passenger’s Door Wire Harness (Coupe)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Passenger’s under-dash fuse/relay box

connector E

(see page 6-4)

2-LT GRN

Behind right fuse box cover

Canada

2

Passenger’s under-dash fuse/relay box

connector F

(see page 6-4)

20-LT GRN

Behind right fuse box cover

3

Right power mirror

6-N/A

Front passenger’s door

Canada

3

Right power mirror

3-GRY

Front passenger’s door

USA

4

Front passenger’s door lock switch

3-GRY

Front passenger’s door

5

Front passenger’s window switch

6-GRY

Front passenger’s door

6

Front passenger’s door key cylinder switch

3-GRY

Front passenger’s door

7

Front passenger’s door lock knob switch

3-GRY

Front passenger’s door

8

Front passenger’s door lock actuator

2-GRY

Front passenger’s door

9

Front passenger’s door courtesy light

2-GRY

Front passenger’s door

10

Front passenger’s window motor

2-GRY

Front passenger’s door

11

Front passenger’s door speaker

2-GRY

Front passenger’s door

PASSENGER’S
UNDER-DASH
FUSE/RELAY BOX

FRONT PASSENGER’S DOOR WIRE
HARNESS (COUPE)

10

11

9

8

7

1

2

3

4

5

6

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

203-33

Connector to Harness Index

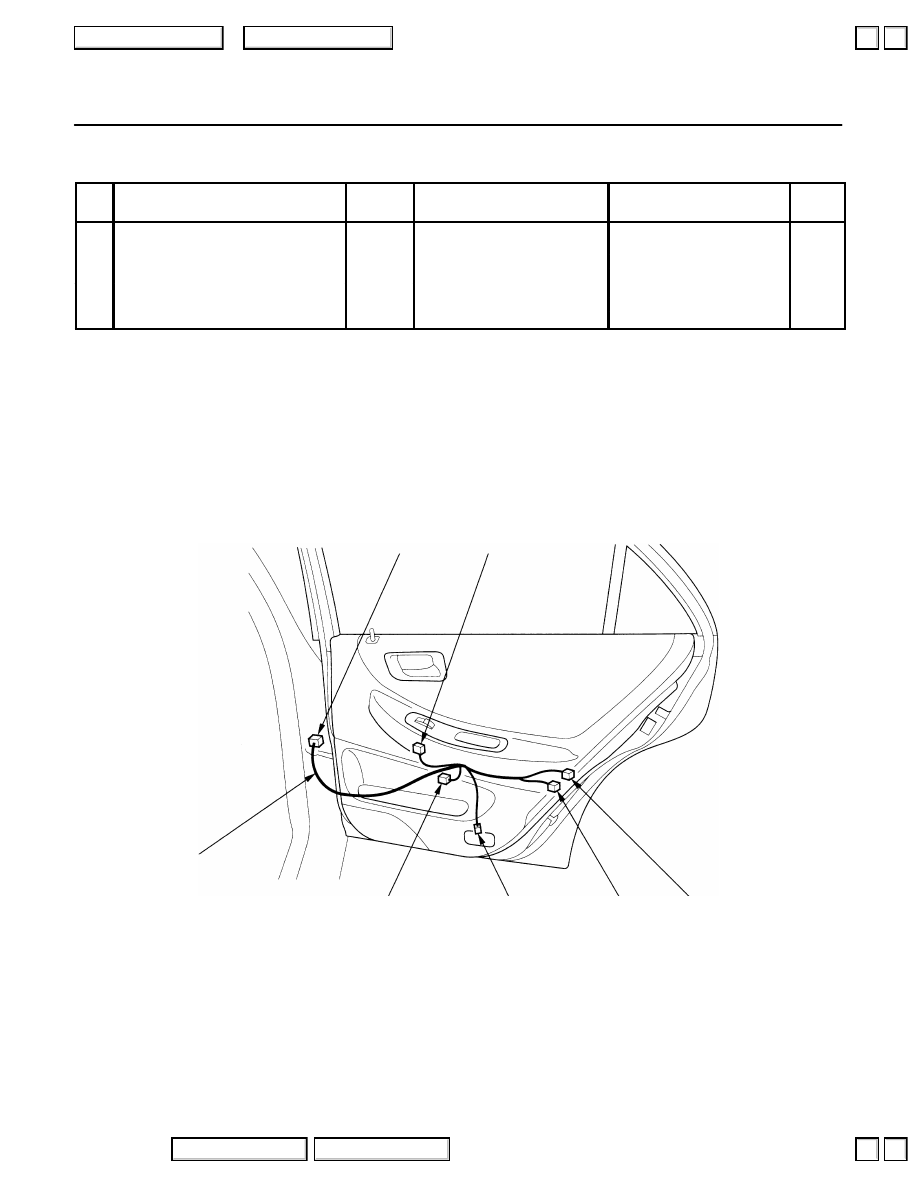

Left Rear Door Wire Harness (Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Left rear window switch

6-GRY

Left rear door

2

C553

10-GRY

Left center pillar

Left side wire harness

(see page 203-20)

3

Left rear window motor

2-GRY

Left rear door

4

Left rear door courtesy light

2-GRY

Left rear door

5

Left rear door lock actuator

2-GRY

Left rear door

6

Left rear door lock knob switch

3-GRY

Left rear door

Security

LEFT REAR DOOR
WIRE HARNESS
(SEDAN)

5

6

4

3

1

2

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

203t34

Connector to Harness Index

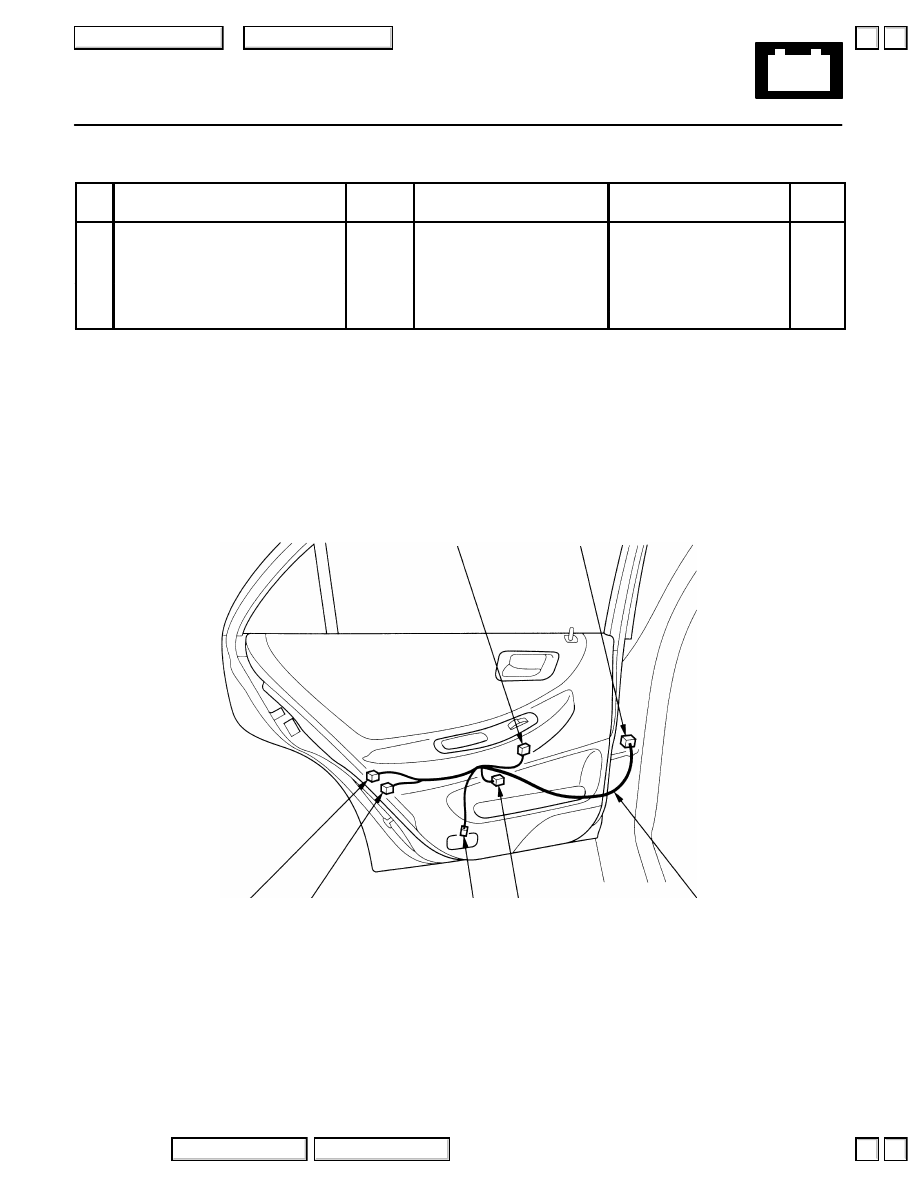

Right Rear Door Wire Harness (Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

C581

10tGRY

Right center pillar

Right side wire harness

(see page 203t22)

2

Right rear window switch

6tGRY

Right rear door

3

Right rear door lock knob switch

3tGRY

Right rear door

Security

4

Right rear door lock actuator

2tGRY

Right rear door

5

Right rear door courtesy light

2tGRY

Right rear door

6

Right rear window motor

2tGRY

Right rear door

RIGHT REAR DOOR
WIRE HARNESS
(SEDAN)

5

6

4

3

1

2

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

203-35

Connector to Harness Index

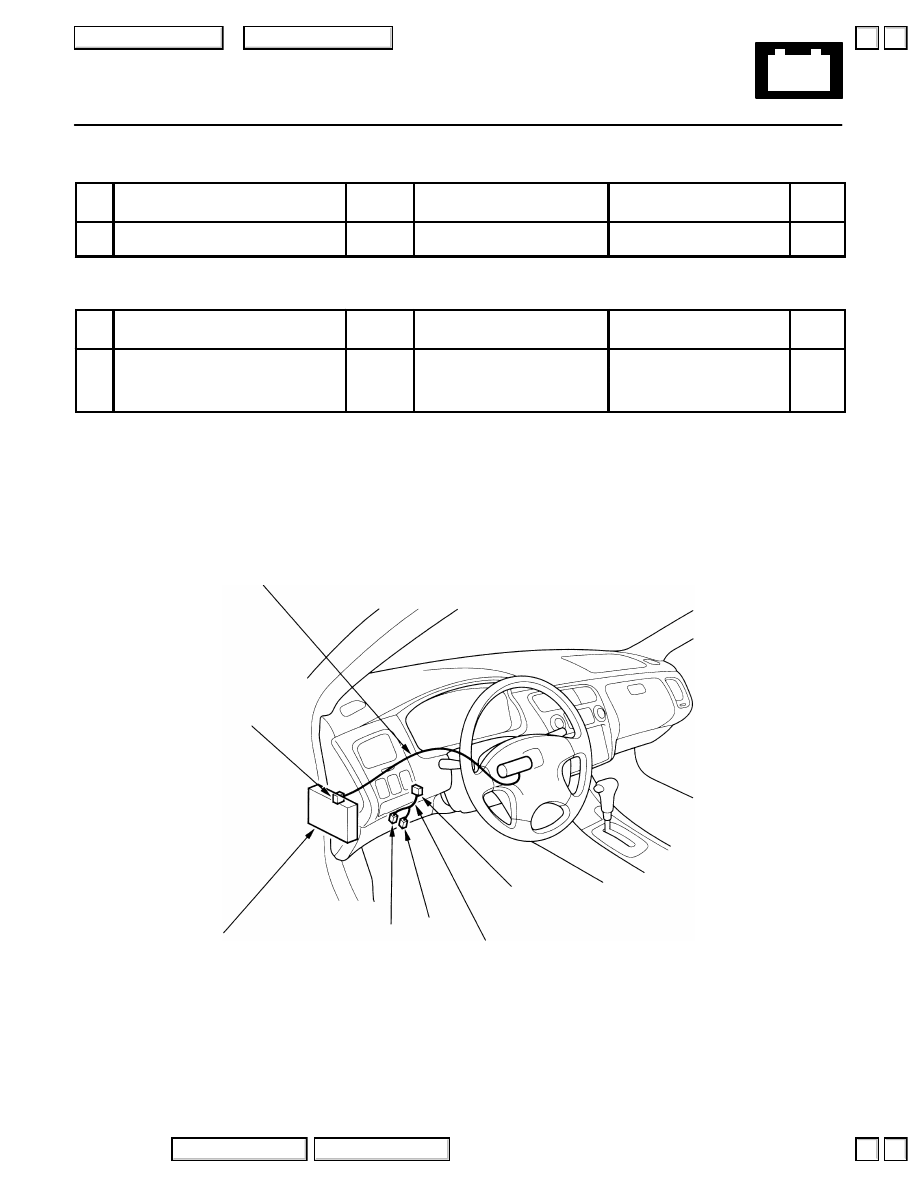

Ignition Switch Lead

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Driver’s under-dash fuse/relay box connector

M

(see page 6-1)

6-BRN

Behind left fuse box cover

Clutch Pedal Position Switch Sub-Harness (M/T)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

2

Clutch interlock switch

2-YEL

Behind driver’s dashboard lower cover

3

Clutch pedal position switch

3-GRY

Behind driver’s dashboard lower cover

4

C404

10-GRY

Behind driver’s dashboard lower cover

Dashboard wire harness B (left

branch)

(see page 203-16)

DRIVER’S UNDER-DASH
FUSE/RELAY BOX

IGNITION SWITCH LEAD

CLUTCH SWITCH SUB-HARNESS (M/T)

2

3

4

1
