Honda Accord Electrical Troubleshooting Manual - part 143

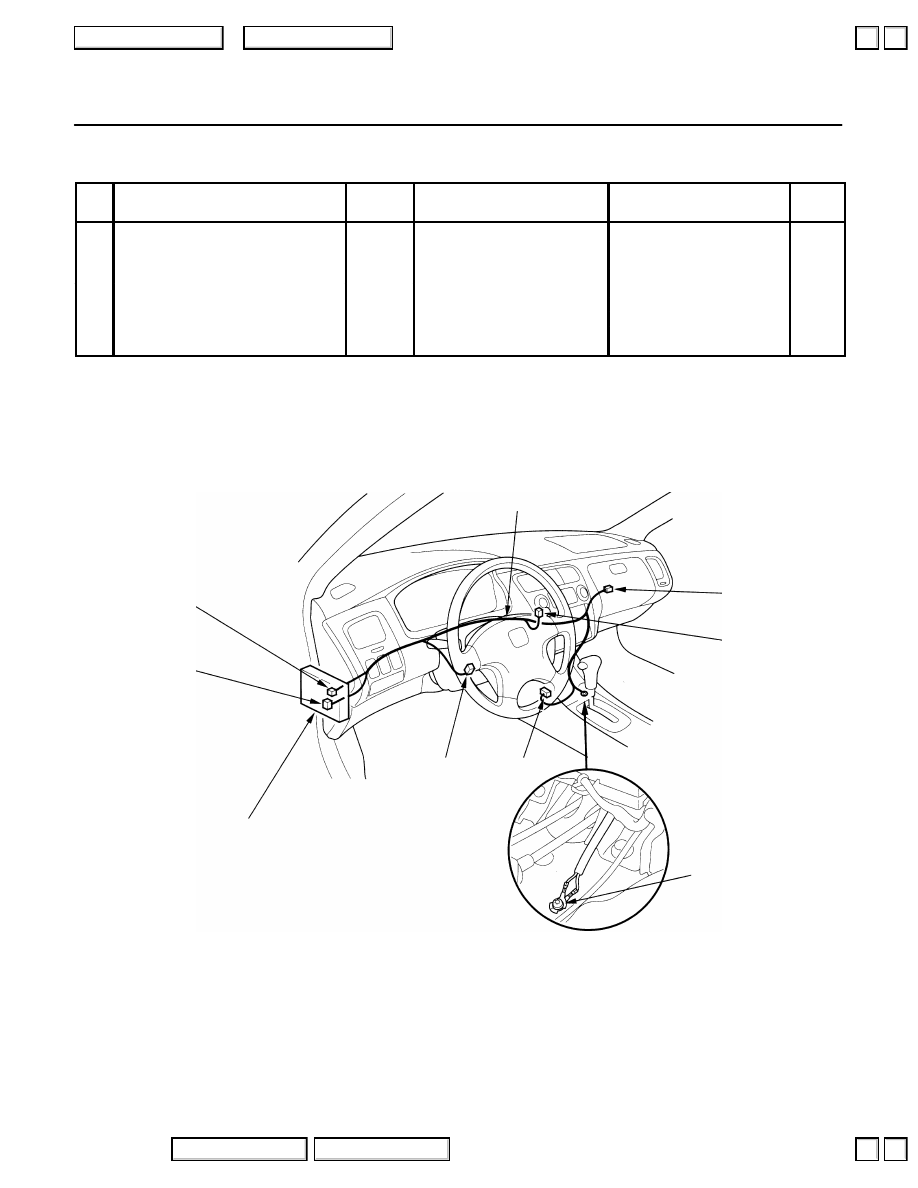

203-36

Connector to Harness Index

SRS Main Harness (’98-99 models)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Front passenger’s airbag

2-YEL

Behind dash center panel

2

C503

3-YEL

Behind driver’s dashboard lower cover

Dashboard wire harness A

(see page 203-18)

3

G801

Below front of center console

Body ground via SRS main harness

4

SRS unit

18-YEL

Below front of center console

5

Cable reel connector A

2-YEL

Underside of steering column

6

MES connector

2-YEL

Under left side of dash

7

Driver’s under-dash fuse/relay box connector

N

(see page 6-1)

2-YEL

Behind left fuse box cover

DRIVER’S UNDER-DASH
FUSE/RELAY BOX

6

7

SRS MAIN HARNESS

5

4

3

2

1

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

203-37

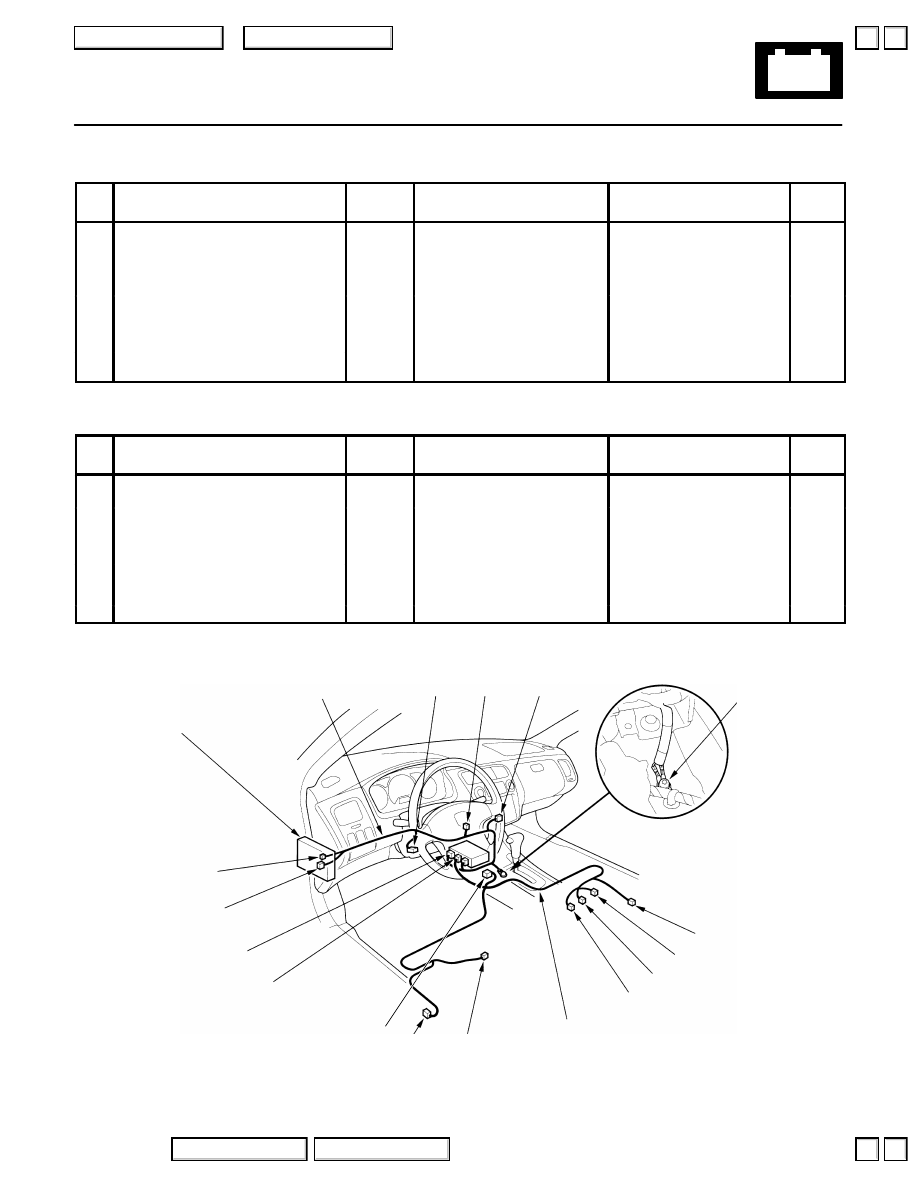

Connector to Harness Index

SRS Main Harness (’00 Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

G801

Below front of center console

Body ground via SRS

main harness

10

SRS unit connector A

18-YEL

Below front of center console

11

Driver’s under-dash fuse/relay box connector

N

(see page 6-1)

2-YEL

Behind left fuse box cover

12

MES connector

2-YEL

Behind left fuse box cover

13

Cable reel connector A

2-YEL

Underside of steering column

14

C503

2-YEL

Behind driver’s dashboard lower cover

Dashboard wire harness A

(see page 203-18)

15

Front passenger’s airbag first and second

inflators

4-YEL

Behind dash center panel

SRS Floor Harness (’00-’02 Sedan with Side Airbags)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

2

Front passenger’s side impact sensor

2-YEL

Right side of floor

3

Front passenger’s side airbag inflator

2-YEL

Under front passenger’s seat

4

C851

4-GRY

Under front passenger’s seat

OPDS wire harness

(see page 203-39)

5

Front passenger’s seat belt switch

3-YEL

Under front passenger’s seat

6

Driver’s side airbag inflator

2-YEL

Under driver’s seat

7

Driver’s side impact sensor

2-YEL

Left side of floor

8

C505

6-YEL

Below front of center console

Dashboard wire harness A

(see page 203-18)

9

SRS unit connector B

14-YEL

Middle of floor

SRS MAIN HARNESS

7

6

5

4

3

2

1

13

14

15

12

11

10

9

DRIVER’S
UNDER-DASH
FUSE/RELAY BOX

SRS FLOOR HARNESS

8

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

203-38

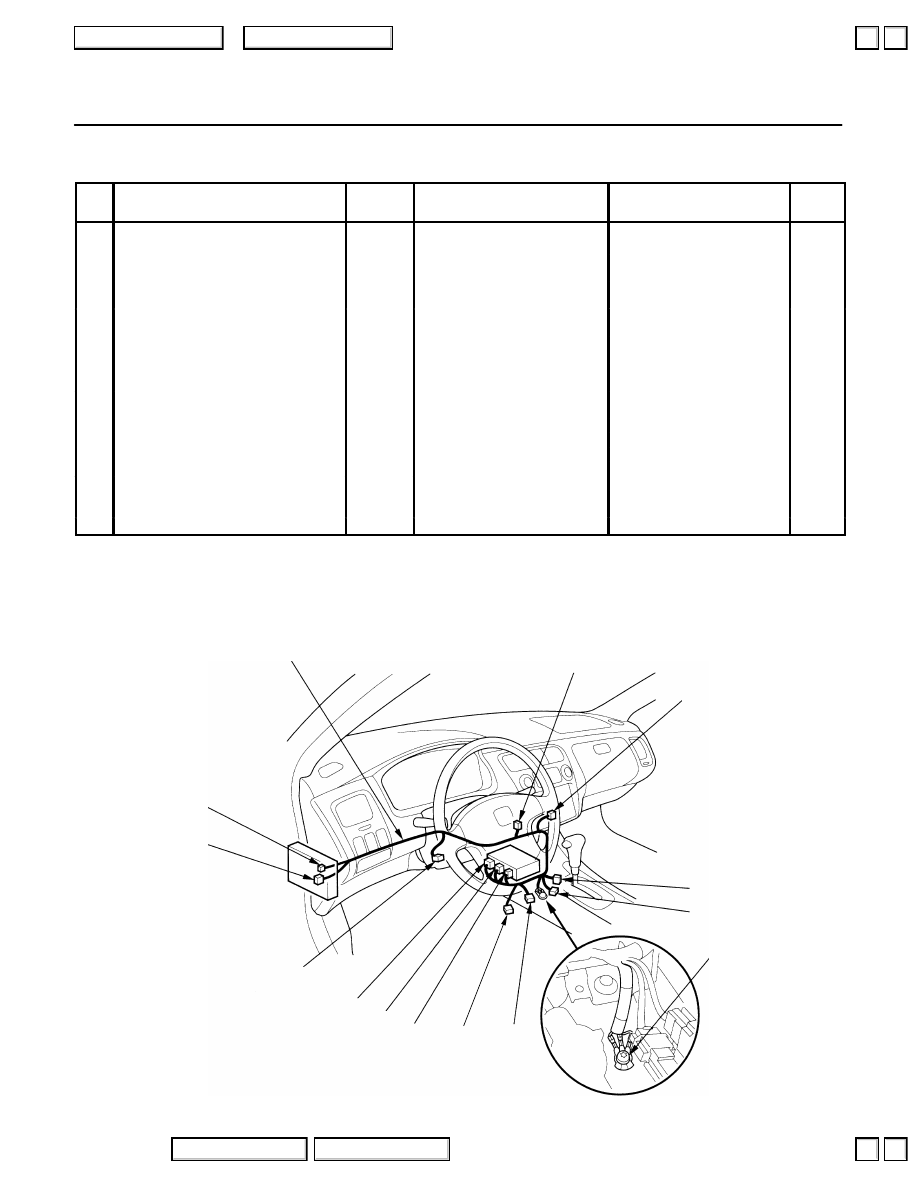

Connector to Harness Index

SRS Main Harness (’00-’02 Coupe, ’01-’02 Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

C503

8-YEL

Behind driver’s dashboard lower cover

Dashboard wire harness A

(see page 203-18)

*1

2

Front passenger’s airbag first and second

inflators

4-YEL

Behind dash center panel

3

C583

4-YEL

Below front center console

Right side wire harness

(see page 203-23)

4

C584

4-YEL

Below front center console

Right side wire harness

(see page 203-23)

5

G801

Below front center console

Body harness via SRS

main harness

6

C556

4-YEL

Below front center console

Left side wire harness

(see page 203-21)

7

C557

4-YEL

Below front center console

Left side wire harness

(see page 203-21)

*3

8

SRS unit connector C

8-YEL

Below front center console

*1

9

SRS unit connector B

14-YEL

Below front center console

10

SRS unit connector A

18-YEL

Below front center console

11

Cable reel connector A

2-YEL

Underside of steering column

*1

11

Cable reel connector A

4-YEL

Underside of steering column

*2

12

Driver’s under-dash fuse/relay box connector

N

(see page 6-1)

2-YEL

Behind left fuse box cover

13

MES connector

2-YEL

Behind left fuse box cover

*1

*1: ’00 model      *2: ’01-’02 models      *3: With seat belt tensioner

SRS MAIN HARNESS

13

12

11

10

9

8

6

5

4

3

1

2

7

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

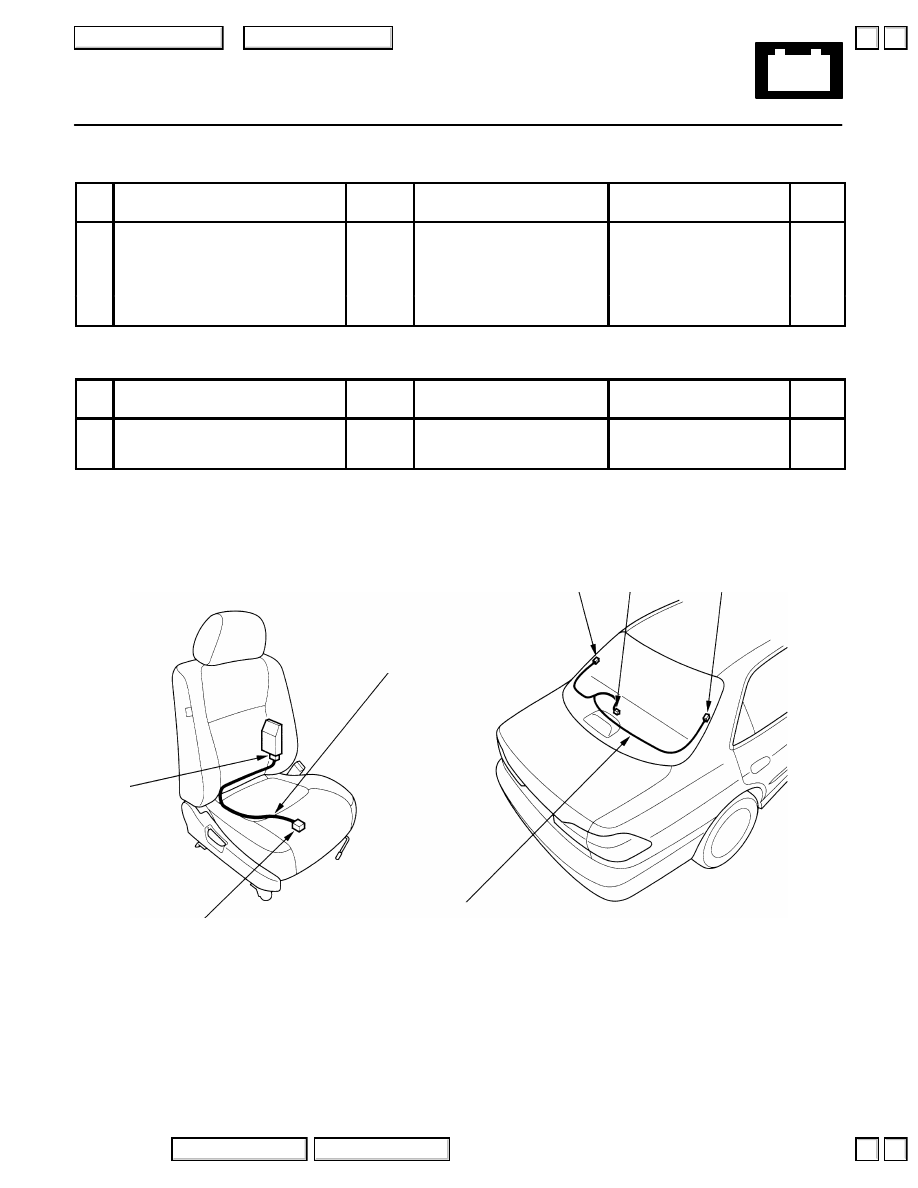

203-39

Connector to Harness Index

OPDS Wire Harness (With Side Airbags) (’00-’02 Models)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

OPDS unit connector D

8-YEL

In front passenger’s seat back

2

C851

4-GRY

Underside of front passenger’s seat

SRS floor harness

(see page 203-37)

’00

Sedan

2

C851

4-GRY

Underside of front passenger’s seat

Right side wire harness

(see page 203-23)

Coupe

2

C851

4-GRY

Underside of front passenger’s seat

Right side wire harness

(see page 203-22)

’01-’02

Sedan

Rear Window Defogger Wire Harness

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Rear window defogger connector B (–)

1-BLK

Left C-pillar

2

Window antenna coil connector B

2-BRN

Front of trunk, underside of rear shelf

3

Rear window defogger connector A (+)

1-BLK

Right C-pillar

OPDS WIRE HARNESS

REAR WINDOW DEFOGGER
WIRE HARNESS

3

2

1

1

2
