Honda Accord Electrical Troubleshooting Manual - part 141

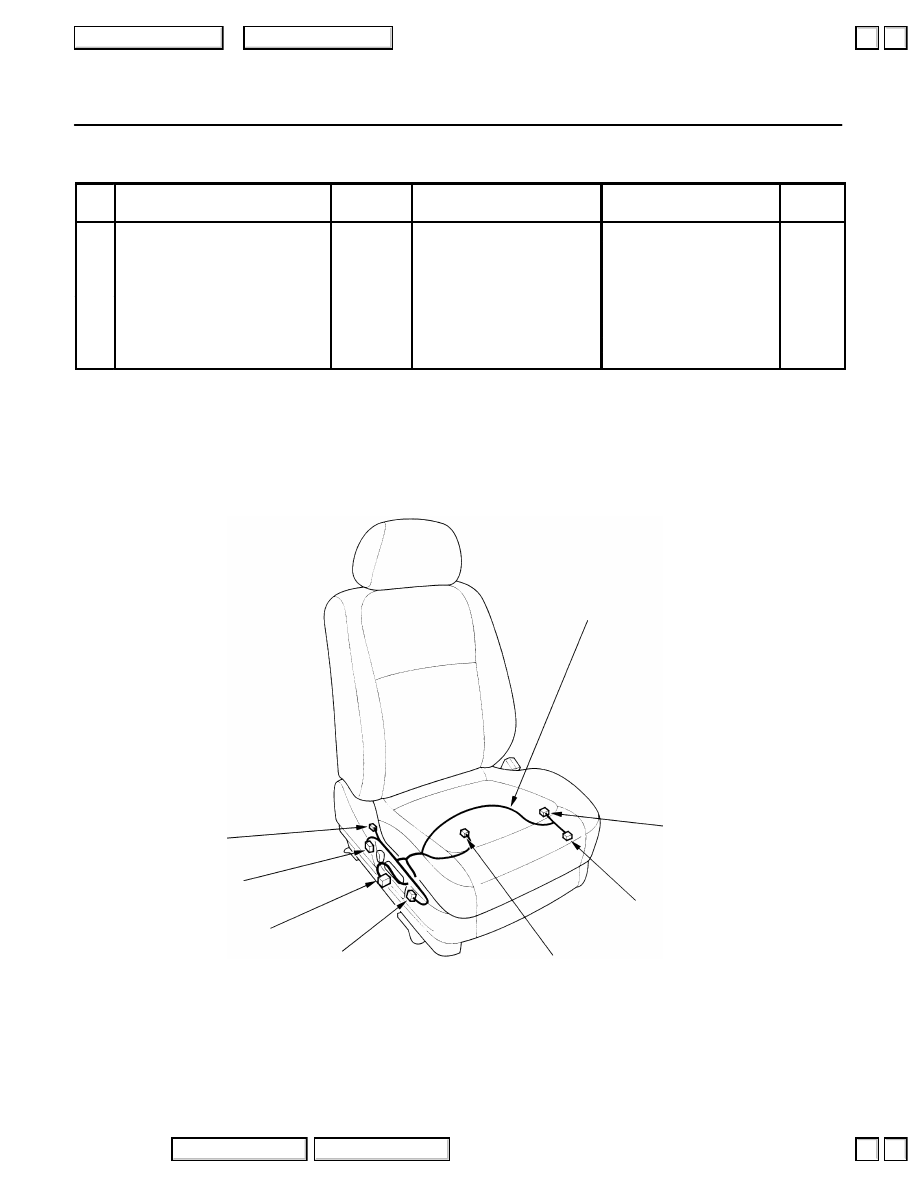

203-28

Connector to Harness Index

Front Passenger’s Seat Wire Harness (4-way Adjustable) (’01-’02 EX V6 Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Recline motor

2-GRY

Underside of front passenger’s seat

2

Front passenger’s power seat adjustment

switch connector B

6-GRY

Right side of front passenger’s seat

3

C701

10-GRY

Right side of front passenger’s seat

Right side wire harness

(see page 203-22)

4

Front passenger’s power seat adjustment

switch connector A

6-GRY

Right side of front passenger’s seat

5

Front passenger’s seat heater

4-N/A

Underside of front passenger’s seat

Canada

6

Slide motor

2-GRY

Underside of front passenger’s seat

7

Front passenger’s seat belt switch

3-GRY

Underside of front passenger’s seat

FRONT PASSENGER’S SEAT
WIRE HARNESS
(4-WAY ADJUSTABLE)

3

4

2

1

6

5

7

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

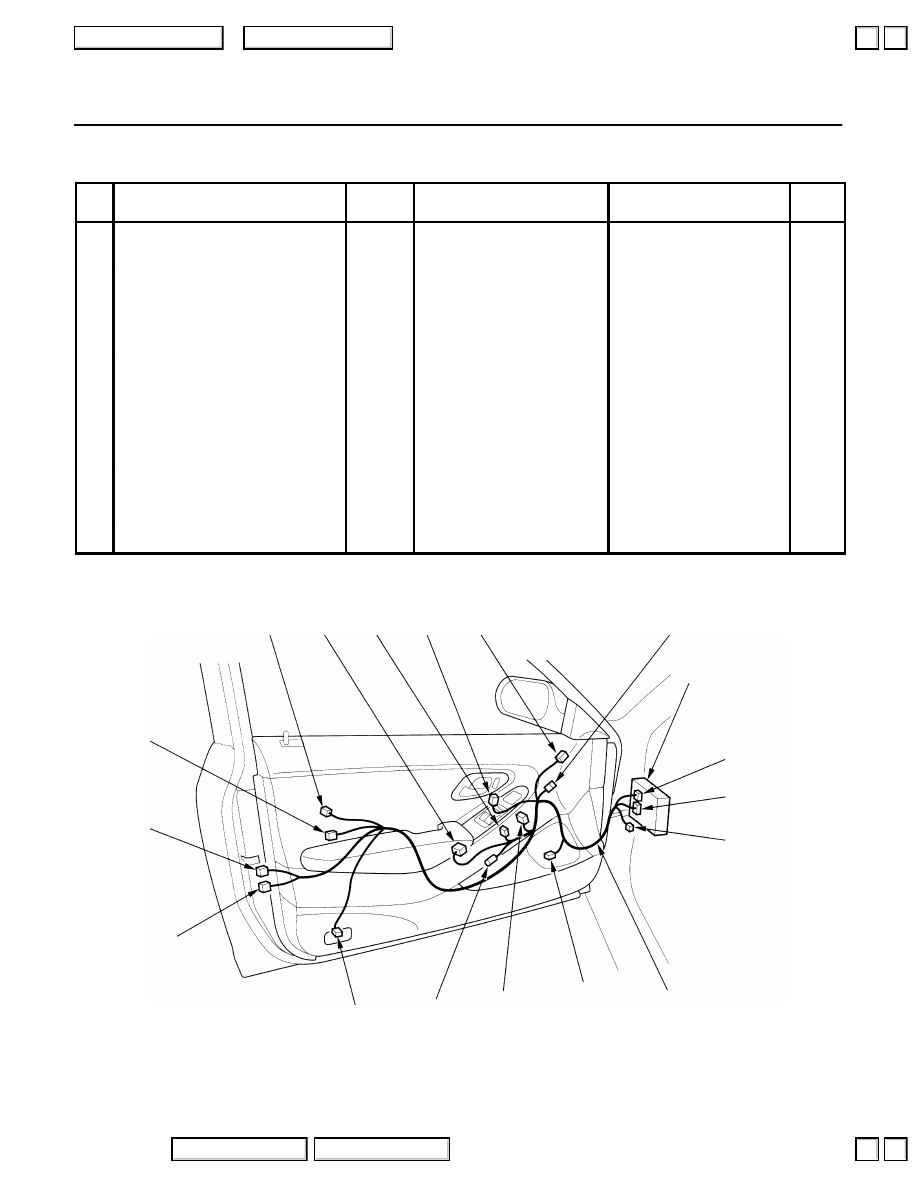

203-29

Connector to Harness Index

Driver’s Door Wire Harness (Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Driver’s door lock actuator

2-GRY

Driver’s door

2

Driver’s door lock knob switch

3-GRY

Driver’s door

3

Driver’s door key cylinder switch

3-GRY

Driver’s door

4

Security indicator

2-GRY

Rear of driver’s door panel

EX

5

Door multiplex control unit connector B

2-BRN

Driver’s door

6

Driver’s door lock switch

3-GRY

Driver’s door

7

Left power mirror

6-N/A

Driver’s door

Canada

7

Left power mirror

3-GRY

Driver’s door

USA

8

Driver’s under-dash fuse/relay box connector

F

(see page 6-1)

6-LT GRN

Behind left fuse box cover

Canada

9

Driver’s under-dash fuse/relay box connector

G

(see page 6-1)

18-LT GRN

Behind left fuse box cover

10

C631

2-GRY

Behind left fuse box cover

Security system wire harness

(Optional)

USA LX

10

C631

3-N/A

Driver’s door

Security system wire harness

(Optional)

Canada

11

Driver’s door speaker

2-GRY

Driver’s door

12

Power mirror switch

10-GRY

Driver’s door

13

C632

2-N/A

Driver’s door

Security system wire harness

(Optional)

Canada

14

Driver’s window motor

4-GRY

Driver’s door

15

Door multiplex control unit connector A

20-LT BLU

Driver’s door

16

Driver’s door courtesy light

2-GRY

Driver’s door

DRIVER’S DOOR WIRE HARNESS
(SEDAN)

DRIVER’S
UNDER-DASH
FUSE/RELAY
BOX

3

4

5

6

7

16

15

14

13

12

11

10

9

8

2

1

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

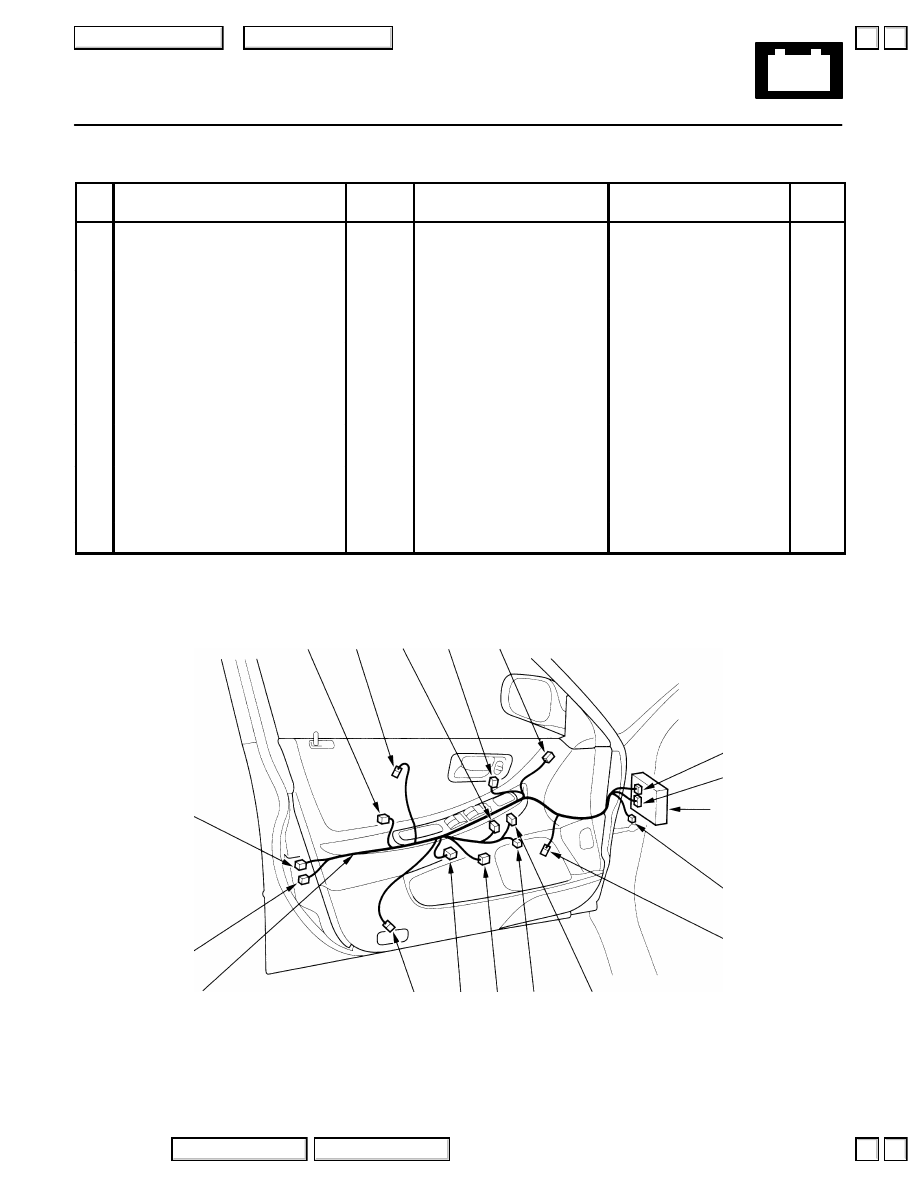

203-30

Connector to Harness Index

Driver’s Door Wire Harness (Coupe)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Security indicator connector

2-GRY

Driver’s door

EX

2

Door multiplex control unit connector A

20-BLU

Driver’s door

3

Door multiplex control unit connector B

2-BRN

Driver’s door

4

Driver’s door lock switch

3-GRY

Driver’s door

5

Left power mirror

6-N/A

Driver’s door

Canada

5

Left power mirror

3-GRY

Driver’s door

USA

6

Driver’s window motor

4-GRY

Driver’s door

7

Driver’s under-dash fuse/relay box connector

F

(see page 6-1)

6-LT GRN

Behind left fuse box cover

Canada

8

Driver’s under-dash fuse/relay box connector

G

(see page 6-1)

18-LT GRN

Behind left fuse box cover

9

C631

2-GRY

Behind left fuse box cover

Security system wire harness

(Optional)

USA

(LX)

9

C631

3-N/A

Driver’s door

Security system wire harness

(Optional)

Canada

10

Driver’s door speaker

2-GRY

Driver’s door

11

Power mirror switch

10-GRY

Driver’s door

12

C632

2-N/A

Driver’s door

Security system wire harness

(Optional)

Canada

13

Driver’s door courtesy light

2-GRY

Driver’s door

14

Driver’s door lock actuator

2-GRY

Driver’s door

15

Driver’s door lock knob switch

3-GRY

Driver’s door

16

Driver’s door key cylinder switch

3-GRY

Driver’s door

DRIVER’S DOOR
WIRE HARNESS
(COUPE)

DRIVER’S
UNDER-DASH
FUSE/RELAY BOX

3

4

5

6

7

16

15

14

13

12

11

10

9

8

2

1

Circuit Index

Circuit Index

Menu

Menu

s

t

s

t

+

–

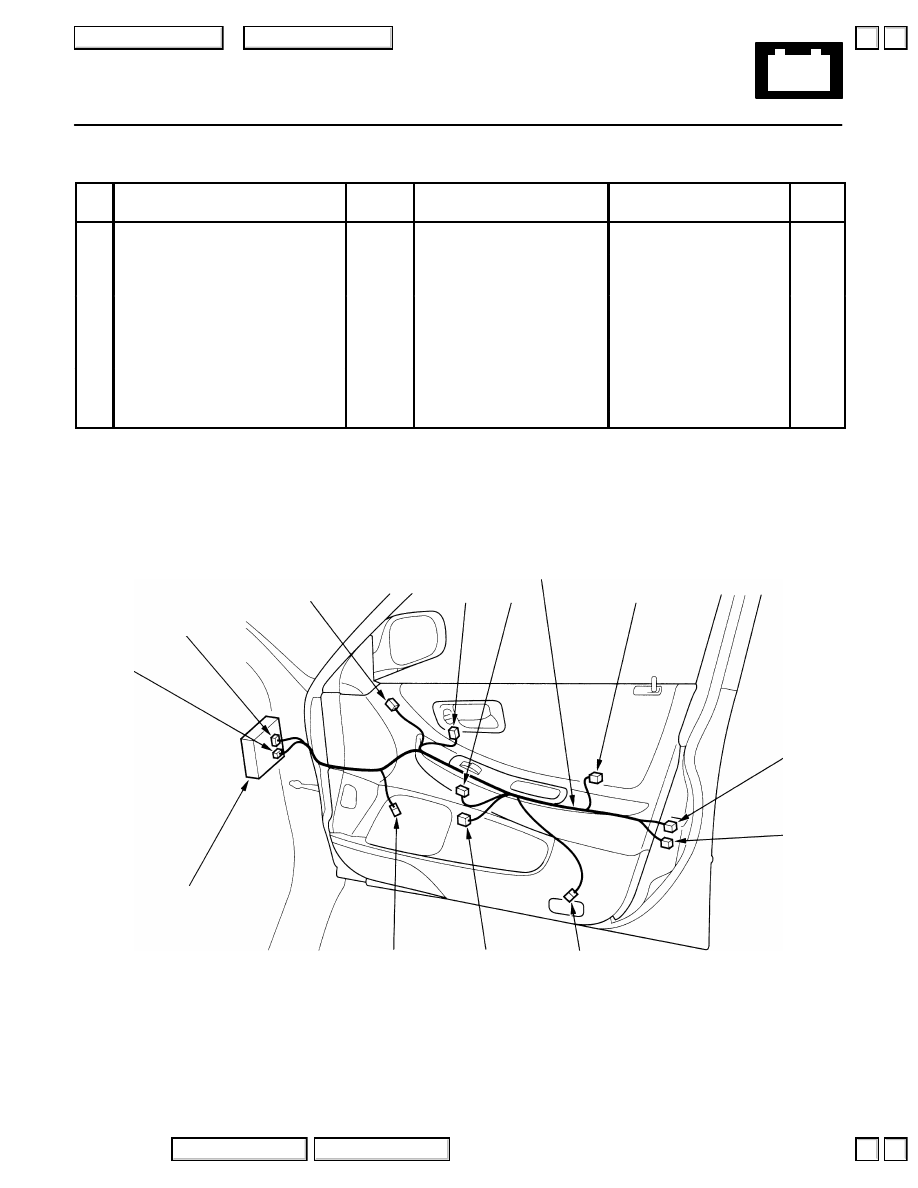

203-31

Connector to Harness Index

Front Passenger’s Door Wire Harness (Sedan)

Ref

Connector or Terminal

Cavities/

Color

Location

Connects to

Notes

1

Passenger’s under-dash fuse/relay box

connector E

(see page 6-4)

2-LT GRN

Behind right fuse box cover

Canada

2

Passenger’s under-dash fuse/relay box

connector F

(see page 6-4)

20-LT GRN

Behind right fuse box cover

3

Right power mirror

6-N/A

Front passenger’s door

Canada

3

Right power mirror

3-GRY

Front passenger’s door

USA

4

Front passenger’s door lock switch

3-GRY

Front passenger’s door

5

Front passenger’s window switch

6-GRY

Front passenger’s door

6

Front passenger’s door key cylinder switch

3-GRY

Front passenger’s door

7

Front passenger’s door lock knob switch

3-GRY

Front passenger’s door

Security

8

Front passenger’s door lock actuator

2-GRY

Front passenger’s door

9

Front passenger’s door courtesy light

2-GRY

Front passenger’s door

10

Front passenger’s window motor

2-GRY

Front passenger’s door

11

Front passenger’s door speaker

2-GRY

Front passenger’s door

PASSENGER’S
UNDER-DASH
FUSE/RELAY BOX

FRONT PASSENGER’S DOOR WIRE HARNESS (SEDAN)

4

5

6

3

2

1

11

10

9

8

7
