B0-20

Vehicle Body

 Adhesive Strip On Body Collision Avoidance

Adhesive strip of body collision avoidance

Notices on storing the adhesive strip of body collision avoidance:

1.

The adhesive strip should be stored in the cool shadow place where can avoid the direct lighting of sun,

the high temperature and the dust.

2.

As the adhesive strip is the PVC product, do not make it touch the paint thinner, other solvents and the

boiling water.

3.

The limit storage period of adhesive strip is 9 months.

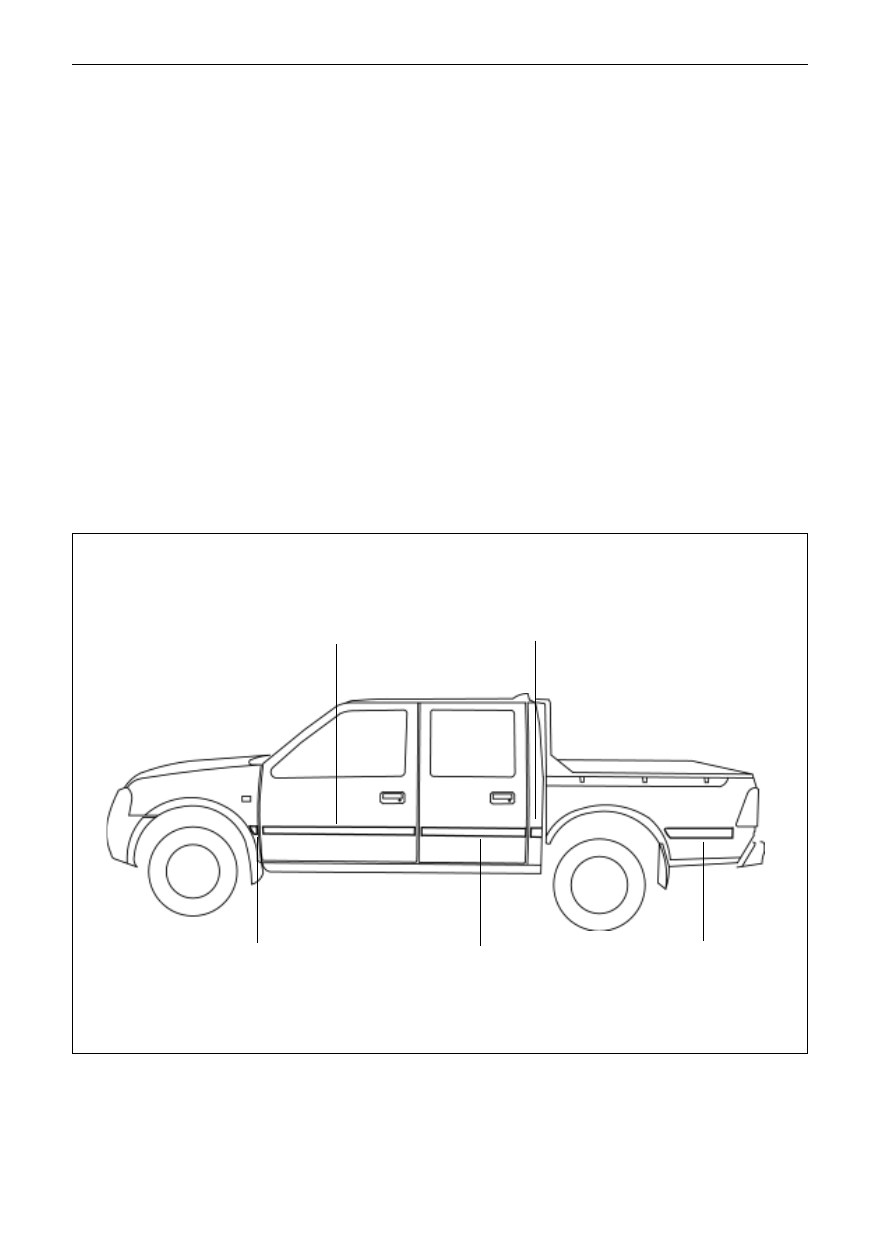

Element figure

exterior adhesive

strip at front door

exterior adhesive

strip at rear column

exterior adhesive

strip on wing panel

exterior adhesive

strip at tailgate

exterior adhesive

strip at rear body

B0-21

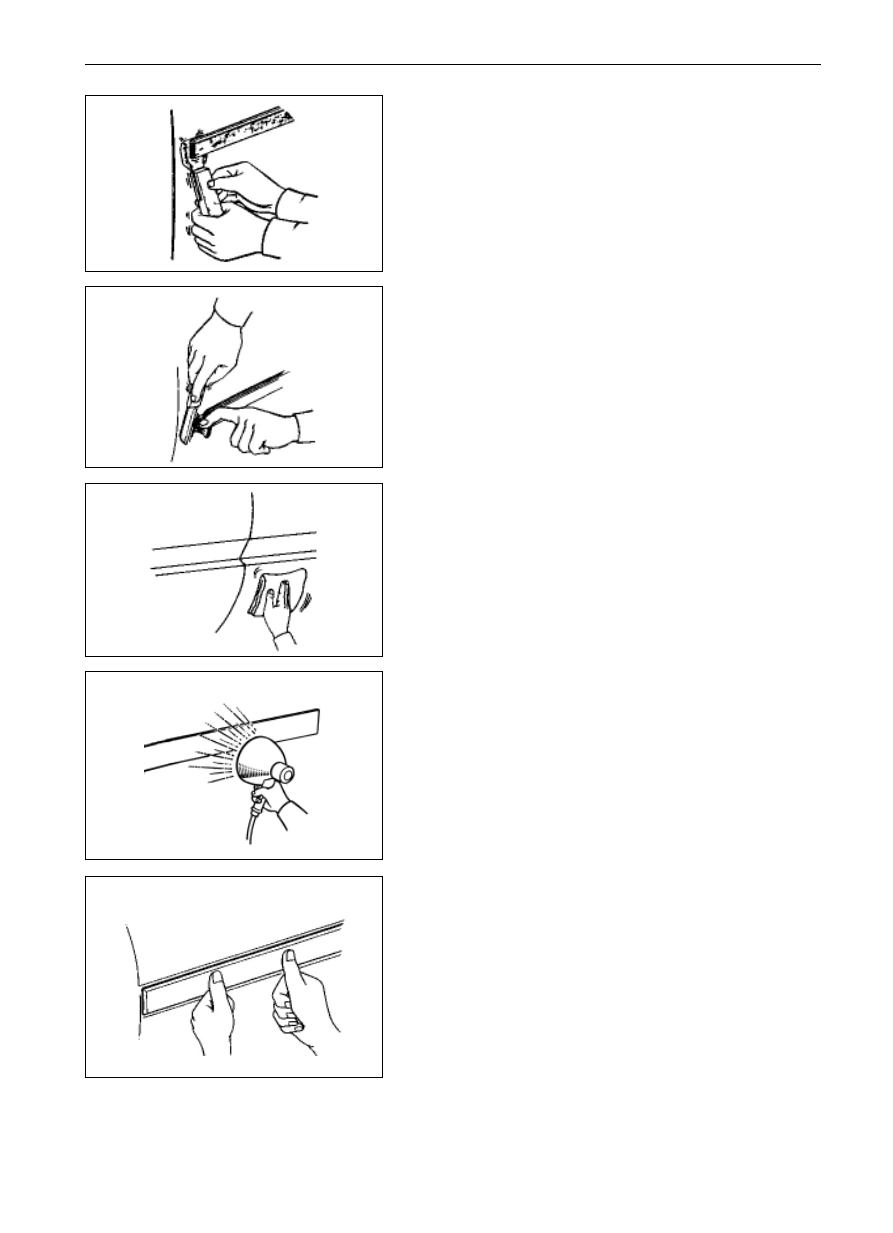

Disassembly of adhesive strip of body

collision avoidance

1.

Tear down the ends of adhesive strip;

Loosen the ends of adhesive strip for 31 mm with the scraper.

2.

Tear down the adhesive strip and clear away the adhe-

sive agent;

(a)

Cut down the adhesive agent with knife and pull down the

adhesive strip;

(b)

Clear away the adhesive agent with knife or abrasive

paper.

Remark: Do not reuse the adhesive strip that is disassembled.

Mount of adhesive strip of body collision

avoidance

1.

Clean the mounting face of adhesive strip;

Scrape the feculence with cleaning materials.

2.

Heat the adhesive strip;

Heat the new adhesive strip with heating lamp to the 30

60
.

Notice: do not overheat the adhesive strip and the

temperature should not higher than 80

.

3.

Pull out the separation paper from the adhesive strip

surface;

Remark: notice should be taken not to let the feculence and

dust enter into when separating the separation paper.

4.

Mount the adhesive strip along with the body pinching line.

Mount the adhesive strip along with the body pinching line as

shown in the drawing.

Remark: the convex and concave line of the adhesive strip

should be in consistent with the body pinching line.

Notice:

1.

Heat the body and adhesive strip to the moderate

temperature;

2.

Press the adhesive strip with thumb and exert

moderate pressure so as to ensure the mount is

fastening.

3.

Do not wash the vehicle within 24 hours once the

mount is finished.

Vehicle Body

 Adhesive Strip On Body Collision Avoidance

B0-22

Vehicle Body

 Adhesive Strip On Body Collision Avoidance

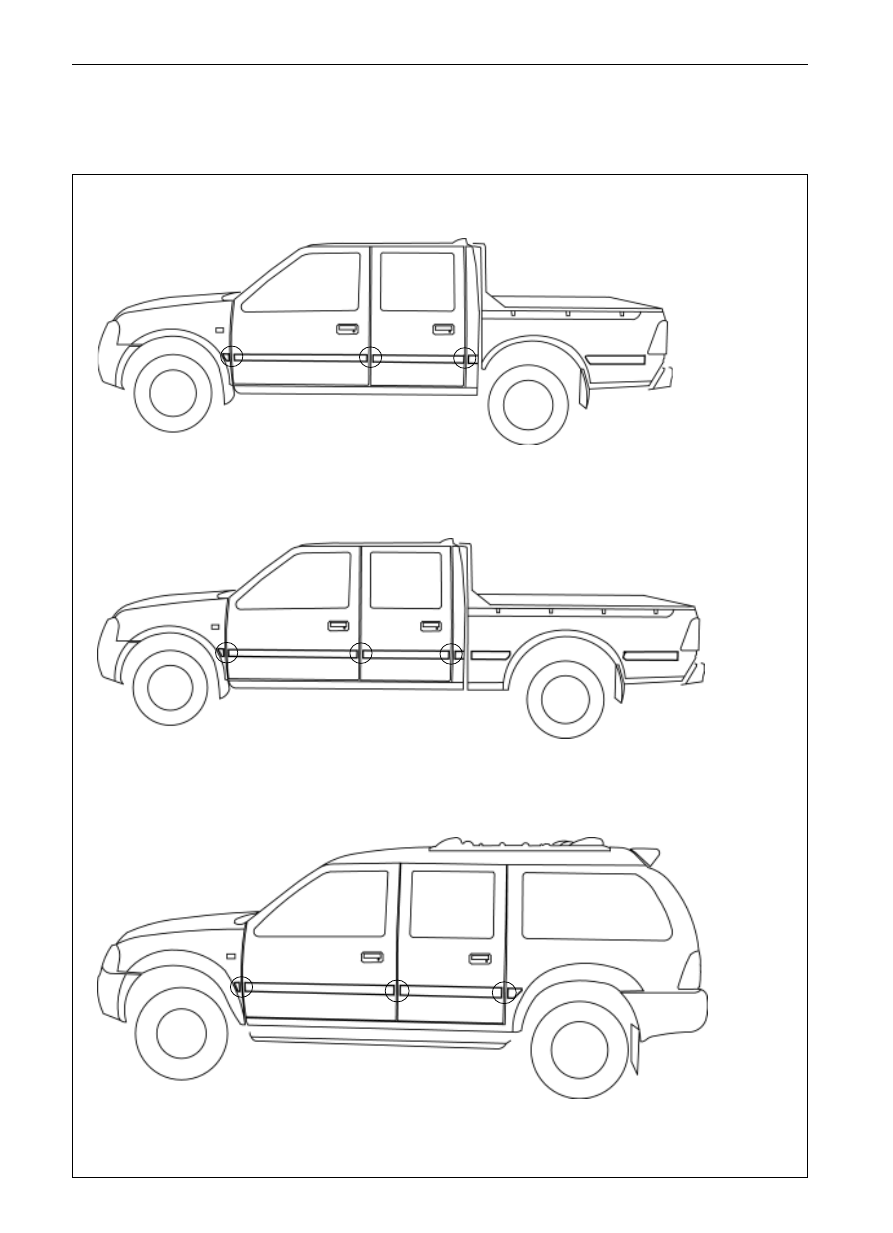

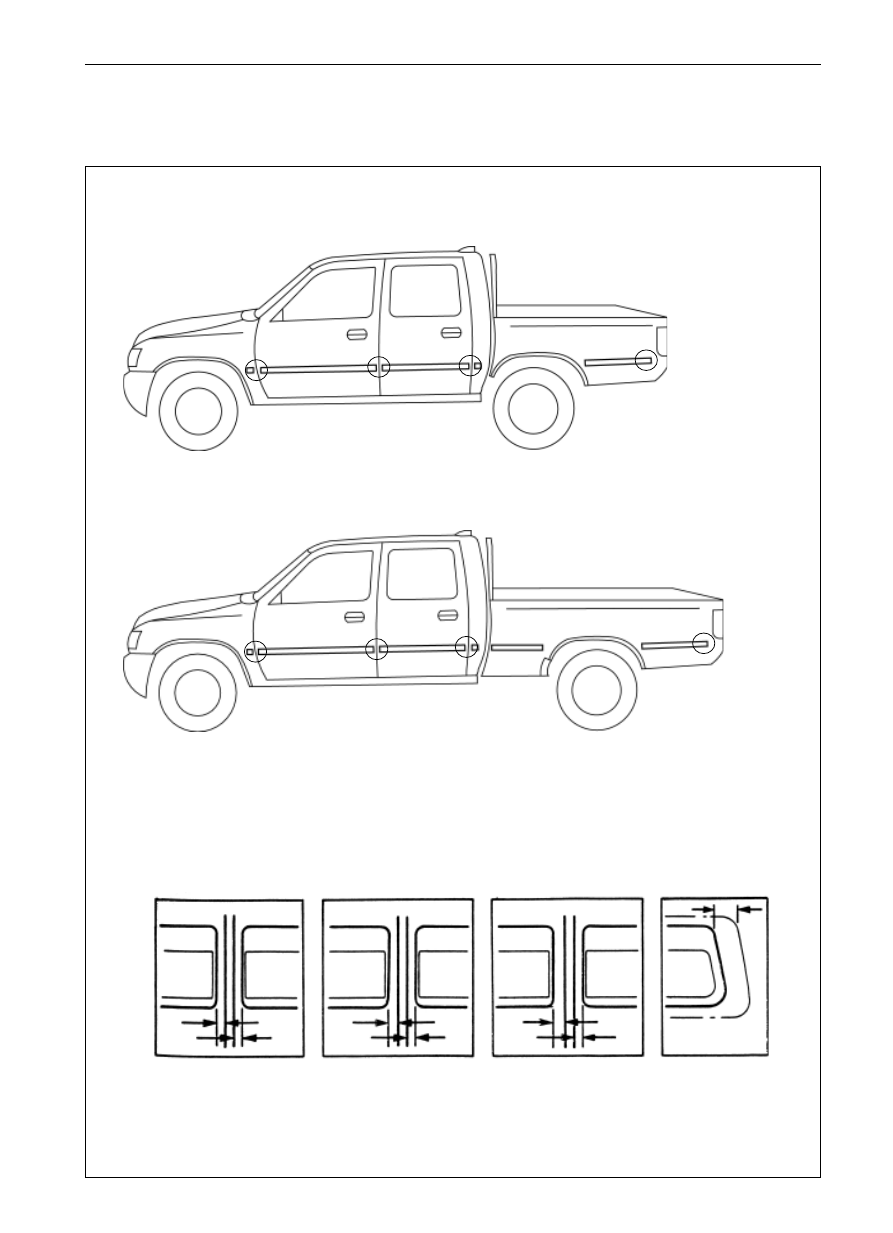

Adhesive strip of body collision avoidance (

)

Element mounting position

B: 7 mm

C: 3 mm

D:10 mm

E: 4 mm

B: 7 mm

C: 3 mm

D:10 mm

E: 4 mm

B: 7 mm

C: 3 mm

D:10 mm

E: 4 mm

B

C

D

E

B

C

D

E

B

C

D

E

SL small double-row model

SLbig double-row model

SY

B0-23

Vehicle Body

 Adhesive Strip OSn Body Collision Avoidance

Adhesive strip of body collision avoidance (

)

Element mounting position

A: 2 mm

B: 3 mm

C: 3 mm

D: 3 mm

E: 6 mm

F: 2 mm

G:18 mm

Drsmall double-row model

B

C

D

E

A

F

d

A: 2 mm

B: 3 mm

C: 3 mm

D: 3 mm

E: 6 mm

F: 2 mm

G:18 mm

Drbig double-row model

A

B

C

D

E

F

G

B

A

C

D

E

F

G
