B0-12

Vehicle Body

 Rear Door

Rear door(

)

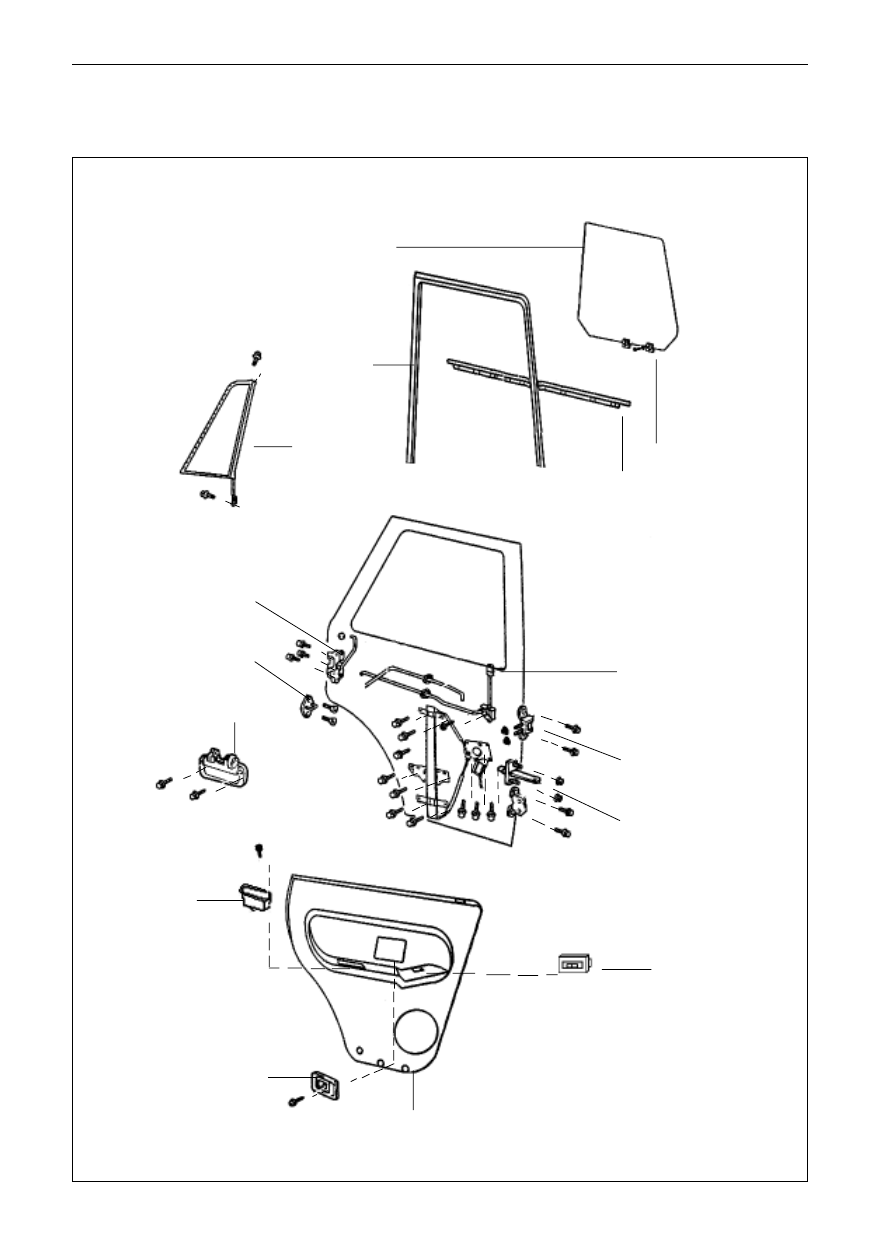

Element figure

glass

glass channel

outer auchi

door limiting device

door hinge

electric switch

inner clip

door lock assembly

lock clip

outdoor handle

lock ring

quarter

window glass

screw cap

glass supporter

indoor handle

SJ

B0-13

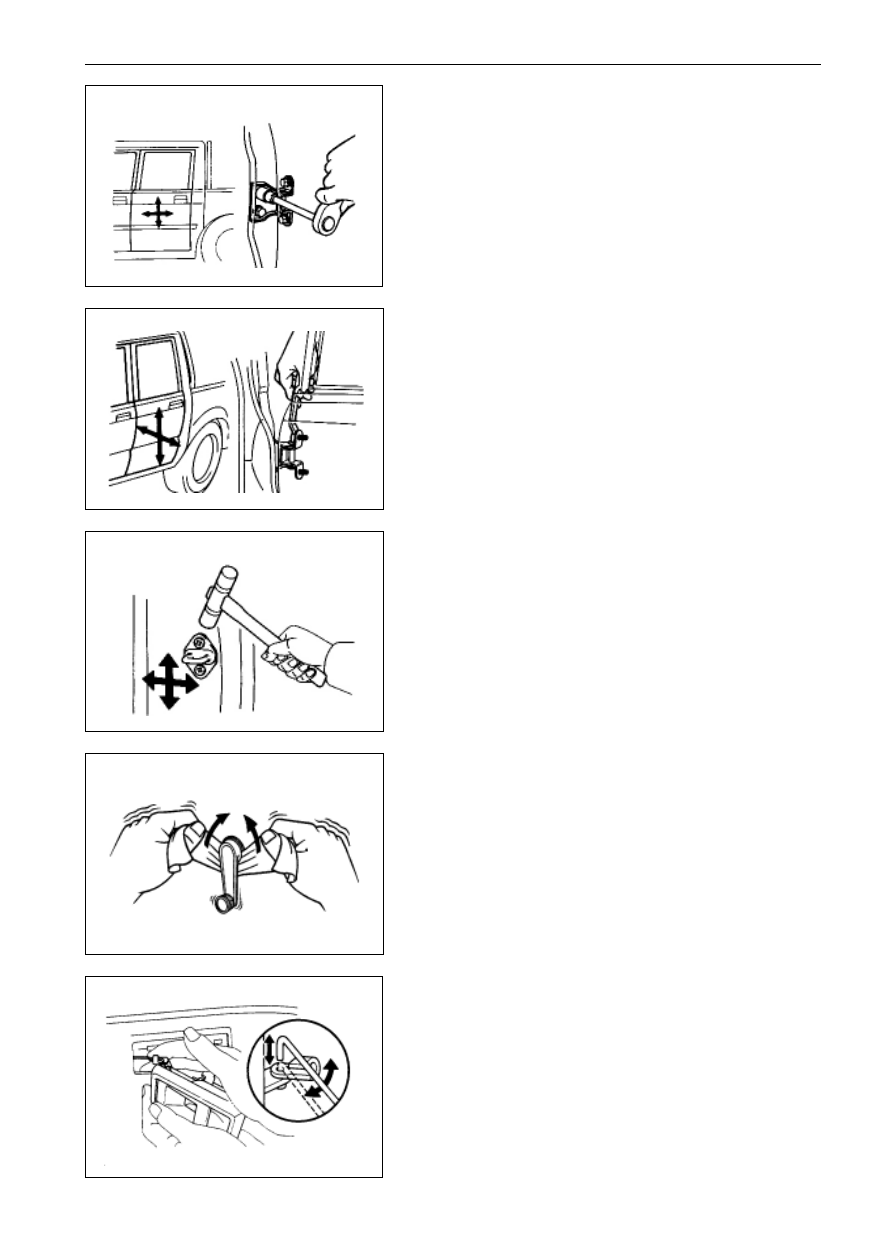

Adjustment of Rear Door

  (Dr SL SK SF SY SJ)

1.

Adjust the door along the front-back and vertical direction;

(upper side)

Screw off the hinge nuts on the body side for the adjustment.

(lower side)

Screw off the hinge nuts on the side body for the adjustment.

2.

Adjust the door along the left-right and vertical direction.

3.

adjust the door lock clip

(a)

Screw off the mounting bolts of lock clip and tap the lock

clip with hammer to adjust its position.

(b)

Screw on the fixing nuts of lock clip.

Disassembly of Rear Door

1.

Tear down the elevator handle (Dr)

Pull out the spring snapping ring with dishcloth and tear down

the elevator handle and sleeve.

2.

Tear down the indoor handle;

(a)

Take spart the screw and slide the handle forwardly.

(b)

Take down the handle from the controlrod

Vehicle Body

 Rear Door

B0-14

3.

Tear down the door interior trim panel

Dr manually operated)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Insert the screwdriver into the seams between fixed

clipes and the door interior trim panel.

Notice: before using the screwdriver, its head must be

wrapped with adhesive strap,

(d)

Tear down the door interior trim panel.

(Dr electric)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Tear down the electric switch and its panel; and

(d)

Insert the screwdriver into the seam between the fixed

clip and the door interior trim panel to loose the interior

trim panel.

(f)

Tear down the door interior trim panel.

SL SK SY)

(a)

Tear down the inner clip bolts and inner clip;

(b)

Tear down the electric switch and its panel;

(c)

Tear down the screw cap and screw of door interior trim

panel;

(d)

Insert the screwdriver into the seam between the fixed

clipes and door interior trim panel to loose the panel.

Notice: the head of screwdriver must be wrapped with

adhesive strap when using the screwdriver.

(e)

Tear down the door interior trim panel.

SF)

(a)

Tear down the inner clip bolts and the inner clip;

(b)

Tear down the door lamp bolts and the door lamp;

(c)

Tear down the electric switch and panel;

(d)

Insert the screwdriver into the seam between the fixed

clipes and door interior trim panel to loose the panel;

(e)

Tear down the door interior trim panel

SJ)

(a)

Tear down the inner clip bolts and the inner clip;

(b)

Tear down the electric switch and panel;

(c)

Tear down the screw caps and screws of door interior trim

panel;

(d)

Insert the screwdriver into seam between fixed clipes and

door interior trim panel to loosen the panel.

Notice: the screwdriver head must be wrapped with

adhesive strap before using the screwdriver.

(e)

Tear down the door interior trim panel.

Vehicle Body

 Rear Door

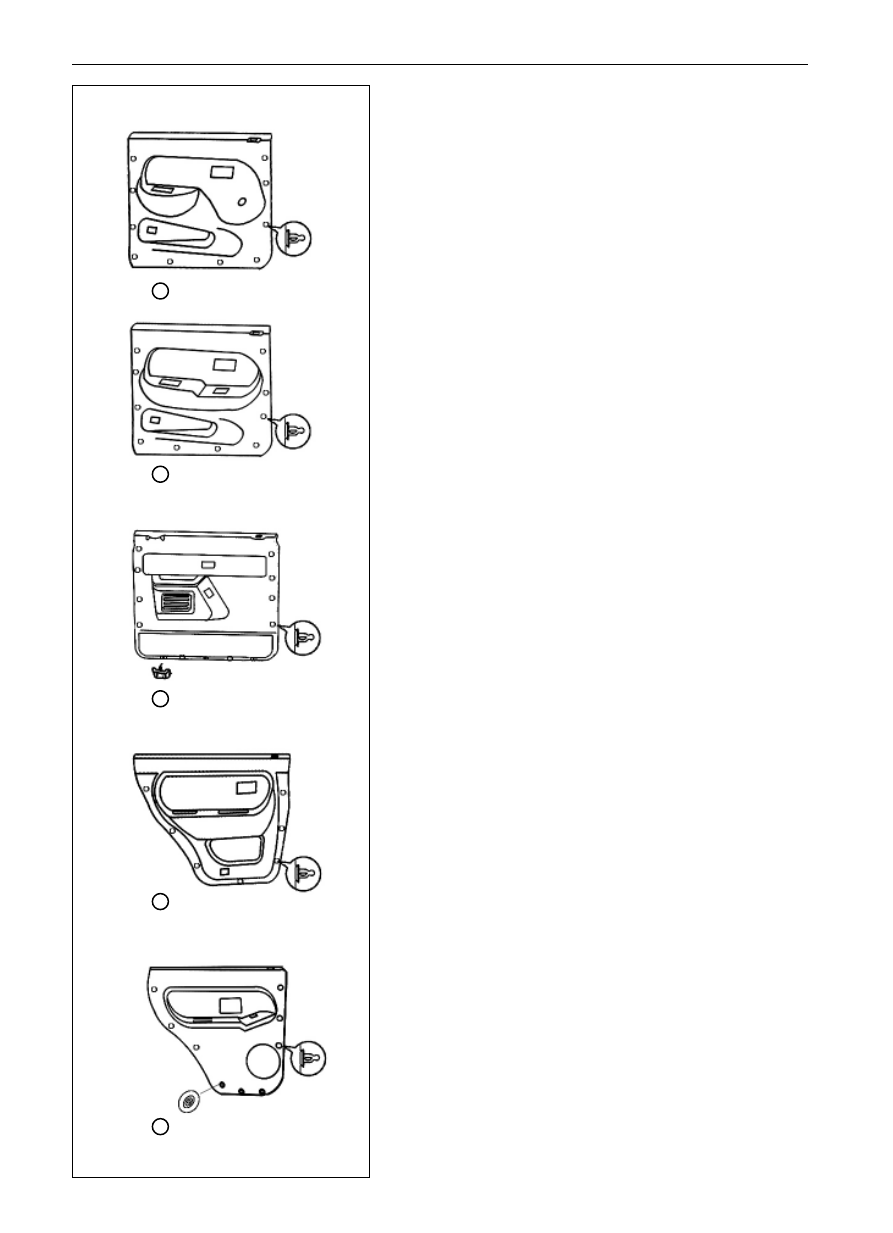

manually operated indoor plate (Dr)

 electric indoor plate (Dr)

electric indoor plate(SL. SK. SL)

electric indoor plate(SF)

electric indoor plate(SJ)

ten clipes

ten clipes

eight clipes

sevenclips

sixclips

B0-15

Vehicle Body

 Rear Door

SF

SJ

4.

Tear down the outer auchi

Prize the clipes alongside the edge of paneling to tear down the

outer

5.

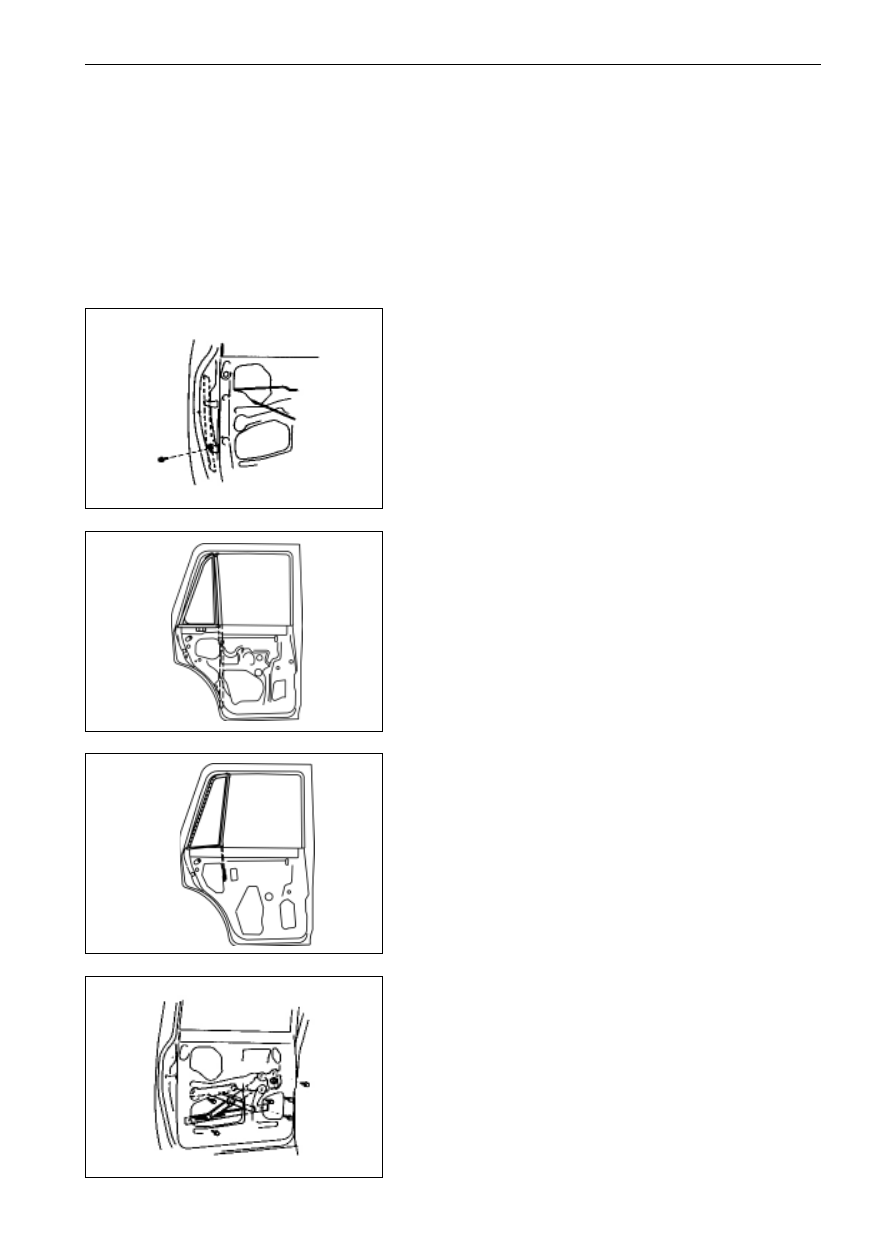

Tear down the door window glass;(Dr SF SL SK SY SJ)

Tear down the fixing bolts of two glass channels

(a)

Pull the glass up to take it down.

(b)

Pull the glass downwardly to take it down after disassem-

bling the tail door lower baffle and lower dust strip (Dr)

6.

Tear down the upper glass guide track (SF)

Tear down the bolts and guide track.

7.

Tear down the lower rear glass guide track (Dr SF);

Tear down the bolts and guide track.

8.

Tear down the quarter window glass (SF SJ)

9.

Tear down the door glass channel

10. Tear down the glass elevator(Dr SF SL SK SY)

(a)

Tear down the two fixing bolts of small sliding track.

(b)

Tear down the fixing bolts of three elevators (manually

operated)

(c)

Disassemble the elevator through auxiliary hole.
