Great Wall service chassis and body Manual - part 100

B0-24

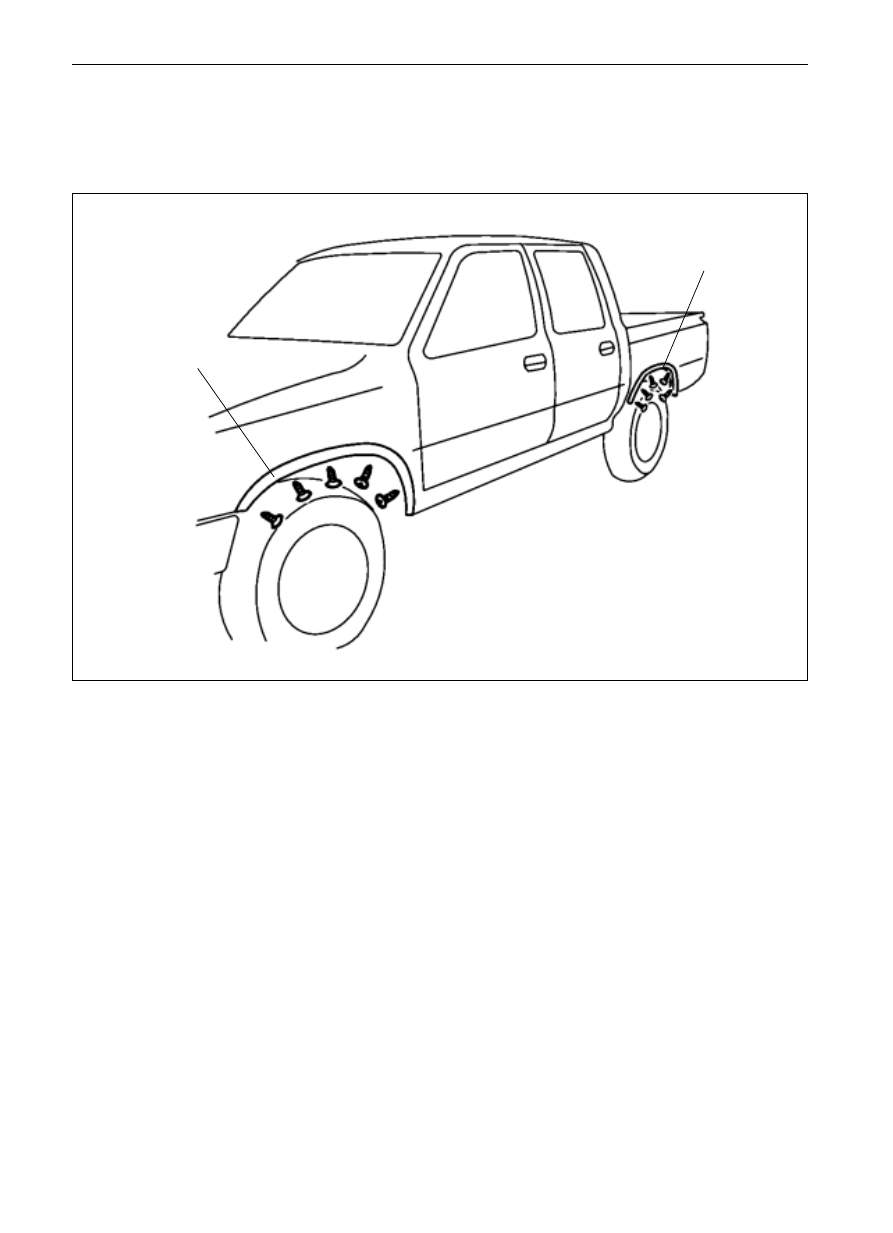

Wheel-trims

Wheel-trims of stainless steel

Element mounting position

Vehicle Body

 Wheel-Trims

Change of shield of front wheel

1.

Tear down the shield of front wheel;

Tear down the five screws to take down the Wheel-trims;

2.

Mount the shield of front wheel

(a)

Tap the front shield manually to ensure it contact the

body closely.

(b)

Mount the five screws.

shield of front wheel

rear wheel-trims

Dr

Change of rear Wheel-trims

1.

Tear down the rear Wheel-trims.

Tear down the five screws and take down the Wheel-trims.

Prize up the snapping plate of Wheel-trims with screwdriver to

take down the Wheel-trims (SF)

2.

Mount the rear Wheel-trims:

(a)

Tap the rear Wheel-trims manually to ensure it contacts

the body closely.

(b)

Mount the five screws.

Clamp the Wheel-trims with snapping plate. (SF)

B0-25

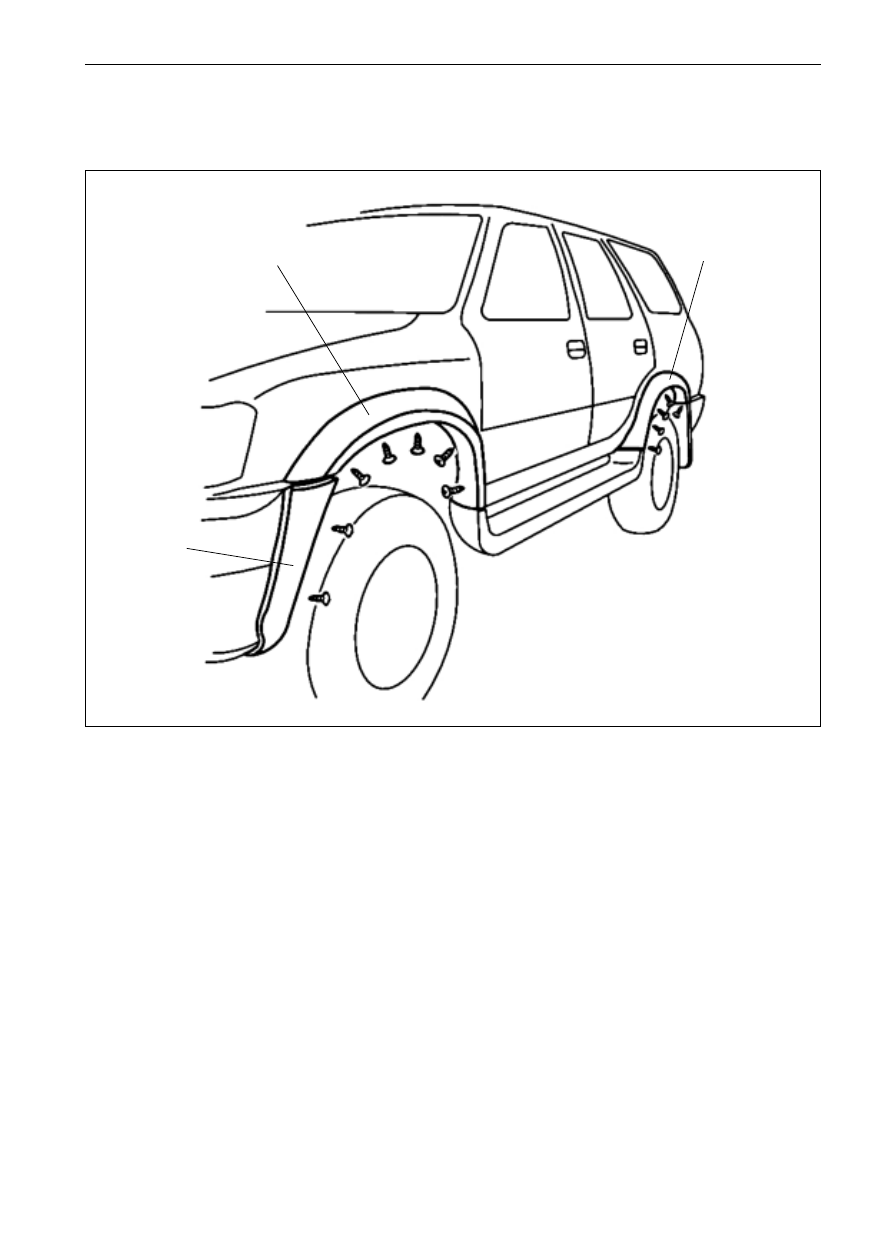

large wheel trims

Element mounting position

Vehicle Body

 Wheel-Trims

shield of front wheel

wrapping angle of

shield of front wheel

rear wheel-trims

SF

Change of shield of front wheel and wrapping angle

1.

Tear down the shield of front wheel and wrapping angle;

Tear down the seven screws and take down the Wheel-trims.

2.

Mount the shield of front wheel:

(a)

Mount the adhesive strip of Wheel-trims first, ensure the adhesive

strip contact the Wheel-trims closely;

(b)

Mount the five screws.

3.

Mount the wrapping angle of the front Wheel-trims.

Mount the wrapping angle on the front bar first, and then fix it with two

screws.

Change of rear wheel-trims

1.

Tear down the rear Wheel-trims

Tear down the five screws and take down the Wheel-trims;

2.

Mount the rear Wheel-trims

(a)

Mount the adhesive strip of Wheel-trims first, ensure the adhesive

strip contact the Wheel-trims closely;

(b)

Mount the five screws

B0-26

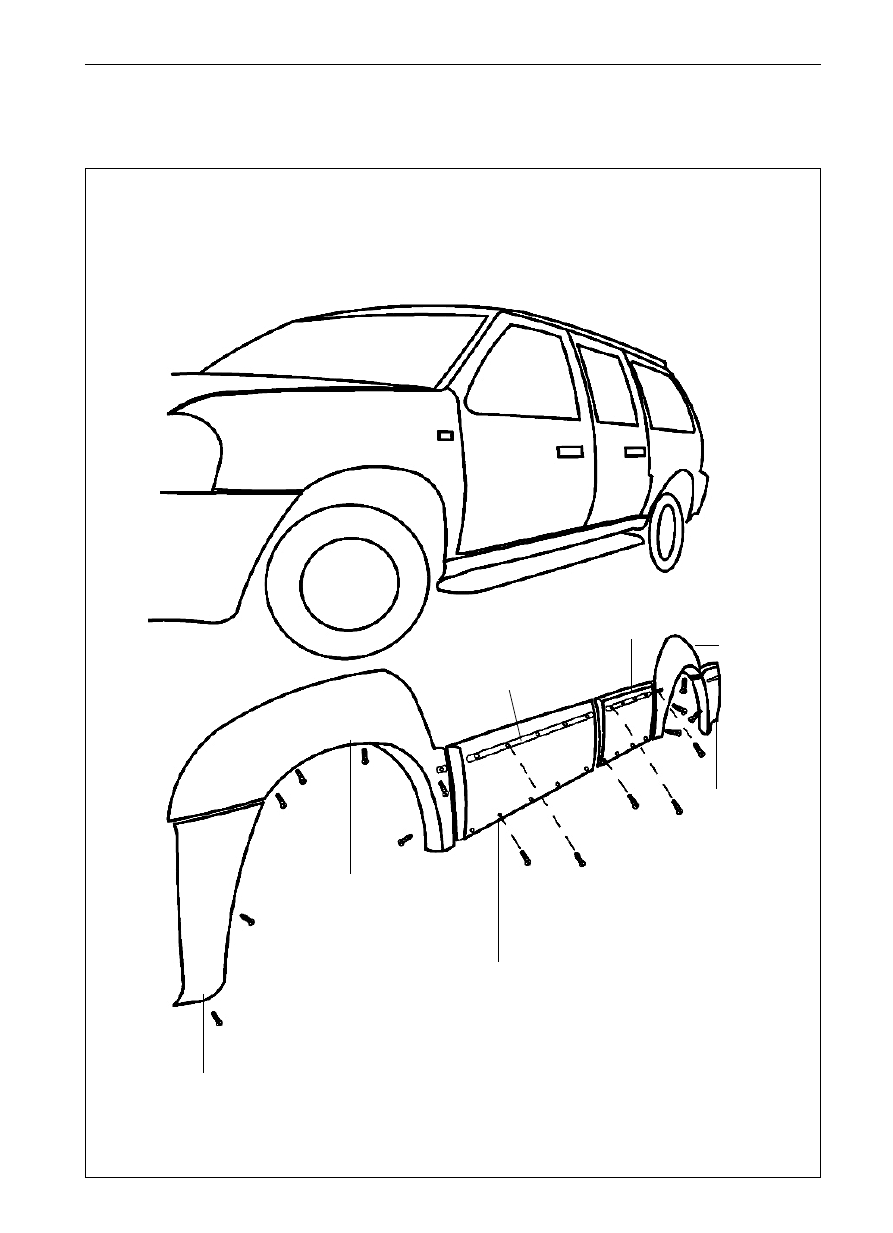

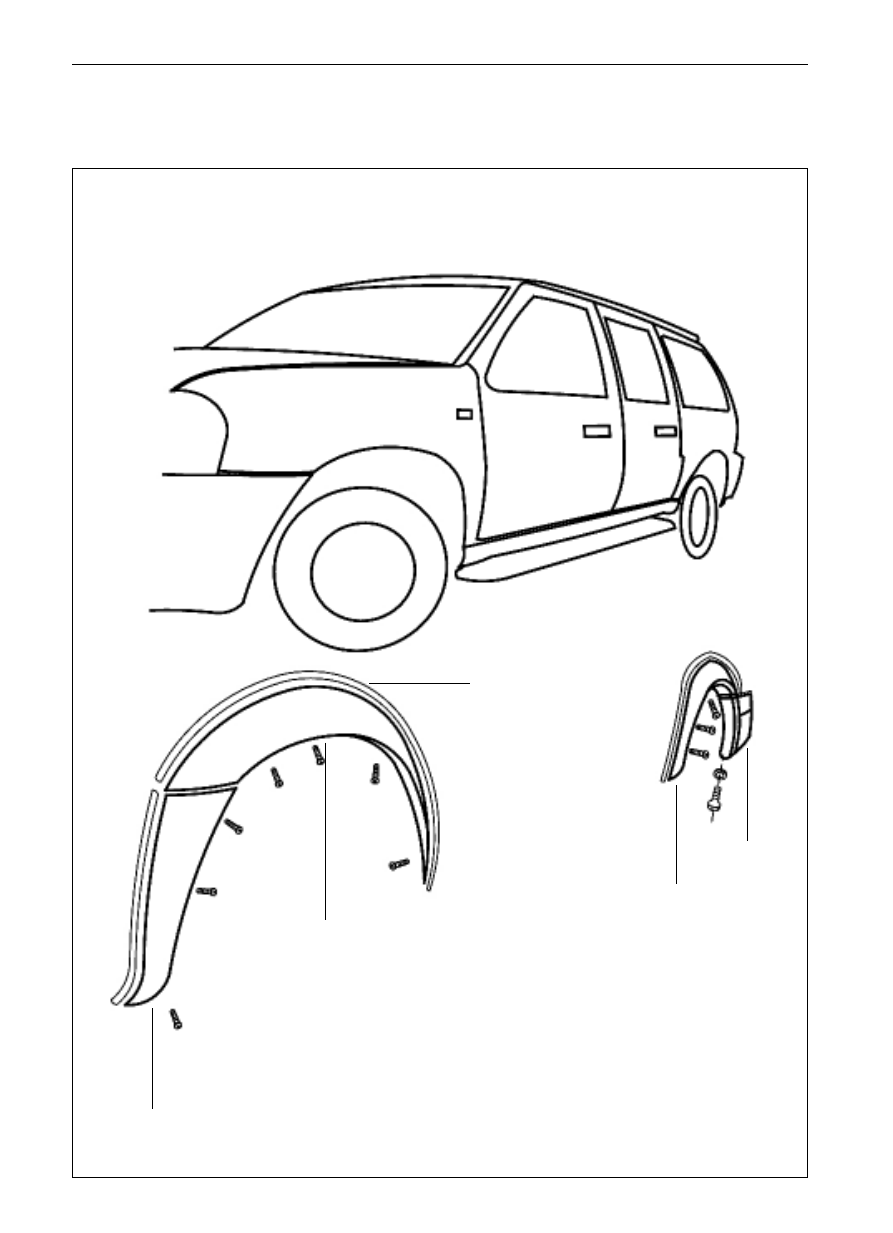

Wheel-trims wrapping angle and exterior trim panel (

)

Element mounting position

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

adhesive strip of wheel-trims

front wheel-trims

rear wheel-trims

front wrapping angle

rear wrapping angle

SY

B0-27

Wheel-trims wrapping angle and exterior trim panel (

)

Element mounting position

Vehicle Body

 Wheel-Trims Wrapping Angle and Exterior Trim Panel

trim panel at front door

front wheel-trims

rear wheel-trims

front wrapping angle

rear wrapping angle

Top-grade SY

trim panel at rear door

luminous channel
