Installation 1. Lubricate bearings with appropriate wheel bearing grease. Place inner bearing into steering knuckle. Install new inner bearing grease seal, and drive seal into place using appropriate seal installer. 2. Place original outer wheel bearing preload spacer (or spacer selected during preload inspection process) into steering knuckle bore. Place outer wheel bearing into steering knuckle bore. 3. Liberally lubricate lip of NEW outer grease seal with appropriate lubricant. Drive seal into steering knuckle bore. Install brake rotor on hub axle hub. Tighten bolts to 33-40 ft. lbs. (45-54 N.m). Position rotor/hub assembly into steering knuckle, and press assembly into REAR WHEEL BEARINGS Removal & Installation 1. Raise and support rear axle. Remove wheel. Remove wheel bearing dust cap. On Capri, remove rear brake caliper. See REAR BRAKE CALIPER & PADS under REMOVAL & INSTALLATION. On all models, carefully unstake rear axle lock nut using a chisel. DO NOT 2. On Capri, remove rotor/hub assembly. On Festiva, remove brake drum/hub assembly. On all models, DO NOT allow outer wheel bearing to fall out of hub. Remove inner bearing grease seal. Remove inner bearing. To install rear bearings, reverse removal procedure. OVERHAUL

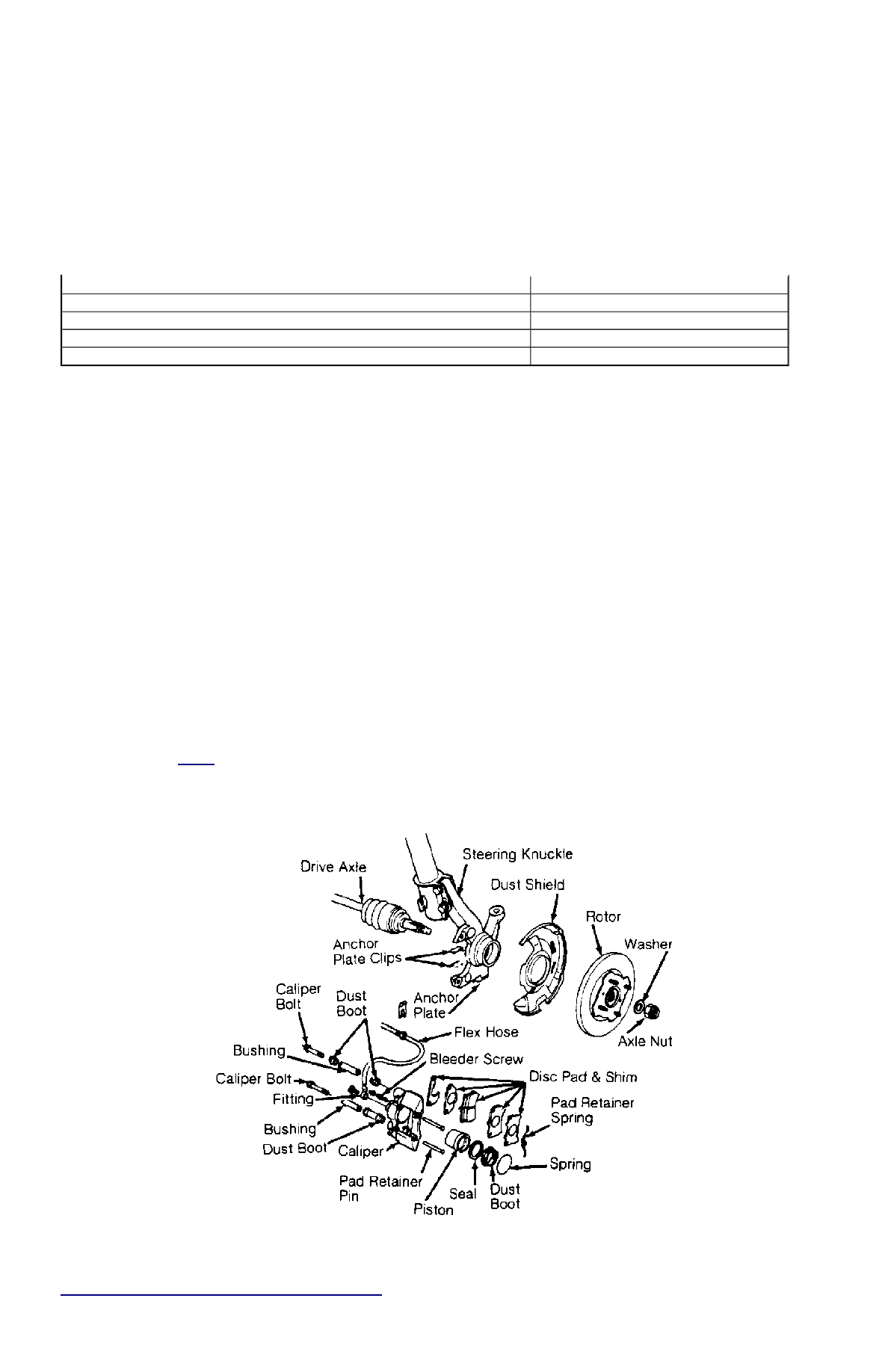

Fig. 5: Exploded View of Front Brake Assembly (Capri)

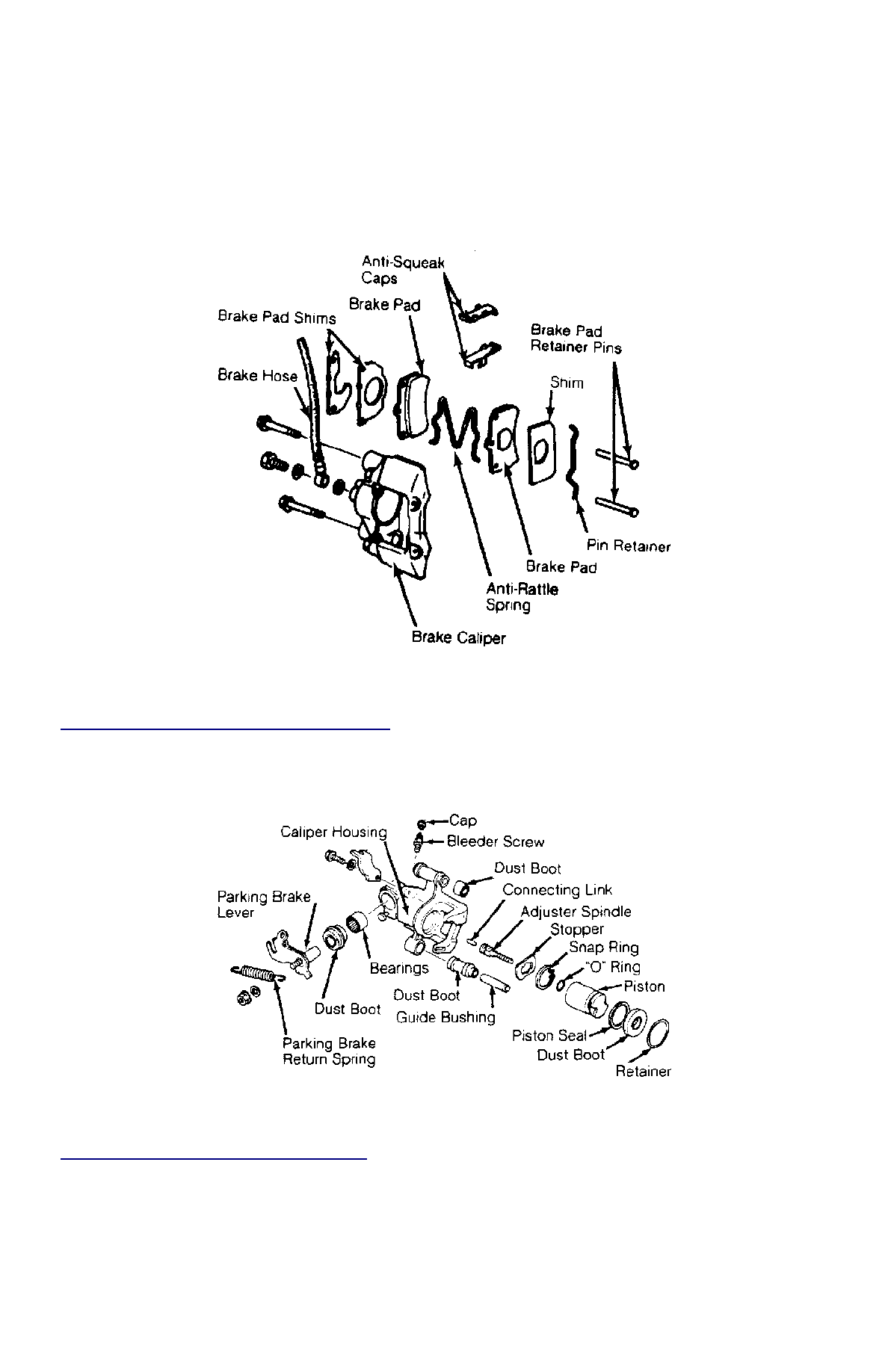

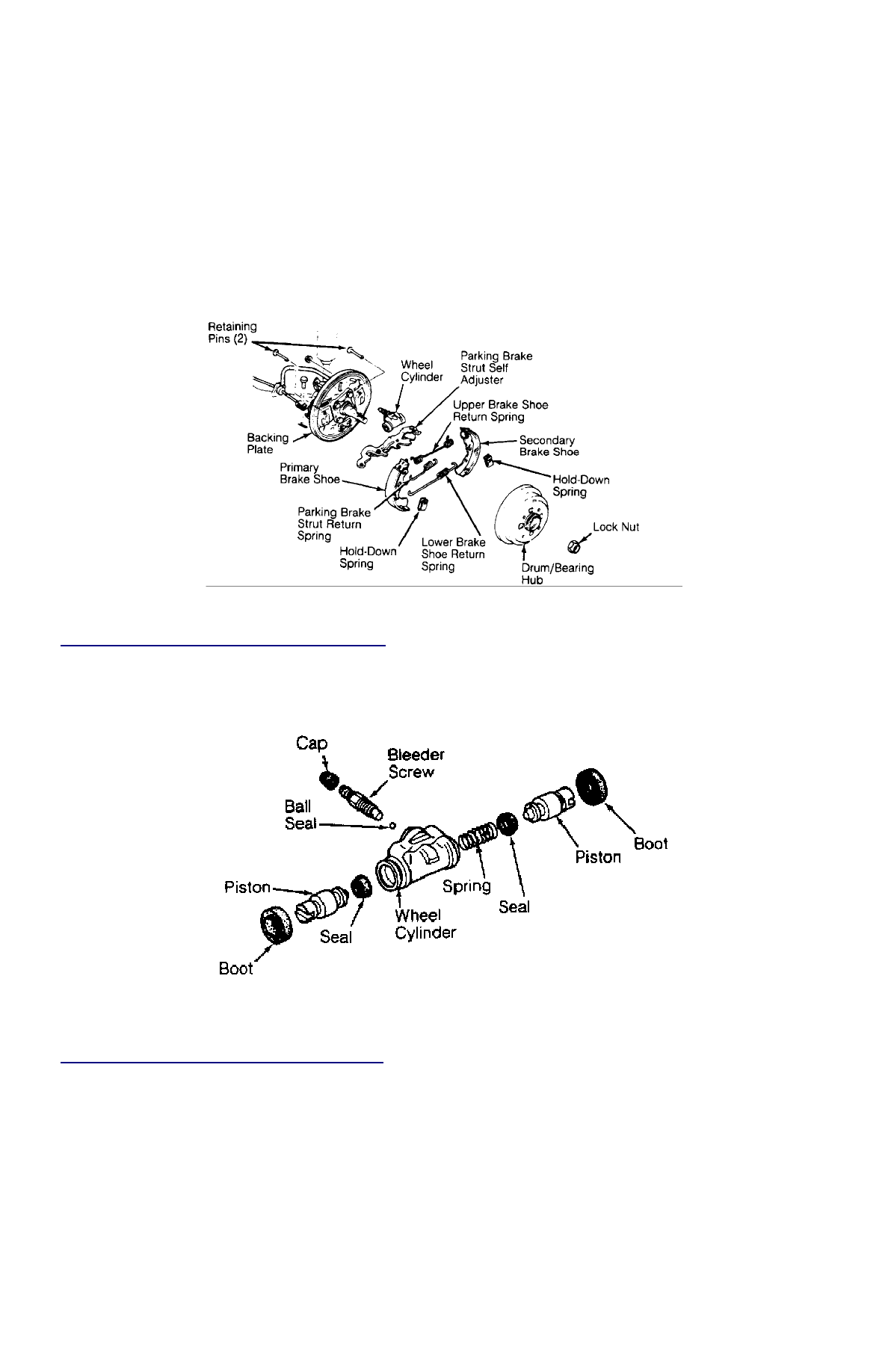

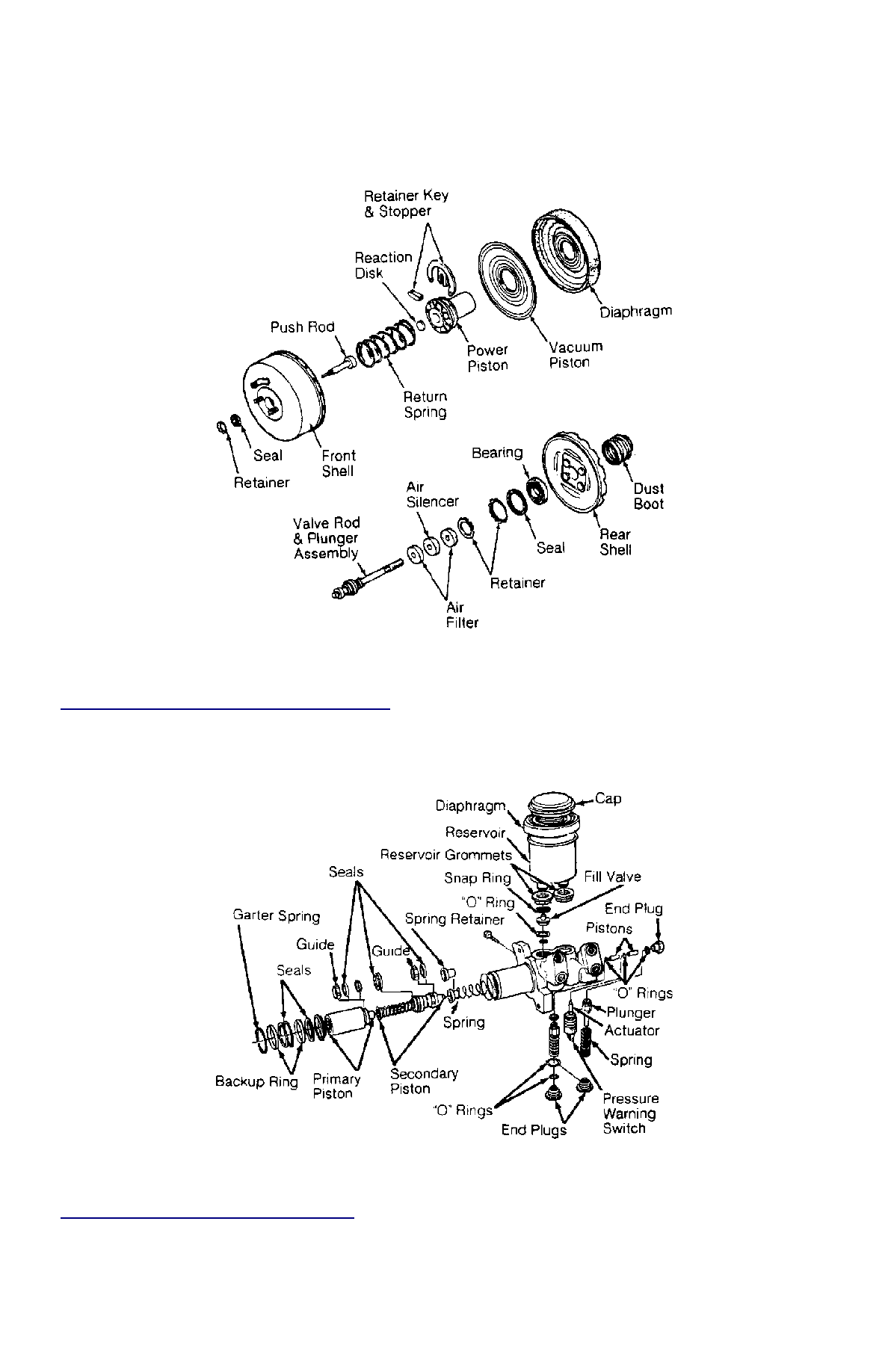

Courtesy of FORD MOTOR CO. 17 0.2726 (6.925) 18 0.2742 (6.965) 19 0.2758 (7.005) 20 0.2774 (7.045) 21 0.2789 (7.085) NOTE: See Fig. 5 -12 for exploded views of brake assemblies and components. |
