WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, OR INSTRU-
MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE AIRBAG SYSTEM CAPACITOR
TO DISCHARGE BEFORE PERFORMING FURTHER
DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Unscrew screws. (Fig. 1)
(3) Using a trim stick C-4755 or equivalent, sepa-

rate cover.

(4) Disconnect electrical connectors and remove

bezel.

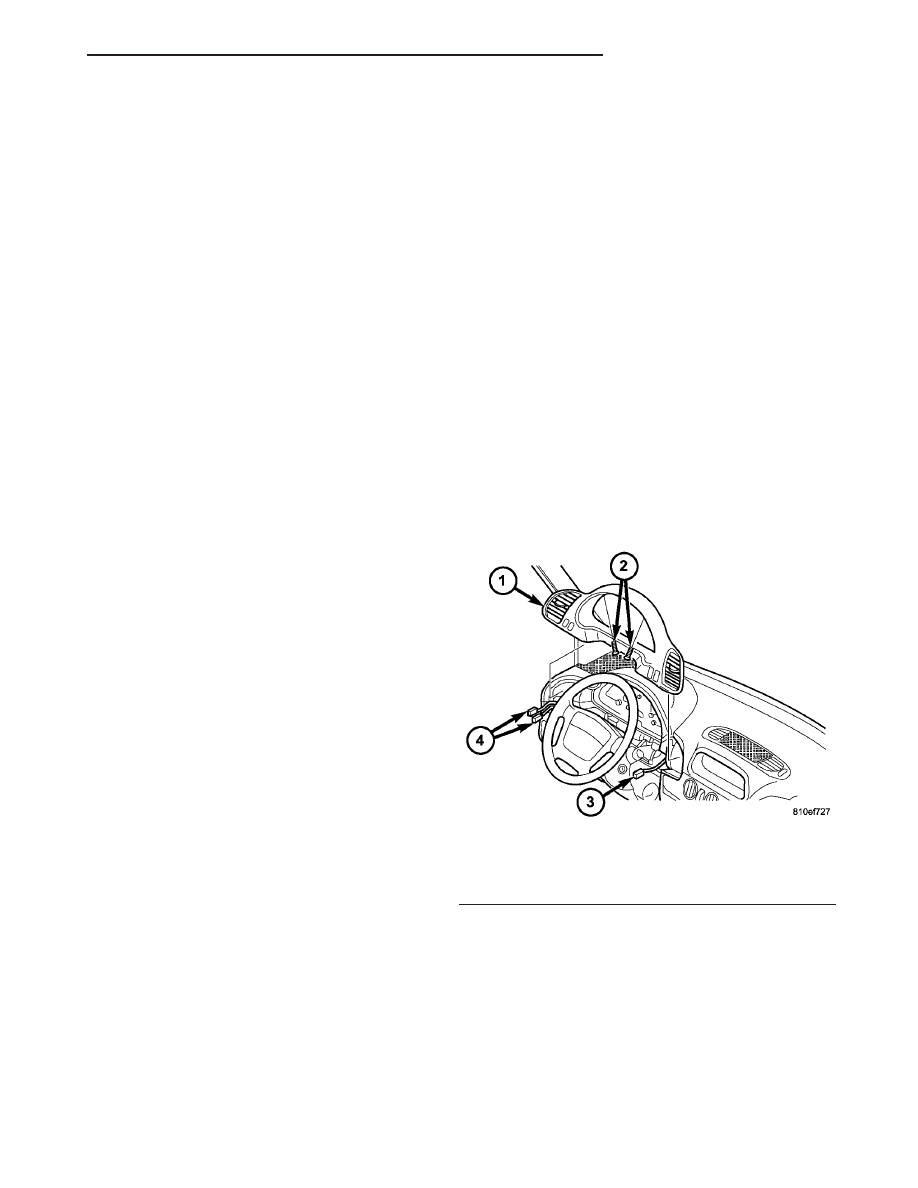

Fig. 1 CLUSTER BEZEL

1 - CLUSTER BEZEL
2 - SCREWS (2)
3 - ELECTRICAL CONNECTOR
4 - ELECTRICAL CONNECTORS

INSTRUMENT PANEL

23 - 55

INSTALLATION

(1) Connect the electrical connectors.
(2) Position cluster bezel into place and seat clips

fully.

(3) Install screws.
(4) Connect battery negative cable.

ACCESSORY SWITCH BEZEL

REMOVAL

(1) Move selector lever to position “D”.
(2) Using a trim stick C-4755 or equivalent,

remove shift lever frame trim. (Fig. 2)

(3) Using a trim stick C-4755 or equivalent,

remove storage compartment.

(4) Remove ashtray.
(5) Remove screw and using a trim stick C-4755 or

equivalent, remove bezel.

INSTALLATION

(1) Position bezel and seat clips fully.
(2) Install screw.
(3) Install ashtray.
(4) Install storage compartment.
(5) Install shift lever trim.

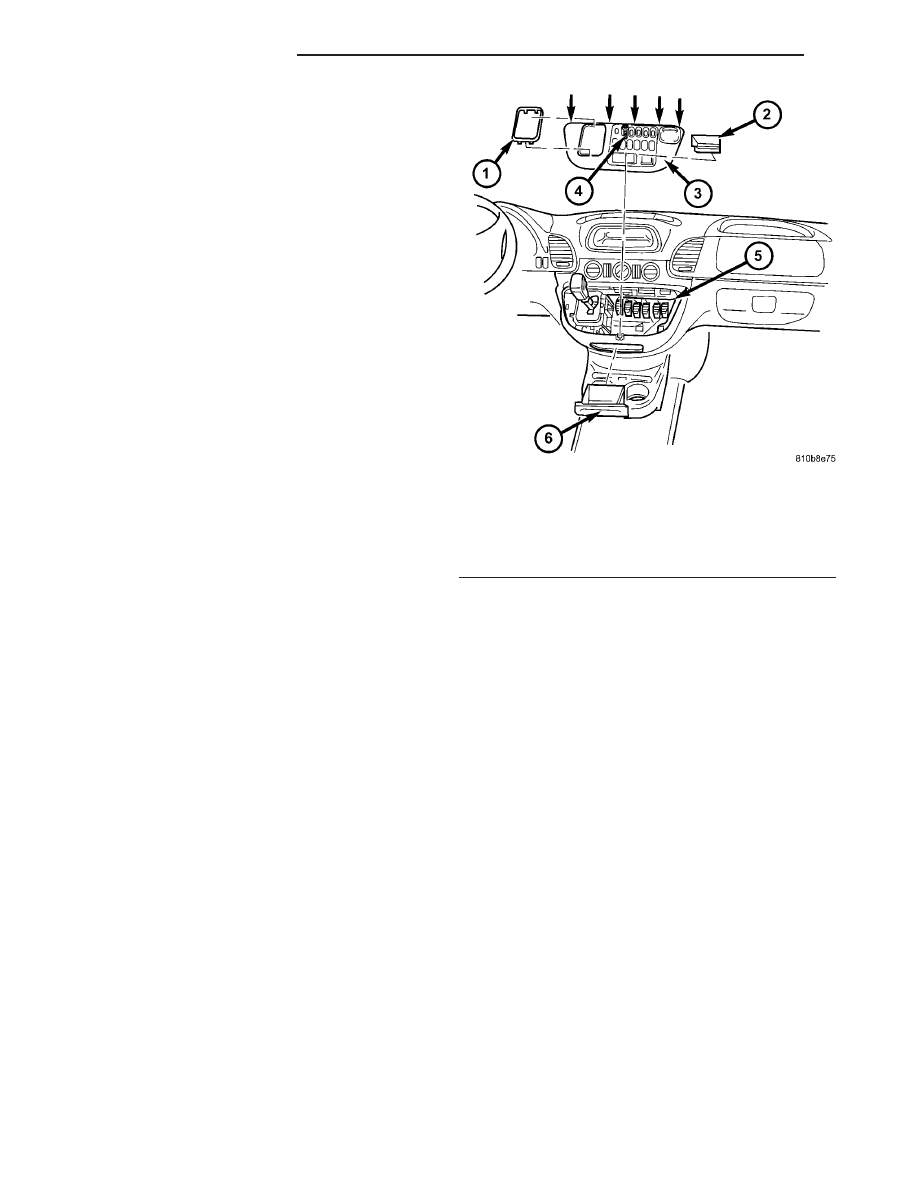

Fig. 2 ACCESSORY SWITCH BEZEL

1 - SHIFT LEVER ASSEMBLY FRAME TRIM
2 - STORAGE COMPARTMENT
3 - ACCESSORY SWITCH BEZEL
4 - SCREW
5 - PLUG CONNECTIONS
6 - ASHTRAY

23 - 56

INSTRUMENT PANEL

INSTRUMENT PANEL CENTER
BEZEL

REMOVAL

(1) Remove accessory switch bezel. (Refer to 23 -

BODY/INSTRUMENT

PANEL/ACCESSORY

SWITCH BEZEL - REMOVAL)

(2) Remove the screws and using a trim stick

C-4755 or equivalent, remove bezel.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS, DISABLE THE AIRBAG SYSTEM BEFORE
ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, SEAT BELT TENSIONER, OR INSTRU-

MENT PANEL COMPONENT DIAGNOSIS OR SER-
VICE. DISCONNECT AND ISOLATE THE BATTERY
NEGATIVE (GROUND) CABLE, THEN WAIT TWO
MINUTES FOR THE AIRBAG SYSTEM CAPACITOR
TO DISCHARGE BEFORE PERFORMING FURTHER
DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE
WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Install the bezel and install the screws.
(2) Install the accessory switch bezel. (Refer to 23 -

BODY/INSTRUMENT

PANEL/ACCESSORY

SWITCH BEZEL - INSTALLATION)

ASH RECEIVER

REMOVAL

(1) Disconnect and isolate battery negative cable.
(2) Open ash receiver and remove two screws.
(3) Pull out ash receiver and disconnect electrical

connector.

(4) Remove ash receiver.

INSTALLATION

(1) Connect electrical connector.
(2) Install ash receiver and install the two screws.
(3) Connect battery negative cable.

CUP HOLDER

REMOVAL

(1) Remove rubber mat from both cup holders.
(2) Unscrew screws (1) and remove cup holder top

section (2). (Fig. 4)

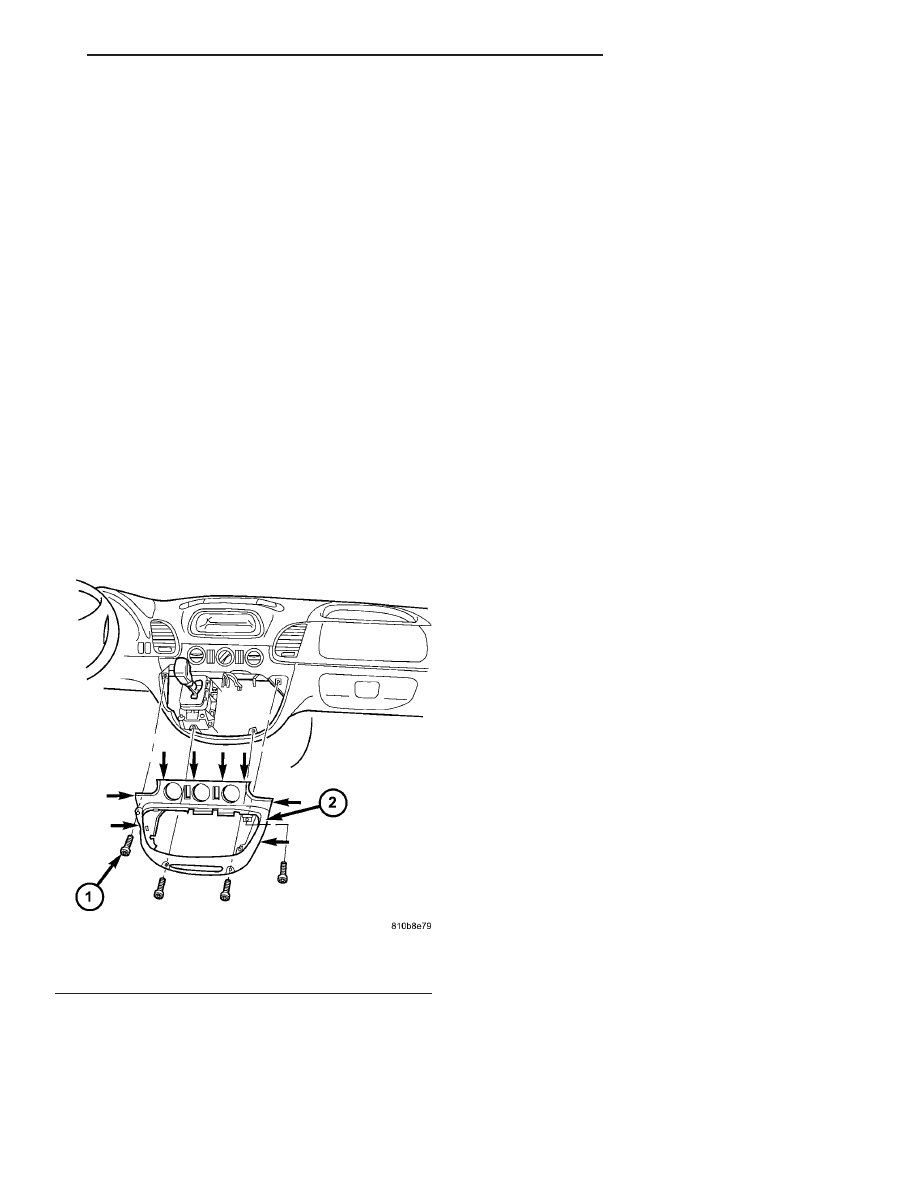

Fig. 3 INSTRUMENT PANEL CENTER BEZEL

1 - SCREWS (4)
2 - BEZEL

INSTRUMENT PANEL

23 - 57
