(3) Install wedge and install screws.
(4) Close sliding door to adjust closing wedge.
(5) Open door and tighten screws to 10 N·m (89 in.

lbs.).

TRIM PANEL

REMOVAL

Upper

(1) Remove rivets and remove panel.

Lower

(1) Remove the bolts and remove the stop bumper.

(Fig. 24)

(2) Remove the inside handle actuator. (Refer to 23

-

BODY/DOORS

-

SLIDING/INSIDE

HANDLE

ACTUATOR - REMOVAL)

(3) Remove the push pin fasteners and remove the

trim panel.

INSTALLATION

Upper

(1) Install trim panel and replace rivets.

Lower

(1) Install the trim panel and push pin fasteners.
(2) Install the inside handle actuator. (Refer to 23 -

BODY/DOORS

-

SLIDING/INSIDE

HANDLE

ACTUATOR - INSTALLATION)

(3) Install stop bumper, bolts and adjust if neces-

sary. (Refer to 23 - BODY/DOORS - SLIDING/SLID-
ING DOOR - ADJUSTMENTS)

DOOR GLASS

REMOVAL

(1) Position an assistant on one side of the door to

receive the glass and weatherstrip seal.

(2) Start at an inside, upper corner. Separate the

seal from the window opening. Push the glass and
seal outward from the window opening. Remove the
glass and seal.

(3) Clean the window opening.

INSTALLATION

(1) Install the weatherstrip seal on the window

glass. Verify that the glass is seated in the groove
around the edge of the seal.

(2) Insert an installation cord in the weatherstrip

seal inner groove.

NOTE: Use mineral spirits as a lubricant to aid seal
installation in the window opening.

(3) Position the glass and seal in the window open-

ing.

(4) Pull the installation cord outward and force the

seal lip over the panel flange around the edge of the
opening.

(5) Seat the seal inner lip on the panel flange.

Press against the lip around the edge of the seal.

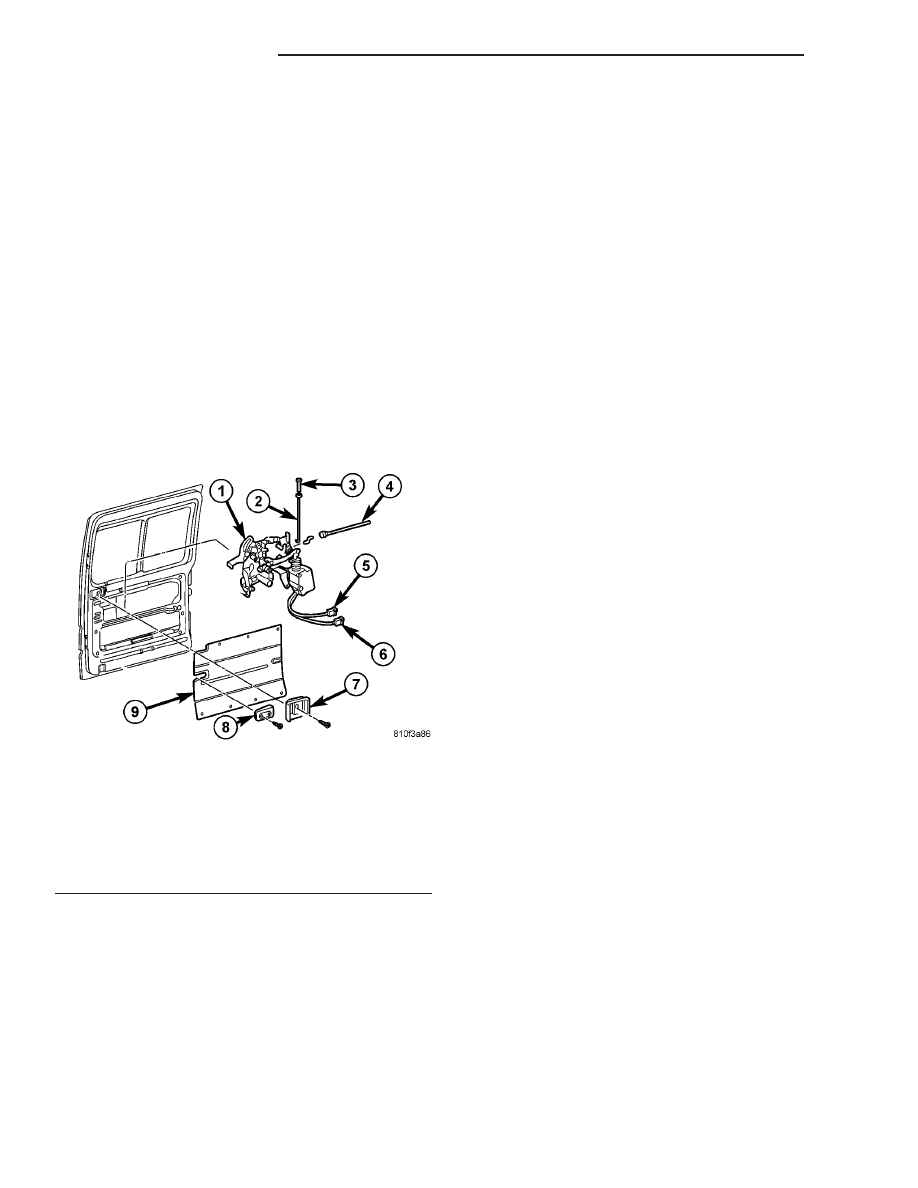

Fig. 24 LOCK ASSEMBLY

1 - LATCH/LOCK CONTROL ASSEMBLY
2 - LOCK ROD
3 - LOCK KNOB
4 - LATCH CONTROL CABLE
5 - ELECTRICAL CONNECTOR
6 - ELECTRICAL CONNECTOR
7 - INTERIOR HANDLE ACTUATOR
8 - STOP BUMPER
9 - TRIM PANEL

23 - 46

DOORS - SLIDING

VA

NOTE: Remove any mineral spirits with a clean
cloth after glass installation.

(6) Verify that the seal is seated in the window

opening (Fig. 25).

(7) Test the window for water leaks. (Refer to 23 -

BODY - DIAGNOSIS AND TESTING - WATER
LEAKS)

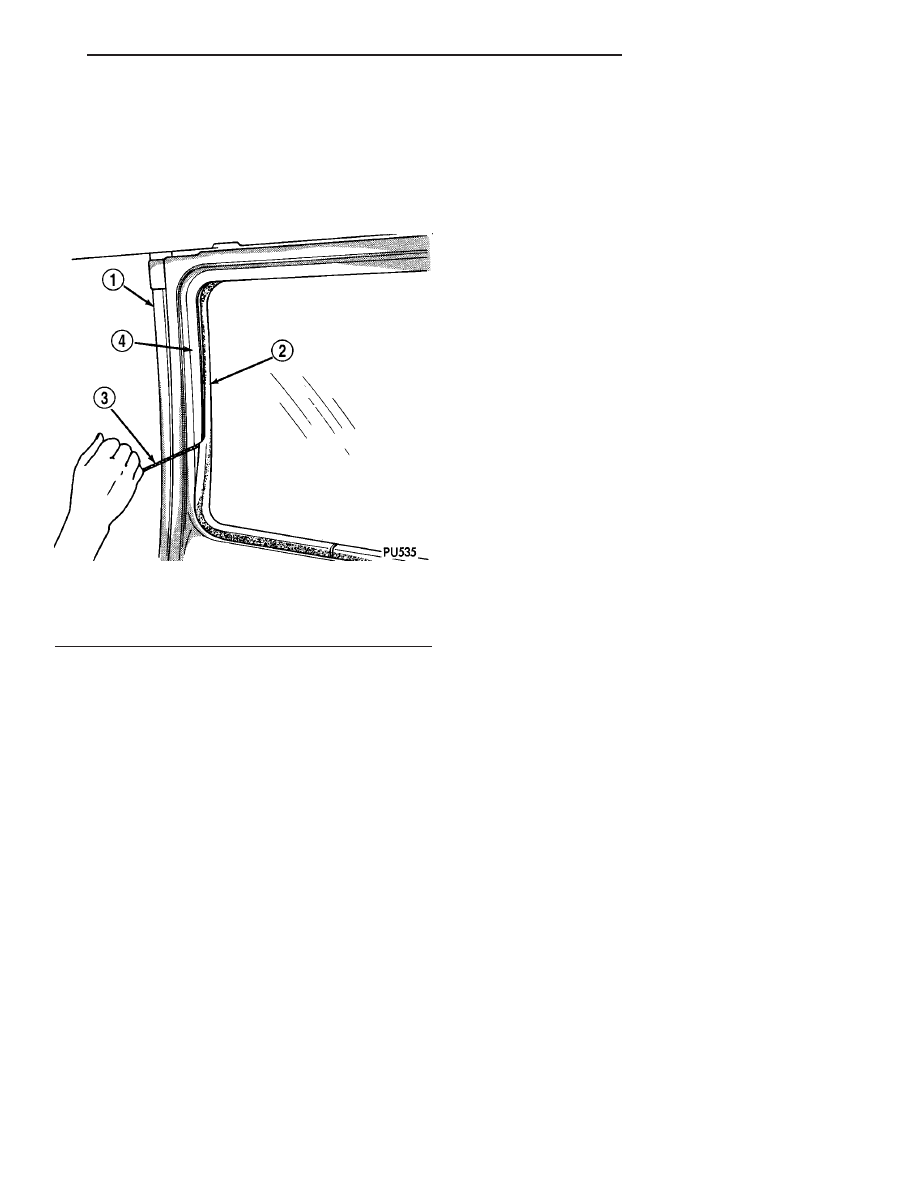

Fig. 25 Glass & Weatherstrip Seal Installation

1 - BODY PANEL
2 - WEATHERSTRIP SEAL
3 - INSTALLATION CORD
4 - WINDOW OPENING

VA

DOORS - SLIDING

23 - 47

EXTERIOR

TABLE OF CONTENTS

page

page

FUEL FILL DOOR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

GRILLE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

LICENSE PLATE BRACKET

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 48

RADIATOR CROSSMEMBER

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 49

SIDE VIEW MIRROR

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 50

SIDE VIEW MIRROR - GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . . 50

FUEL FILL DOOR

REMOVAL

(1) Open passenger compartment door.
(2) Open fuel fill door.
(3) Using a trim stick C-4755 or equivalent, dis-

connect the filler cap tether.

(4) Remove two bolts and remove filler door.

INSTALLATION

(1) Install the door and bolts.
(2) Connect filler cap tether.
(3) Close doors.

GRILLE

REMOVAL

(1) Remove screw rivets. (Fig. 1)
(2) Loosen lower screws.
(3) Remove upper screws.
(4) Remove grille.

INSTALLATION

(1) Install grille.
(2) Install upper screw.
(3) Tighten lower screws.
(4) Install screw rivets.

LICENSE PLATE BRACKET

REMOVAL

(1) Remove two lower push-pin fasteners
(2) Remove two screws.
(3) Remove bracket.

INSTALLATION

(1) Install bracket.
(2) Install screws.
(3) Install push-pin fasteners.

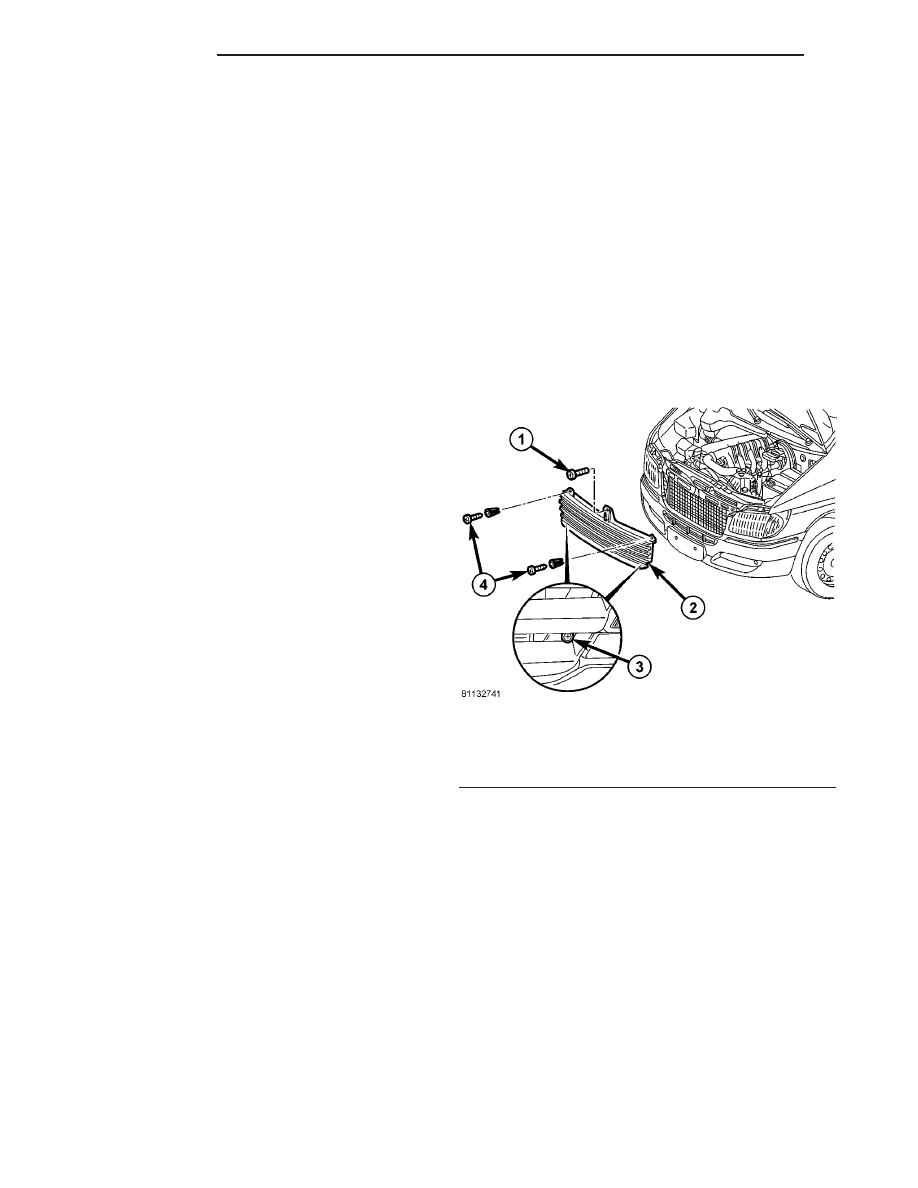

Fig. 1 GRILLE

1 - UPPER SCREW
2 - GRILLE
3 - LOWER SCREWS (2)
4 - SCREW RIVETS

23 - 48

EXTERIOR

VA

RADIATOR CROSSMEMBER

REMOVAL

(1) Remove grille. (Refer to 23 - BODY/EXTERI-

OR/GRILLE - REMOVAL)

(2) Remove headlamps. (Refer to 8 - ELECTRI-

CAL/LAMPS/LIGHTING

-

EXTERIOR/FRONT

LAMP UNIT - REMOVAL)

(3) Remove heat shield. (Fig. 2)
(4) Remove retaining clamps and rubber mounts.
(5) Remove bolts.
(6) Remove

crossmember

and

disconnect

hood

cable.

INSTALLATION

(1) Connect hood release cable and install cross-

member.

(2) Install crossmember bolts and tighten to 14

N·m (10 ft. lbs.).

(3) Install rubber mounts and retaining clamps.
(4) Install heat shield.
(5) Install headlamps. (Refer to 8 - ELECTRICAL/

LAMPS/LIGHTING

-

EXTERIOR/FRONT

LAMP

UNIT - INSTALLATION)

(6) Install grille. (Refer to 23 - BODY/EXTERIOR/

GRILLE - INSTALLATION)

SIDE VIEW MIRROR

REMOVAL

Driver’s Side

(1) Disconnect and isolate battery negative cable.
(2) Remove trim plug. (Fig. 3)

NOTE: If the vehicle is not equipped with power
mirrors, skip to step 5.

(3) Remove trim panel. (Refer to 23 - BODY/DOOR

- FRONT/TRIM PANEL - REMOVAL)

(4) Remove tape, expose electrical connector and

disconnect. (Fig. 3)

(5) Remove bolts and remove mirror.
(6) If equipped, Pull wire harness through.

Passenger Side

(1) Disconnect and isolate battery negative cable.
(2) Remove trim plug. (Fig. 4)

NOTE: If the vehicle is not equipped with power
mirrors, skip to step 5.

(3) Separate dust boot from a-pillar.
(4) Disconnect the electrical connector.
(5) Remove bolts and remove mirror.
(6) If equipped, pull wire harness through.

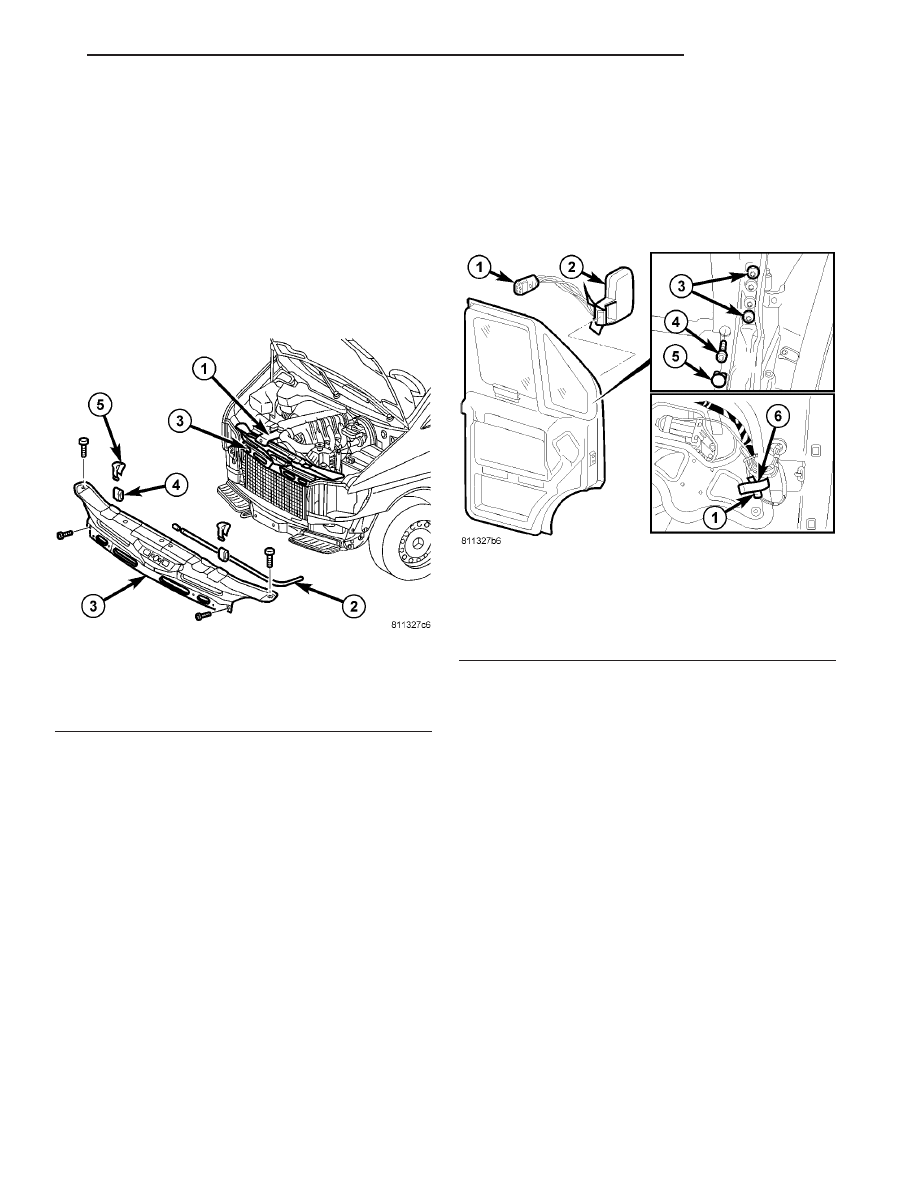

Fig. 2 RADIATOR CROSSMEMBER

1 - HEAT SHIELD
2 - HOOD CABLE
3 - CROSSMEMBER
4 - RUBBER MOUNTS
5 - RETAINING CLAMP

Fig. 3 DRIVERS SIDE MIRROR

1 - ELECTRICAL CONNECTOR
2 - MIRROR
3 - EXTERIOR BOLTS
4 - INNER BOLT
5 - TRIM PLUG
6 - TAPE

VA

EXTERIOR

23 - 49
