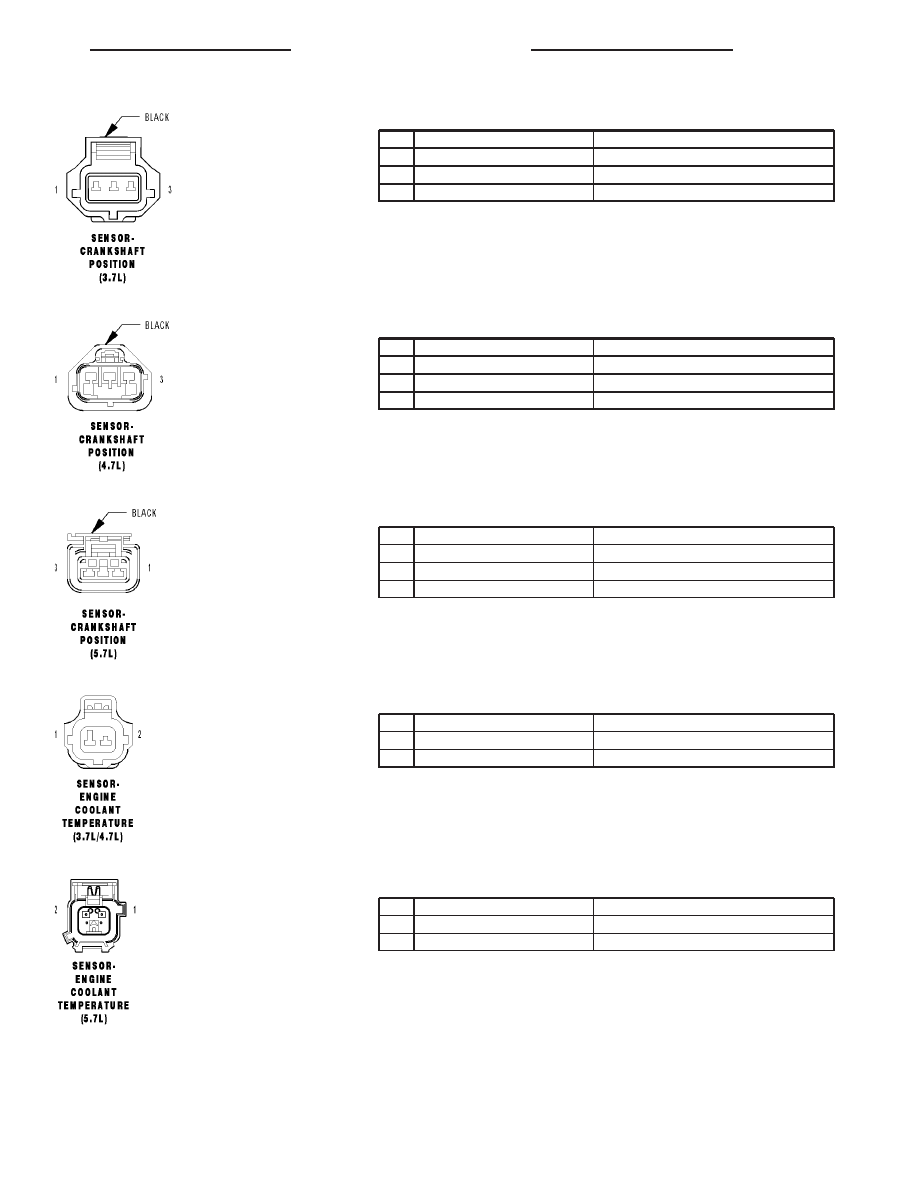

SENSOR-CRANKSHAFT POSITION (3.7L) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K24 20VT/DG

CKP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

F855 20PK/YL

5 VOLT SUPPLY

SENSOR-CRANKSHAFT POSITION (4.7L) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

K24 20VT/DG

CKP SIGNAL

2

K900 20DB/DG

SENSOR GROUND

3

F855 20PK/YL

5 VOLT SUPPLY

SENSOR-CRANKSHAFT POSITION (5.7L) - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

F855 20PK/YL

5 VOLT SUPPLY

2

K900 20DB/DG

SENSOR GROUND

3

K24 20VT/DG

CKP SIGNAL

SENSOR-ENGINE COOLANT TEMPERATURE (3.7L/4.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K2 20LB/RD

ECT SIGNAL

2

K900 20DB/DG

SENSOR GROUND

SENSOR-ENGINE COOLANT TEMPERATURE (5.7L) - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K900 18DB/DG

SENSOR GROUND

2

K2 18VT/OR

ECT SIGNAL

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 83

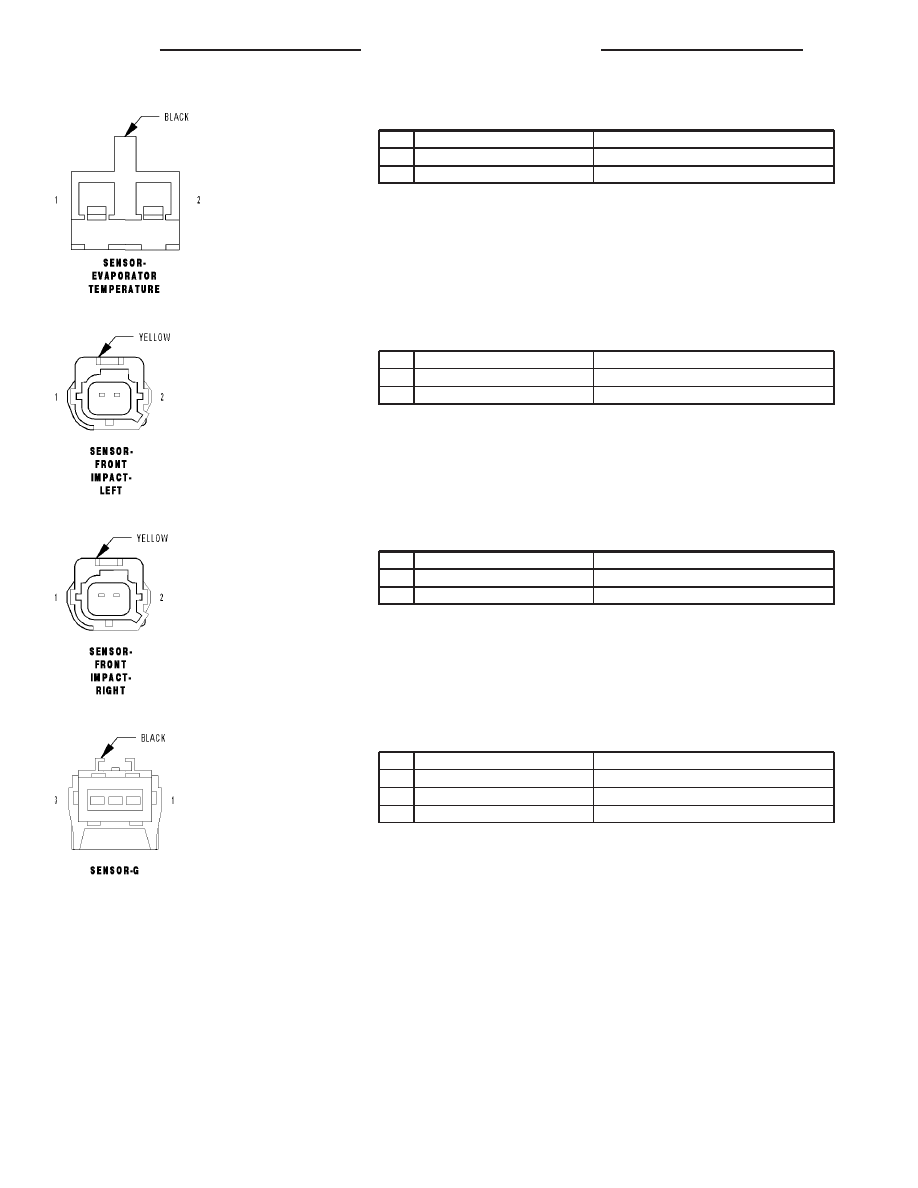

SENSOR-EVAPORATOR TEMPERATURE - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

C21 20DB/LG

EVAPORATOR TEMPERATURE SENSOR SIGNAL

2

C121 20DB/DG

SENSOR GROUND

SENSOR-FRONT IMPACT-LEFT - YELLOW 2 WAY

CAV

CIRCUIT

FUNCTION

1

R81 20LB/WT

LEFT FRONT IMPACT SENSOR GROUND

2

R79 20LB/VT

LEFT FRONT IMPACT SENSOR SIGNAL

SENSOR-FRONT IMPACT-RIGHT - YELLOW 2 WAY

CAV

CIRCUIT

FUNCTION

1

R82 20WT/LB

RIGHT FRONT IMPACT SENSOR GROUND

2

R80 20VT/LB

RIGHT FRONT IMPACT SENSOR SIGNAL

SENSOR-G - BLACK 3 WAY

CAV

CIRCUIT

FUNCTION

1

B924 20DG/LB

G-SENSOR RETURN

2

B23 20DG/YL

G-SENSOR SIGNAL

3

B24 20DG/OR

G-SENSOR SUPPLY

8W - 80 - 84

8W-80 CONNECTOR PIN-OUTS

HB

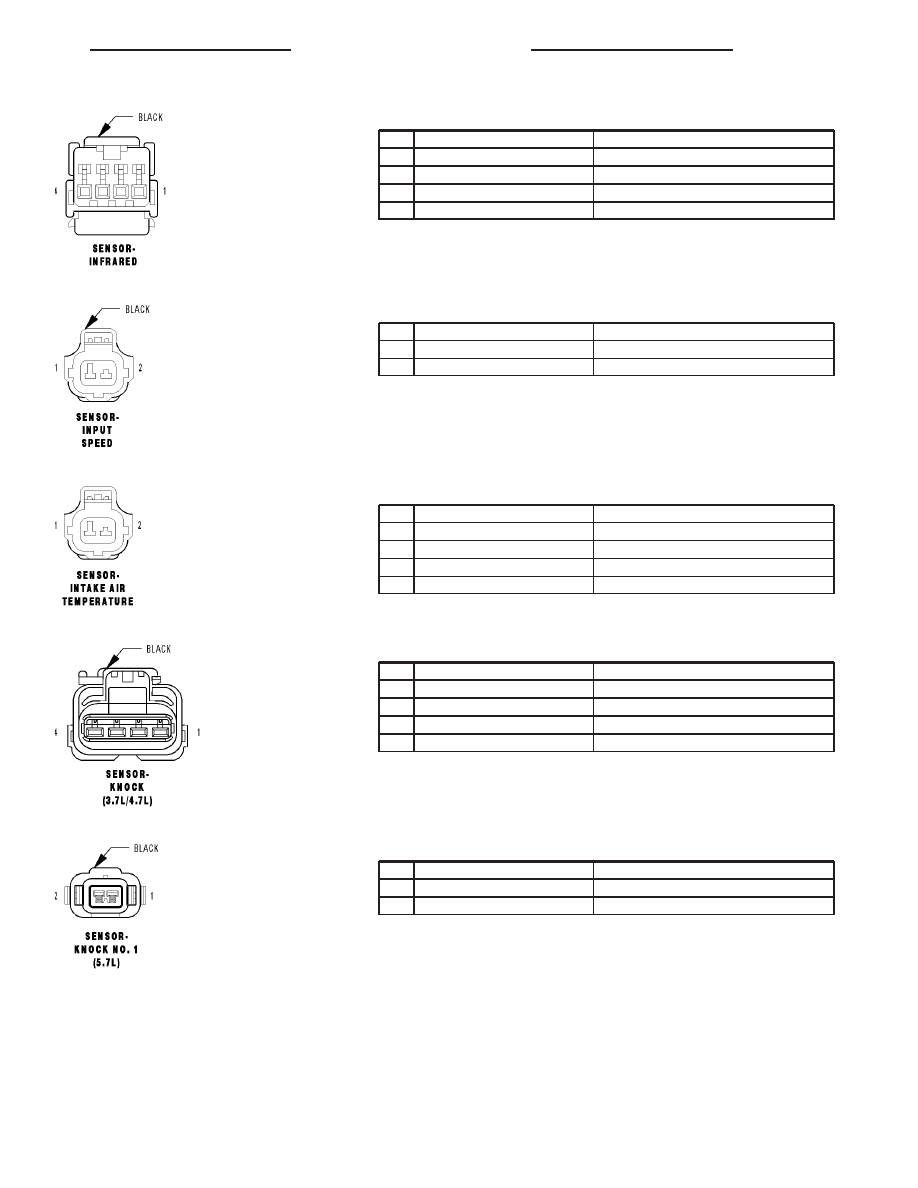

SENSOR-INFRARED - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

F21 20PK/DG

FUSED IGNITION SWITCH OUTPUT (RUN-START)

2

-

-

3

C83 20DB/LG

INFRARED SENSOR SIGNAL

4

Z957 20BK

GROUND

SENSOR-INPUT SPEED - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

T52 20VT/OR

INPUT SPEED SENSOR SIGNAL

2

T13 20DG/VT

SPEED SENSOR GROUND

SENSOR-INTAKE AIR TEMPERATURE - 2 WAY

CAV

CIRCUIT

FUNCTION

1

K21 20BR/WT (3.7L/4.7L)

IAT SIGNAL

1

K900 18DB/DG (5.7L)

SENSOR GROUND

2

K900 20DB/DG (3.7L/4.7L)

SENSOR GROUND

2

K21 18DB/LG (5.7L)

IAT SIGNAL

SENSOR-KNOCK (3.7L/4.7L) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

K42 20DB/OR

KNOCK SENSOR NO. 1 SIGNAL

2

K942 20YL/DG

KNOCK SENSOR NO. 1 RETURN

3

K242 20DB/OR

KNOCK SENSOR NO. 2 SIGNAL

4

K924 20DG/RD

KNOCK SENSOR NO. 2 RETURN

SENSOR-KNOCK NO. 1 (5.7L) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K42 20DB/OR

KNOCK SENSOR NO. 1 SIGNAL

2

K942 20YL/DG

KNOCK SENSOR NO. 1 RETURN

HB

8W-80 CONNECTOR PIN-OUTS

8W - 80 - 85

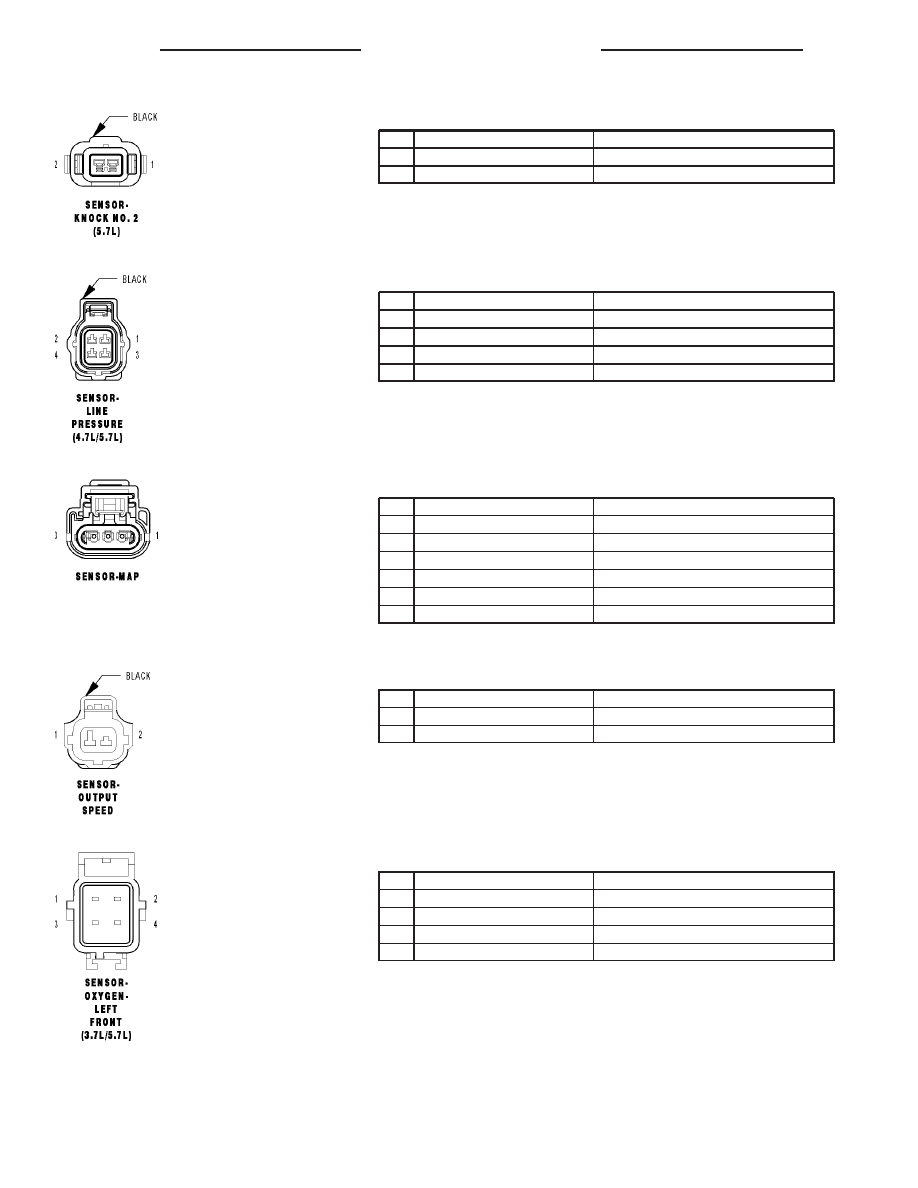

SENSOR-KNOCK NO. 2 (5.7L) - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

K242 20DB/OR

KNOCK SENSOR NO. 2 SIGNAL

2

K924 20DG/RD

KNOCK SENSOR NO. 2 RETURN

SENSOR-LINE PRESSURE (4.7L/5.7L) - BLACK 4 WAY

CAV

CIRCUIT

FUNCTION

1

K900 20DB/DG

SENSOR GROUND

2

F856 20YL/PK

5 VOLT SUPPLY

3

T38 20YL/BR

LINE PRESSURE SENSOR SIGNAL

4

-

-

SENSOR-MAP - 3 WAY

CAV

CIRCUIT

FUNCTION

1

K1 20VT/BR (3.7L/4.7L)

MAP SIGNAL

1

K1 18VT/BR (5.7L)

MAP SIGNAL

2

K900 20DB/DG (3.7L/4.7L)

SENSOR GROUND

2

K900 18DB/DG (5.7L)

SENSOR GROUND

3

F856 20YL/PK (3.7L/4.7L)

5 VOLT SUPPLY

3

F856 18YL/PK (5.7L)

5 VOLT SUPPLY

SENSOR-OUTPUT SPEED - BLACK 2 WAY

CAV

CIRCUIT

FUNCTION

1

T14 20DG/BR

OUTPUT SPEED SENSOR SIGNAL

2

T13 20DG/VT

SPEED SENSOR GROUND

SENSOR-OXYGEN-LEFT FRONT (3.7L/5.7L) - 4 WAY

CAV

CIRCUIT

FUNCTION

1

K99 20LB/WT

O2 1/1 HEATER CONTROL

2

Z43 20BK/LB

GROUND

3

K902 20BR/DG

O2 RETURN (UPSTREAM)

4

K41 20DB/LB

O2 1/1 SIGNAL

8W - 80 - 86

8W-80 CONNECTOR PIN-OUTS

HB
