Dodge Durango (HB). Manual - part 424





For the Heated Seat System circuit diagram (Refer to 8 - ELECTRICAL/HEATED SEATS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:Engine running, during seat operation.

Set Condition:This code is set immediately after the Seat Memory Module receives a high charging sys-
tem voltage message over the CAN B Bus or detects voltage over 16.5 volts on the (A940) Fused B(+)
circuit.

Possible Causes

CHARGING SYSTEM VOLAGE HIGH

(A940) FUSED B(+) CIRCUIT

SEAT MEMORY MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

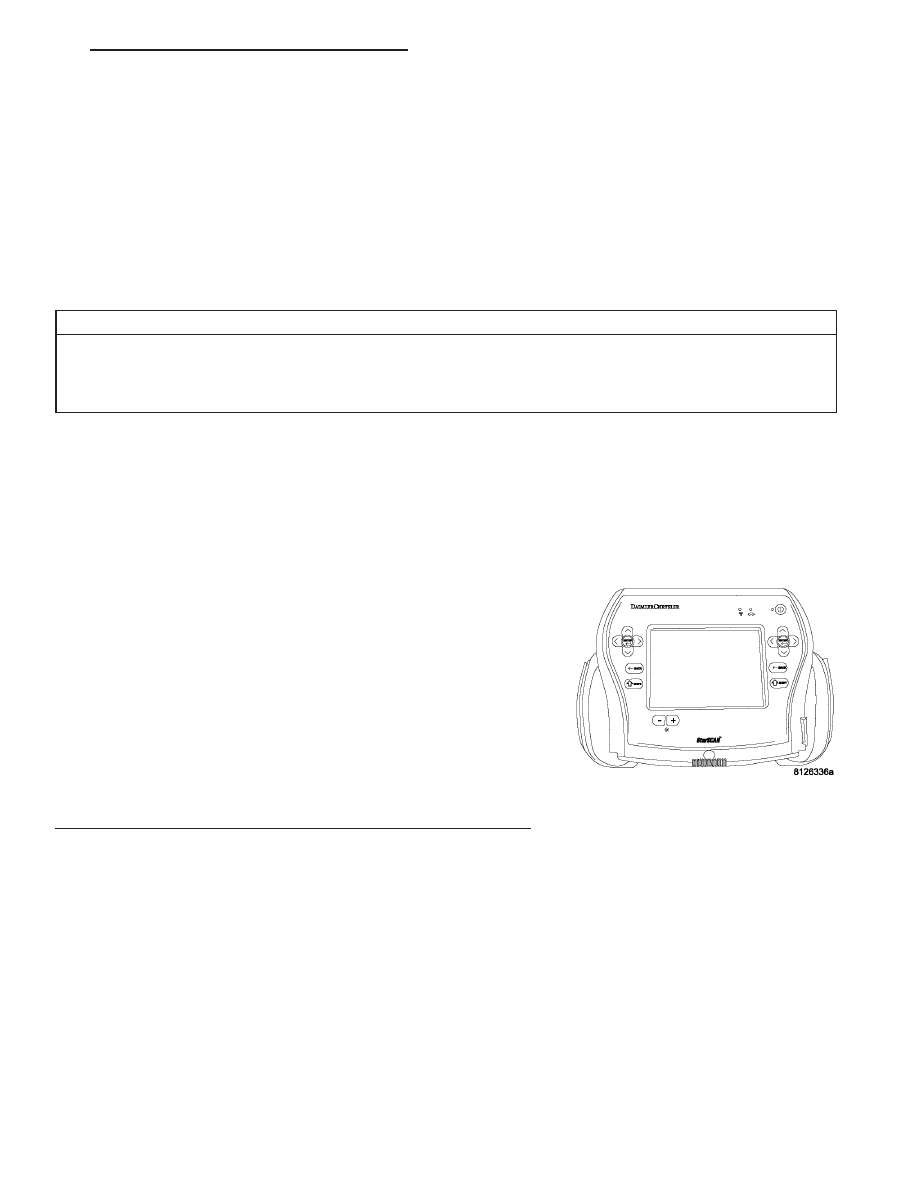

1.

CHECK PCM FOR CHARGING SYSTEM DTC

With the scan tool, read Powertrain Control Module DTC’s.

Are there any Charging System DTC’s set in the Powertrain
Control Module?

Yes

>> (Refer to 8 - ELECTRICAL/CHARGING - DIAGNOSIS

AND TESTING) for Charging System diagnostic proce-
dures.

No

>> Go To 2

HB

POWER SEATS - ELECTRICAL DIAGNOSTICS

8N - 209

B210E-BATTERY VOLTAGE HIGH

2.

VERIFY THAT DTC B210E-BATTERY VOLTAGE HIGH IS
ACTIVE

With the scan tool, record and erase DTC’s

Turn the ignition switch to the Off position then start the engine and let
run for one minute.

Attempt to operate the driver power seat.

With the scan tool, read DTC’s.

Does the DTC B210E-BATTERY VOLTAGE HIGH reset?

Yes

>> Go To 3

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform POWER SEAT SYSTEM VERIFICATION TEST –
VER 1.

3.

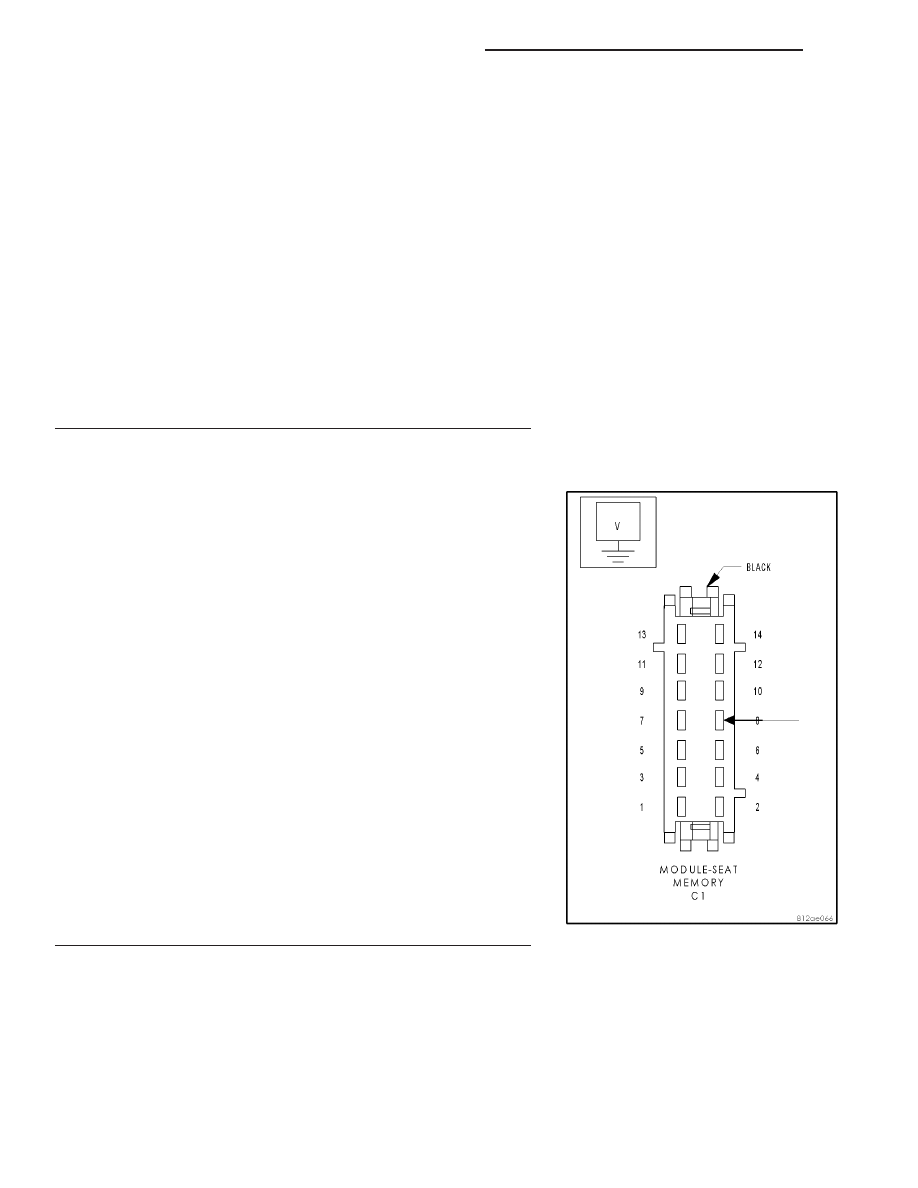

CHECK THE VOLTAGE ON THE (A940) FUSED B(+) CIRCUIT

Disconnect the Seat Memory Module connector.

Note: Check connectors - Clean and repair as necessary.
Start the engine and let idle.

Measure the voltage on the (A940) Fused B(+) circuit at the SMM
connector and compare to voltage at the vehicles battery.

Is the voltage at the SMM connector the same as measured at
the battery?

Yes

>> Replace the Seat Memory Module in accordance with the

service information.

Perform POWER SEAT SYSTEM VERIFICATION TEST –
VER 1.

No

>> Repair the (A940) Fused B(+) circuit as necessary.

Perform POWER SEAT SYSTEM VERIFICATION TEST –
VER 1.

8N - 210

POWER SEATS - ELECTRICAL DIAGNOSTICS

HB

B210E-BATTERY VOLTAGE HIGH —

(CONTINUED)

For the Heated Seat System circuit diagram (Refer to 8 - ELECTRICAL/HEATED SEATS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:Ignition on.

Set Condition:This code is set immediately if the Seat Memory Module internal self test fails.

Possible Causes

SEAT MEMORY MODULE

Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding.

Diagnostic Test

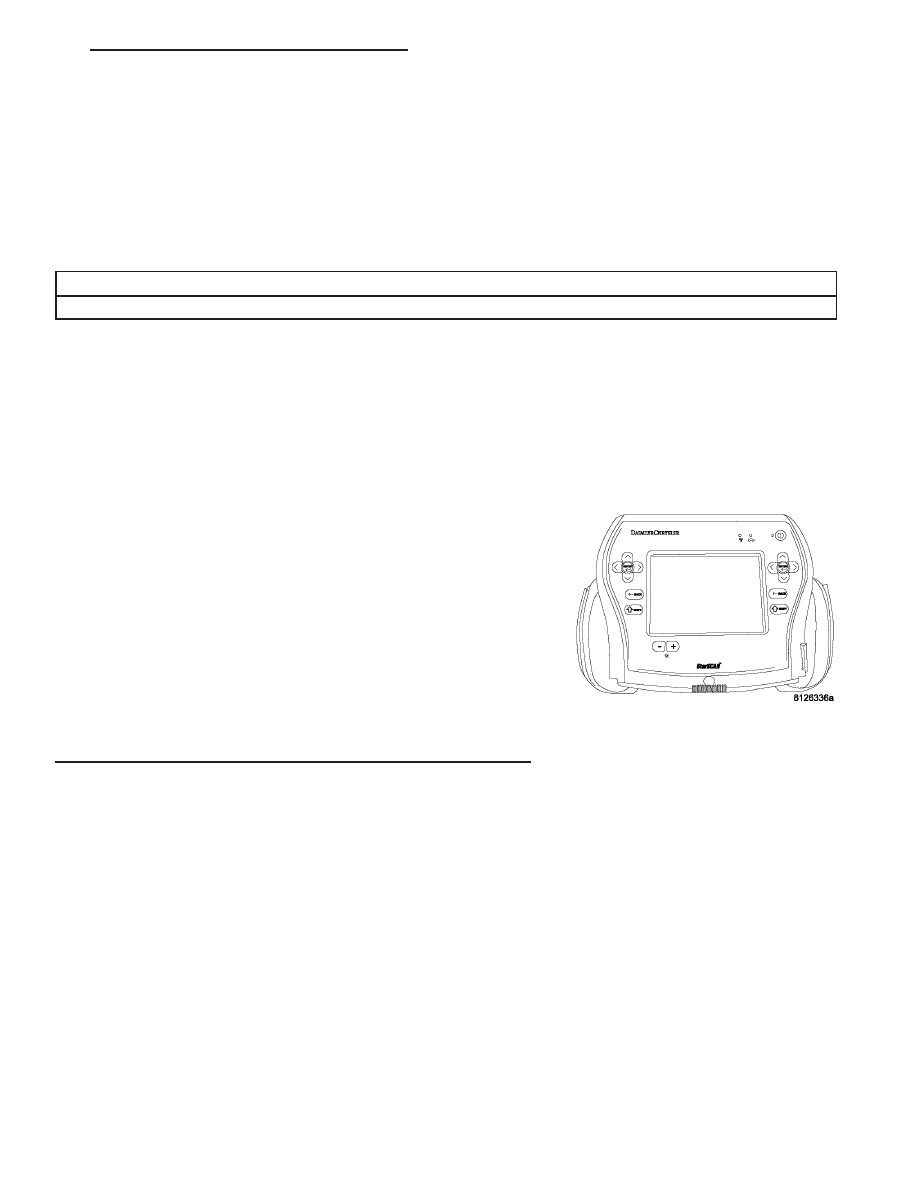

1.

VERIFY THAT DTC B221C- MEMORY SEAT MODULE
INTERNAL IS ACTIVE

With the scan tool, record and erase DTC’s

Cycle the ignition switch off then back on.

With the scan tool, read DTC’s.

Does the DTC B221C-MEMORY SEAT MODULE INTERNAL
reset?

Yes

>> Replace the Seat Memory Module.

Perform POWER SEAT SYSTEM VERIFICATION TEST –
VER 1.

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform POWER SEAT SYSTEM VERIFICATION TEST –
VER 1.

HB

POWER SEATS - ELECTRICAL DIAGNOSTICS

8N - 211

B221C- MEMORY SEAT MODULE INTERNAL

8N - 212

POWER SEATS - ELECTRICAL DIAGNOSTICS

HB

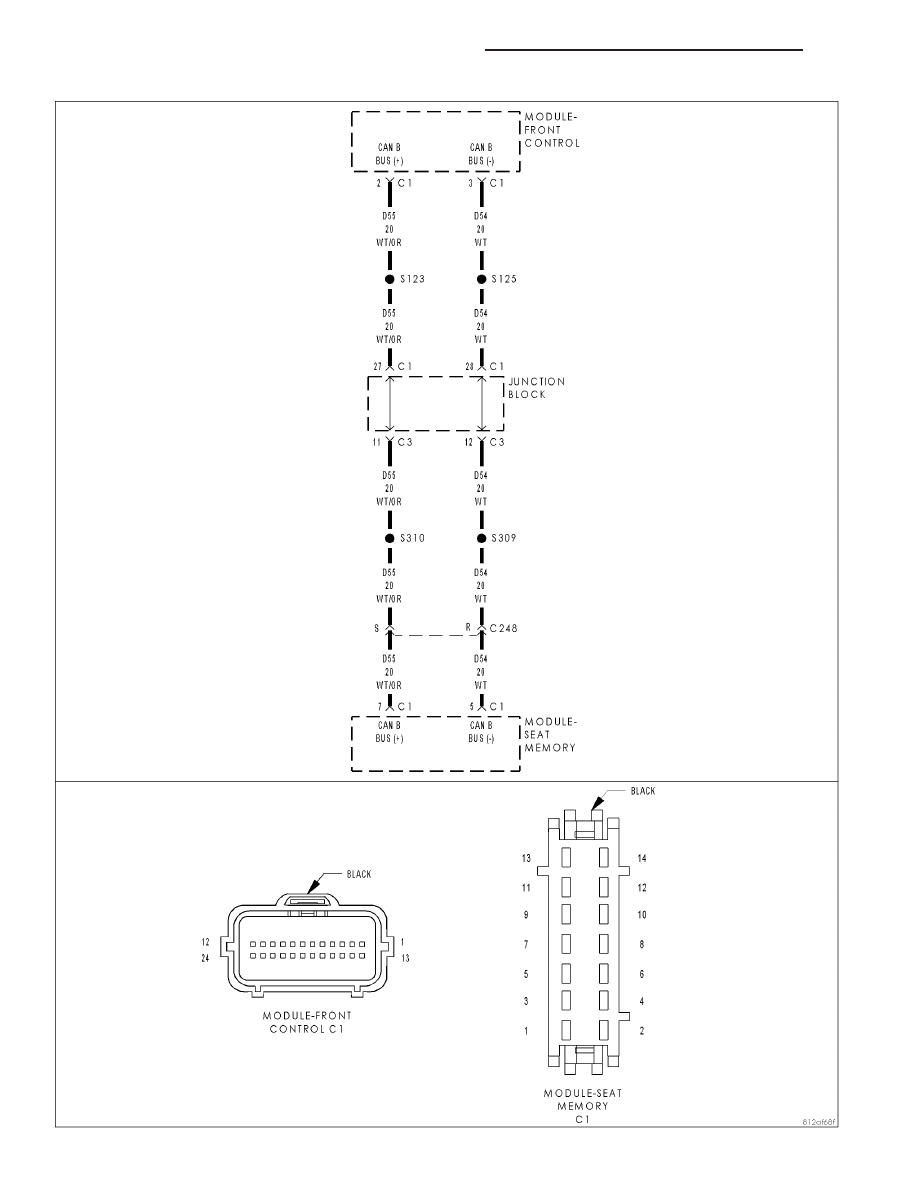

U0020-CAN B BUS OFF PERFORMANCE
