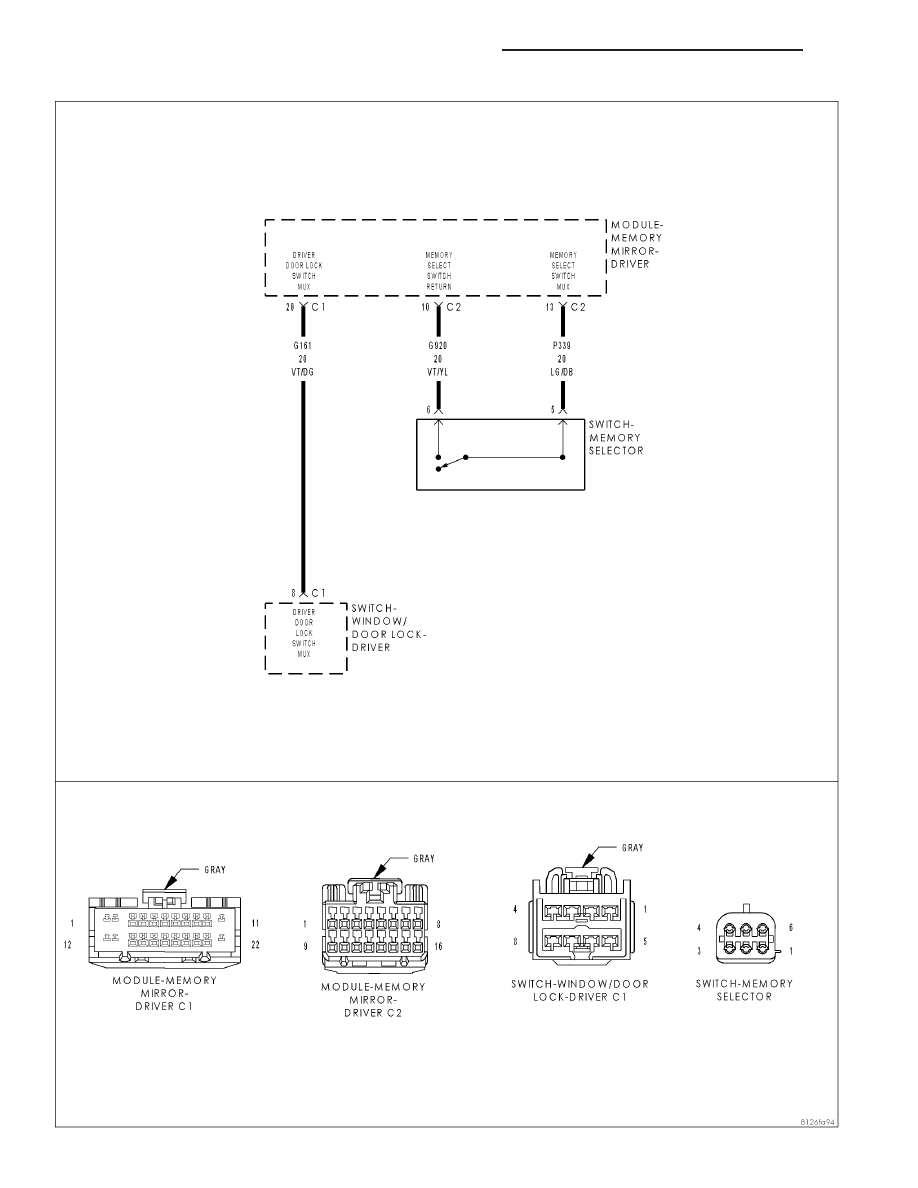

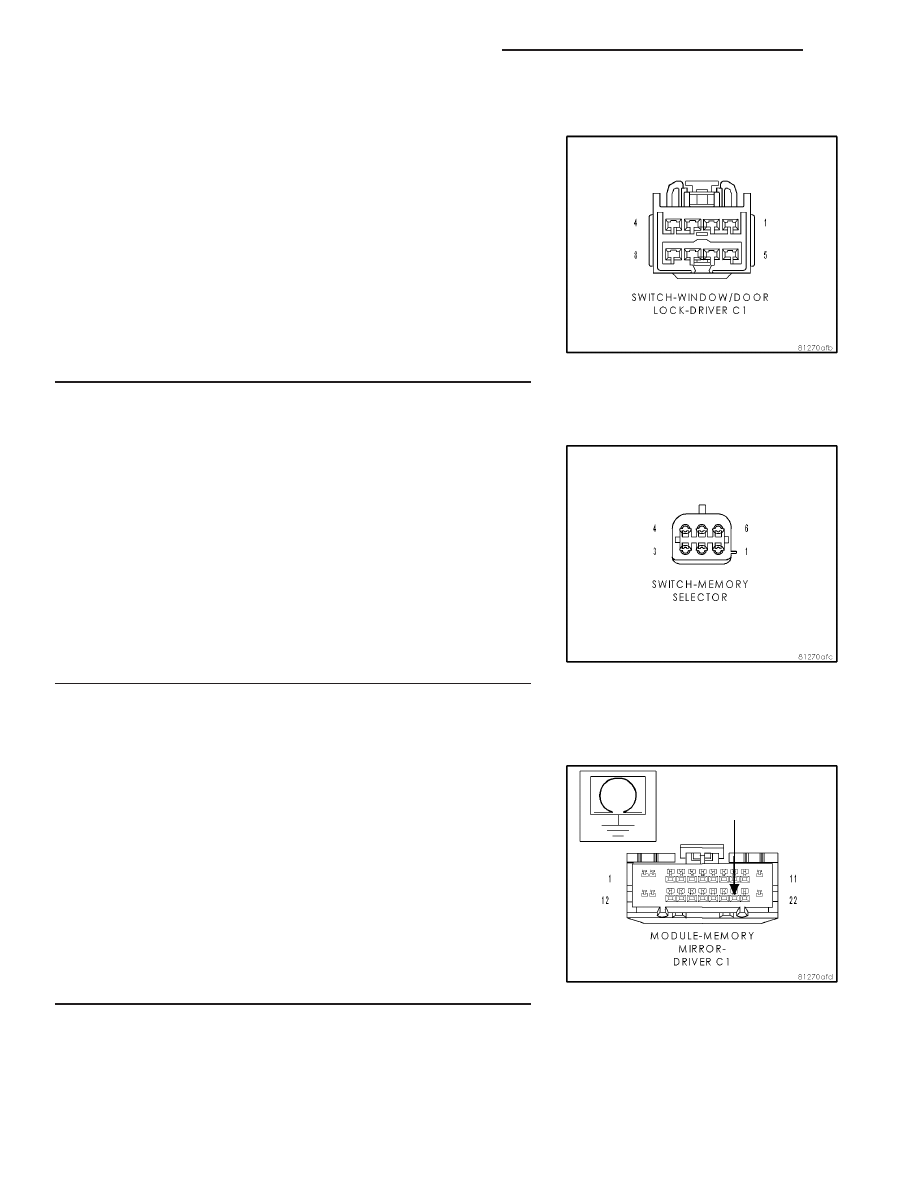

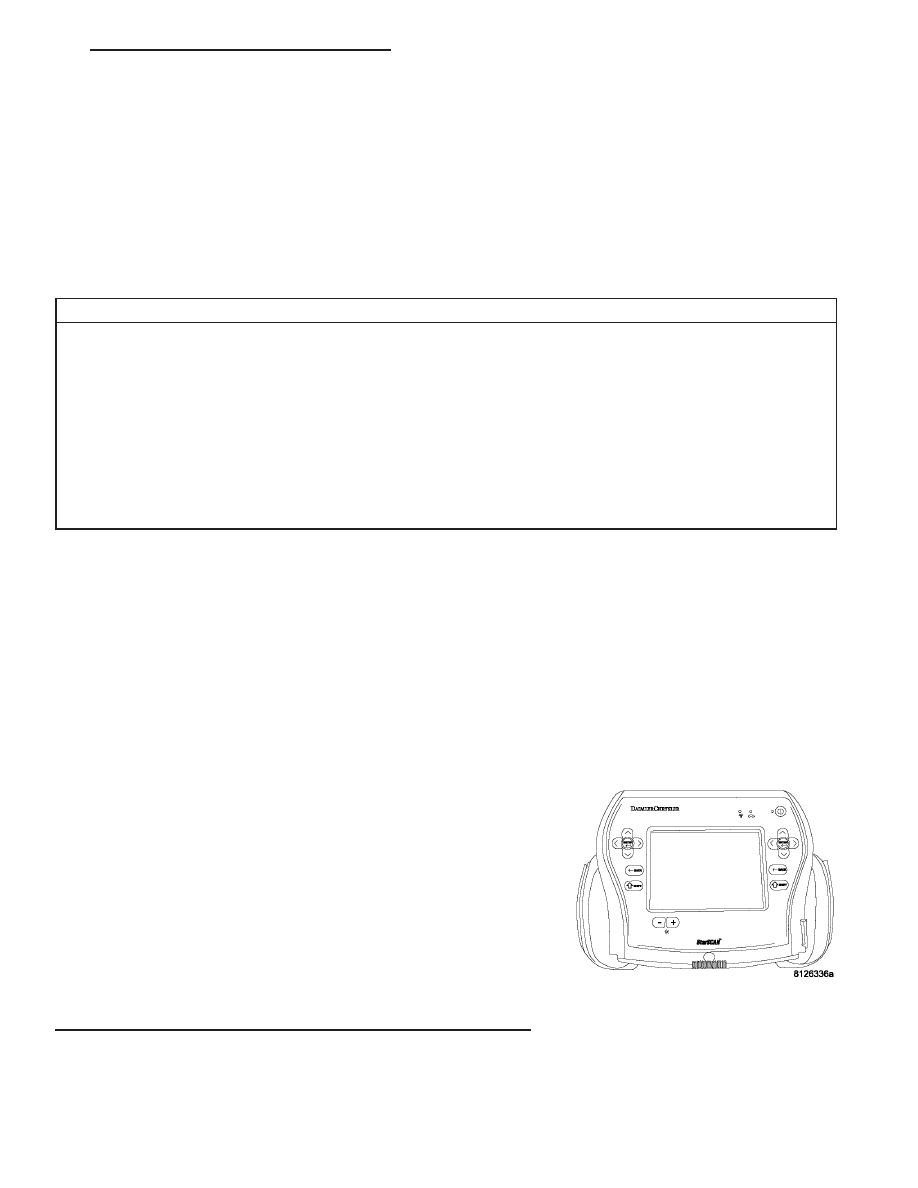

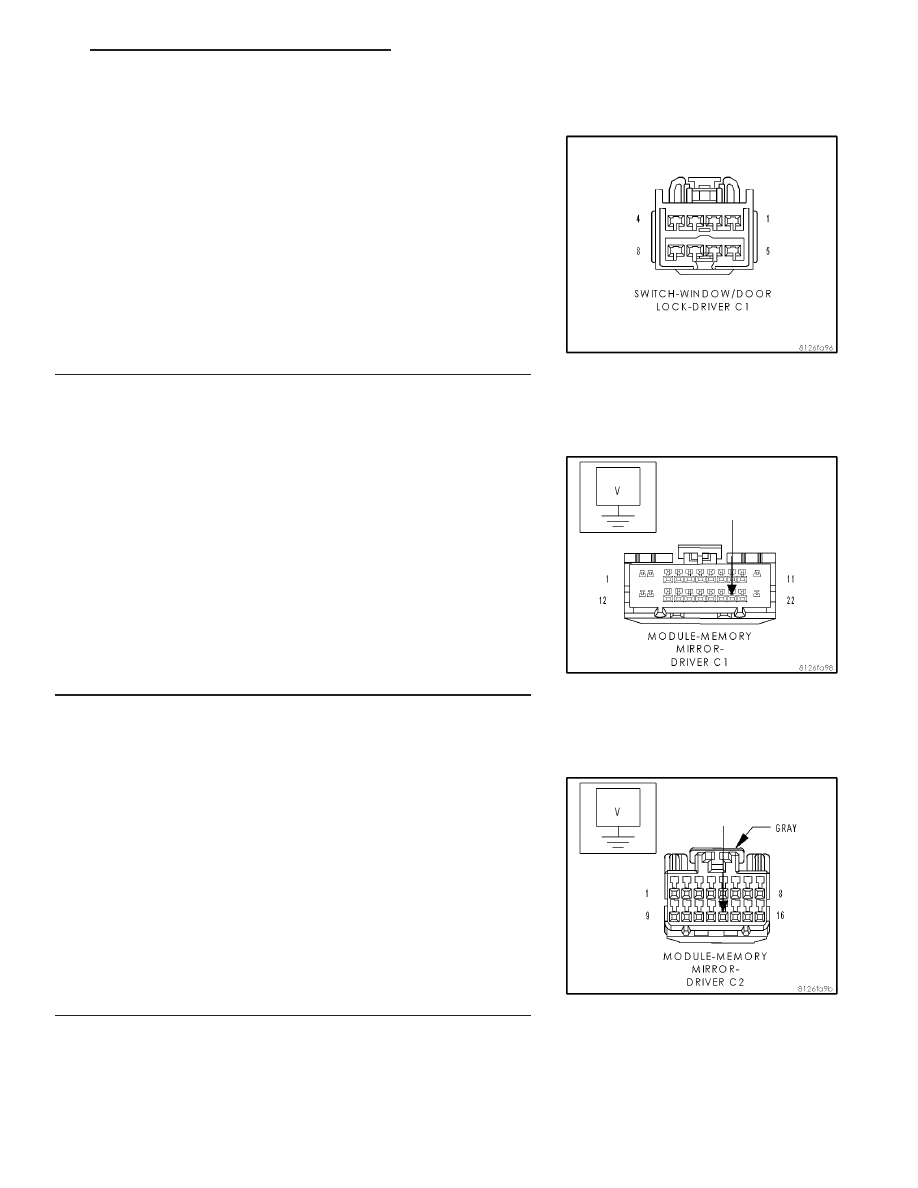

2. DOOR LOCK SWITCH SHORTED TO VOLTAGE With the scan tool, erase DTC’s. Disconnect the Driver Window/Door Lock Switch connector. Turn the ignition on. With the scan tool, read DTC’s. Does the scan tool display MEMORY SWITCH INPUT CIRCUIT No >> Replace the Driver Window/Door Lock Switch. Perform BODY VERIFICATION TEST - VER 1. Yes >> Go to 3 3. (G161) DRIVER DOOR LOCK SWITCH MUX WIRE SHORT TO Disconnect the Driver Memory Mirror Module C1 connector. Measure the voltage of the (G161) Driver Door Lock Switch Mux cir- Is there any voltage present? Yes >> Repair the (G161) Driver Door Lock Switch Mux circuit for a short to voltage. Perform BODY VERIFICATION TEST - VER 1. No >> Go to 4 4. (P339) MEMORY SELECT SWITCH MUX WIRE SHORT TO Disconnect the Driver Memory Mirror Module C2 connector. Measure the voltage of the (P339) Memory Select Switch Mux circuit. Is there any voltage present? Yes >> Repair the (P339) Memory Select Switch Mux wire for a short to voltage. Perform the BODY VERIFICATION TEST - VER 1. No >> Replace the Driver Memory Mirror Module. Perform BODY VERIFICATION TEST - VER 1. HB POWER MIRRORS - ELECTRICAL DIAGNOSTICS 8N - 65 B1D4C-MEMORY SWITCH INPUT CIRCUIT HIGH – MEMORY MIRROR MODULE — (CONTINUED) |
