Dodge Durango (HB). Manual - part 386

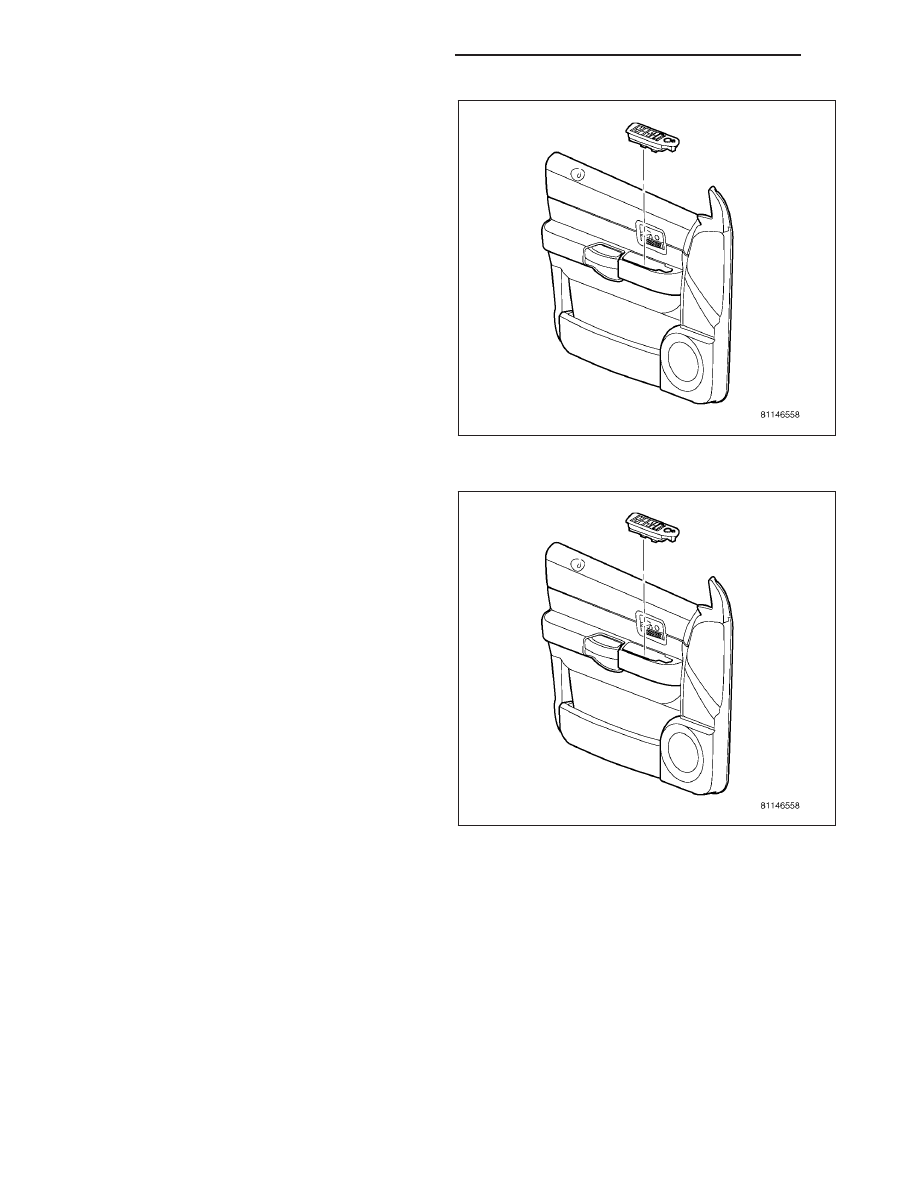

WINDOW/DOOR LOCK SWITCH TEST
POWER LOCK SWITCH
SWITCH POSITION
RESISTANCE BETWEEN C-1 PINS 8 & 3
LOCK
330 OHMS ± 5%
UNLOCK
100 OHMS ± 5%
POWER WINDOW SWITCHES - DRIVER DOOR
SWITCH POSITION
CONTINUITY BETWEEN PINS OF C-1
NEUTRAL
PINS 4 (C1) & 6 (C2)
PINS 4 (C1) & 5 (C2)
PINS 4 (C1) & 1 (C2)
PINS 4 (C1) & 4 (C2)
PINS 4 (C1) & 2 (C2)
LEFT FRONT UP
PINS 2 & 7 (C1)
LEFT FRONT DOWN
PINS 2 & 6 (C1)
RIGHT FRONT UP
PINS 2 (C1) & 6 (C2)
RIGHT FRONT DOWN
PINS 2 (C1) & 5 (C2)
LEFT REAR UP
PINS 2 (C1) & 1 (C2)
LEFT REAR DOWN
PINS 2 (C1) & 4 (C2)
RIGHT REAR UP
PINS 2 (C1) & 2 (C2)
RIGHT REAR DOWN
PINS 2 (C1) & 3 (C2)
POWER WINDOW SWITCH - PASSENGER DOOR
UP
PINS 4 & 3
DOWN
PINS 4 & 2
NEUTRAL
PINS 1 & 2 AND 3 & 8
POWER WINDOW LOCKOUT SWITCH
SWITCH POSITION
CONTINUITY BETWEEN
OFF (SWITCH BUTTON RAISED - NOT DEPRESSED)
PINS 2 AND 5 OF C-1
HB
POWER LOCKS - SERVICE INFORMATION
8N - 57
