Dodge Durango (HB). Manual - part 377





For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Continuously

Set Condition:
When the Cluster senses an Unlock input on the Passeenger Door Lock Switch Mux circuit for over 30
seconds, this code will set.

Possible Causes

DOOR LOCK SWITCH STUCK

(G160) PASSENGER DOOR LOCK SWITCH MUX CIRCUIT PARTIAL SHORT TO GROUND

INSTRUMENT CLUSTER

Theory of Operation

This code will only set in Cluster in vehicles that do not have the Memory System.

Diagnostic Test

1.

TEST FOR INTERMITTENT CONDITION

With the scan tool, record and erase DTC’s

Operate the Passenger Door Lock Switch in all positions several
times.

Cycle the ignition from on to off 3 times.

Turn the ignition on.

With the scan tool, read DTC’s.

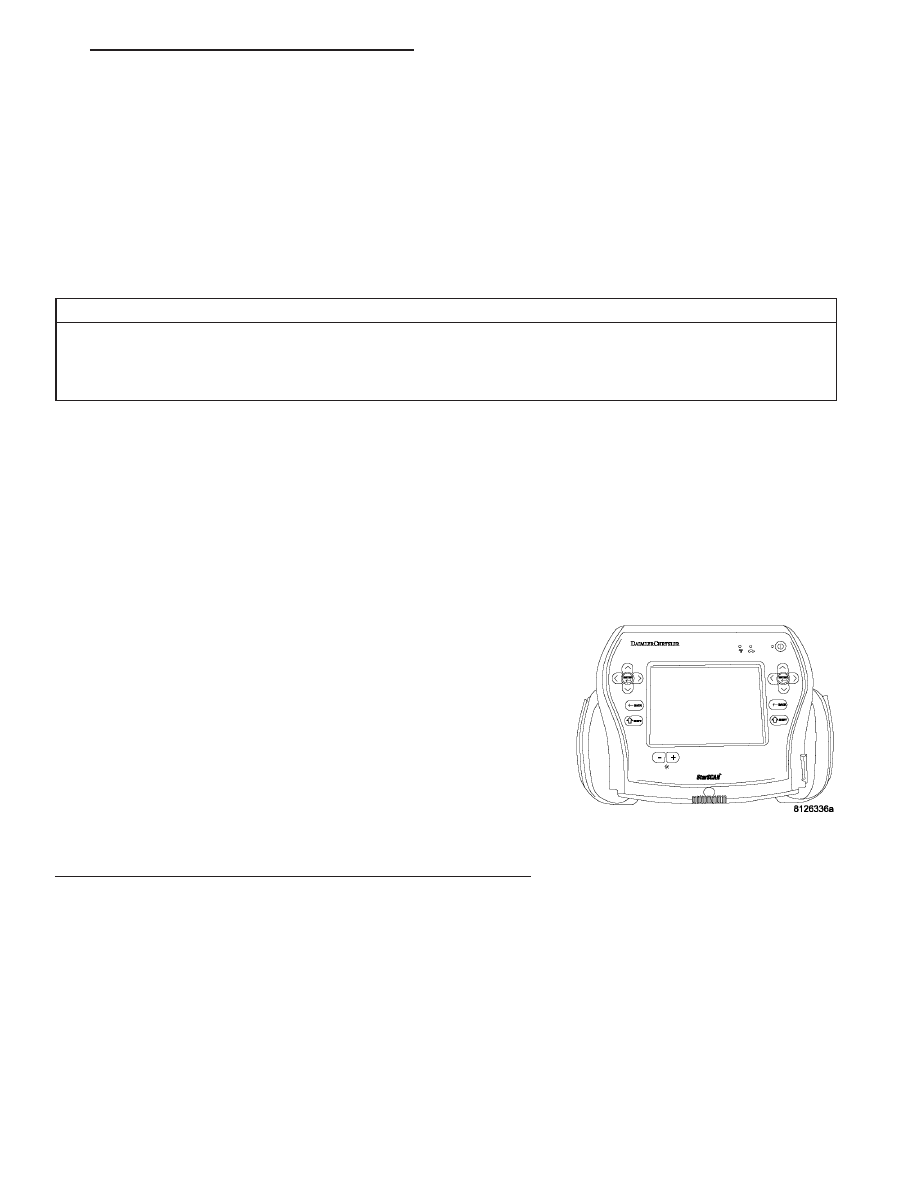

Does the scan tool display PASSENGER DOOR LOCK/UNLOCK
SWITCH INPUT STUCK LOCK?

Yes

>> Go To 2

No

>> The conditions that caused this code to set are not

present at this time. Using the wiring diagram/schematic
as a guide, inspect the wiring and connectors.

Perform BODY VERIFICATION TEST - VER 1.

HB

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 21

B1809–PASSENGER DOOR LOCK/UNLOCK SWITCH INPUT STUCK LOCK— CLUSTER — (CONTINUED)

2.

DOOR LOCK SWITCH SHORTED

With the scan tool, erase DTC’s.

Disconnect the Passenger Window/Door Lock Switch connector.

With the scan tool, read DTC’s.

Does the scan tool display PASSENGER DOOR LOCK/UNLOCK
SWITCH INPUT STUCK UNLOCK?

No

>> Replace the Passenger Window/Door Lock Switch.

Perform BODY VERIFICATION TEST - VER 1.

Yes

>> Go To 3

3.

(G160) PASSENGER DOOR LOCK SWITCH MUX CIRCUIT
PARTIAL SHORT TO GROUND

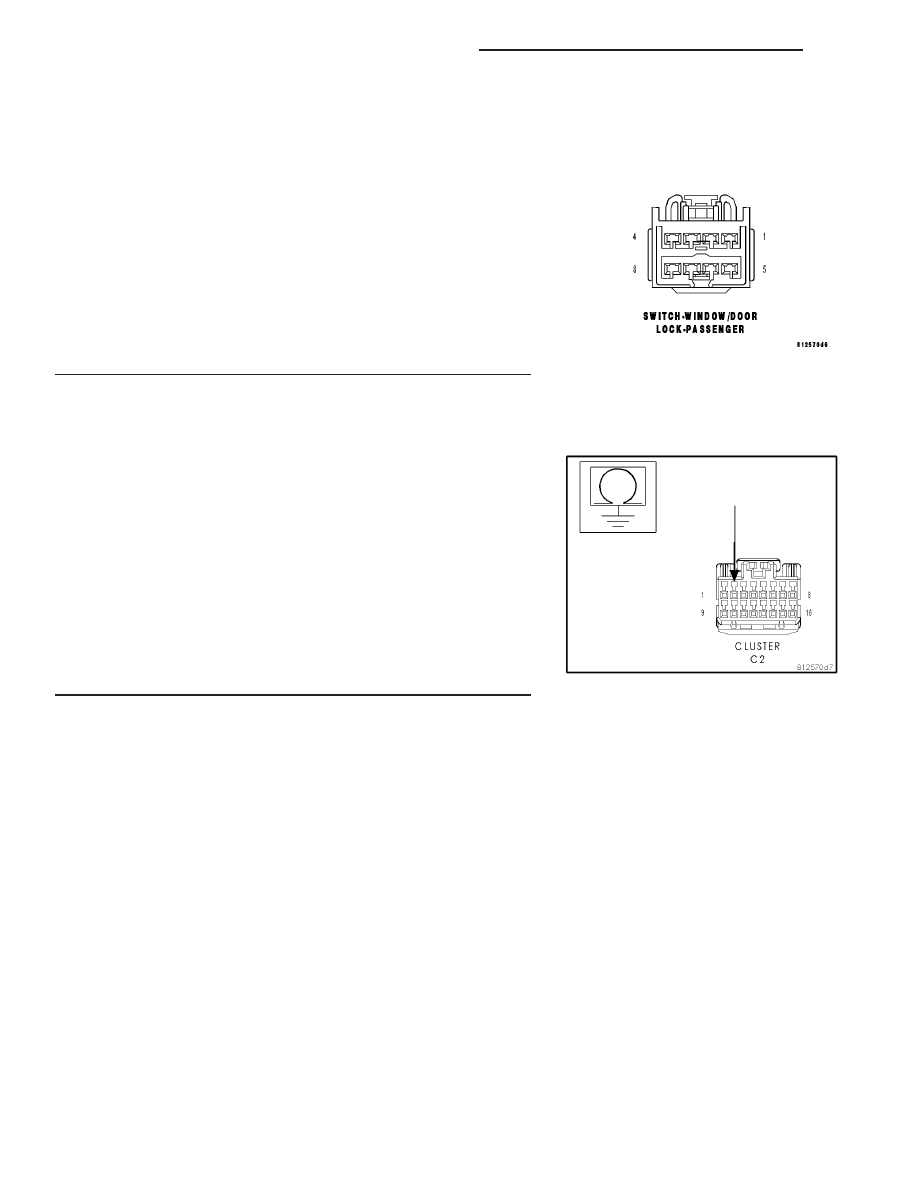

Disconnect the Cluster C2 connector.

Measure the resistance between ground and the (G160) Passenger
Door Lock Switch Mux circuit.

Is the resistance below 10000.0 ohms?

Yes

>> Repair the (G160) Passenger Door Lock Switch Mux cir-

cuit for a short to ground.

Perform BODY VERIFICATION TEST - VER 1.

No

>> Replace the Instrument Cluster.

Perform BODY VERIFICATION TEST - VER 1.

8N - 22

POWER LOCKS - ELECTRICAL DIAGNOSTICS

HB

B1809–PASSENGER DOOR LOCK/UNLOCK SWITCH INPUT STUCK LOCK— CLUSTER — (CONTINUED)

HB

POWER LOCKS - ELECTRICAL DIAGNOSTICS

8N - 23

B182D-ALL DOOR LOCK OUTPUT CIRCUIT SHORTED TO GROUND — CLUSTER

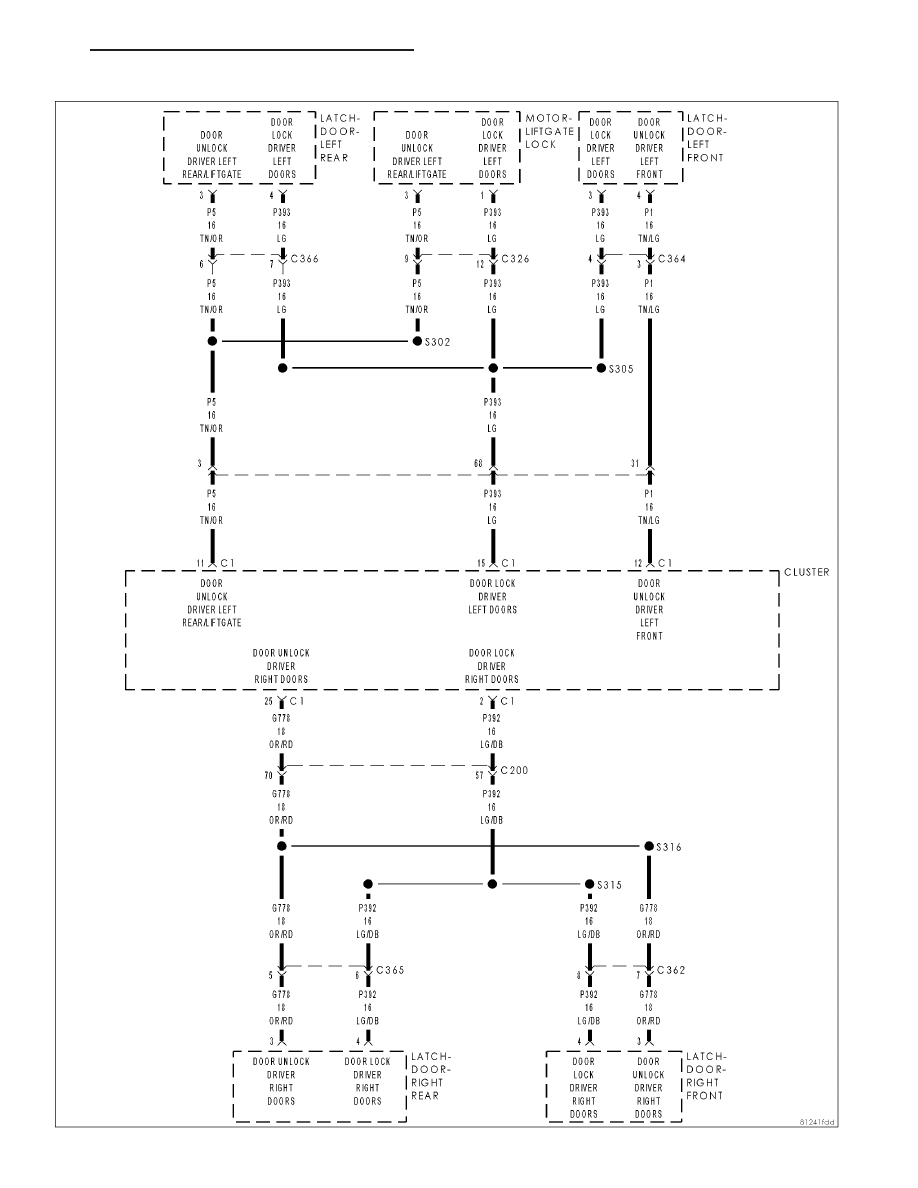

For the Power Door Lock circuit diagram (Refer to 8 - ELECTRICAL/POWER LOCKS - SCHEMATICS AND DIA-
GRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
Whenever the cluster is awake.

Set Condition:
The cluster monitors the door lock output circuits and when one of them is shorted to ground, this code
will set. This DTC will only set when the door locks are actuated.

Possible Causes

(P392) DOOR LOCK DRIVER RIGHT DOORS CIRCUIT SHORT TO GROUND

(P393) DOOR LOCK DRIVER LEFT DOORS CIRCUIT SHORT TO GROUND

(P392) DOOR LOCK DRIVER RIGHT DOORS SHORT TO (G778) DOOR UNLOCK DRIVER RIGHT DOORS

(P393) DOOR LOCK DRIVER LEFT DOORS SHORT TO (P5) DOOR UNLOCK DRIVER LEFT REAR/LIFTGATE

(P393) DOOR LOCK DRIVER LEFT DOORS SHORT TO (P1) DOOR UNLOCK DRIVER LEFT FRONT

CLUSTER

Theory of Operation

The Door Lock Driver Right Doors circuit and the Door Lock Driver Left Doors circuits are connected together inside
the module. Therefore any circuit that is connected to either one can set this code.

Diagnostic Test

1.

CHECK FOR ACTIVE DTC B182D-ALL DOOR LOCK OUTPUT
CIRCUIT SHORTED TO GROUND

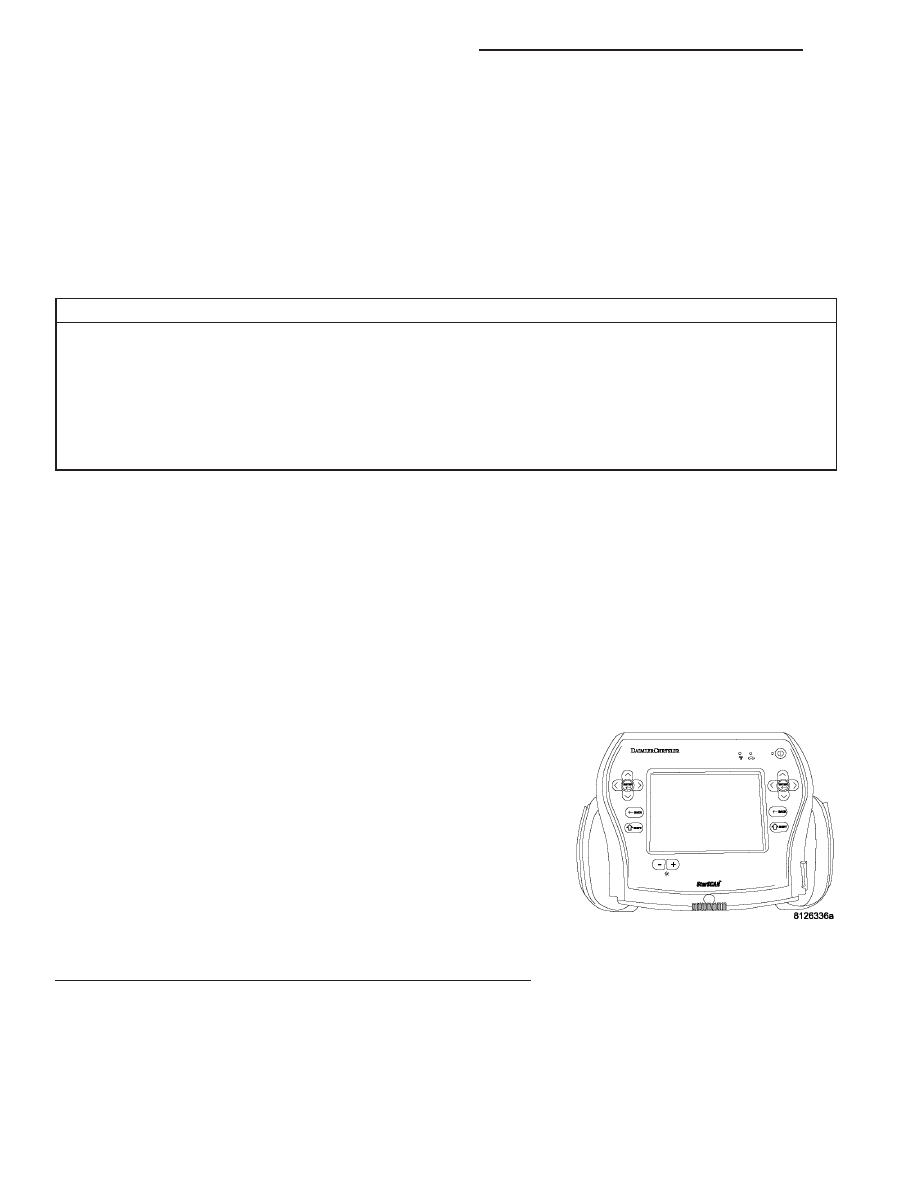

Turn the ignition on.

With the scan tool, record and erase DTC’s.

Turn the ignition off, wait 10 seconds then turn the ignition on.

Try to operate the door locks several times.

With the scan tool, read active DTC’s.

Does the scan tool display: B182D-ALL DOOR LOCK OUTPUT
CIRCUIT SHORTED TO GROUND

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present

at this time. Using the wiring diagram/schematic as a
guide, inspect the wiring and connectors for an intermittent
condition. Operate the system several times and recheck
for active DTC’s.

8N - 24

POWER LOCKS - ELECTRICAL DIAGNOSTICS

HB

B182D-ALL DOOR LOCK OUTPUT CIRCUIT SHORTED TO GROUND — CLUSTER — (CONTINUED)
