Dodge Durango (HB). Manual - part 365





For the Compass Temperature Module circuit diagram (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER -
SCHEMATICS AND DIAGRAMS).

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
The Compass Temperature Module does not receive the configuration information from the Front Control
Module.

POSSIBLE CAUSES

NO COMMUNICATION WITH FRONT CONTROL MODULE

ACTIVE FCM DTCs

COMPASS TEMPERATURE MODULE

Diagnostic Test

1.

TEST FOR AN INTERMITTENT CONDITION

Turn the ignition on.

With the scan tool, record and erase any Compass Temperature Mod-
ule DTCs.

Turn the ignition off, wait 10 seconds then turn the ignition on.

With the scan tool, read DTCs.

Does the scan tool display: B222D - ECU UNABLE TO CONFIG-
URE / CONFIGURATION NOT LEARNED?

Yes

>> Go To 2

No

>> The condition that caused this code to set is not present

at this time. Using the wiring diagram as a guide, inspect
the wiring and connectors for an intermittent condition.
Operate the system several times and recheck for active
DTCs.

Perform the BODY VERIFICATION TEST-VER 1.

HB

OVERHEAD CONSOLE - ELECTRICAL DIAGNOSTICS

8M - 13

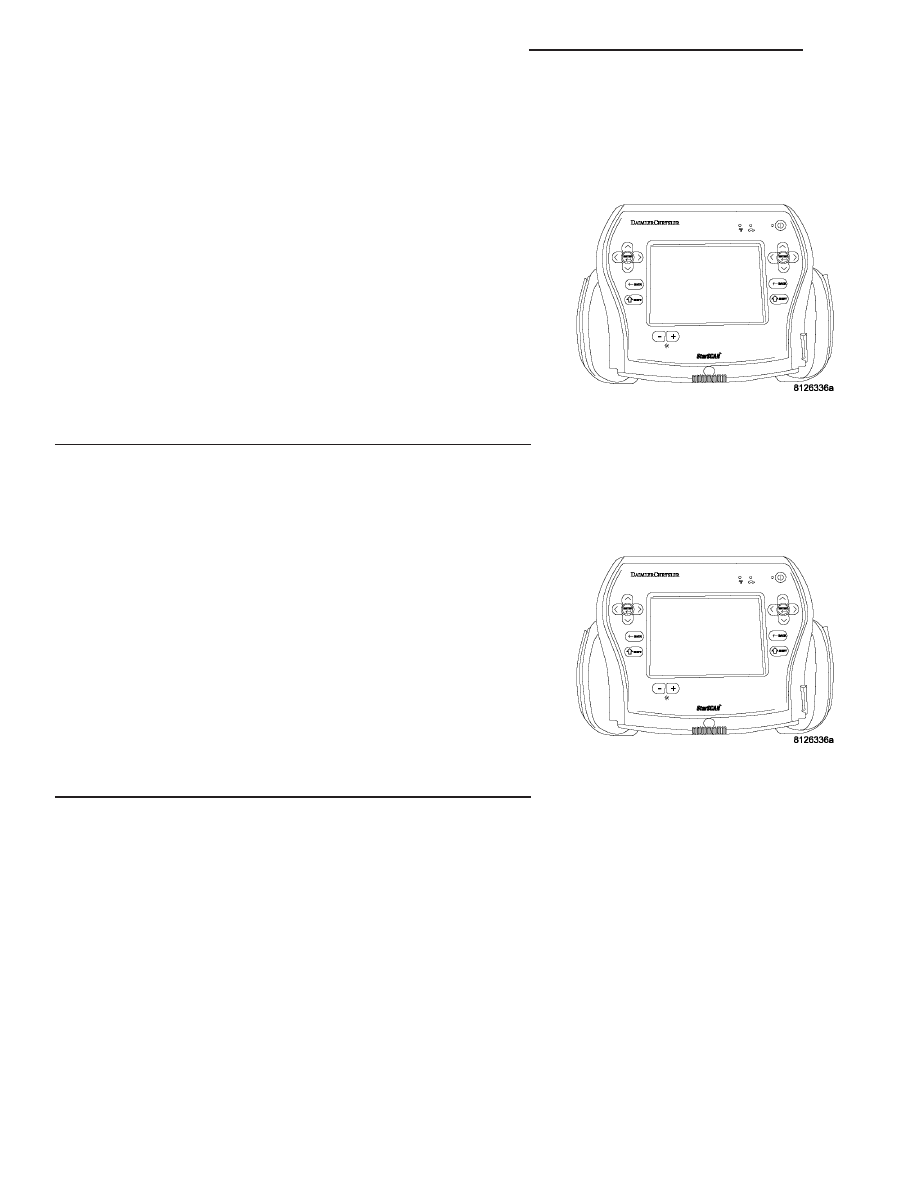

B222D - ECU UNABLE TO CONFIGURE / CONFIGURATION NOT LEARNED

2.

CHECK COMPASS TEMPERATURE MODULE BUSSED
INPUTS

If equipped with Automatic Temperature Control, use the scan tool in
Data Display and check the Automatic Temperature Control State in
the Compass Temperature Module.

Does the scan tool display “Automatic Temperature Control-
ON” in the Compass Temperature Module Data Display?

Yes

>> Replace the Compass Temperature Module in accordance

to the Service Information.

Perform the BODY VERIFICATION TEST-VER 1.

No

>> Go To 3

3.

VERIFY COMMUNICATION WITH FRONT CONTROL MODULE

With the scan tool in ECU VIEW, read active modules on the bus.

Does the scan tool show the Front Control Module active on
the bus?

Yes

>> Go To 4

No

>> Refer to the Communication category for the related

symptoms.

Perform the BODY VERIFICATION TEST VER 1.

8M - 14

OVERHEAD CONSOLE - ELECTRICAL DIAGNOSTICS

HB

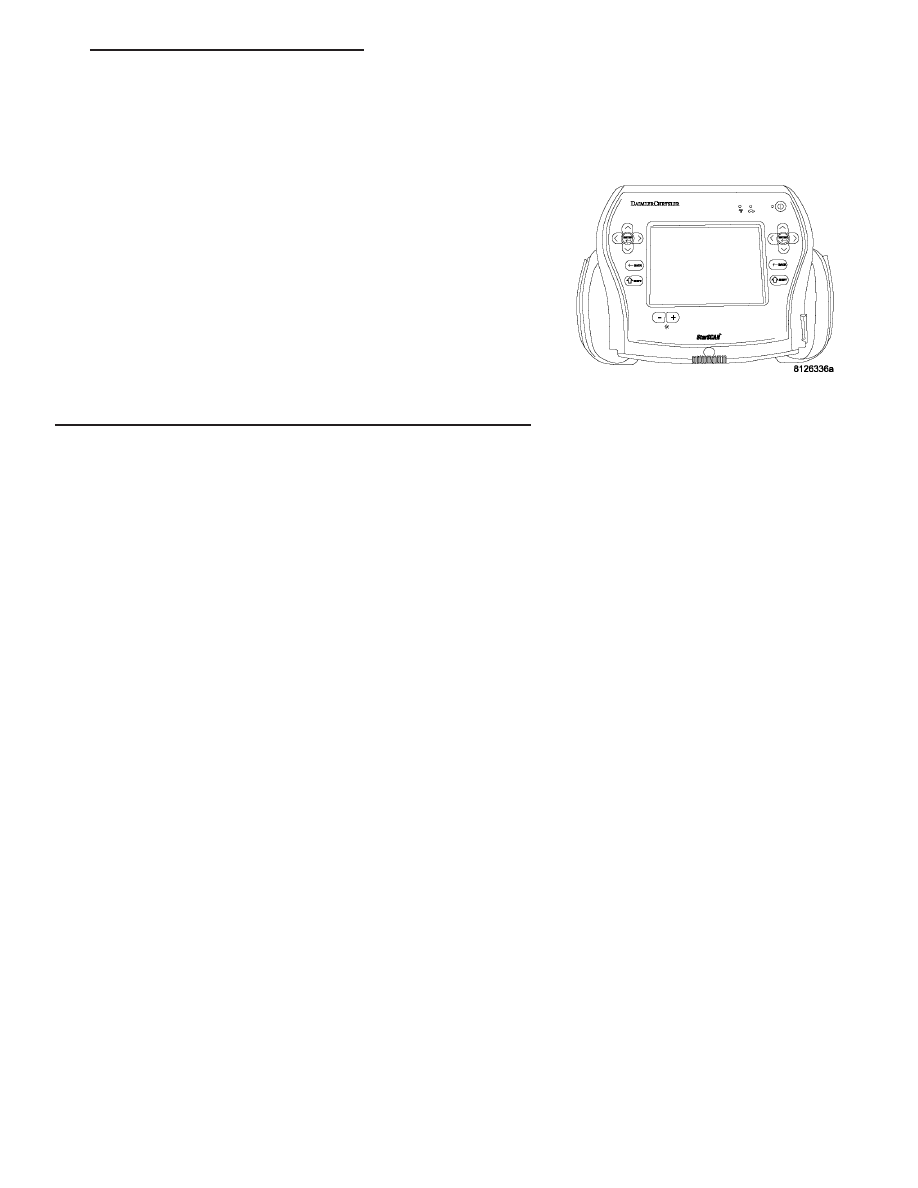

B222D - ECU UNABLE TO CONFIGURE / CONFIGURATION NOT LEARNED — (CONTINUED)

4.

CHECK FRONT CONTROL MODULE FOR ACTIVE DTCs

With the scan tool, erase FCM DTCs.

Turn the ignition off. Wait approximately 10 seconds.

Turn the ignition on.

With the scan tool, read FCM DTCs.

Are any active DTCs present?

Yes

>> Refer to symptom list for problems related to the Front

Control Module.

Perform the BODY VERIFICATION TEST VER 1.

No

>> Replace the Front Control Module in accordance with the

Service Information.

Perform the BODY VERIFICATION TEST-VER.1

HB

OVERHEAD CONSOLE - ELECTRICAL DIAGNOSTICS

8M - 15

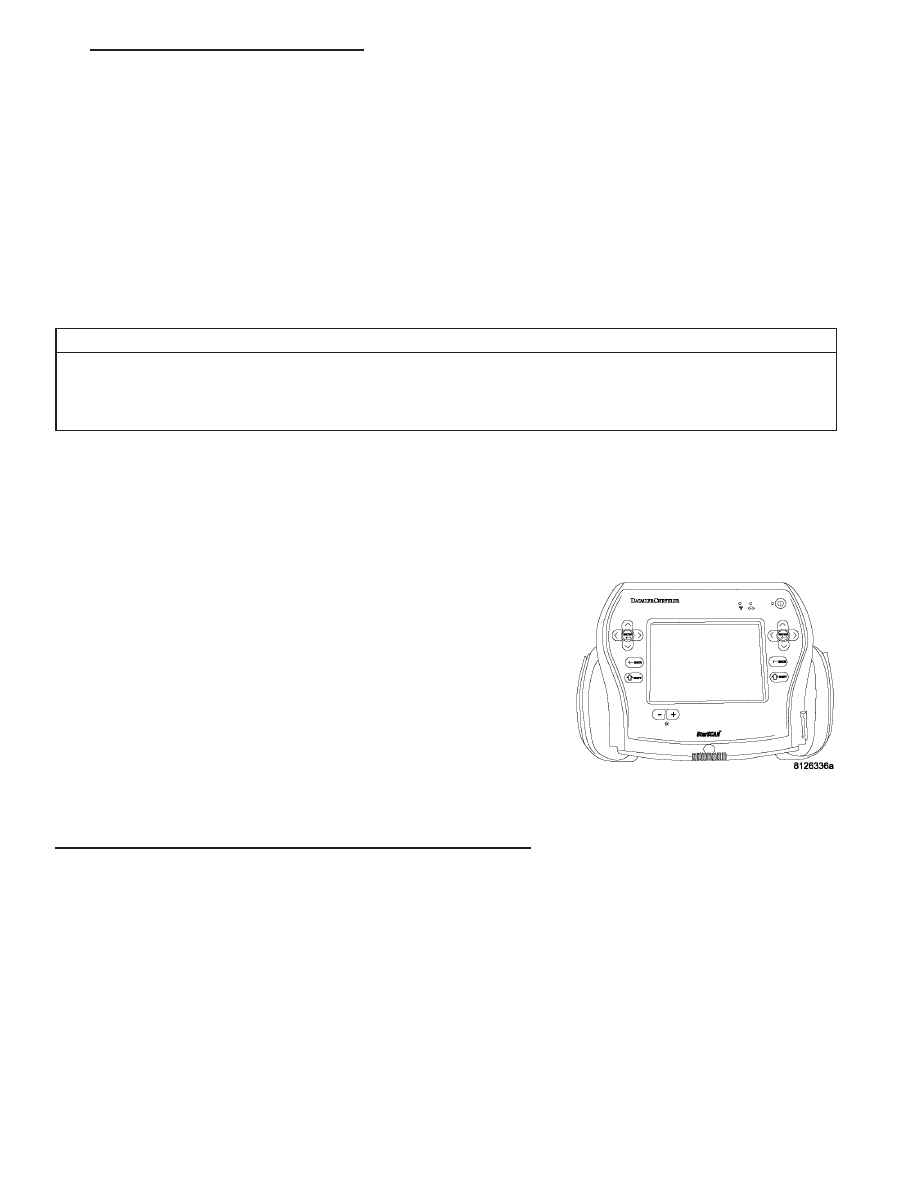

B222D - ECU UNABLE TO CONFIGURE / CONFIGURATION NOT LEARNED — (CONTINUED)

For a complete wiring diagram Refer to Section 8W.

When Monitored:
With the ignition on.

Set Condition:
TBD

Diagnostic Test

1.

PERFORM THE VEHICLE DEMAGNITIZING PROCEDURE

Note: A blank compass display indicates that vehicle degaussing
is required.

Note: After demagnitizing, the vehicle will enter Auto Fast-Cal
when the ignition is turned on.

Note: Ensure that the correct compass variance is stored in the
compass memory. See “Setting Compass Variance in the Service
Information.”
Refer to the Service Information for the Compass Demagnitizing Stan-
dard Procedure.

View repair.

Repair

When the Demagnitizing Procedure is complete, perform
the Verification Test.

Perform the BODY VERIFICATION TEST-VER1.

8M - 16

OVERHEAD CONSOLE - ELECTRICAL DIAGNOSTICS

HB

B2331–VEHICLE NEEDS DEGAUSSED
