LAMP - FRONT

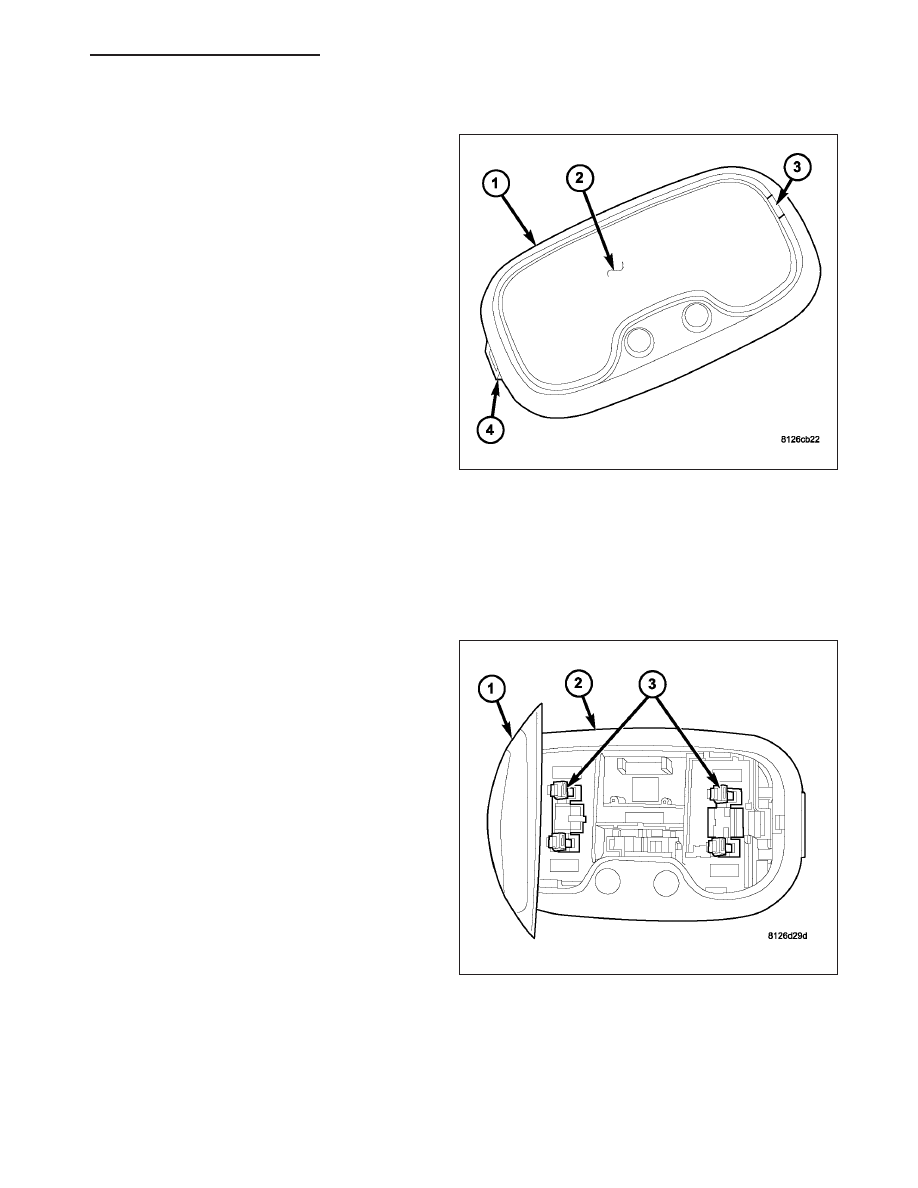

1. Position the dome lamp unit (1) to the mounting

hole in the headliner.

2. Reconnect the wire harness connector to the con-

nector on the back of the lamp.

3. Insert the fixed retainer on the notched end (3) of

the lamp housing up into one side of the mounting
hole in the headliner.

4. Slide the notched end of the housing into the

mounting hole far enough to engage the lens
hinge/retainer (4) into the opposite side of the hole
in the headliner.

5. Gently and evenly press the lens hinge/retainer

end of the lamp upward into the mounting hole until
the bezel of the lamp housing is flush with the
headliner.

6. Swing the notched end of the lamp lens (2) up into

position against the lamp housing, then press
upward on the lens firmly and evenly until it snaps
into the housing.

7. Reconnect the battery negative cable.

BULB - REAR WITH OVERHEAD CONSOLE

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

1. With the dome lamp lens (1) in the open position,

align the ends of the bulb (3) with the two bulb
holders within the rear dome lamp housing (2).

2. Carefully press the bulb firmly and evenly into the

bulb holders until it snaps into place.

3. Reinstall the rear dome lamp unit into the head-

liner. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING
- INTERIOR/REAR DOME LAMP UNIT - INSTAL-
LATION).

4. Reconnect the battery negative cable.

BULB - REAR EXCEPT WITH OVERHEAD CONSOLE

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

HB

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 151

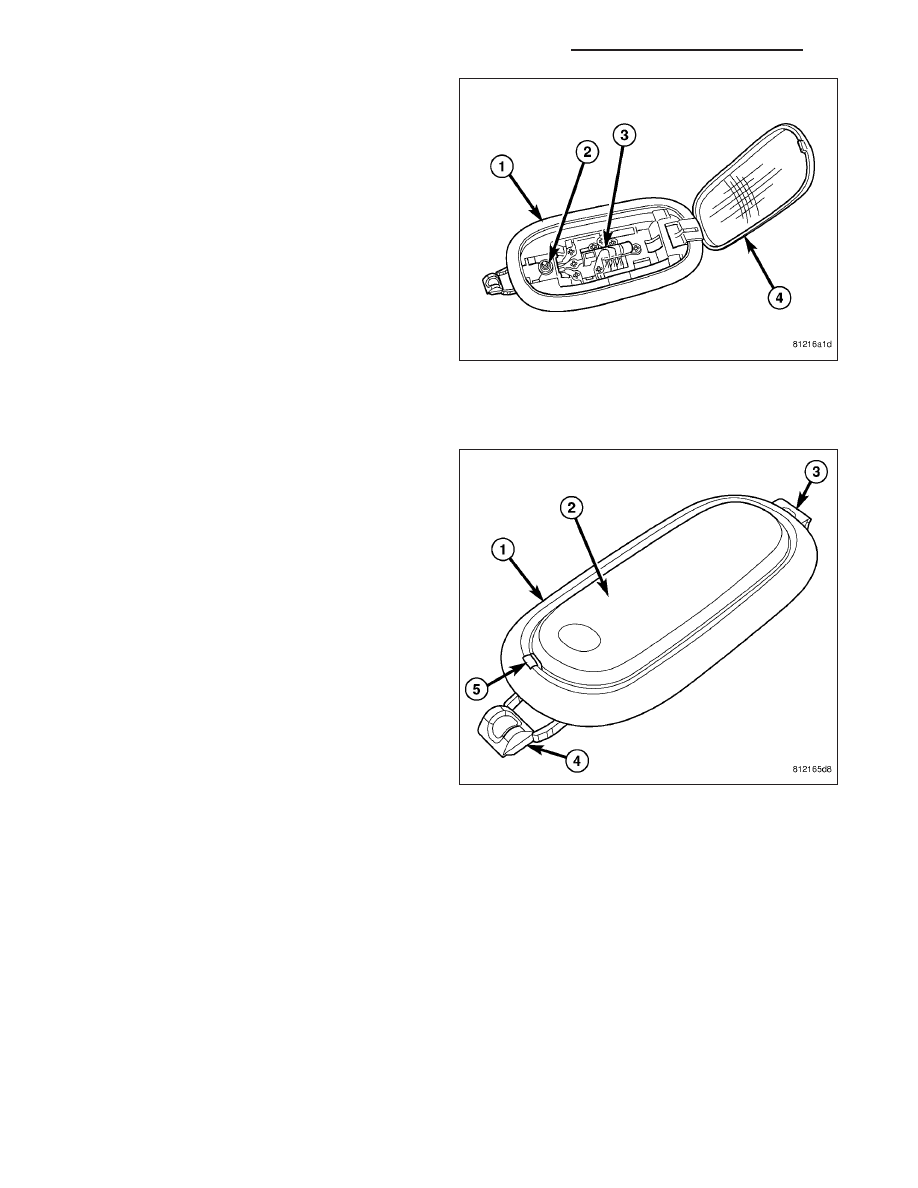

1. Align the ends of the bulb (3) with the two bulb

holders within the rear dome lamp housing (1).

2. Carefully press the bulb firmly and evenly into the

bulb holders until it snaps into place.

3. Swing the notched end of the lens (4) up into posi-

tion against the housing, then press upward on the
lens firmly and evenly until it snaps into the hous-
ing.

4. Reconnect the battery negative cable.

LAMP - REAR EXCEPT WITH OVERHEAD CONSOLE

1. Position the dome lamp unit (1) to the mounting

hole in the headliner.

2. Reconnect the wire harness connector to the con-

nector on the back of the lamp.

3. Insert the fixed retainer on the notched end (4) of

the lamp housing up into one side of the mounting
hole in the headliner.

4. Slide the notched end of the housing into the

mounting hole far enough to engage the lens
hinge/retainer (3) into the opposite side of the hole
in the headliner.

5. Gently and evenly press the lens hinge/retainer

end of the lamp into the mounting hole until the
bezel of the lamp housing is flush with the head-
liner.

6. Swing the notched end of the lamp lens (2) into

position against the lamp housing, then press on
the lens firmly and evenly until it snaps into the
housing.

7. Reconnect the battery negative cable.

8L - 152

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

HB

LAMP - REAR WITH OVERHEAD CONSOLE

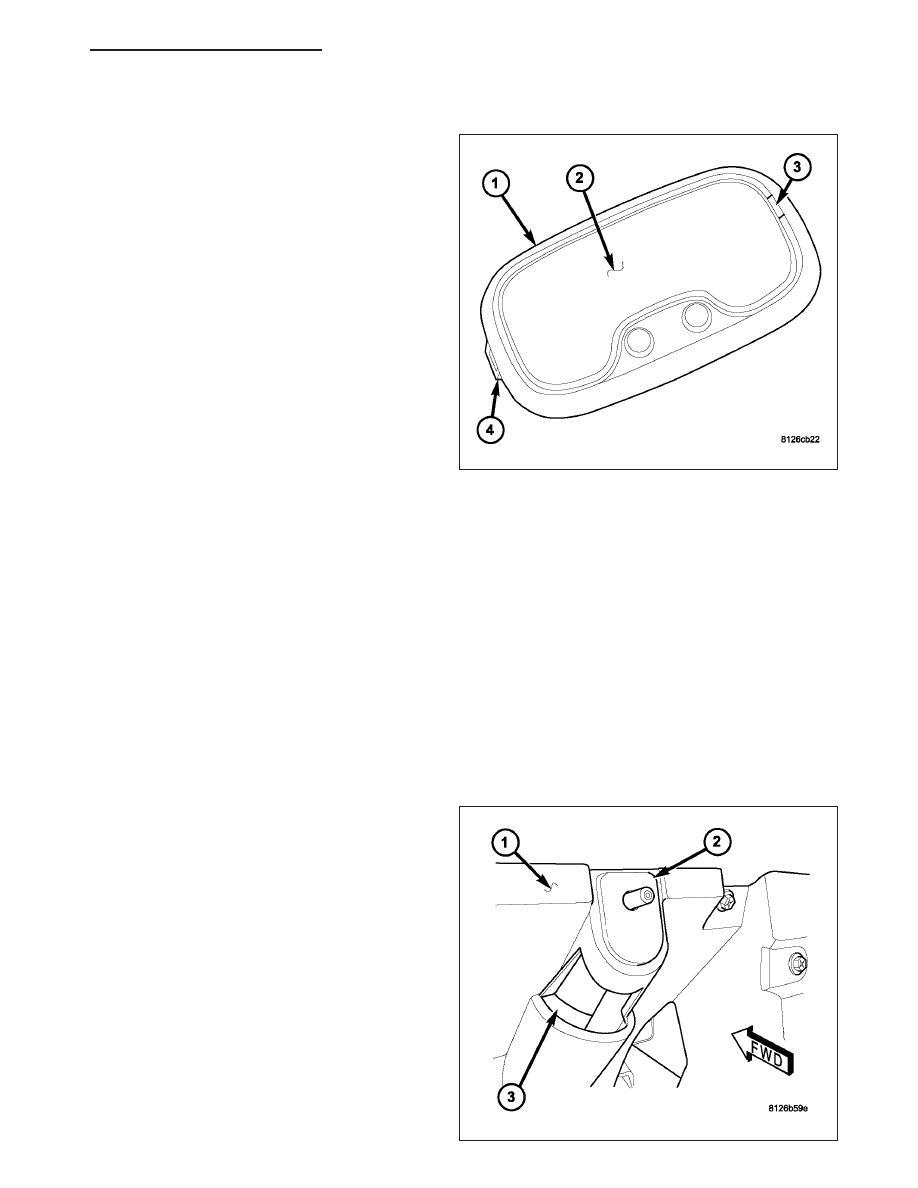

1. Position the dome lamp unit (1) to the mounting

hole in the headliner.

2. Reconnect the wire harness connector to the con-

nector on the back of the lamp.

3. Insert the fixed retainer on the notched end (3) of

the lamp housing up into one side of the mounting
hole in the headliner.

4. Slide the notched end of the housing into the

mounting hole far enough to engage the lens
hinge/retainer (4) into the opposite side of the hole
in the headliner.

5. Gently and evenly press the lens hinge/retainer

end of the lamp upward into the mounting hole until
the bezel of the lamp housing is flush with the
headliner.

6. Swing the notched end of the lamp lens (2) up into

position against the lamp housing, then press
upward on the lens firmly and evenly until it snaps
into the housing.

7. Reconnect the battery negative cable.

GLOVE BOX LAMP/SWITCH

REMOVAL

BULB

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

1. Disconnect and isolate the battery negative cable.

2. Remove the glove box from the instrument panel.

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

GLOVE BOX - REMOVAL).

3. Reach through the window (3) in the instrument

panel glove box opening (1) to access the bulb on
the lower side of the glove box lamp and switch
unit (2).

4. Pull the base of the bulb straight out of the bulb

holder.

HB

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

8L - 153

LAMP/SWITCH

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

1. Disconnect and isolate the battery negative cable.

2. Remove the glove box from the instrument panel.

(Refer

to

23

-

BODY/INSTRUMENT

PANEL/

GLOVE BOX - REMOVAL).

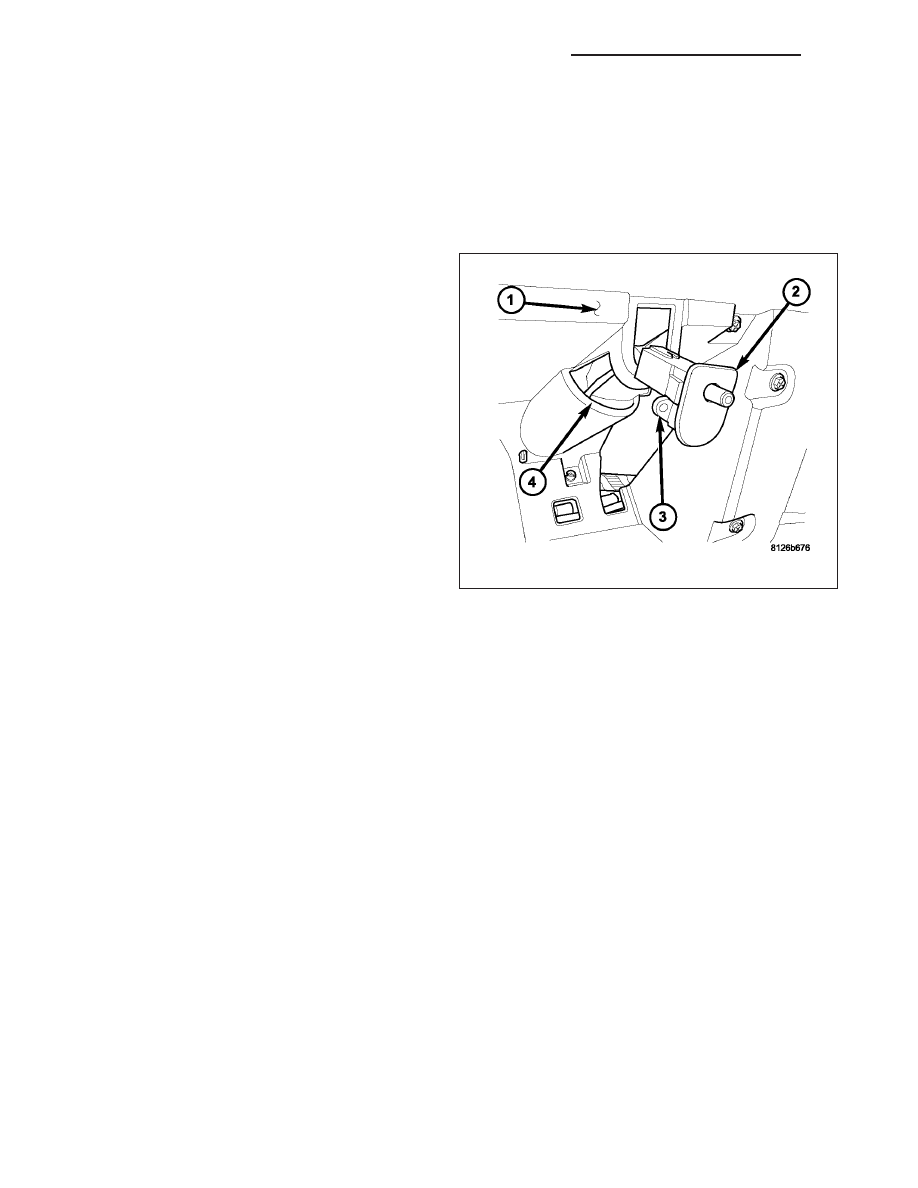

3. Reach through the window (4) in the instrument

panel (1) to access and depress the retaining latch
on either side of the glove box lamp and switch
unit (2).

4. While holding the retaining latch depressed, push

the glove box lamp and switch unit out through the
mounting hole in the face of the instrument panel.

5. Disconnect the wire harness connector from the

glove box lamp and switch.

6. Remove the lamp and switch unit from the instru-

ment panel.

INSTALLATION

BULB

WARNING: To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental
restraint system before attempting any steering wheel, steering column, airbag, occupant classification sys-
tem, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect
and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge
before performing further diagnosis or service. This is the only sure way to disable the supplemental
restraint system. Failure to take the proper precautions could result in accidental airbag deployment.

CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may
overheat and cause damage to the lamp, the socket and/or the lamp wiring.

8L - 154

LAMPS/LIGHTING - INTERIOR - SERVICE INFORMATION

HB
