zero. The interior lighting remains illuminated until the ignition switch is turned to the Off position, at which time
the interior lighting returns to normal operation and control. These Enhanced Accident Response System
(EARS) features are each dependent upon a functional vehicle electrical system following the vehicle impact
event.

Exterior Lighting Control - The EMIC provides electronic head lamp and/or park lamp request messages to
the Front Control Module (FCM) located on the Integrated Power Module (IPM) for the appropriate exterior
lamp control of standard head and park lamps, as well as optional front fog lamps. This includes support for
headlamp beam selection and the optical horn feature, also known as flash-to-pass.

Exterior Lighting Fail-safe - In the absence of a headlamp switch input, the EMIC will turn on the cluster
illumination lamp and provide electronic headlamp low beam and park lamp request messages to the Front
Control Module (FCM) located on the Integrated Power Module (IPM) for default exterior lamp operation. The
FCM will also provide default park lamp and headlamp low beam operation and the EMIC will turn on the
cluster general illumination lighting at full intensity if there is a failure of the electronic data bus communication
between the EMIC and the FCM.

Fuel Level Data Support - The EMIC provides a current source for and receives a hard wired analog input
from the fuel level sending unit located on the fuel pump module in the fuel tank. The EMIC uses this input to
calculate the proper fuel gauge needle position and low fuel indicator operation. Based upon this input, the
EMIC also calculates fuel level, average fuel economy and distance to empty data, then uses electronic mes-
saging to transmit this data over the CAN data bus for use by other electronic modules in the vehicle.

Heated Seat Control - The EMIC monitors inputs from the ignition switch and electronic engine speed mes-
sages from the Powertrain Control Module (PCM) to control a high side driver output to the heated seat switch
Light Emitting Diode (LED) indicators. This input allows the heated seat switches to wake up the heated seat
module if the switch is actuated. The EMIC will de-energize the heated seat switch LED indicators, which
deactivates the heated seat system, if the ignition switch is turned to any position except On or Start, or if the
engine speed message indicates zero. (Refer to 8 - ELECTRICAL/HEATED SEATS - DESCRIPTION).

Horn Control - The EMIC monitors an input from the horn switch and provides electronic horn request mes-
sages to the Front Control Module (FCM) located on the Integrated Power Module (IPM) for horn relay control.

Interior Lamp Load Shedding - The EMIC provides a battery saver feature which will automatically turn off all
interior lamps if they remain on after a timed interval of about five minutes.

Interior Lighting Control - The EMIC monitors inputs from the interior lighting switch, the door ajar switches,
the reading lamp switches, and the Sentry Key Remote Entry Module (SKREEM) to provide courtesy lamp
control. This includes support for timed illuminated entry with theater-style fade-to-off and courtesy illumination
defeat features.

Panel Lamps Dimming Control - The EMIC monitors hard wired multiplexed inputs from the headlamp switch
on the instrument panel, then provides a hard wired 12-volt Pulse-Width Modulated (PWM) output that syn-
chronizes the dimming level of all panel lamps dimmer controlled lamps with that of the cluster illumination
lighting.

Power Locks - The EMIC monitors inputs from the power lock switches and the Sentry Key REmote Entry
Module (SKREEM) to provide control of the power lock motors through high side driver outputs to the motors.
This includes support for rolling door locks (also known as automatic door locks), automatic door unlock, brief-
case lock mode, and a door lock inhibit mode. (Refer to 8 - ELECTRICAL/POWER LOCKS - DESCRIPTION).

Remote Keyless Entry - The EMIC supports the standard Remote Keyless Entry (RKE) system features,
including support for the RKE Lock, Unlock (with optional driver-door-only unlock, and unlock-all-doors), Panic,
audible chirp, optical chirp, illuminated entry modes, an RKE programming mode, as well as optional Vehicle
Theft Security System (VTSS) arming (when the proper VTSS arming conditions are met) and disarming.

Remote Radio Switch Interface - The EMIC monitors inputs from the optional remote radio switches and then
provides the appropriate electronic data bus messages to the radio to select the radio or optional hands-free
cellular system operating mode, volume control, preset station scan and station seek features.

Turn Signal & Hazard Warning Lamp Control - The EMIC monitors hard wired multiplexed inputs from the
multi-function switch on the steering column, then provides electronic turn and hazard lamp request messages
to the Front Control Module (FCM) located on the Integrated Power Module (IPM) for turn and hazard lamp
control. The EMIC also provides an audible click at one of two rates to emulate normal and bulb out turn or
hazard flasher operation based upon electronic lamp outage messages from the FCM, and provides an audible
turn signal on chime warning if a turn is signalled continuously for more than about 1.6 kilometers (one mile)
and the vehicle speed remains greater than about twenty-four kilometers-per-hour (fifteen miles-per-hour).

Vacuum Fluorescent Display Synchronization - The EMIC monitors hard wired multiplexed inputs from the
headlamp switch on the instrument panel, then transmits electronic panel lamp dimming level messages which

HB

CLUSTER

8J - 37

allows all other electronic modules on the CAN data bus with Vacuum Fluorescent Display (VFD) units to coor-
dinate their illumination intensity with that of the EMIC VFD unit. This includes a parade mode (also known as
funeral mode) that allows all VFD units in the vehicle to be illuminated at full (daytime) intensity while driving
during daylight hours with the exterior lamps turned On.

Vehicle Theft Security System Control - The EMIC monitors inputs from the door ajar switches, the liftgate
ajar switch, the ignition switch, and the Sentry Key REmote Entry Module (SKREEM), then provides electronic
horn and lighting request messages to the Front Control Module (FCM) located on the Integrated Power Mod-
ule (IPM) for the appropriate VTSS alarm output features.

Wiper/Washer System Control - The EMIC monitors both hard wired multiplexed inputs from the front wiper
and washer switches in the multi-function switch on the steering column and electronic messages from the rear
wiper and washer switches in the heater and air conditioner control on the instrument panel. The EMIC then
provides electronic wiper and/or washer request messages to the Front Control Module (FCM) located on the
Integrated Power Module (IPM) for the appropriate front or rear wiper and washer system features. (Refer to
8 - ELECTRICAL/WIPERS/WASHERS - DESCRIPTION).

The EMIC houses four analog gauges and has provisions for up to twenty-five indicators. Some of the EMIC indi-
cators are automatically configured when the EMIC is connected to the vehicle electrical system for compatibility
with certain optional equipment or equipment required for regulatory purposes in certain markets. While each EMIC
may have provisions for indicators to support every available option, the configurable indicators will not be functional
in a vehicle that does not have the equipment that an indicator supports.

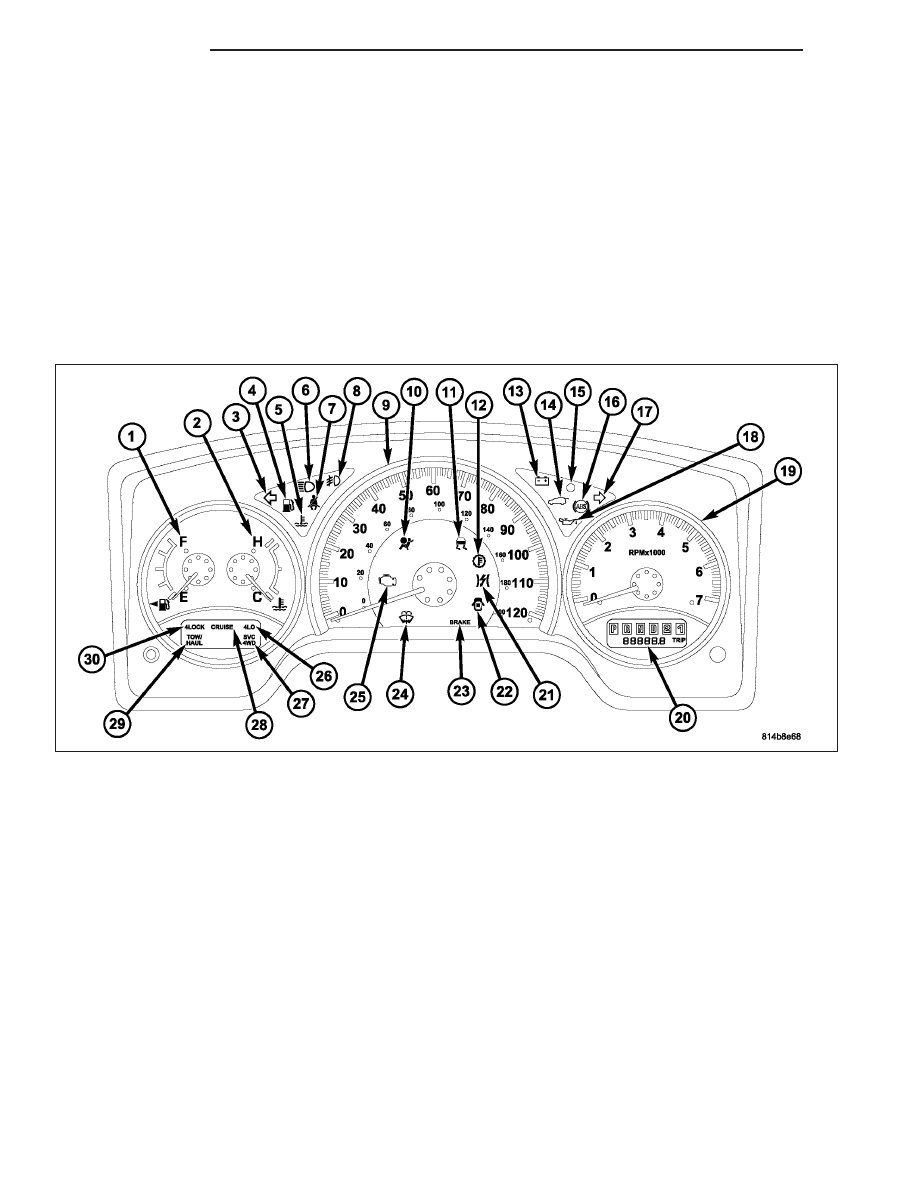

The EMIC includes the following analog gauges:

Engine Temperature Gauge (2)

Fuel Gauge (1)

Speedometer (9)

Tachometer (19)

The EMIC includes the following VFD unit:

Gear Selector/Odometer/Trip Indicator (20)

The EMIC includes provisions for the following indicators:

Airbag Indicator (10)

Antilock Brake System (ABS) Indicator (16)

Brake Indicator (23)

Charging Indicator (13)

Cruise Indicator (28)

Door Ajar Indicator (22)

8J - 38

CLUSTER

HB

Electronic Throttle Control (ETC) Indicator (21)

Engine Temperature Indicator (5)

Fog Lamp Indicator (8)

Four-Wheel Drive Low Indicator (26)

Four-Wheel Drive Lock Indicator (30)

Gate Ajar Indicator (14)

High Beam Indicator (6)

Low Fuel Indicator (4)

Low Oil Pressure Indicator (18)

Malfunction Indicator Lamp (MIL) (25)

Seatbelt Indicator (7)

Security Indicator (15)

Service Four-Wheel Drive Indicator (27)

Tow/Haul Indicator (29)

Traction Control Indicator (11)

Transmission Overtemp Indicator (12)

Turn Signal (Right and Left) Indicators (3 & 17)

Washer Fluid Indicator (24)

Each indicator in the EMIC, except those located within a VFD unit, is illuminated by a dedicated LED that is sol-
dered onto the EMIC electronic circuit board. Cluster illumination is accomplished by a dimmable electro-lumines-
cent lamp, which illuminates each of the gauge dial faces for visibility when the exterior lighting is turned on. The
LED units and the electro-luminescent lamp unit are not available for service replacement and, if damaged or faulty,
the entire EMIC must be replaced.

Hard wired circuitry connects the EMIC to the electrical system of the vehicle. These hard wired circuits are integral
to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These
circuits may be connected to each other, to the vehicle electrical system and to the EMIC through the use of a
combination of soldered splices, splice block connectors, and many different types of wire harness terminal con-
nectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams,
proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-
out and location views for the various wire harness connectors, splices and grounds.

The EMIC module for this model is serviced only as a complete unit. The EMIC module cannot be adjusted or
repaired. If a gauge, an LED indicator, a VFD unit, the electronic circuit board, the circuit board hardware, the clus-
ter overlay, or the EMIC housing are damaged or faulty, the entire EMIC module must be replaced. The cluster lens,
hood and mask unit is available for separate service replacement.

OPERATION

The ElectroMechanical Instrument Cluster (EMIC) in this model also includes the hardware and software necessary
to serve as the electronic body control module and is sometimes referred to as the Cab Compartment Node or
CCN. The following information deals primarily with the instrument cluster functions of this unit. Additional details of
the electronic body control functions of this unit may be found within the service information for the system or com-
ponent that the EMIC controls. For example: Additional details of the audible warning functions of the EMIC are
found within the Chime/Buzzer service information.

The EMIC is designed to allow the vehicle operator to monitor the conditions of many of the vehicle components
and operating systems. The gauges and indicators in the EMIC provide valuable information about the various stan-
dard and optional powertrains, fuel and emissions systems, cooling systems, lighting systems, safety systems and
many other convenience items. The EMIC is installed in the instrument panel so that all of these monitors can be
easily viewed by the vehicle operator when driving, while still allowing relative ease of access for service.

The microprocessor-based EMIC hardware and software uses various inputs to control the gauges and indicators
visible on the face of the cluster. Some of these inputs are hard wired, but most are in the form of electronic mes-
sages that are transmitted by other electronic modules over the Controller Area Network (CAN) data bus. (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MODULES/COMMUNICATION - OPERATION).

The EMIC microprocessor smooths the input data using algorithms to provide gauge readings that are accurate,
stable and responsive to operating conditions. These algorithms are designed to provide gauge readings during

HB

CLUSTER

8J - 39

normal operation that are consistent with customer expectations. However, when abnormal conditions exist such as
high coolant temperature, the algorithm can drive the gauge pointer to an extreme position and the microprocessor
can sound a chime through the on-board audible tone transducer to provide distinct visual and audible indications of
a problem to the vehicle operator. The EMIC may also produce audible warnings for other electronic modules in the
vehicle based upon electronic tone request messages received over the CAN data bus. Each audible warning is
intended to provide the vehicle operator with an audible alert to supplement a visual indication.

The EMIC circuitry operates on battery current received through a fused B(+) fuse on a non-switched fused B(+)
circuit, and on battery current received through a fused ignition switch output (run-start) fuse on a fused ignition
switch output (run-start) circuit. This arrangement allows the EMIC to provide some features regardless of the igni-
tion switch position, while other features will operate only with the ignition switch in the On or Start positions. The
EMIC circuitry is grounded through a ground circuit and take out of the instrument panel wire harness with an eyelet
terminal connector that is secured by a ground screw to a ground location near the center of the instrument panel
structural support.

The EMIC also has a self-diagnostic actuator test capability, which will test each of the CAN bus message-controlled
functions of the cluster by lighting the appropriate indicators, positioning the gauge needles at several predeter-
mined calibration points across the gauge faces, and illuminating all segments of the gear selector/odometer/trip
odometer Vacuum-Fluorescent Display (VFD) unit. (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - DIAGNO-
SIS AND TESTING).

GAUGES

All gauges receive battery current through the EMIC circuitry only when the ignition switch is in the On or Start
positions. With the ignition switch in the Off position battery current is not supplied to any gauges, and the EMIC
circuitry is programmed to move all of the gauge needles back to the low end of their respective scales. Therefore,
the gauges do not accurately indicate any vehicle condition unless the ignition switch is in the On or Start positions.

All of the EMIC gauges are air core magnetic units. Two fixed electromagnetic coils are located within each gauge.
These coils are wrapped at right angles to each other around a movable permanent magnet. The movable magnet
is suspended within the coils on one end of a pivot shaft, while the gauge needle is attached to the other end of the
shaft. One of the coils has a fixed current flowing through it to maintain a constant magnetic field strength. Current
flow through the second coil changes, which causes changes in its magnetic field strength. The current flowing
through the second coil is changed by the EMIC circuitry in response to messages received over the CAN data bus.
The gauge needle moves as the movable permanent magnet aligns itself to the changing magnetic fields created
around it by the electromagnets.

The gauges are diagnosed using the EMIC self-diagnostic actuator test. (Refer to 8 - ELECTRICAL/INSTRUMENT
CLUSTER - DIAGNOSIS AND TESTING). Proper testing of the CAN data bus and the electronic data bus message
inputs to the EMIC that control each gauge require the use of a diagnostic scan tool. Refer to the appropriate diag-
nostic information. Specific operation details for each gauge may be found elsewhere in this service information.

VACUUM-FLUORESCENT DISPLAY

The Vacuum-Fluorescent Display (VFD) unit is soldered to the EMIC electronic circuit board. With the ignition switch
in the Off or Accessory positions, the odometer display is activated when the driver door is opened (Rental Car
mode) and is deactivated when the driver door is closed. Otherwise, the display unit is active when the ignition
switch is in the On or Start positions, and inactive when the ignition switch is in the Off or Accessory positions.

The illumination intensity of the VFD unit is controlled by the EMIC circuitry based upon an input from the headlamp
switch and a dimming level input received from the panel dimmer switch. The EMIC synchronizes the illumination
intensity of other VFD units with that of the unit in the EMIC by sending electronic dimming level messages to other
electronic modules in the vehicle over the CAN data bus.

The EMIC VFD unit has several display capabilities including odometer, trip odometer, engine hours, gear selector
indication (PRNDL), several warning or reminder indications, and various diagnostic information when certain fault
conditions exist. An odometer/trip odometer switch on the EMIC circuit board is used to control some of the display
modes. This switch is actuated manually by depressing the odometer/trip odometer switch button that extends
through the lower edge of the cluster lens, just left of the minor gauge set. Actuating this switch momentarily with
the ignition switch in the On position will toggle the VFD between the odometer and trip odometer modes. Depress-
ing the switch button for about two seconds while the VFD is in the trip odometer mode will reset the trip odometer
value to zero.

8J - 40

CLUSTER

HB















Content   ..  308  309  310  311   ..
