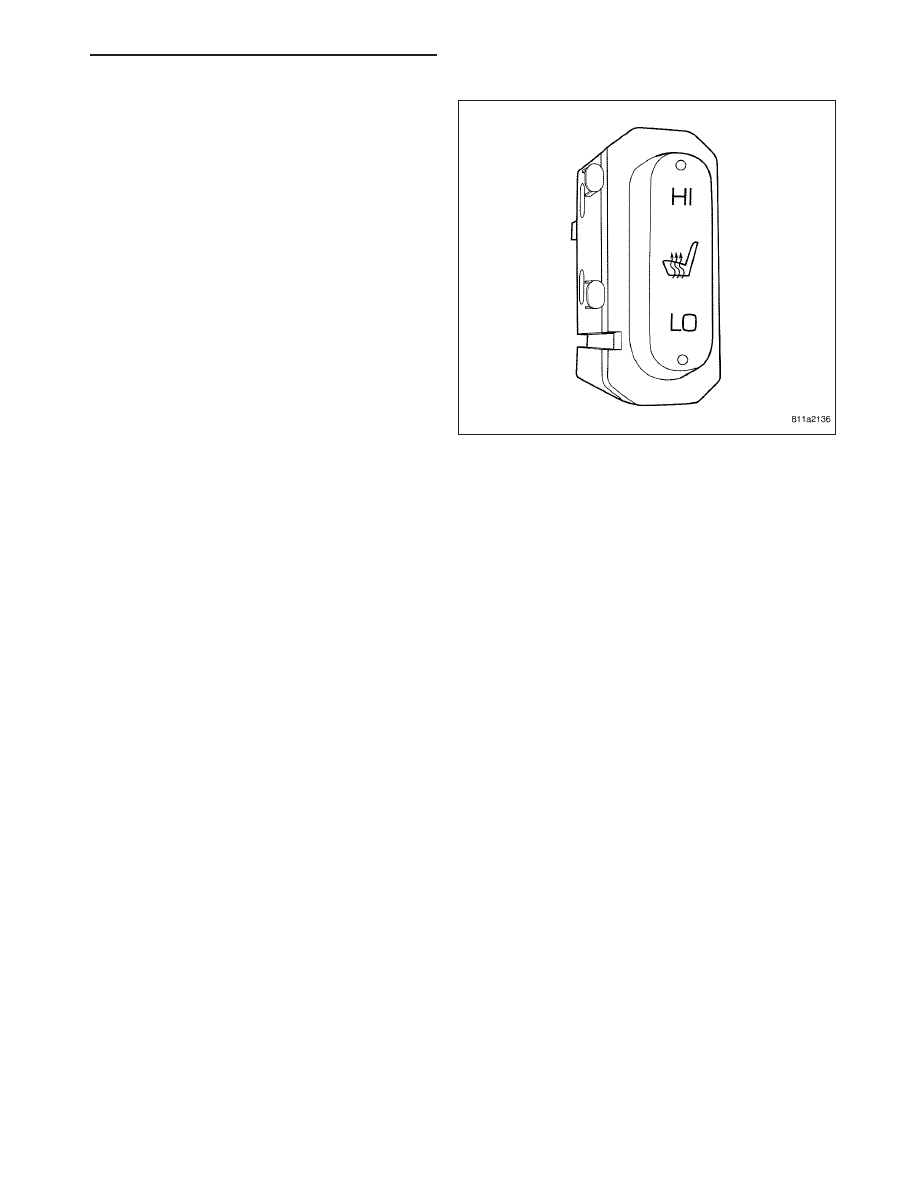

Each momentary, bidirectional rocker-type heated seat
switch provides a resistor-multiplexed signal to the
Cab Compartment Node (CCN). Each switch has a
center neutral position and momentary Low and High
positions so that the driver and the front seat passen-
ger can select a preferred seat heating level. Each
heated seat switch has two Light-Emitting Diode
(LED) indicator lamps, which indicate the selected
level (Low or High) of the seat heater. Each switch
also has one indicator lamp for back lighting of the
switch when the ignition switch is in the Run position.

The five LED indicator lamps in each heated seat switch cannot be repaired. If the LED lamps are faulty or dam-
aged, or the switch is faulty or damaged the individual heated seat switch assembly must be replaced.

OPERATION

HEATED SEAT SWITCH

The heated seat switches receive battery current through a fused ignition switch output (run) circuit when the igni-
tion switch is in the On position. Depressing the heated seat switch rocker to its momentary High or Low position
provides a hard-wired resistor multiplexed signal to the Cabin Compartment Node (CCN). The CCN is responsible
for supplying the CAN bus message to the heated seat module, signaling the module to power the heated seat
element of the selected seat and maintain the temperature setting.

If the heated seat switch is depressed to a different position (Low or High) than the currently selected state, the
CCN will go through the process again to change the temperature setting. If a heated seat switch is depressed a
second time to the same position as the currently selected state, the CCN and heated seat module interprets the
second input as a request to turn the seat heater OFF. The CCN will then signal the heated seat module to turn the
heated seat elements for that seat off.

The backlighting LED’s in each of the heated seat switches receive battery current through a fused ignition switch
output (run) circuit when the ignition switch is in the On position. The ground side of the indicator lamp is divided by
a separate lamp driver circuit in the CCN.

DIAGNOSIS AND TESTING

HEATED SEAT SWITCH

Refer to the Wiring section for complete heated seat system wiring diagrams.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING
COLUMN, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE
THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM
CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE
ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS
COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

1. If the problem being diagnosed involves inoperative heated seat switch back lighting and the heated seat ele-

ments do heat, disconnect the inoperative switch and check for continuity between the ground pin at the heated
seat switch connector and ground. If there is no continuity, repair an open wire between ground and the heated
seat switch connector. If there is continuity, replace the inoperative heated seat switch. If the problem being diag-

HB

HEATED SEATS - SERVICE INFORMATION

8G - 95

nosed involves a heated seat switch indicator lamp that remains illuminated after the heated seat has been
turned Off, (Refer to 8 - ELECTRICAL/INSTRUMENT CLUSTER - DIAGNOSIS AND TESTING). Also refer to the
Body Diagnostic Information for additional diagnosis and testing procedures.

2. Check the fused ignition switch output (run) fuse in the Power Distribution Center (PDC). If OK, go to Step 3. If

not OK, repair the shorted circuit or component as required and replace the faulty fuse.

3. Turn the ignition switch to the On position. Check for battery voltage at the fused ignition switch output (run) fuse

in the PDC. If OK, go to Step 4. If not OK, repair the open fused ignition switch output (run) circuit to the ignition
switch as required.

4. Disconnect and isolate the battery negative cable. Disconnect the wire harness connector from the connector

receptacle on the back of the heated seat switch to be tested. Reconnect the battery negative cable. Turn the
ignition switch to the Run position. Check for battery voltage at the fused ignition switch output (run) circuit cavity
of the heated seat switch. If OK, go to Step 5. If not OK, repair the open fused ignition switch output (run) circuit
to the PDC fuse as required.

5. Check the continuity and resistance values of the heated seat switch in the Neutral, Low and High positions as

shown in the Heated Seat Switch Continuity chart below. If OK, (Refer to 8 - ELECTRICAL/HEATED SEATS/
HEATED SEAT MODULE - DIAGNOSIS AND TESTING). Also refer to the Body Diagnostic Information for addi-
tional diagnosis and testing procedures. If not OK, replace the faulty heated seat switch.

HEATED SEAT SWITCH CONTINUITY CHART

Switch Position

Continuity

Between

Resistance

Neutral

4 & 6

2.2 Kilohms

Low

4 & 6

415 Ohms

High

4 & 6

33 Ohms

8G - 96

HEATED SEATS - SERVICE INFORMATION

HB

REMOVAL

1. Disconnect and isolate the battery negative cable.

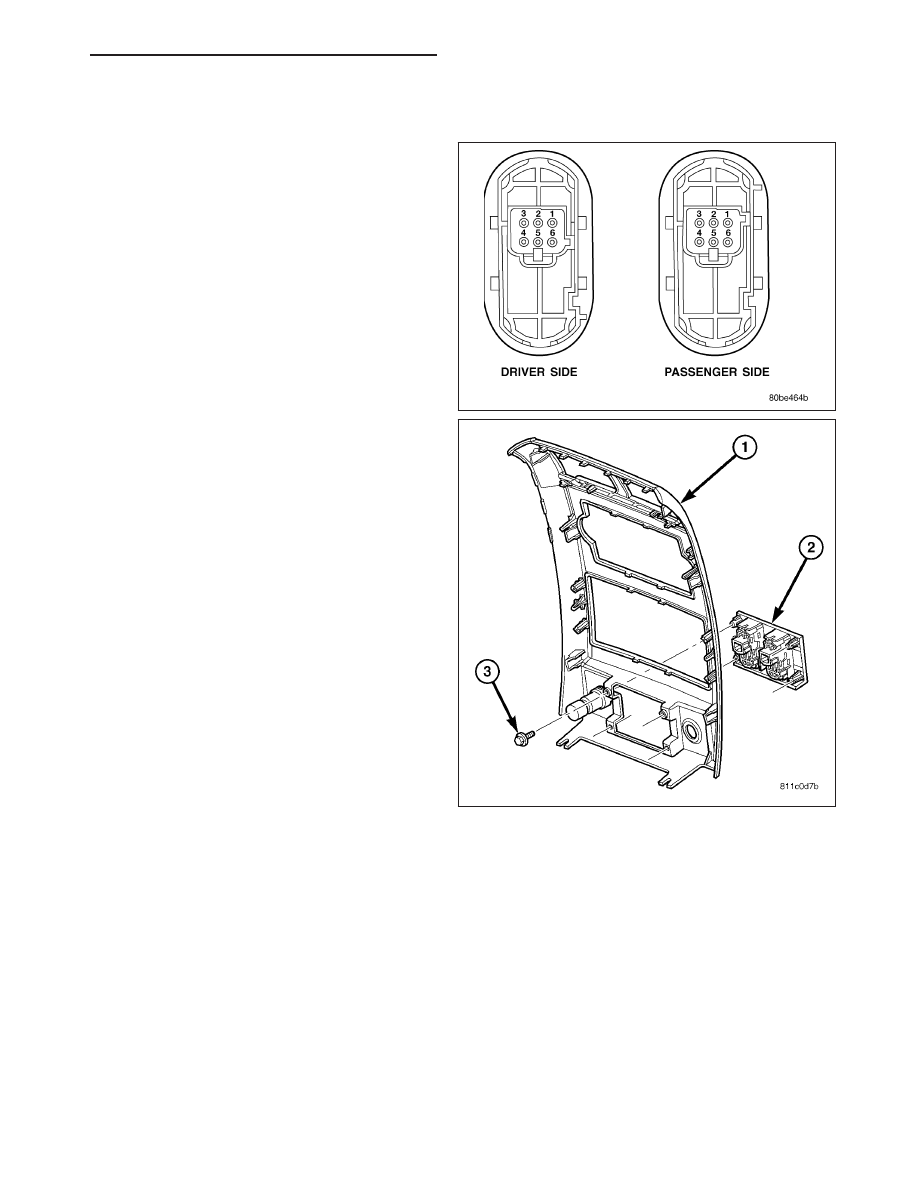

2. Remove the center bezel (1) from the instrument

panel (Refer to 23 - BODY/INSTRUMENT PANEL/
INSTRUMENT

PANEL

CENTER

BEZEL

-

REMOVAL).

3. Remove the heated seat switch bezel and both

switches from the center bezel as a unit.

HB

HEATED SEATS - SERVICE INFORMATION

8G - 97

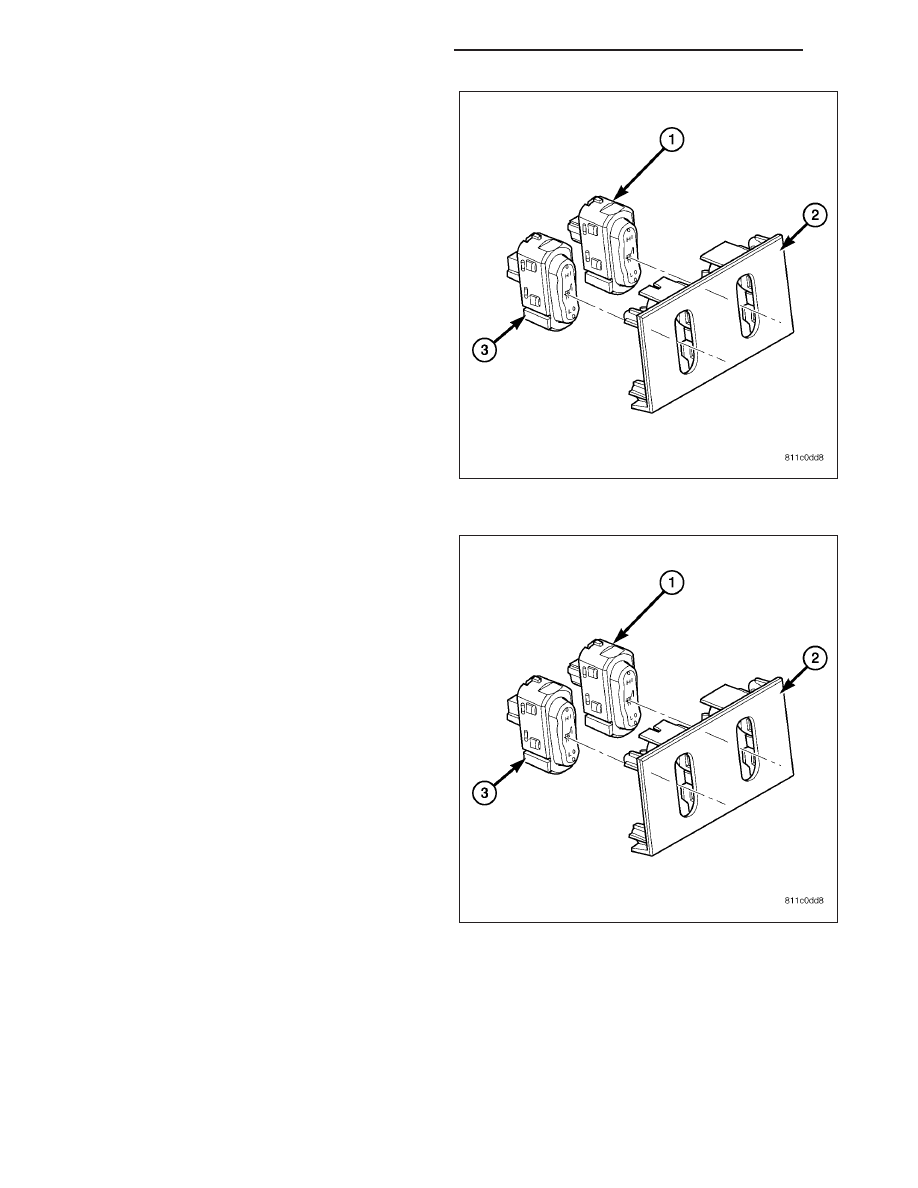

4. From the back of the heated seat switch bezel (2),

gently pry the switch free and push the heated seat
switch out through the rear of the bezel.

INSTALLATION

Note: When installing the heated seat switches, be
certain they are installed in the proper mounting
holes of the heated seat switch bezel (2). The
heated seat switches are identified by a keyway in
the connector receptacle on the back of each
switch.

1. From the back of the heated seat switch bezel,

gently push the heated seat switch in through the
rear of the bezel.
