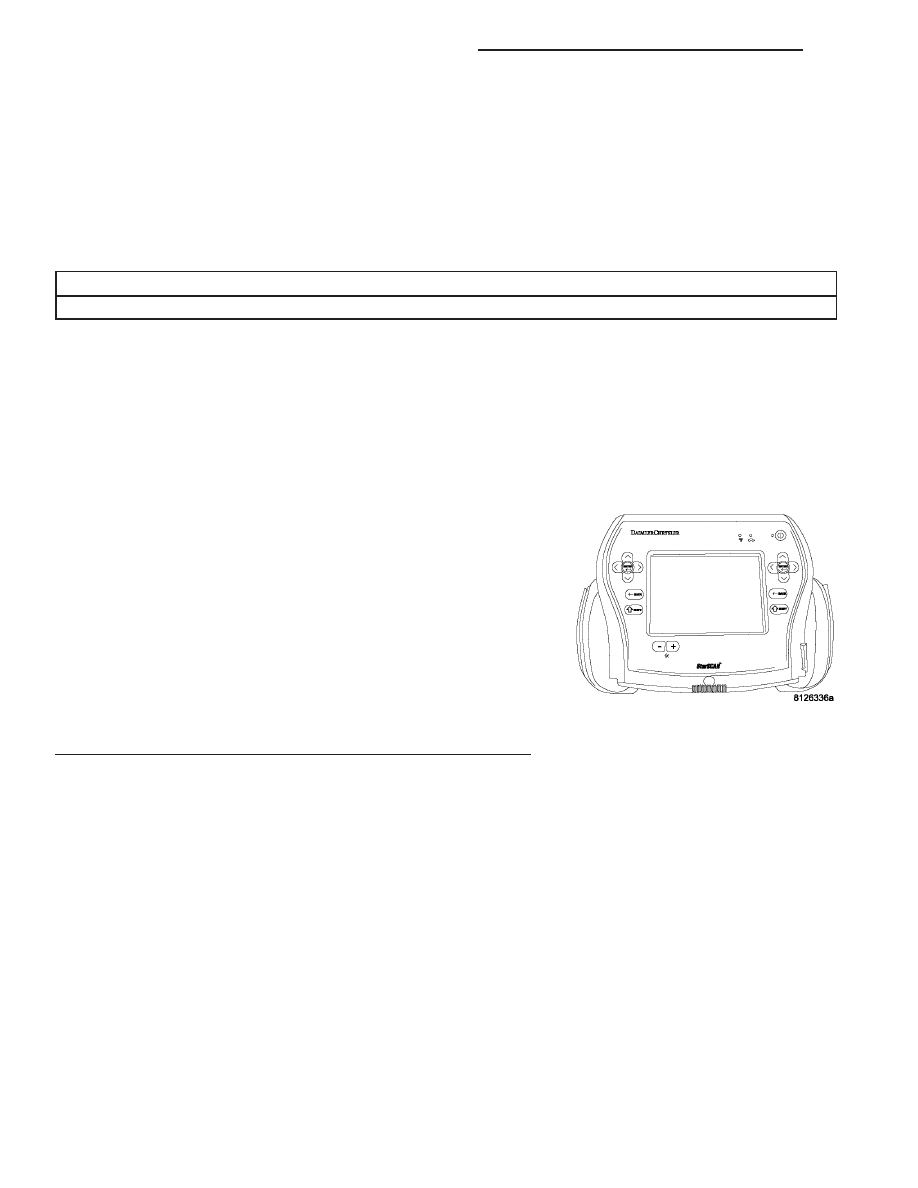

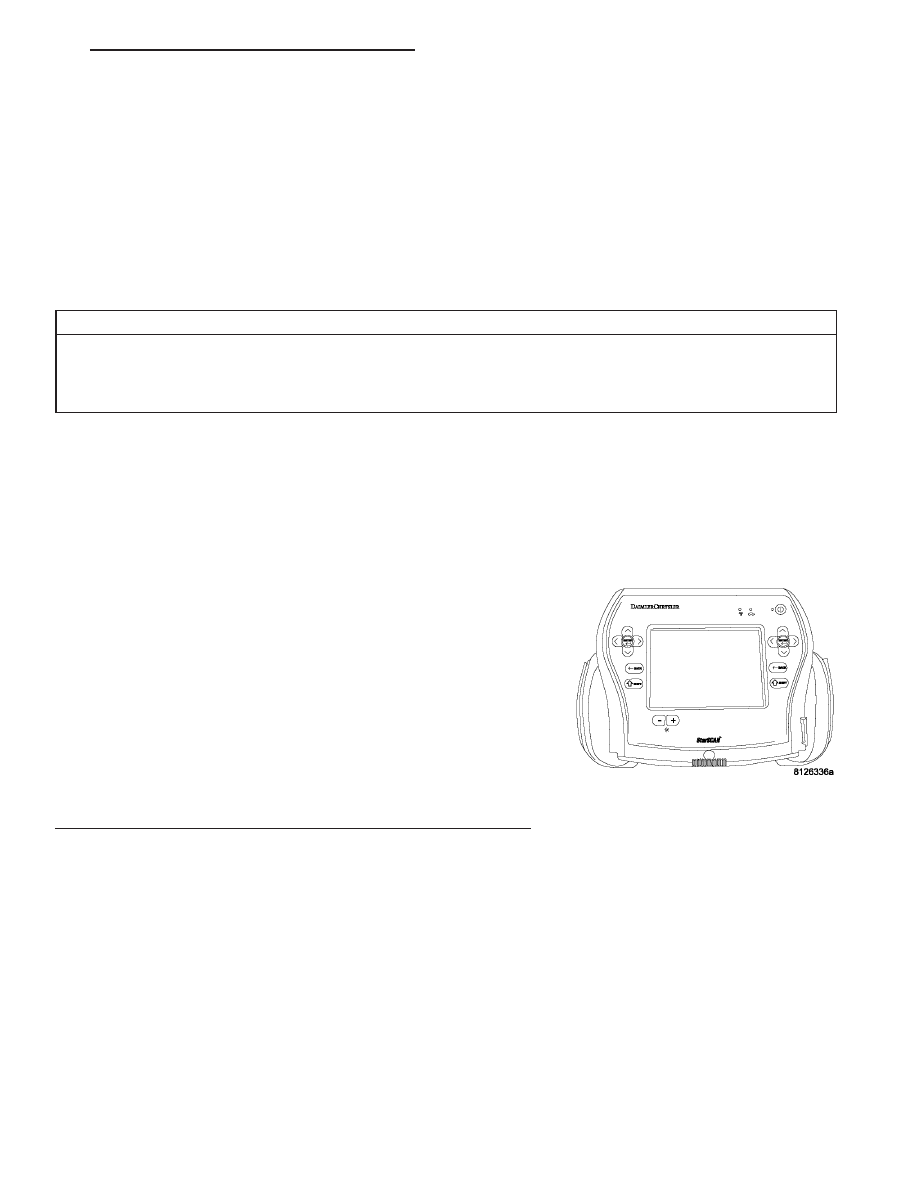

2. VERIFY THAT DTC B210D-BATTERY VOLTAGE LOW IS With the scan tool, record and erase DTC’s Turn the ignition switch to the Off position then start the engine and let With the scan tool, read DTC’s. Does the DTC B210D-BATTERY VOLTAGE LOW reset? Yes >> Go To 3 No >> The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic Perform BODY VERIFICATION TEST – VER 1. 3. CHECK THE VOLTAGE ON THE (A940) FUSED B(+) CIRCUIT Disconnect the Heated Seat Module connector. Note: Check connectors - Clean and repair as necessary. Measure the voltage on the (A940) Fused B(+) circuit at the HSM con- Is the voltage at the HSM connector the same as measured at Yes >> Replace the Heated Seat Module in accordance with the service information. Perform BODY VERIFICATION TEST – VER 1. No >> Repair the (A940) Fused B(+) circuit as necessary. Perform BODY VERIFICATION TEST – VER 1. HB HEATED SEATS - ELECTRICAL DIAGNOSTICS 8G - 43 B210D-BATTERY VOLTAGE LOW — (CONTINUED) |
