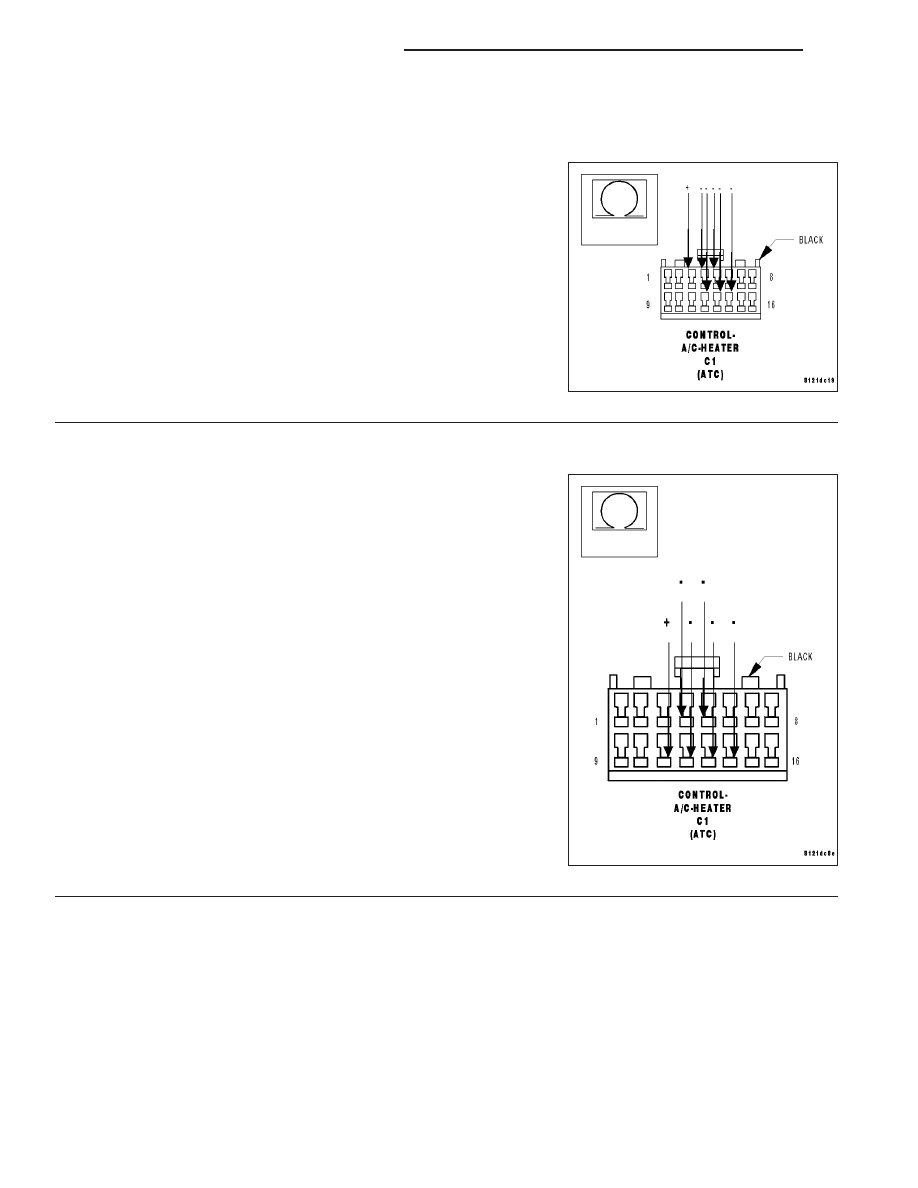

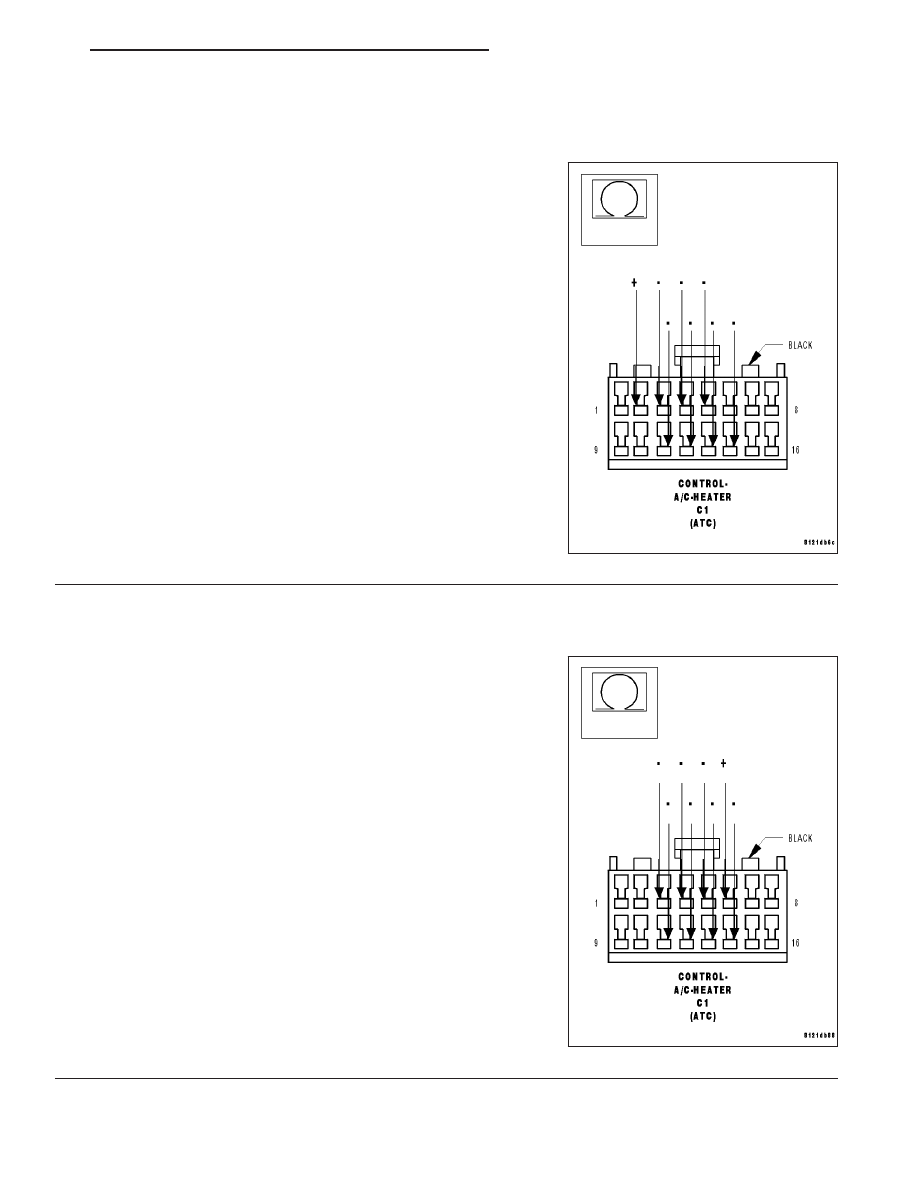

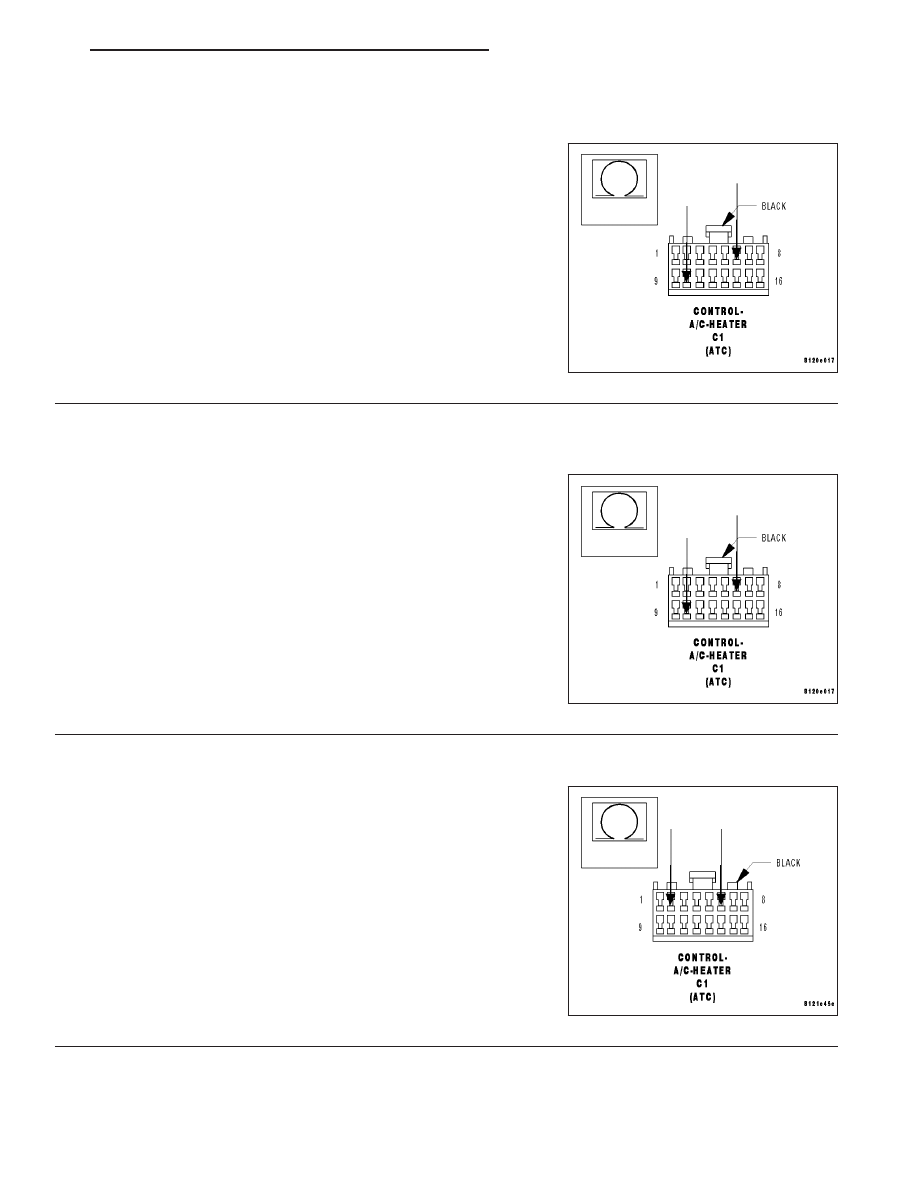

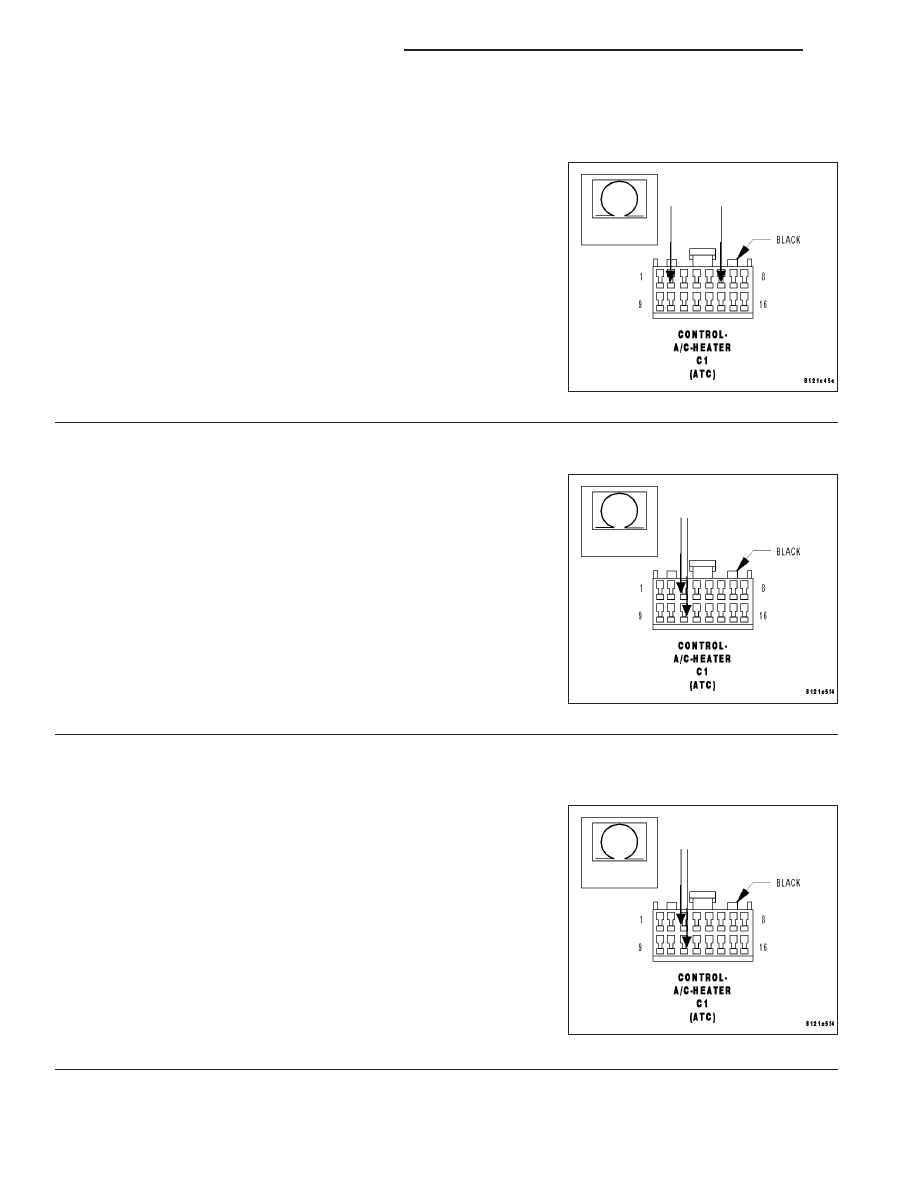

B103B–REAR MODE DOOR CONTROL CIRCUIT LOW (ATC) (CONTINUED) 3. CHECK (C54) REAR BLEND DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER Measure the resistance between the (C54) Rear Blend Door Driver cir- Is the resistance below 10k ohms between any of the circuits? Yes >> Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. No >> Go To 4 4. CHECK (C154) REAR COMMON DOOR DRIVER CIRCUIT FOR A SHORT TO OTHER DOOR DRIVER Measure the resistance between the (C154) Rear Common Door Is the resistance below 10k ohms between any of the circuits? Yes >> Repair the circuit(s) with a resistance below 10k ohms for a short together. Perform BODY VERIFICATION TEST - VER 1. No >> Go To 5 HB HVAC - ELECTRICAL DIAGNOSTICS 24 - 33 |
