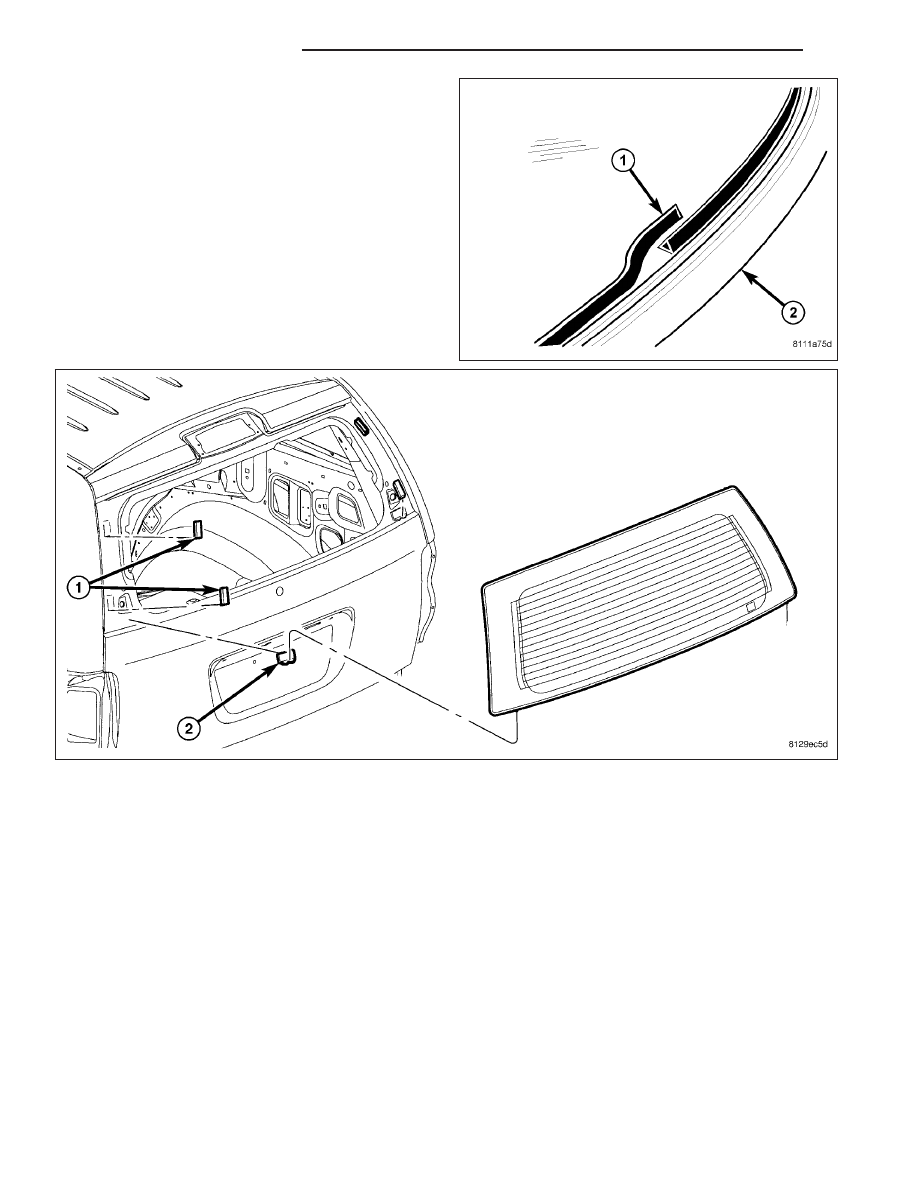

NOTE: Windshield opening shown, liftgate opening
similar.

3. Clean and dry area of liftgate opening to be

re-glued with a suitable glass preparation solvent
and rag.

4. Re-prime any damaged area. If old adhesive has

been exposed for more than 12 hours, entire adhe-
sive area needs to be re-primed.

5. Allow primer to air dry for at least 10 minutes.

Backlite Installation

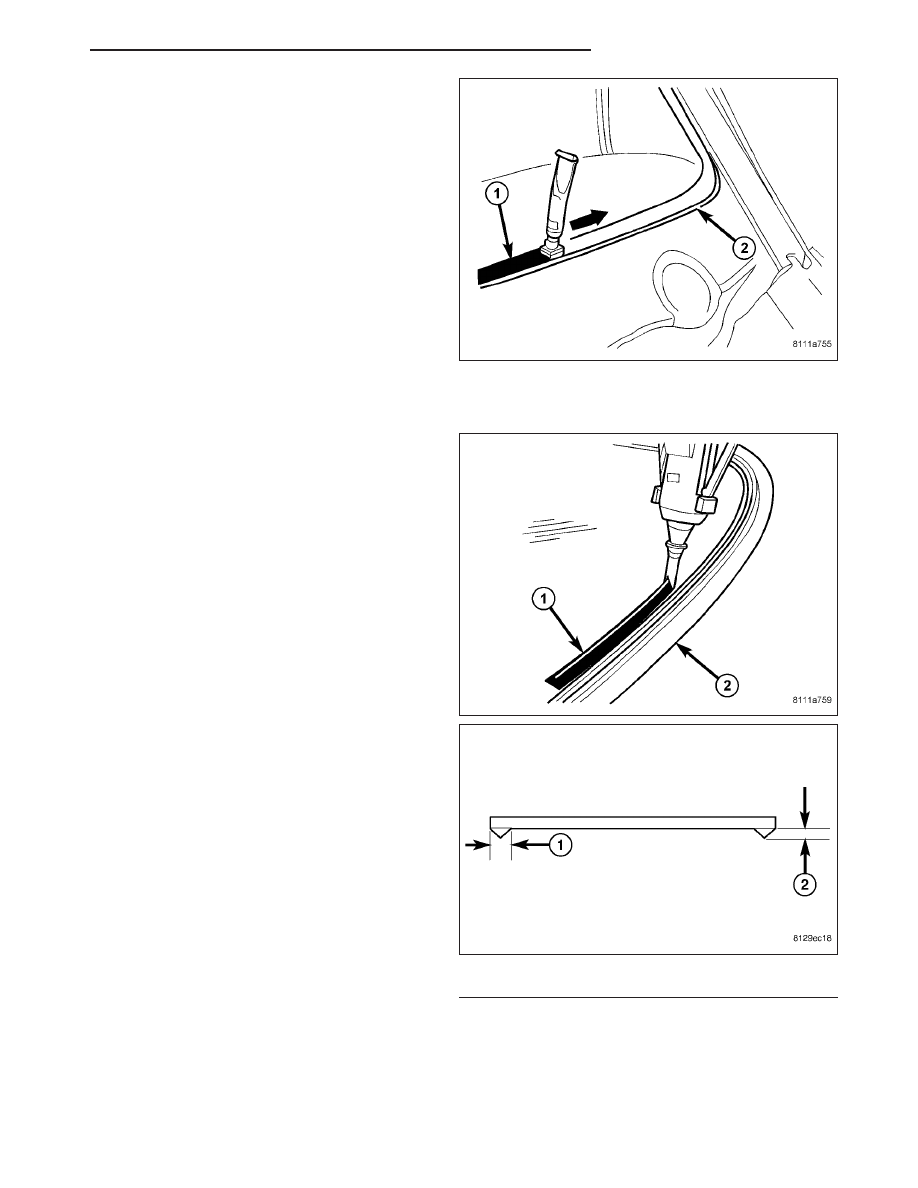

1. Apply bead of adhesive (1) with a triangular nozzle

directly to the backlite seal starting at bottom in
center of the backlite.

CAUTION: Always apply bead of adhesive to the
backlite. Always install the backlite within 5 min-
utes after applying adhesive.

2. Bead dimensions should be approximately 9.5 mm

wide (1) by 12.7 mm in height (2).

1 - ADHESIVE WIDTH 9.5 mm (0.375 in)
2 - ADHESIVE HEIGHT 12.7 mm (0.50 in)

HB

STATIONARY GLASS

23 - 201

3. Allow end of adhesive bead (1) to run out parallel

to the start of the bead and smooth ends flush.

4. Lift backlite into place in the center of the liftgate opening and use the tape as a guide to aid installation of the

backlite into the center of the cutout.

5. Carefully lay down the backlite and press on.

CAUTION: It is no longer possible to move the backlite after installation. The backlite should never be
pressed into place by more than one person, because the backlite can break if pressed simultaneously on
both sides.

CAUTION: Roll down the left and right front door glass and open the rear glass slider (if available) before
installing backlite to avoid pressurizing the passenger compartment if a door is slammed before urethane is
cured. Water leaks can result.

6. Install the rear wiper arm, if equipped. (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTAL-

LATION)

7. Install the liftgate trim panels.

8. Install the center stop light. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/CENTER HIGH

MOUNTED STOP LAMP UN - INSTALLATION)

23 - 202

STATIONARY GLASS

HB

SUNROOF

TABLE OF CONTENTS

page

page

SUNROOF

DESCRIPTION

. . . . . . . . . . . . . . . . . . . . . . . . 204

DIAGNOSIS AND TESTING

SUNROOF

. . . . . . . . . . . . . . . . . . . . . . . . . . 205

SWITCH-SUNROOF

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 207

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 208

HOSE-DRAIN

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 210

MOTOR

STANDARD PROCEDURE - INITIALIZATION

. . 211

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 213

ADJUSTMENTS

ADJUSTMENT

. . . . . . . . . . . . . . . . . . . . . . . 214

GLASS

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 216

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 217

ADJUSTMENTS

SUNROOF GLASS PANEL ADJUSTMENT

. . 218

ASSEMBLY-MODULE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 220

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 221

SUNSHADE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 225

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 226

CHANNEL-DRAIN

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 227

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 228

DEFLECTOR-WIND

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 229

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 232

TRIM LACE

REMOVAL

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 234

INSTALLATION

. . . . . . . . . . . . . . . . . . . . . . . . 235

HB

SUNROOF

23 - 203

SUNROOF

DESCRIPTION

WARNING: Keep fingers and other body parts out of sunroof opening at all times.

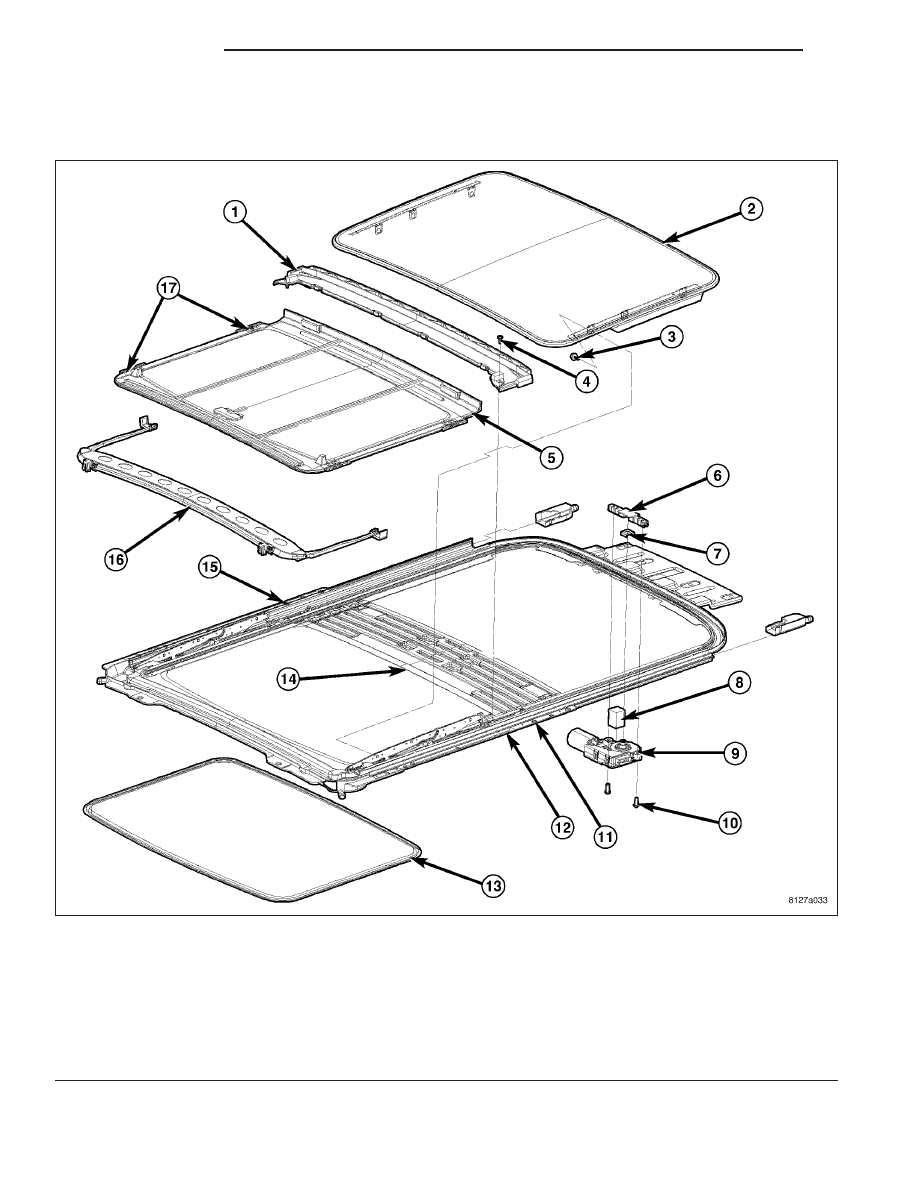

SUN ROOF ASSEMBLY

1 - WATER CHANNEL

10 - SCREWS (2) 4 N·m (40 in. lbs.)

2 - GLASS ASSEMBLY

11 - LEFT SIDE ALIGNMENT HOLE

3 - SCREWS (3 PER SIDE) 3.5 N·m (31 in. lbs.)

12 - SUNROOF ASSEMBLY FRAME

4 - SCREWS (2)

13 - OPENING TRIM LACE

5 - SUN SHADE

14 - TRIM LACE BUT JOINT NOTCH

6 - MOTOR COVER

15 - RIGHT SIDE ALIGNMENT SLOT

7 - MOTOR CLIP

16 - WIND DEFLECTOR

8 - INSULATOR

17 - SPRING FEET CLIPS

9 - MOTOR

23 - 204

SUNROOF

HB
