(5) Install and tighten the nut and washer that

secures the exhaust system-to-body ground strap eye-
let terminal to the exhaust pipe clamp. Tighten the
nut to 27.1 N·m (20 ft. lbs.).

(6) Lower the vehicle.

INSTALLATION

ENGINE TO BODY GROUND STRAPS

(1) Position the engine-to-body ground strap(s) in

the engine compartment.

(2) On 3.9L and 5.9L engines only, position the

right engine-to-body ground strap eyelet terminal
over the inboard rear valve cover stud of the right
cylinder head.

(3) On 3.9L and 5.9L engines only, install and

tighten the nut and washer that secures the right
engine-to-body ground strap eyelet terminal to the
inboard rear valve cover stud of the right cylinder
head. Tighten the nut to 2.8 N·m (25 in. lbs.).

(4) On 4.7L engines only, install and tighten the

screw and washer that secures the right engine-to-
body ground strap eyelet terminal to the transmis-
sion at the right rear corner of the engine block.
Tighten the screw to 67.8 N·m (50 ft. lbs.).

(5) On 4.7L engines only, position the right engine-

to-body ground strap eyelet terminal and the wire
harness grounds over the weld stud on the right
front fender wheelhouse inner panel.

(6) On 4.7L engines only, install and tighten the

nut and washer that secures the right engine-to-body
ground strap eyelet terminal and the wire harness
grounds to the weld stud on the right front fender
wheelhouse inner panel. Tighten the nut to 11.8 N·m
(105 in. lbs.).

(7) On 6 and 8 cylinder engines only, install and

tighten the screw that secures the right engine-to-
body ground strap eyelet terminal to the rear of the
right cylinder head. On 3.9L and 5.9L engines,
tighten the screw to 10.2 N·m (90 in. lbs.). On 4.7L
engines, tighten the screw to 10.7 N·m (95 in. lbs.).

(8) On 6 and 8 cylinder engines only, install and

tighten the screw that secures the left engine-to-body
ground strap eyelet terminal to the rear of the left
cylinder head. On 3.9L and 5.9L engines, tighten the
screw to 10.2 N·m (90 in. lbs.). On 4.7L engines,
tighten the screw to 10.7 N·m (95 in. lbs.).

(9) On 4 cylinder engines only, position the left

engine-to-body ground strap eyelet terminal over the
stud on the left rear corner of the engine cylinder
head.

(10) On 4 cylinder engines only, install and tighten

the nut and washer that secures the left engine-to-
body ground strap eyelet terminal to the stud on the
left rear corner of the engine cylinder head. Tighten
the nut to 2.8 N·m (25 in. lbs.).

(11) On 6 and 8 cylinder engines only, position the

right engine-to-body ground strap eyelet over the
inboard weld stud on the right side of the lower ple-
num panel.

(12) On 6 and 8 cylinder engines only, install and

tighten the nut and washer that secures the right
engine-to-body ground strap eyelet to the inboard
weld stud on the right side of the lower plenum
panel. Tighten the nut to 9 N·m (80 in. lbs.).

(13) Install and tighten the nut and washer that

secures the left engine-to-body ground strap eyelet to
the weld stud on the left side of the lower plenum
panel. Tighten the nut to 9 N·m (80 in. lbs.).

REMOTE SWITCHES

DESCRIPTION

A remote radio switch option is available on models

equipped

with

the

AM/FM/CD/cassette/3-band

graphic equalizer (RAZ sales code) radio receiver and
the high-line Central Timer Module (CTM). (Refer to
8 - ELECTRICAL/ELECTRONIC CONTROL MOD-
ULES/BODY CONTROL/CENTRAL TIMER MODUL
- DESCRIPTION) for more information on this com-
ponent.

Two rocker-type switches (Fig. 14) are mounted in

the sides of the rear (instrument panel side) steering
wheel trim cover. The switch on the left spoke is the
seek switch and has seek up, seek down, and preset
station advance functions. The switch on the right
spoke is the volume control switch and has volume
up, and volume down functions. The switch on the
right spoke also includes a “mode” control that allows
the driver to sequentially select AM radio, FM radio,
cassette player or CD player. The two switches are
retained in mounting holes located on each side of
the rear steering wheel trim cover by four latches
that are integral to the switches.

The remote radio switches share a common steer-

ing wheel wire harness with the vehicle speed control
switches. The steering wheel wire harness is con-
nected to the instrument panel wire harness through
the clockspring. (Refer to 8 - ELECTRICAL/RE-
STRAINTS/CLOCKSPRING - DESCRIPTION) for
more information on this component.

OPERATION

The remote radio switches are resistor multiplexed

units that are hard wired to the high-line CTM
through the clockspring. The CTM monitors the sta-
tus of the remote radio switches and sends the
proper switch status messages on the J1850 data bus
network to the radio receiver. The electronic circuitry
within the radio is programmed to respond to these

8A - 14

AUDIO

RADIO NOISE SUPPRESSION GROUND STRAP (Continued)

remote radio switch status messages by adjusting the
radio settings as requested.

For diagnosis of the CTM or the J1850 data bus,

the use of a DRB scan tool and the proper Diagnostic
Procedures manual are recommended. For more
information on the features and control functions for
each of the remote radio switches, see the owner’s
manual in the vehicle glove box. For complete circuit
diagrams, refer to the appropriate wiring informa-
tion. The wiring information includes wiring dia-
grams, proper wire and connector repair procedures,
details of wire harness routing and retention, connec-
tor pin-out information and location views for the
various wire harness connectors, splices and grounds.

DIAGNOSIS AND TESTING - REMOTE
SWITCHES

For complete circuit diagrams, refer to the appro-

priate wiring information. The wiring information
includes wiring diagrams, proper wire and connector
repair procedures, details of wire harness routing
and retention, connector pin-out information and
location views for the various wire harness connec-
tors, splices and grounds.

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD

RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Remove the remote radio switch(es) (Fig. 15)

from the steering wheel.

(2) Use an ohmmeter to check the switch resis-

tances as shown in the Remote Radio Switch Test
chart. If the remote radio switch resistances check
OK, go to Step 3. If not OK, replace the faulty
switch.

REMOTE RADIO SWITCH TEST

SWITCH

SWITCH POSITION

RESISTANCE

Right

(White)

Neutral

24,000 Ohms

Right

(White)

Volume Up

5,310 Ohms

Right

(White)

Volume Down

9,250 Ohms

Right

(White)

Mode

5 Ohms

Left

(Black)

Seek Up

1,210 Ohms

Left

(Black)

Seek Down

3,350 Ohms

Left

(Black)

Pre-Set Station

Advance

500 Ohms

(3) Check for continuity between the ground cir-

cuit cavity of the remote radio switch wire harness
connector and a good ground. There should be conti-

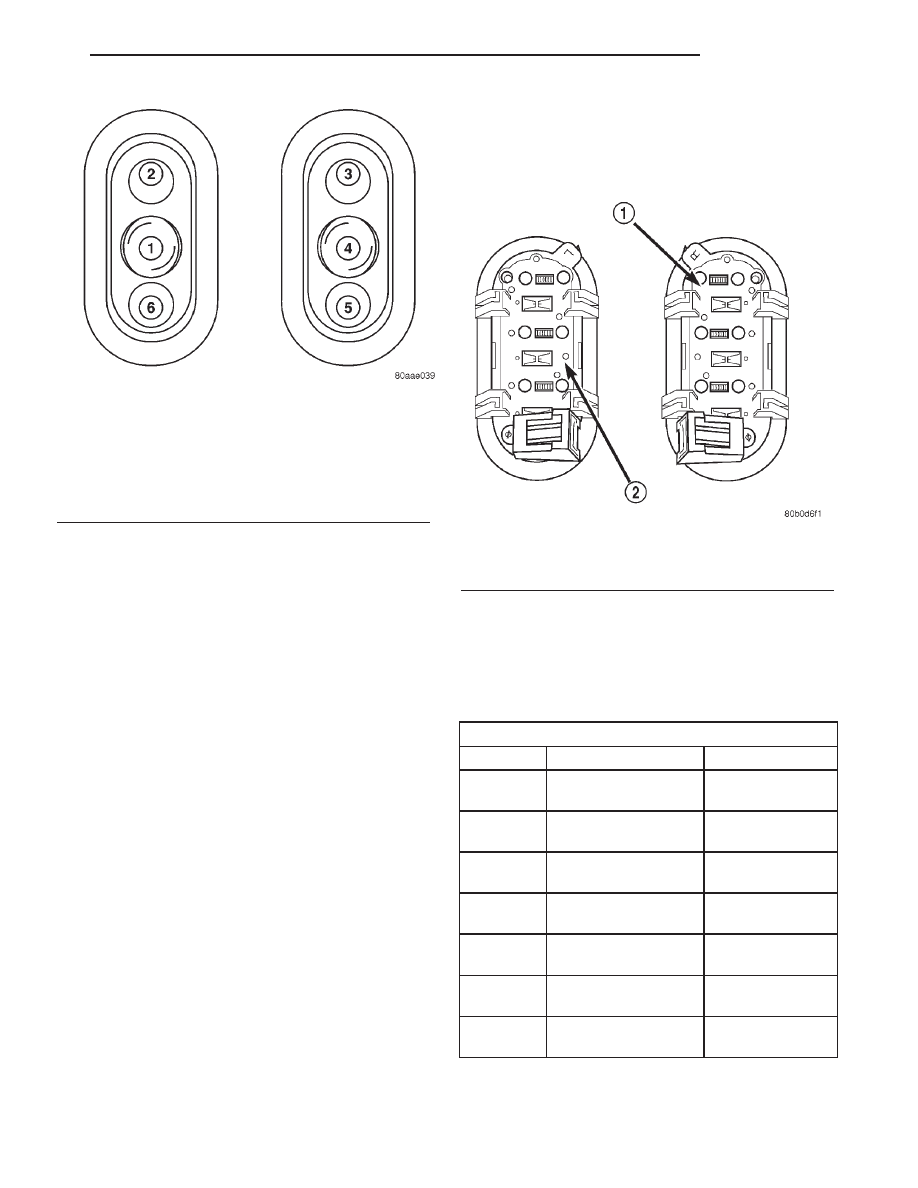

Fig. 14 Remote Radio Switches

1 - PRESET SEEK
2 - SEEK UP
3 - VOLUME UP
4 - MODE
5 - VOLUME DOWN
6 - SEEK DOWN

Fig. 15 Remote Radio Switches

1 - WHITE REAR SWITCH
2 - BLACK REAR SWITCH

AUDIO

8A - 15

REMOTE SWITCHES (Continued)

nuity. If OK, go to Step 4. If not OK, repair the open
ground circuit to ground as required.

(4) Disconnect the 18-way wire harness connector

from the Central Timer Module (CTM). Check for
continuity between the radio control mux circuit cav-
ity of the remote radio switch wire harness connector
and a good ground. There should be no continuity. If
OK, go to Step 5. If not OK, repair the shorted radio
control mux circuit as required.

(5) Check for continuity between the radio control

mux circuit cavities of the remote radio switch wire
harness connector and the 18-way CTM wire harness
connector. There should be continuity. If OK, refer to
the proper Diagnostic Procedures manual to test the
CTM and the J1850 data bus. If not OK, repair the
open radio control mux circuit as required.

REMOVAL

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Disconnect and isolate the battery negative

cable.

(2) Remove the driver side airbag module from the

steering wheel. (Refer to 8 - ELECTRICAL/RE-
STRAINTS/DRIVER AIRBAG - REMOVAL) for the
procedures.

(3) Remove the speed control switch located on the

same side of the steering wheel as the remote radio
switch that is being serviced. Refer to ELECTRI-
CAL/SPEED CONTROL for the procedures.

(4) Disconnect the steering wheel wire harness

connector from the connector receptacle of the remote
radio switch (Fig. 16).

(5) Disengage the four remote radio switch latches

that secure the switch to the inside of the mounting
hole in the steering wheel rear trim cover .

(6) From the outside of the steering wheel rear

trim cover, remove the remote radio switch from the
trim cover mounting hole.

INSTALLATION

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD

RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

(1) Position the remote radio switch to the mount-

ing hole on the outside of the steering wheel rear
trim cover. Be certain that the connector receptacle is
oriented toward the bottom of the switch and pointed
toward the center of the steering wheel.

(2) Press firmly and evenly on the remote radio

switch until each of the switch latches is fully
engaged in the mounting hole of the steering wheel
rear trim cover.

(3) Reconnect the steering wheel wire harness con-

nector to the connector receptacle of the remote radio
switch.

(4) Install the speed control switch onto the steer-

ing wheel. Refer to ELECTRICAL/SPEED CON-
TROL for the procedures.

(5) Install the driver side airbag module onto the

steering wheel. (Refer to 8 - ELECTRICAL/RE-
STRAINTS/DRIVER AIRBAG - INSTALLATION) for
the procedures.

(6) Reconnect the battery negative cable.

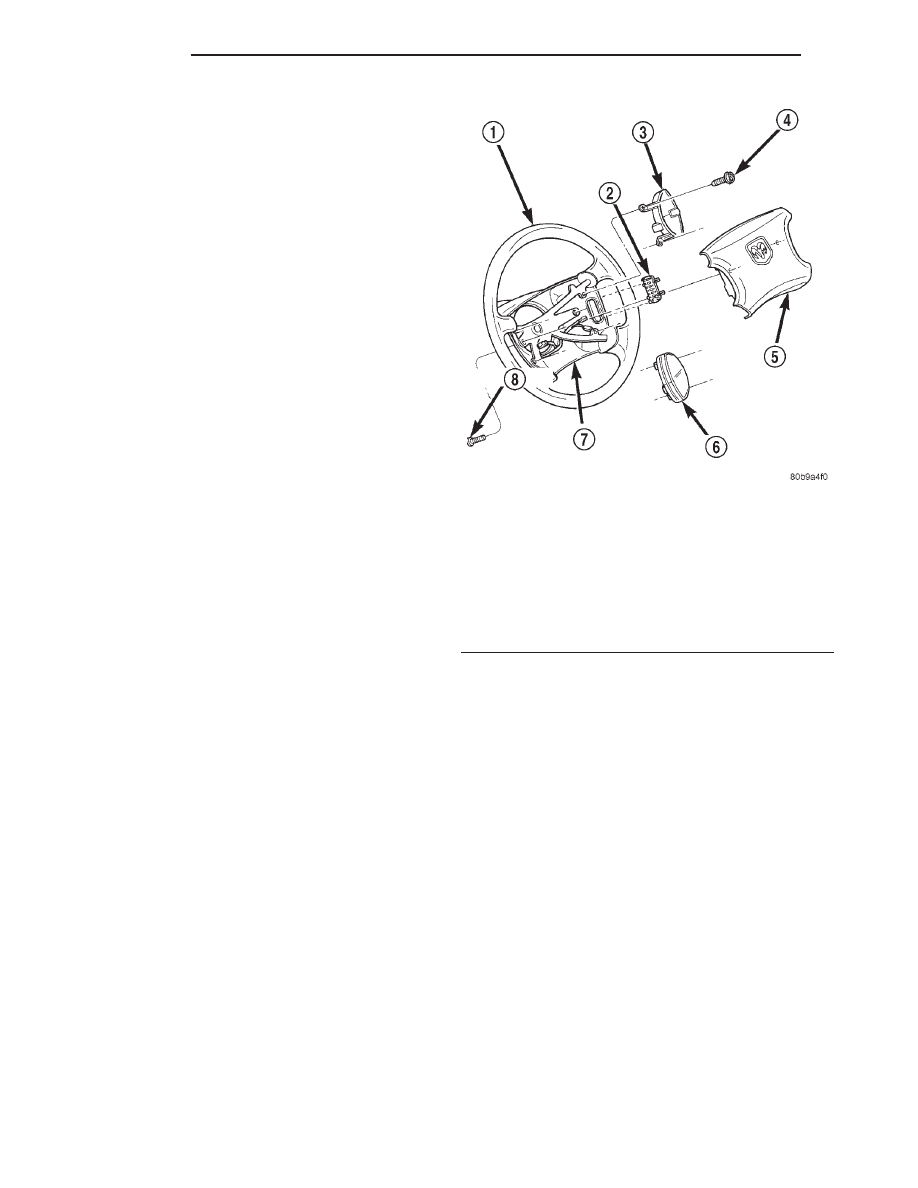

Fig. 16 Remote Radio Switches Remove/Install

1 - STEERING WHEEL
2 - REMOTE RADIO SWITCH
3 - SPEED CONTROL SWITCH
4 - SCREW (2)
5 - DRIVER SIDE AIRBAG MODULE
6 - SPEED CONTROL SWITCH
7 - REAR TRIM COVER
8 - SCREW (2)

8A - 16

AUDIO

REMOTE SWITCHES (Continued)

SPEAKER

DESCRIPTION

STANDARD

The standard equipment speaker system includes

speakers in four locations. One full-range 16.5 centi-
meter (6.50 inch) diameter speaker is located in each
front door. There is also one full-range speaker
located in each rear cab side panel, 13.3 centimeter
(5.25 inch) diameter units for the standard cab mod-
els, and 16.5 centimeter (6.50 inch) diameter units
for the club cab models. On quad cab models, the
16.5

centimeter

(6.50

inch)

diameter

full-range

speaker units are located in each rear door, instead
of in the cab side panel.

PREMIUM

The optional premium speaker system features

Infinity model speakers in six locations. Each of the
standard speakers in the four speaker stereo system
are replaced with Infinity model speakers, and an
additional 6.9 centimeter (2.75 inch) diameter Infin-
ity dome tweeter is mounted high in the front door
trim panels. The premium speaker system also
includes an additional Infinity power amplifier. The
total available power of the premium speaker system
is about 120 watts.

OPERATION

STANDARD

Each of the four full-range speakers used in the

standard speaker system is driven by the amplifier
that is integral to the factory-installed radio receiver.
For complete circuit diagrams, refer to the appropri-
ate

wiring

information.

The

wiring

information

includes wiring diagrams, proper wire and connector
repair procedures, details of wire harness routing
and retention, connector pin-out information and
location views for the various wire harness connec-
tors, splices and grounds.

PREMIUM

The six Infinity speakers used in the premium

speaker system are all driven by the radio receiver
through an Infinity power amplifier. For complete cir-
cuit diagrams, refer to the appropriate wiring infor-
mation. The wiring information includes wiring
diagrams, proper wire and connector repair proce-
dures, details of wire harness routing and retention,
connector pin-out information and location views for
the various wire harness connectors, splices and
grounds.

DIAGNOSIS AND TESTING - SPEAKER

For complete circuit diagrams, refer to the appro-

WARNING: ON VEHICLES EQUIPPED WITH AIR-
BAGS,

REFER

ELECTRICAL,

RESTRAINTS

BEFORE ATTEMPTING ANY STEERING WHEEL,
STEERING

COLUMN,

INSTRUMENT

PANEL

COMPONENT DIAGNOSIS OR SERVICE. FAILURE
TO TAKE THE PROPER PRECAUTIONS COULD
RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT
AND POSSIBLE PERSONAL INJURY.

CAUTION: The speaker output of the radio is a
“floating ground” system. Do not allow any speaker
lead to short to ground, as damage to the radio
may result.

(1) Turn the ignition switch to the On position.

Turn the radio receiver on. Adjust the balance and
fader controls to check the performance of each indi-
vidual speaker. Note the speaker locations that are
not performing correctly. Go to Step 2.

(2) Turn the radio receiver off. Turn the ignition

switch to the Off position. Disconnect and isolate the
battery negative cable. Remove the radio receiver
from the instrument panel. If the vehicle is equipped
with the Infinity speaker package, also disconnect
the wire harness connectors at the power amplifier.
Check both the speaker feed (+) circuit and return (–)
circuit cavities for the inoperative speaker location(s)
at the radio receiver wire harness connectors for con-
tinuity to ground. In each case, there should be no
continuity. If OK, go to Step 3. If not OK, repair the
shorted speaker feed (+) and/or return (–) circuit(s) to
the speaker as required.

(3) If the vehicle is equipped with the Infinity

speaker package, go to Step 6. If the vehicle is
equipped with the standard speaker system, check
the resistance between the speaker feed (+) circuit
and return (–) circuit cavities of the radio receiver
wire harness connectors for the inoperative speaker
location(s). The meter should read between 2 and 28
ohms (speaker resistance). If OK, go to Step 4. If not
OK, go to Step 5.

(4) Install a known good radio receiver. Connect

the battery negative cable. Turn the ignition switch
to the On position. Turn on the radio receiver and
test the speaker operation. If OK, replace the faulty
radio receiver. If not OK, turn the radio receiver off,
turn the ignition switch to the Off position, discon-

AUDIO

8A - 17

Content .. 282 283 284 285 ..
