SIDE GEAR CLEARANCE

When measuring side gear clearance, check each

gear independently. If it necessary to replace a side
gear, replace both gears as a matched set.

(1) Install the axle shafts and C-locks and pinion

mate shaft.

(2) Measure each side gear clearance. Insert a

matched pair of feeler gauge blades between the gear
and differential housing on opposite sides of the hub
(Fig. 14) .

(3) If side gear clearances is no more than 0.005

inch. Determine if the axle shaft is contacting the
pinion mate shaft. Do not remove the feeler
gauges, inspect the axle shaft with the feeler
gauge inserted behind the side gear.
If the end of

the axle shaft is not contacting the pinion mate
shaft, the side gear clearance is acceptable.

(4) If clearance is more than 0.005 inch (axle shaft

not contacting mate shaft), record the side gear clear-
ance. Remove the thrust washer and measure its
thickness with a micrometer. Add the washer thick-
ness to the recorded side gear clearance. The sum of
gear clearance and washer thickness will determine
required thickness of replacement thrust washer
(Fig. 15). In some cases, the end of the axle shaft will

move and contact the mate shaft when the feeler
gauge is inserted. The C-lock is preventing the side
gear from sliding on the axle shaft.

(5) If there is no side gear clearance, remove the

C-lock from the axle shaft. Use a micrometer to mea-
sure the thrust washer thickness. Record the thick-
ness and re-install the thrust washer. Assemble the
differential case without the C-lock installed and re-
measure the side gear clearance.

(6) Compare both clearance measurements. If the

difference is less than 0.012 inch (0.305 mm), add
clearance recorded when the C-lock was installed to
thrust washer thickness measured. The sum will
determine the required thickness of the replacement
thrust washer.

(7) If clearance is 0.012 inch (0.305 mm) or

greater, both side gears must be replaced (matched
set) and the clearance measurements repeated.

(8) If clearance (above) continues to be 0.012 inch

(0.305 mm) or greater, the case must be replaced.

SPECIFICATIONS

REAR AXLE - 8 1/4

AXLE SPECIFICATIONS

DESCRIPTION

SPECIFICATION

Axle Ratio

3.21, 3.55, 3.92

Differential Case Flange Runout

0.076 mm (0.003 in.)

Differential Case Clearance

0.12 mm (0.005 in.)

Ring Gear Diameter

209.5 mm (8.25 in.)

Ring Gear Backlash

0.12-0.20 mm (0.005-0.008 in.)

Ring Gear Runout

0.12 mm (0.005 in.)

Pinion Bearing Preload - Original Bearings

1-2 N·m (10-20 in. lbs.)

Pinion Bearing Preload - New Bearings

1.7-4 N·m (15-35 in. lbs.)

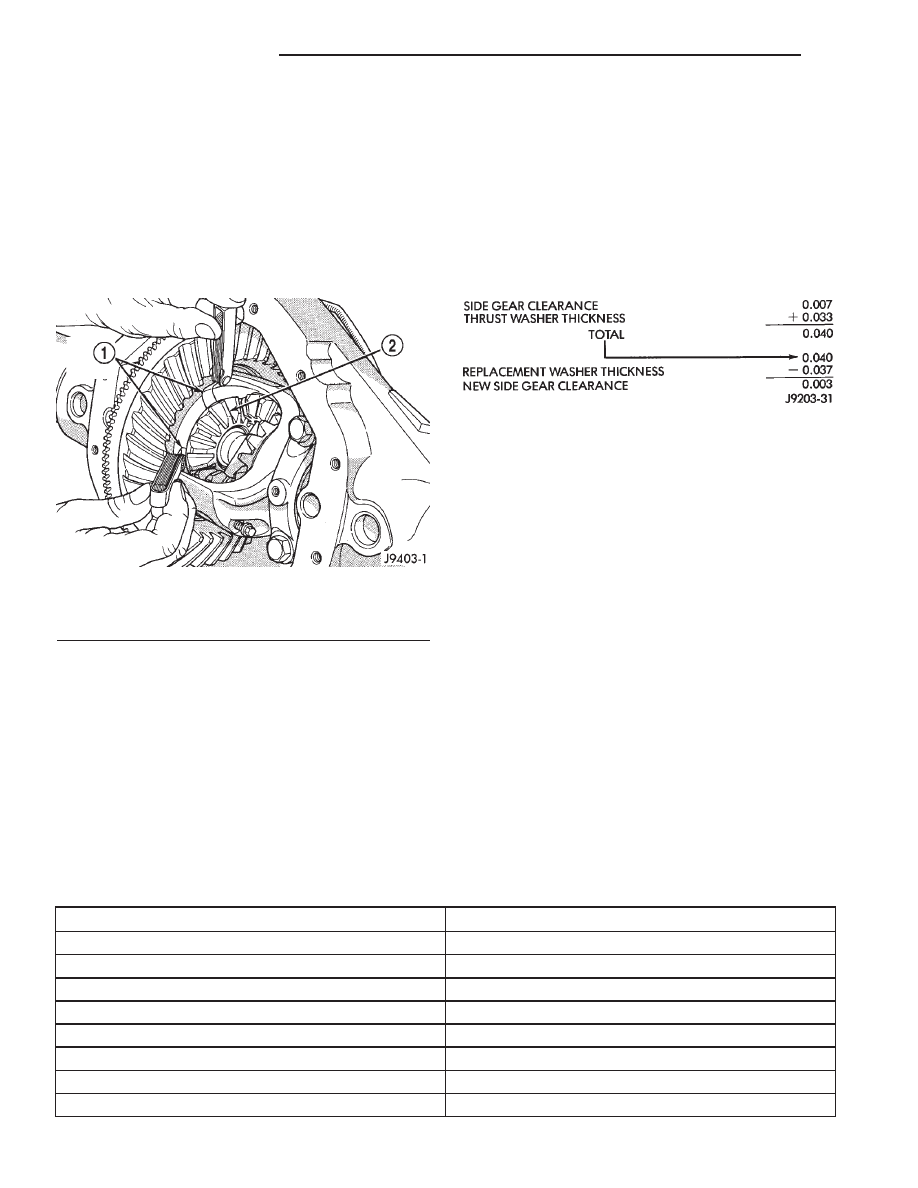

Fig. 14 Side Gear Clearance

1 - FEELER GAUGE
2 - SIDE GEARS

Fig. 15 Side Gear

3 - 58

REAR AXLE - 8 1/4

AN

REAR AXLE - 8 1/4 (Continued)

TORQUE SPECIFICATIONS

DESCRIPTION

N·m

Ft. Lbs.

In. Lbs.

Differential Cover Bolts

41

30

-

Bearing Cap Bolts

95

70

-

Ring Gear Bolts

102

75

-

Pinion Nut Minimum

285

210

-

Adjuster Lock Screw

10

7.5

90

Backing Plate Bolts

65

48

-

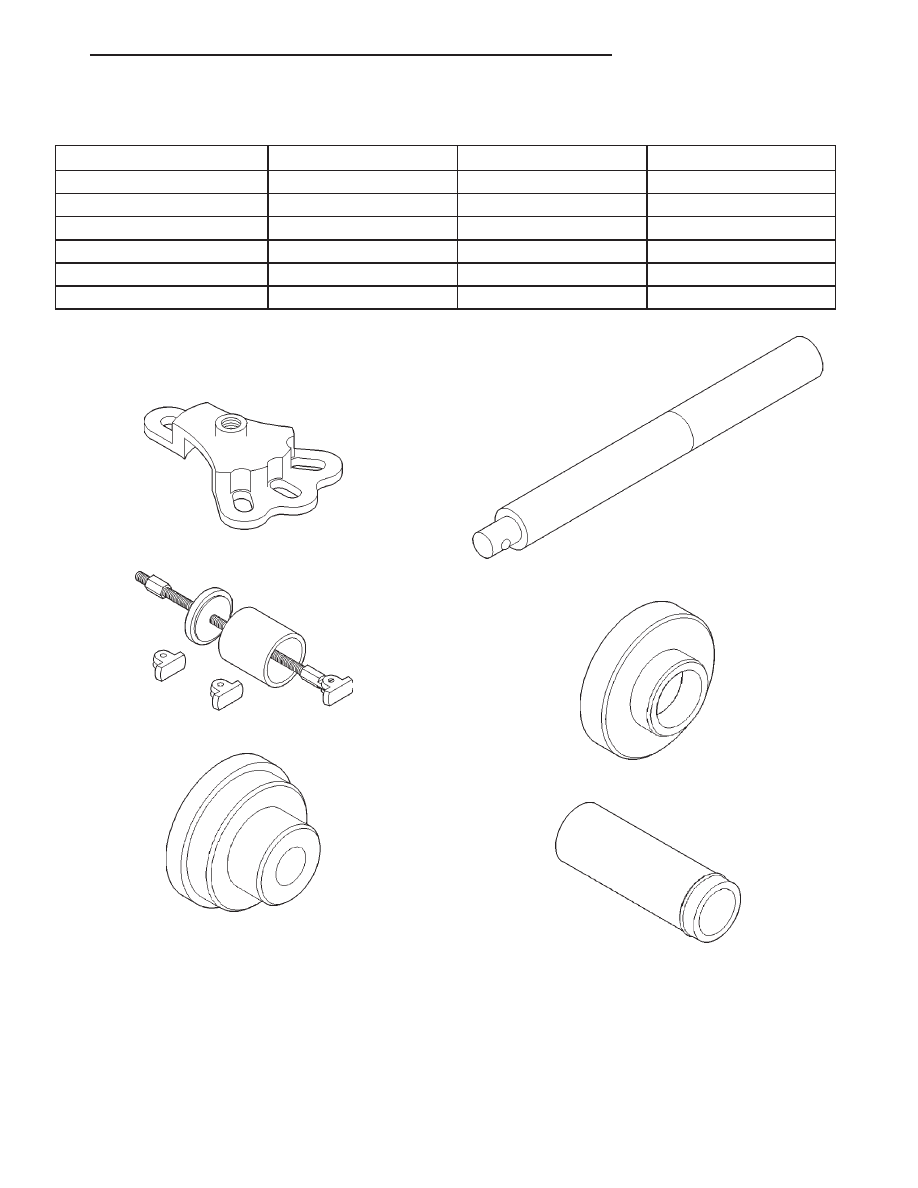

SPECIAL TOOLS

8 1/4 AXLE

Puller 6790

Remover 6310

Installer C-4198

Handle C-4171

Installer C-4076-B

Handle C-4735-1

AN

REAR AXLE - 8 1/4

3 - 59

SPECIFICATIONS

(Continued)

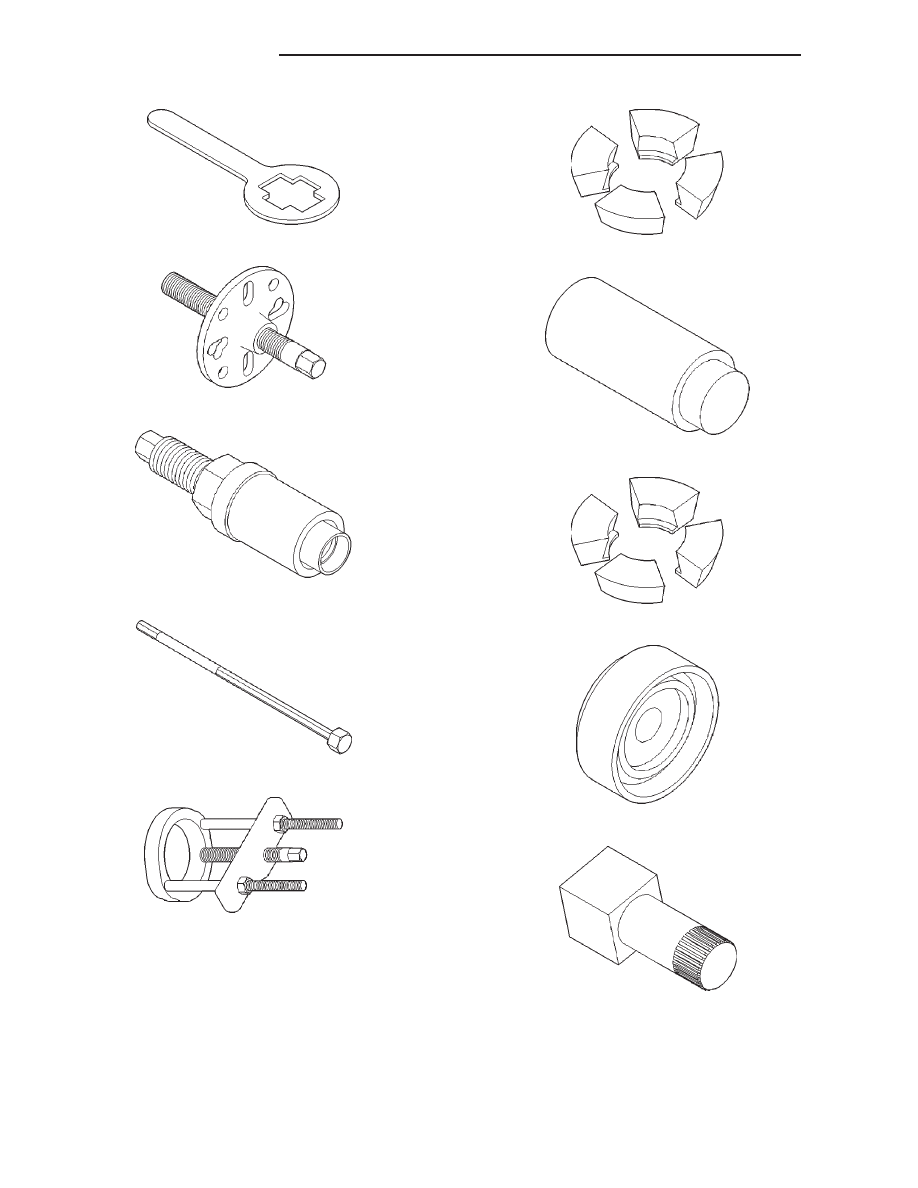

Holder 6719

Puller C-452

Installer C-3718

Adjustment Wrench C-4164

Puller/Press C-293–PA

Adapters C-293-48

Adapter Plug SP-3289

Adapters C-293-47

Installer C-4340

Fixture 8138

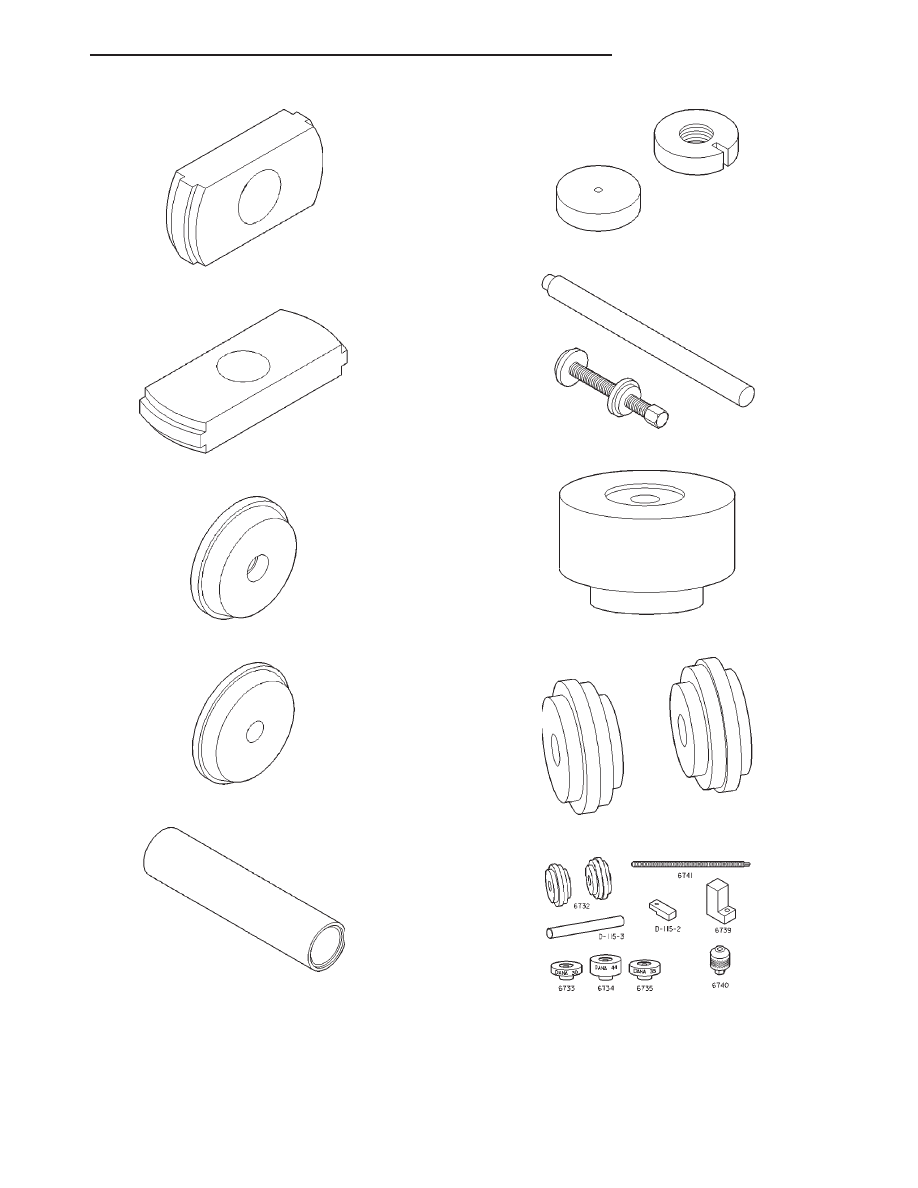

3 - 60

REAR AXLE - 8 1/4

AN

SPECIAL TOOLS

(Continued)

Installer C-4345

Remover C-4307

Installer C-4308

Installer D-130

Installer 6448

Trac-lok

Y

Tools 8140

Trac-lok

Y

Tools 6960

Pinion Block 8540

Arbor Discs 8541

Pinion Gauge Set

AN

REAR AXLE - 8 1/4

3 - 61

SPECIAL TOOLS

(Continued)
