DOORS  9P-3

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

FRONT DOOR

Removal & Installation Procedure

1. Remove the pin from the center hinge of the door.

2. Remove the upper/lower hinge bolts from the body and

remove the door assembly.

3. Installation should follow the removal procedure in the

reverse order.

9P-4  DOORS

REAR DOOR

Removal & Installation Procedure

1. Remove the pin from the center hinge of the door.

2. Remove the upper/lower hinge bolts from the body and

remove the door assembly.

3. Installation should follow the removal procedure in the

reverse order.

DOORS  9P-5

TAIL GATE

Removal & Installation Procedure

1. Remove the shock absorber mounting bolts.

2. Disconnect the tailgate wiring harness.

3. Remove the tailgate by removing the tailgate bracket bolts.

4. Installation should follow the removal procedure in the

reverse order.

9P-6  DOORS

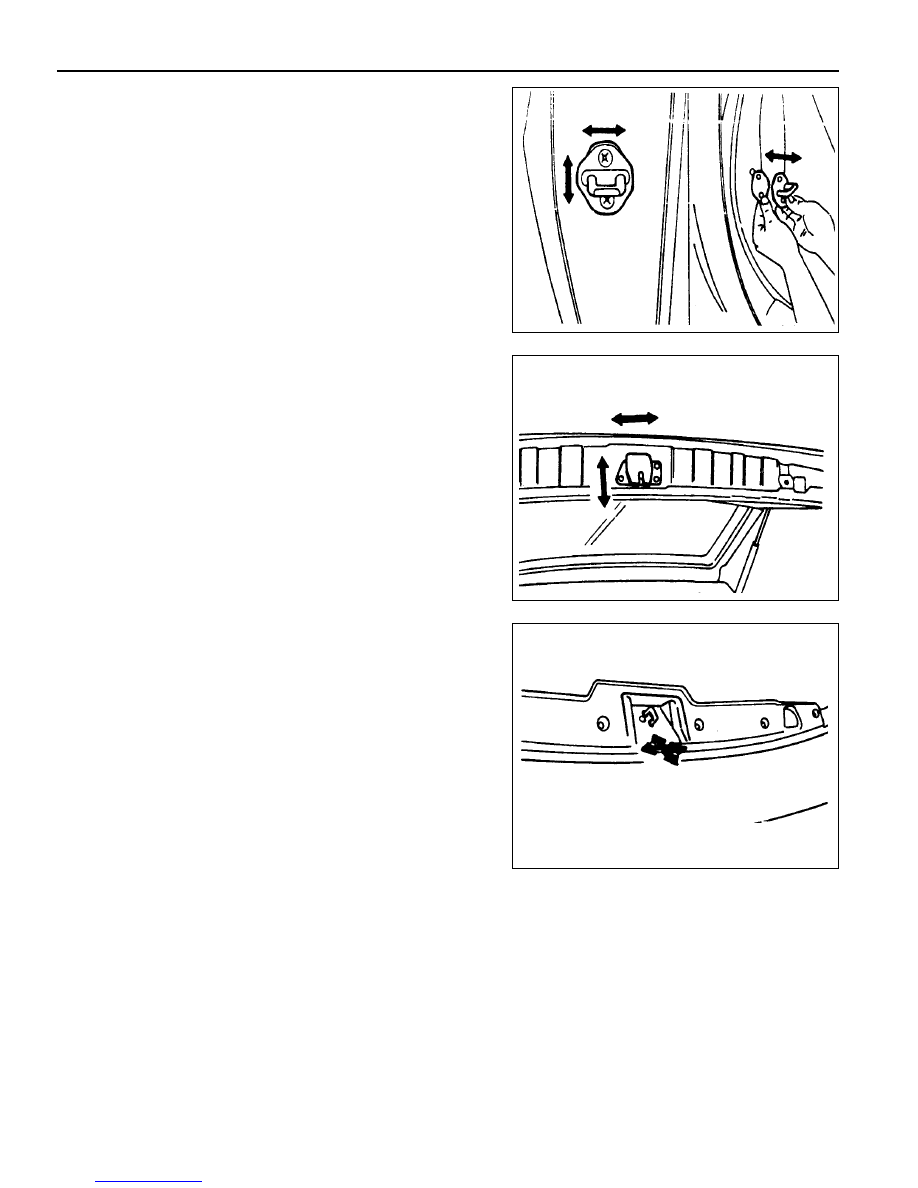

Adjustment Procedure

<Door Striker>

1. Adjust the striker in forward / rearward and left / right

directions. Adjust striker height by increasing / decreasing
the shims.

<Tailgate Striker>

2. Adjust the position of the striker as described above.

3. Adjust the position of the safety hook as described above.
