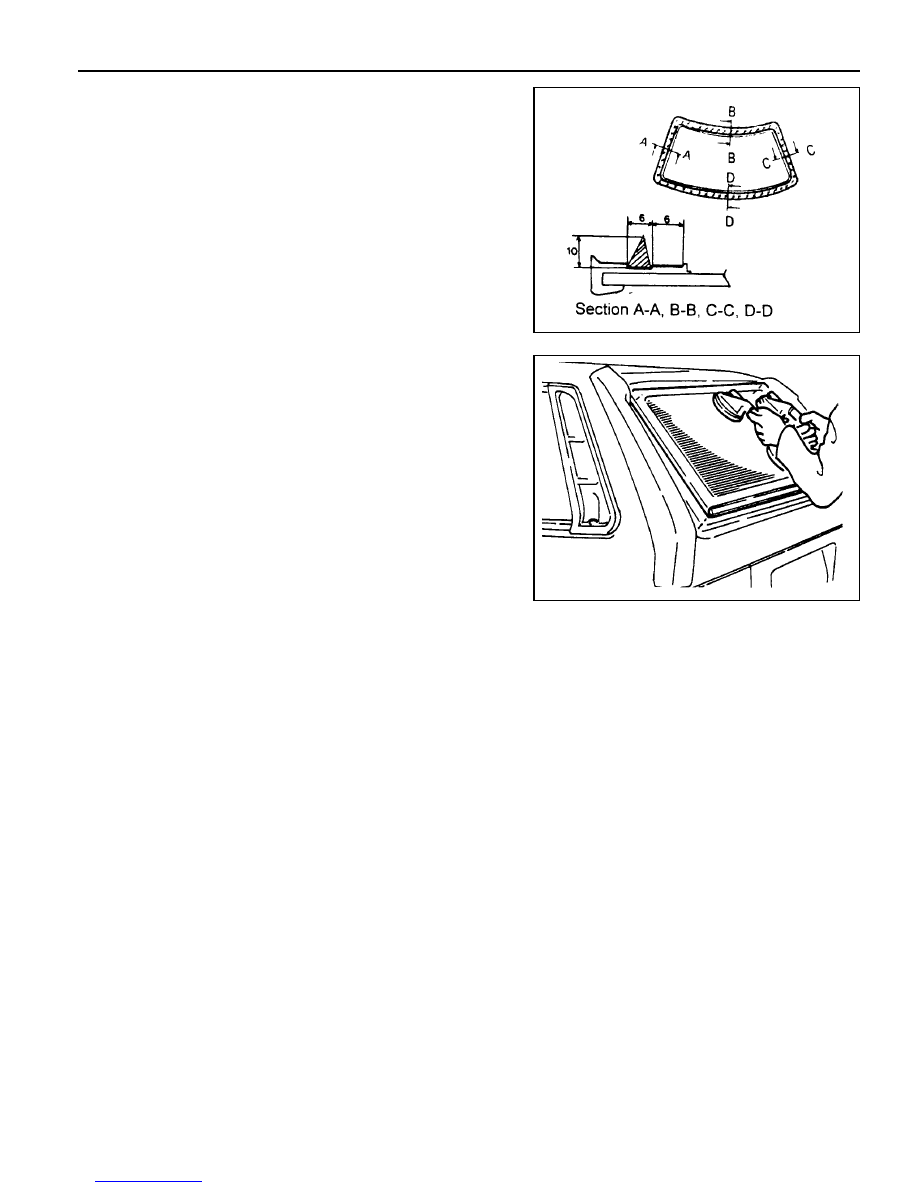

5. Apply sealant to the glass.

l

Turn over the glass and apply sealant.

l

Uneven application of sealant may cause water leakage
after installation of glass.

l

Do not touch the glass moldings and dam rubber while
applying sealant.

6. Using suction holders, install the tailgate glass within

5minutes after application of sealant.

l

Fix the glass with adhesive tape.

l

Apply sealant additionally between the quarter outer
panel and tailgate glass moldings.

9L-12  GLASS AND MIRRORS

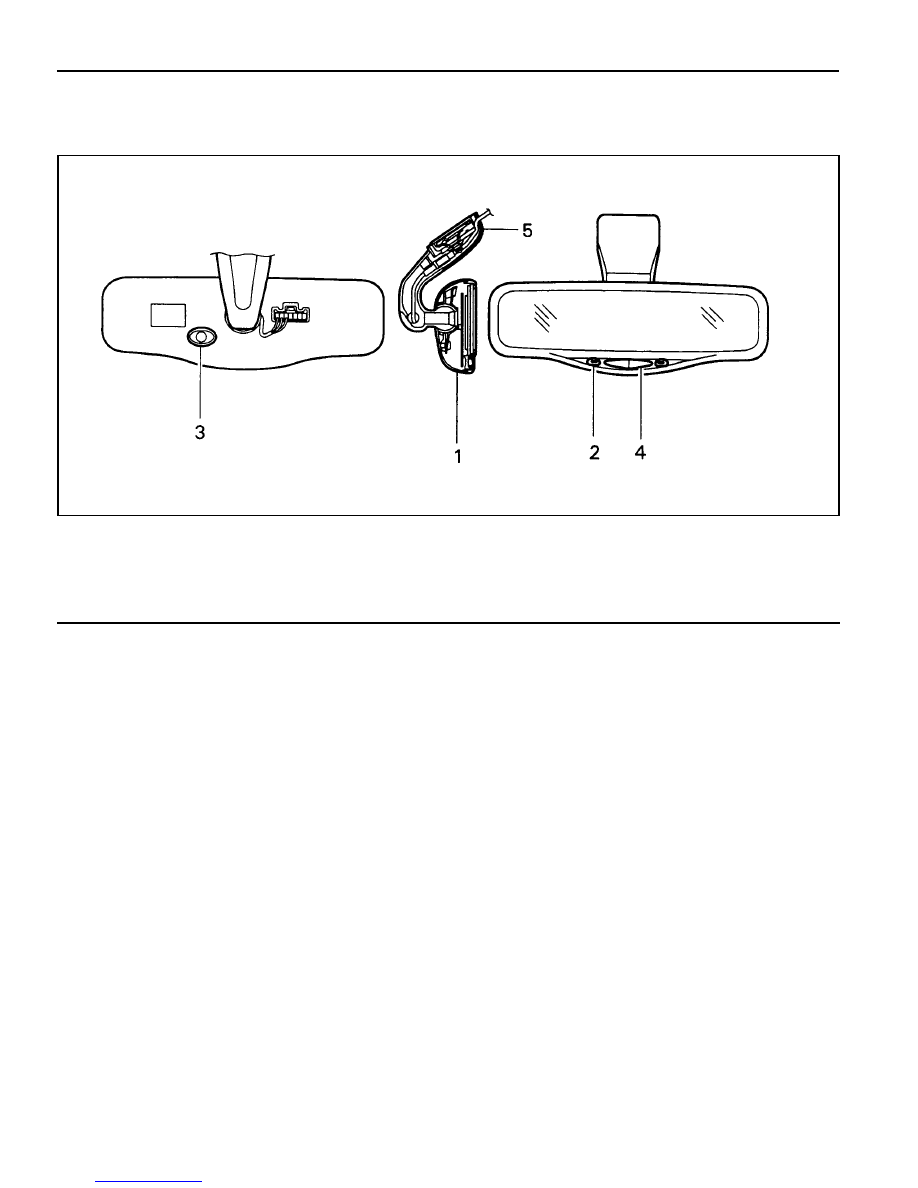

1 Auto Dimming Room Mirror Assembly
2 Sensor (Front)
3 Sensor (Rear)

AUTO DIMMING ROOM MIRROR

Layout

4 Switch
5 Cover
6 Lamp

GLASS AND MIRRORS  9L-13

Check & Service

If reflection ratio is not adjusted automatically during night
driving when AUTO switch is pressed, check each connectors
for proper connection and power flow to the auto dimming room
mirror using multi tester.

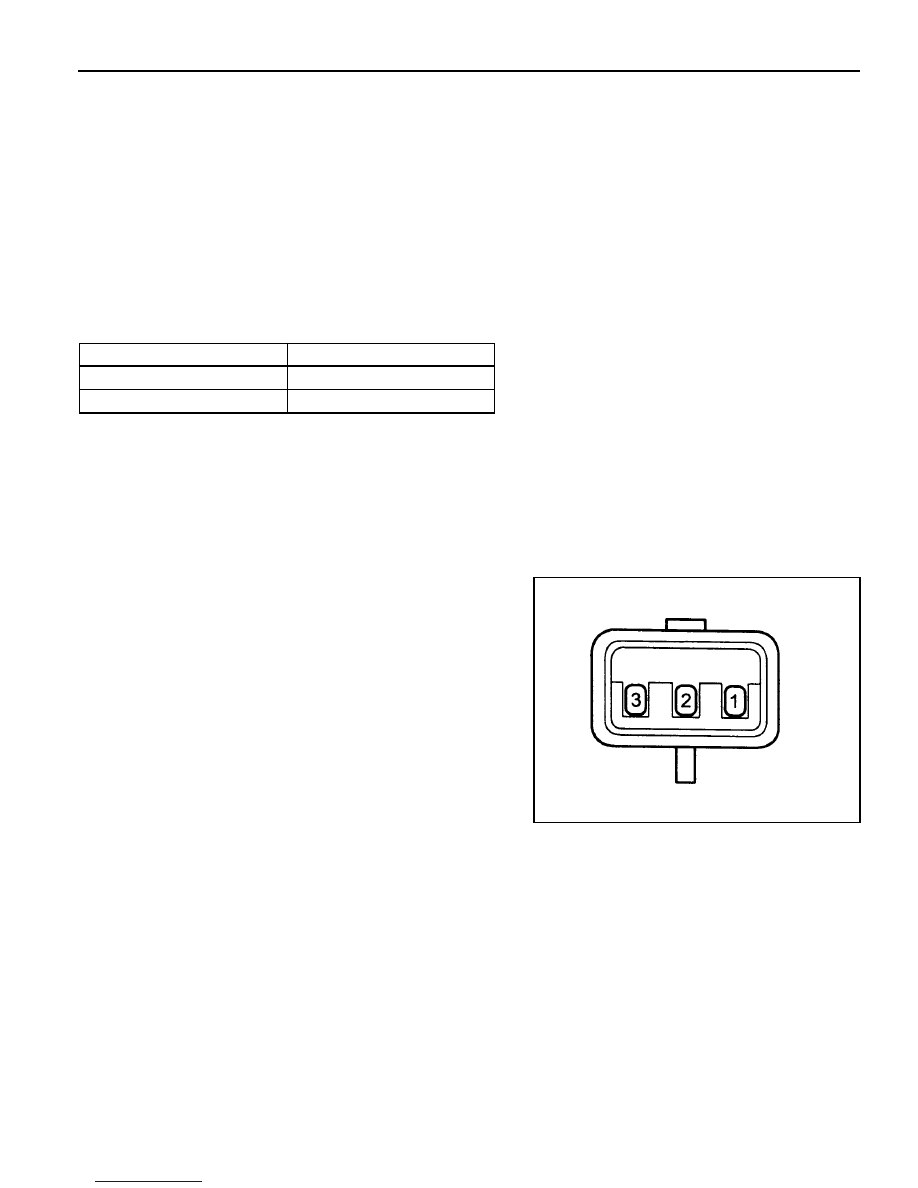

1. Yellow (Connected to back-up lamp)

2. Blue (Ground)

3. White (Power)

Voltage Rating

Operating Current

Over Current

DV 12V

1 A

3 A

Function

When ignition switch is turned ON, green lamp on auto dimming
mirror will turn in and glare reflection ratio will be automatically
adjusted. By positioning AUTO switch to ON, 2Sensors will
automatically adjust refection ratio after sensing rear and
surrounding brightness to reduce driver’s eye fatigue during
driving though tunnel or in night.

When OFF switch is pressed, the lamp goes out and it will be
operated as a normal rear view mirror and shift lever is
positioned in reverse, the auto dimming function will be
automatically OFF.

Specifications

9L-14  GLASS AND MIRRORS

Removal & Installation Procedure

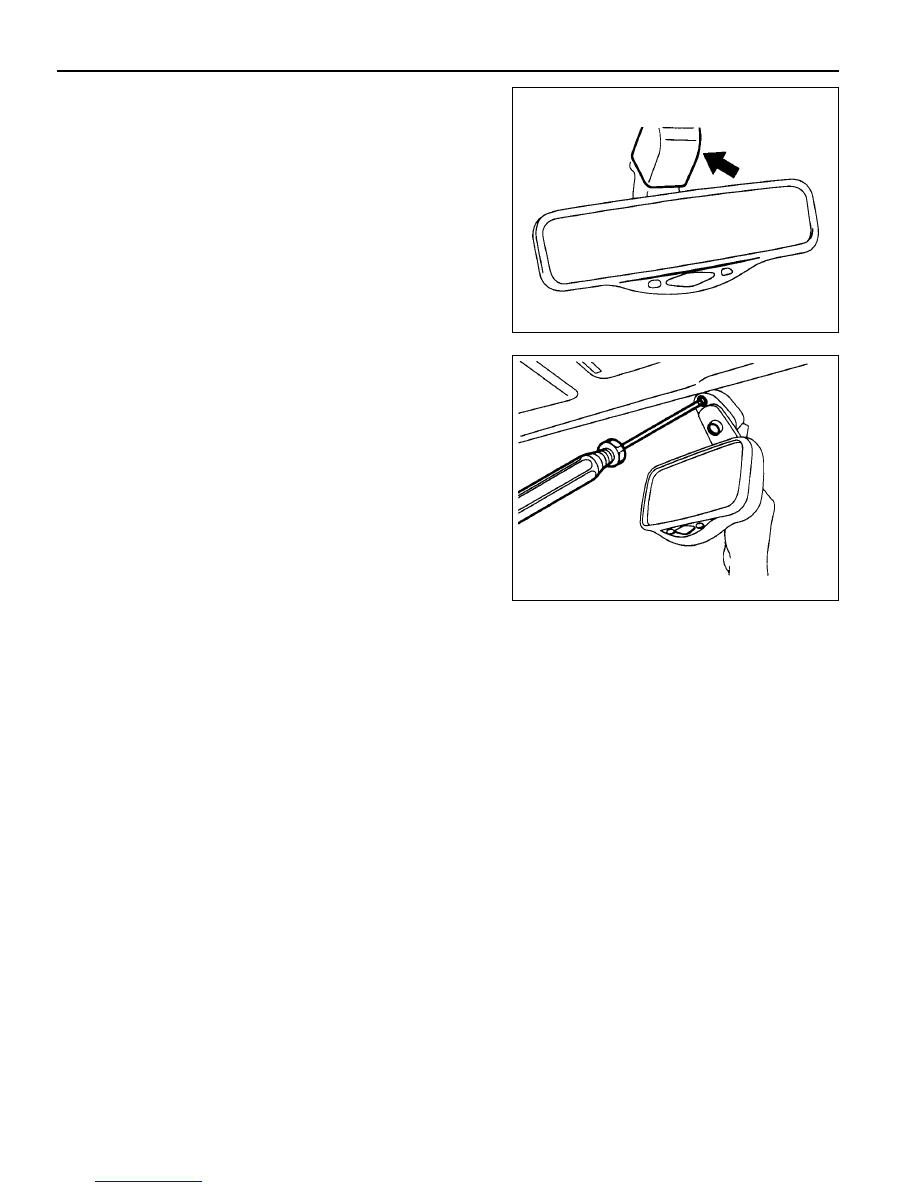

1. Removal the room mirror cover (arrow).

2. Disconnect 3-pin connector.

3. Removal the mirror assembly.

4. Installation should follow the removal procedure in the

reverse order.
