GLASS AND MIRRORS  9L-3

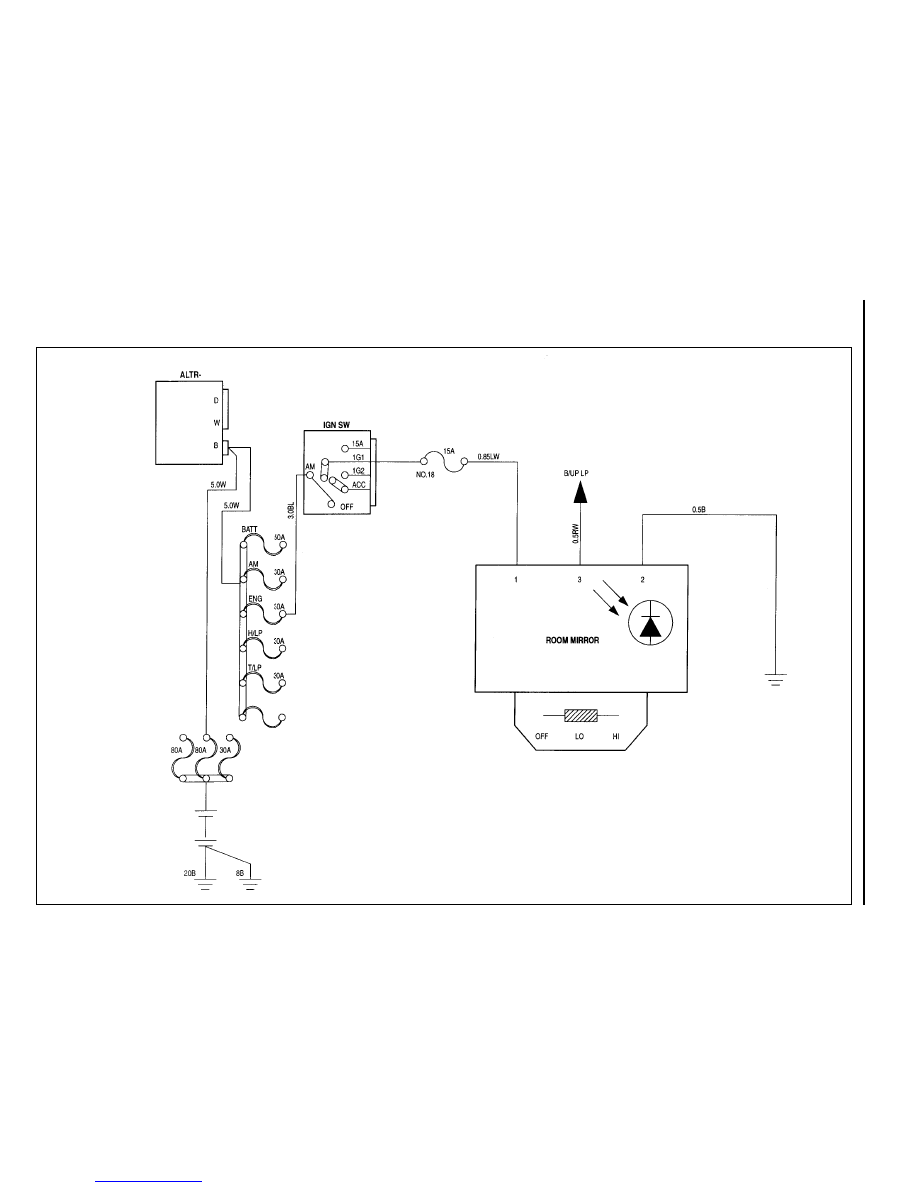

AUTO DIMMING ROOM MIRROR

9L-4  GLASS AND MIRRORS

MAINTENANCE AND REPAIR

ON-VEHICLE SERVICE

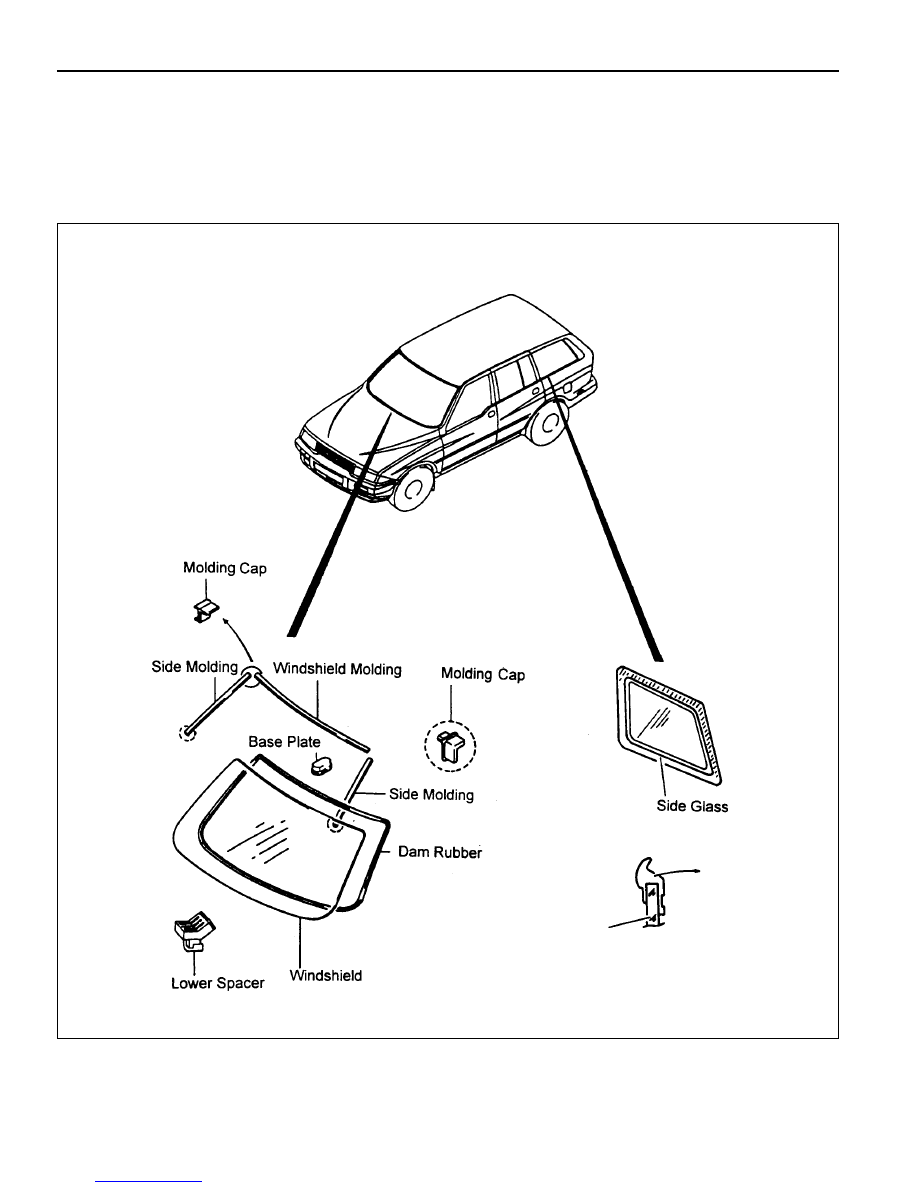

FRONT & SIDE GLASS

GLASS AND MIRRORS  9L-5

Installation of Windshield

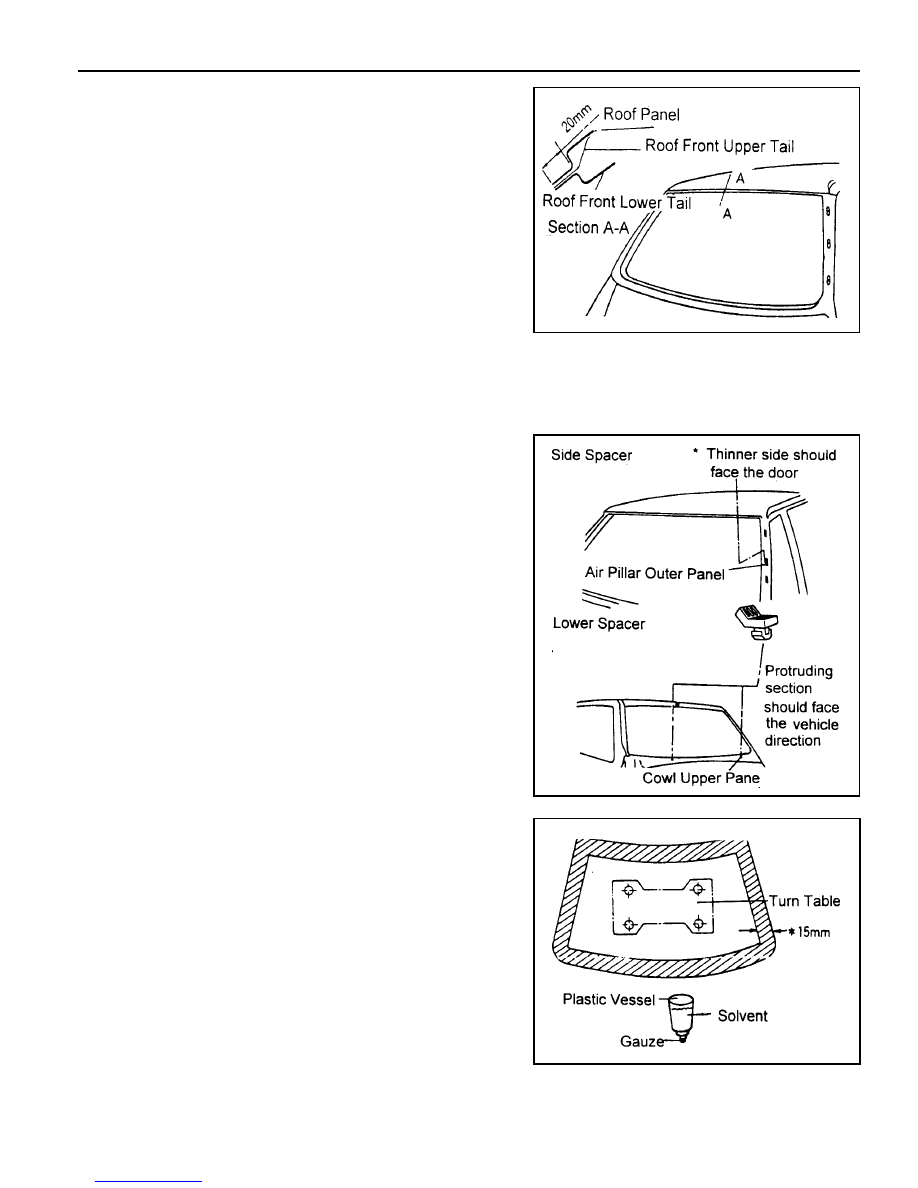

1. Cleaning of windshield mounting flange.

l

Do not reuse a gauze over 20 times.

l

Saturate the gauze in solvent (lsoprophyl alcohol).

l

Keep the cleaned surface to be cleaned.

l

Apply body primer to the cleaned and dry body flange.

l

If body flange is oiled or contaminated, primer can not
be applied.

l

Duration : 3 minutes - 8 hours (reapply after 8 hours).

l

If primer is applied to the body, clean off immediately
with solvent (ethyl alcohol and ethyl acetate, 50 : 50 in
volume).

l

Do not apply primers which is over its duration.

l

Be careful not to contaminate other parts.

2. Installation of windshield spacer.

l

Insert the spacer completely.

l

After inserting, there should be no clearance on the body.

- To the direction of the side spacer.

- To the direction of the lower spacer.

3. Cleaning of windshield glass.

l

Clean the windshield glass keeping 15mm from the edge
of glass.

l

Do not reuse a gauze over 20 times.

l

Saturate the gauze in solvent (lsoprophyl alcohol).

l

Do not touch the cleaned glass surface.

l

Apply glass primer to the cleaned and dry glass.

l

If glass is oiled or contaminated, primer can not be
applied.

9L-6  GLASS AND MIRRORS

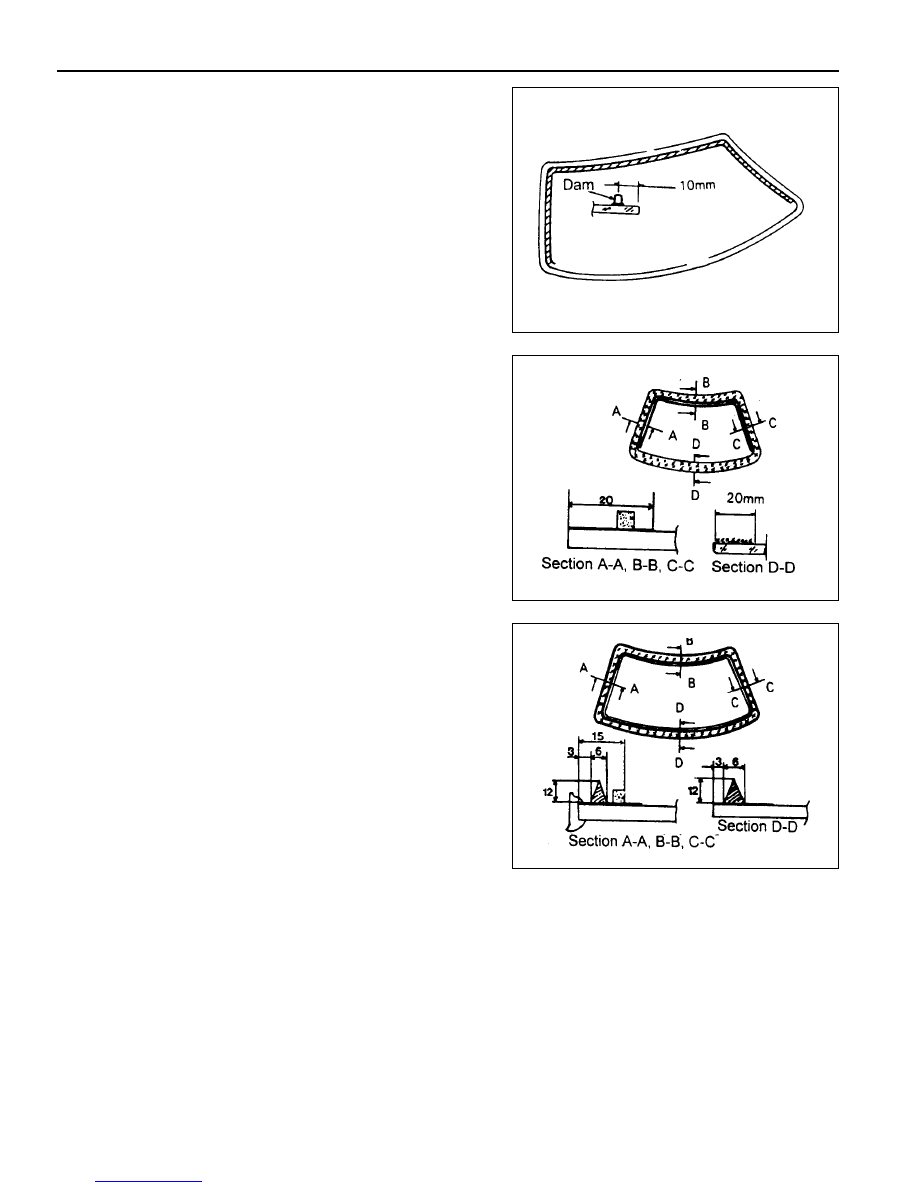

4. Installation of glass dam rubber.

l

Using a double - faced adhesive tape, install the dam
rubber keeping 10mm from the edge of glass. If intervals
are irregular, primers and sealants can be applied
unevenly.

l

If need to remove the improper dam rubber, do not
remain the double - faced adhesive tape on the glass.

Improperly installed tape causes the inferior appearance
and weakening of adhesive strength of sealant.

5. Apply glass primer to the outer area of the dam rubber.

Notice

l

Do not apply body primer to the glass.

l

Do not touch the primer applied surface. If you touch,
this may cause water leakage after installation of the
windshield.

l

Keep water or dust away from the primer applied surface.

6. Apply sealant to windshield glass.

l

Uneven application of sealant may cause water leakage
after installation of the glass.

l

Do not touch the glass moldings and dam rubber while
applying sealant.

l

Turn over the glass and apply sealant.

7. Using suction holders, install the windshield within 5minutes

after application of sealant.
