9H-4  SEATS

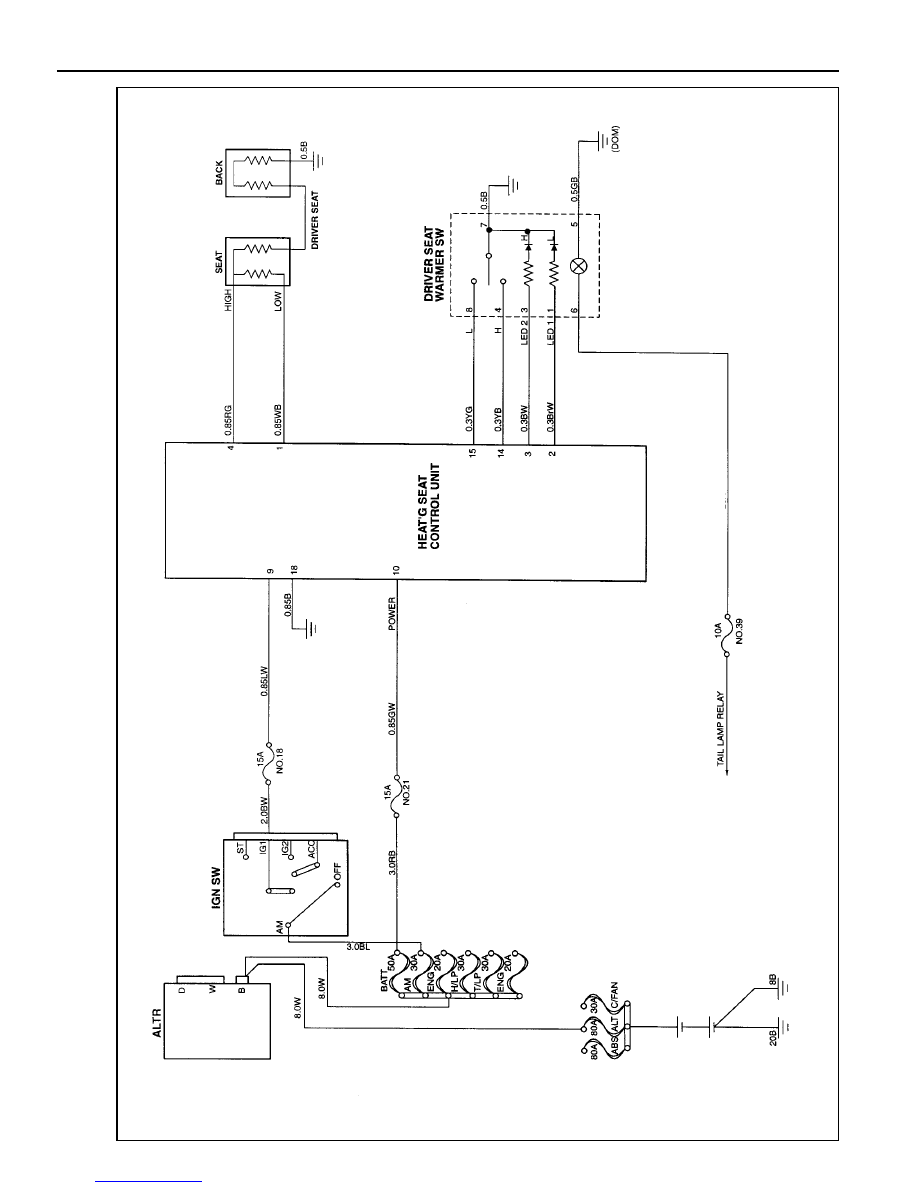

SEA

T W

ARMER

0.5 GW

SEATS

  9H-5

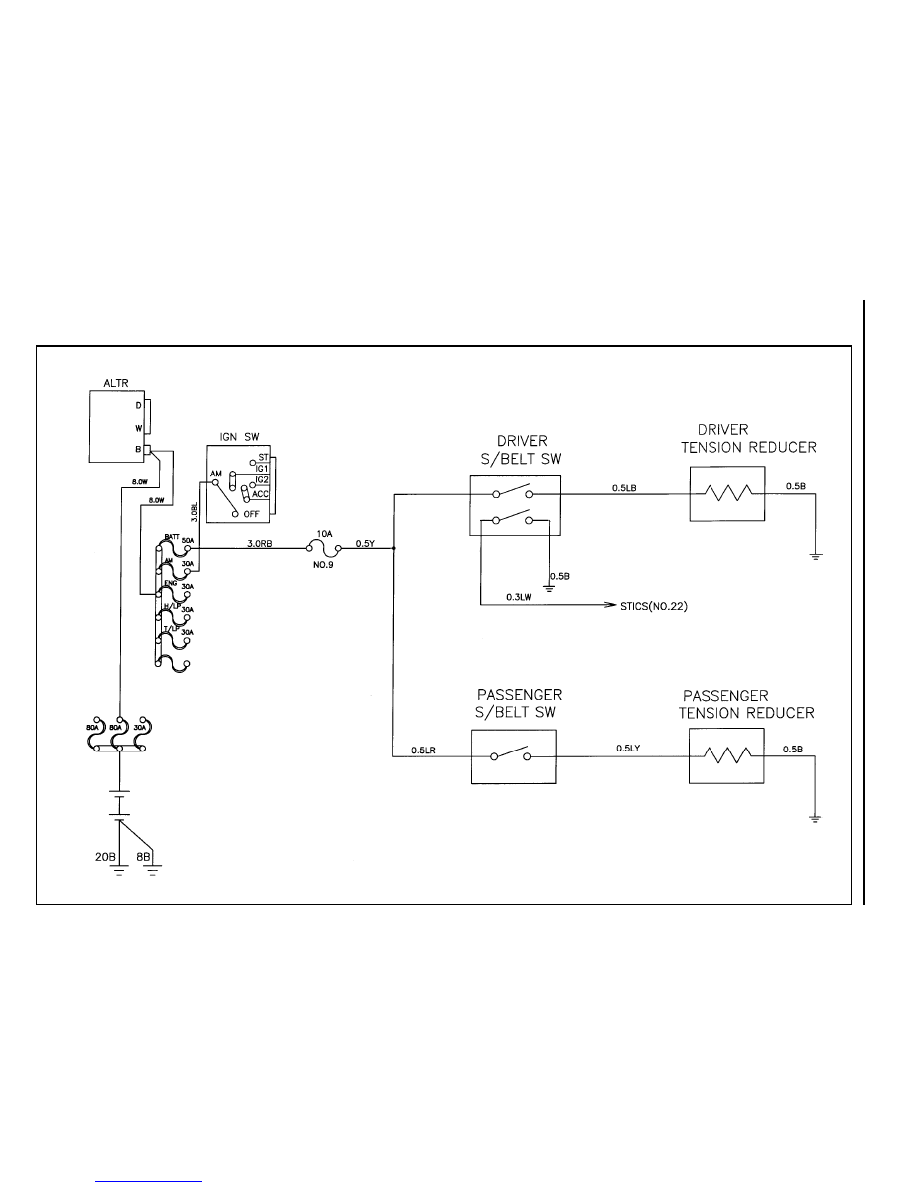

SEAT BELT & TENSION REDUCER

9H-6  SEATS

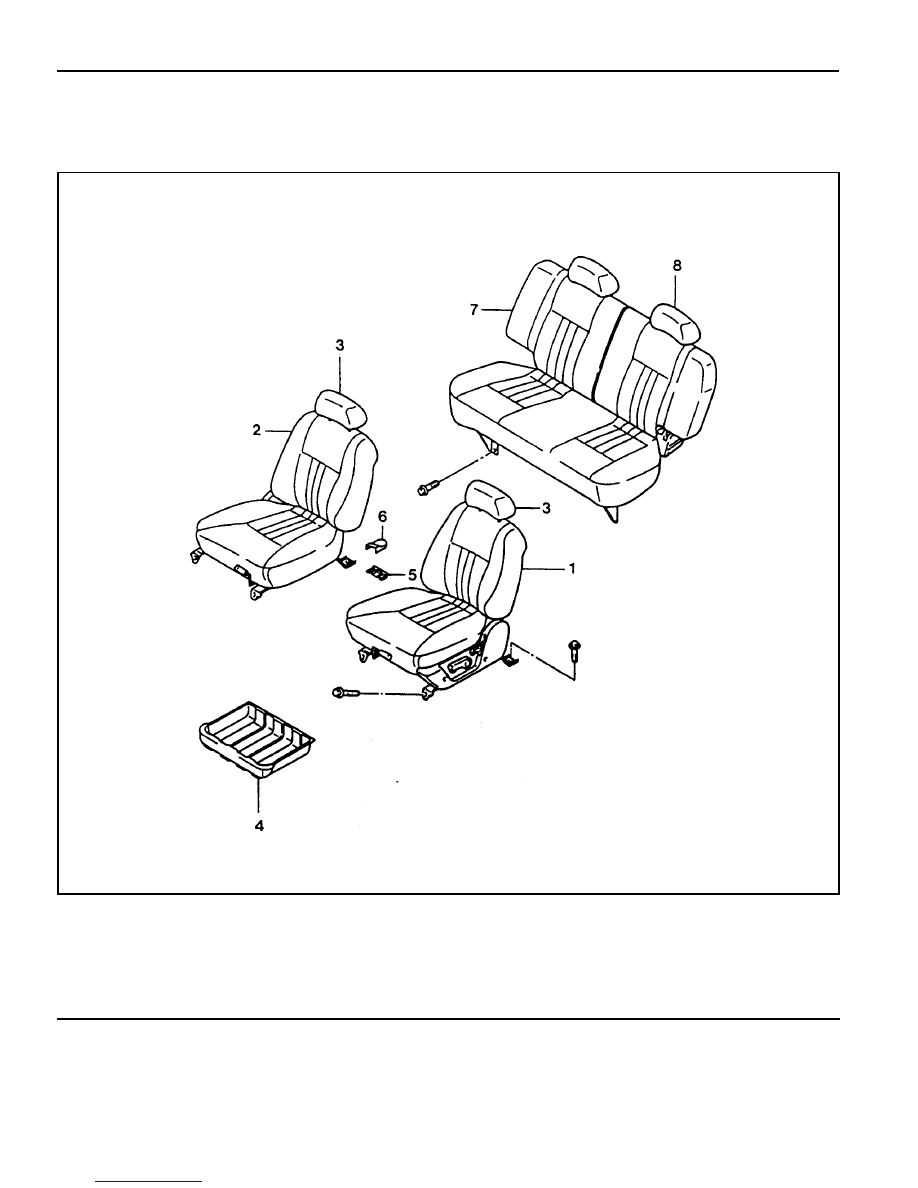

COMPONENT LOCATOR

FRONT SEAT & REAR SEAT

1 Front Seat (Driver’s)
2 Front Seat (Passenger’s)
3 Headrest
4 Under Tray Assembly

5 Front Seat Mounting Rear Outer Cover
6 Front Seat Mounting Rear Inner Cover
7 Rear Seat Assembly
8 Headrest

Notice

Removal and installation is as shown in upper drawings.

SEATS  9H-7

MAINTENANCE AND REPAIR

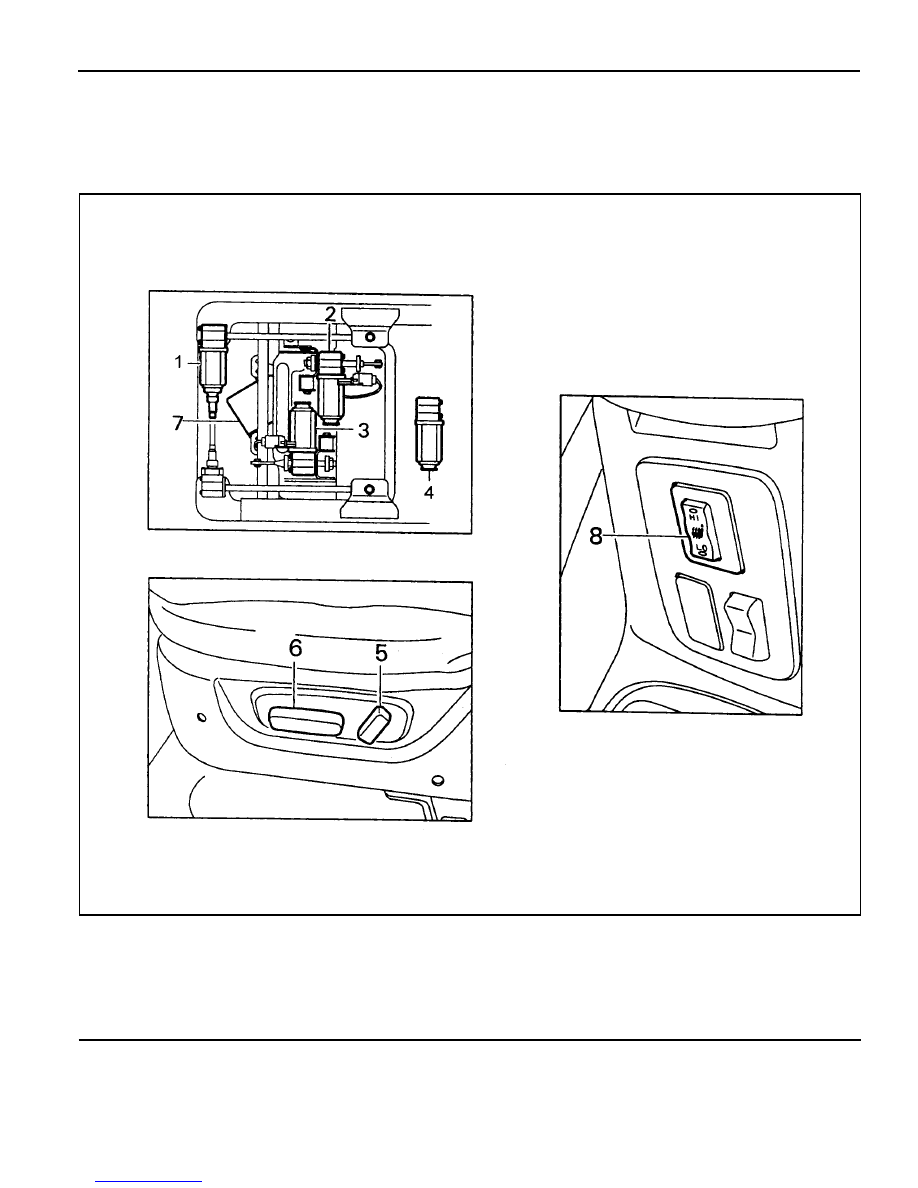

ON-VEHICLE SERVICE

1 Slide Adjusting Motor
2 Height Adjusting Motor
3 Tilt Adjusting Motor
4 Recline Adjusting Motor

5 Driver's Power Seat Recline Switch
6 Driver's Power Seat Switch(Slide, Height, Tilt)
7 Seat Heater Control Unit
8 Seat Heater Switch
